AFF Axle Air Jack 545SD

In stock
Guaranteed Lowest Price $1,159.00 Regular Price $1,336.00

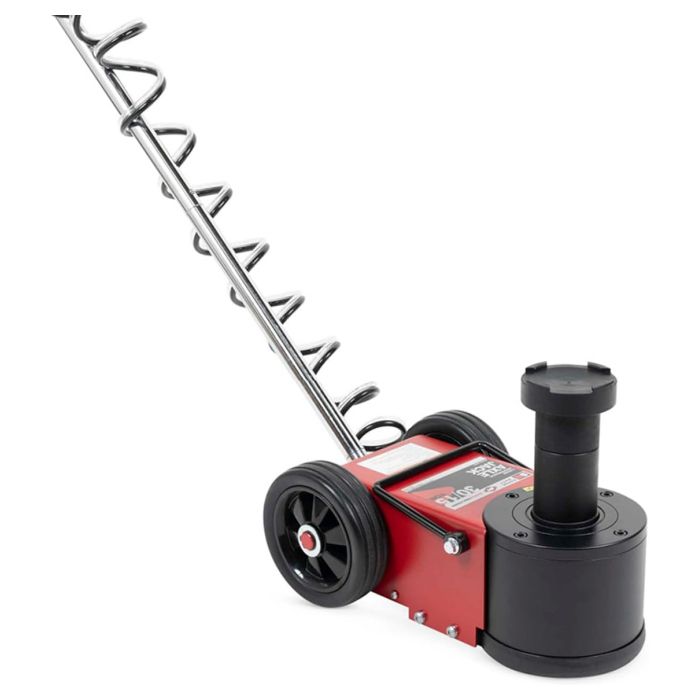

AFF 545SD Hydraulic Axle Jack 30 /15 Ton 2 Stage Air
The ulitimate jack for servicing vehicles due to it's portablility and extreme light weight


  • The extra light weight and portability makes this the ideal service jack for Service Vehicles
  • 2 Stages and lifting capacities of 30 and 15 Ton make this a very versatile jack.
  • The extra long removable handle and rugged rear wheels make for easy positioning in hard to reach places.
  • Air assisted lowering speeds up ram retraction
  • Comes with 2 extensions (75mm/3" + 45 mm/1.75") and saddle adapter
  • Units are tested to -13F(-25C) and +113F(+45C) as well as off center loading to ensure a long life under the harshest conditions
  • Low height makes this one of the lowest operating heavy jacks on the market.
  • Ideally suited for drop axles and other low clearance jobs

Lift your vehicle easily and efficiently with a wide variety of air jacks and air/hydraulic jacks by American Forge & Foundry. Durable steel frames with forged steel components and chrome rams mean no cheap throw-away jacks. 1 year warranty and parts are always available. Don't worry, we've got your back.

American Forge & Foundry Inc. has made quite a name for themselves over the years. Formed in 1963, they have grown into a specialist in providing top quality auto shop equipment while maintaining very competitive prices. AFF has over 300 service centers throughout the nation and maintains a complete supply of replacement parts that ensure that your product is not just another throw-away like so many others.

Features and Specs

Capacity: 30 / 15 Tons
Ram Lift: 2.91" / 5.59"
Low Height: 5.92" / 5.92"
High Height:  8.82" / 11.5"
High Height w/Ext: 14.57" / 17.25"
Working Air Pressure: 116 to 145 psi
Ship Weight: 77 lbs.

More Information

More Information

Made in China to conform to ANSI standards.

AFF has over 200 service centers nationwide and is headquartered in NY.

Warranty is one year.
