BendPak 4 Post Lift Narrow 9,000-lb. Capacity HD-9ST
BendPak HD-9ST Four Post Car Lift | Narrow Width, 9,000-lb. Capacity

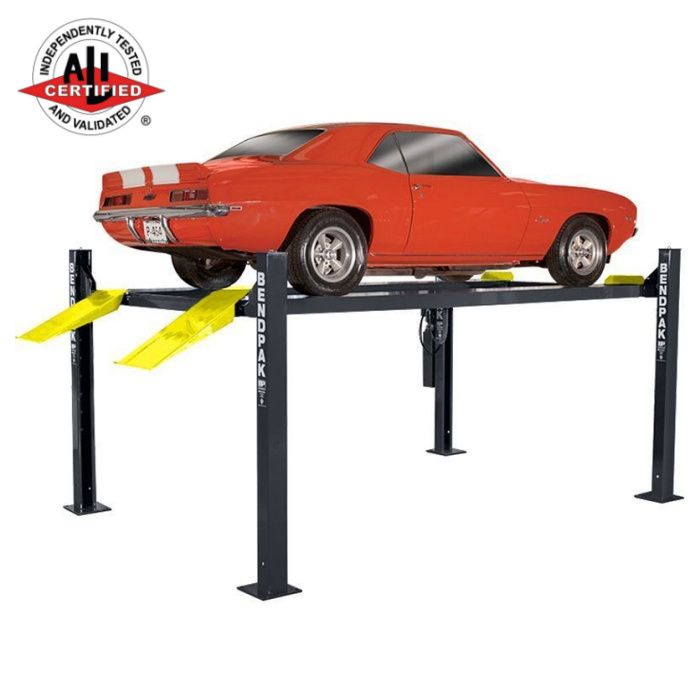

The HD-9ST is a rugged, standard-height, space-saver solution with a 9,000-lb. lifting capacity. Perfect for vehicle storage and service—at the shop or in the garage. Whether you're a service professional or a DIY'er, BendPak's got the right lift for you. This model is available with optional casters, dip-trays, jack platform and more.
The BendPak HD-9ST Lift is ALI and ETL Certified.
NOW IN NEW GUNMETAL GRAY!
A Slim, Safe and Certified Lift
Some garages are just a bit too cozy for a standard-width four-post lift. The trick is to find a smaller-footprint lift that won’t sacrifice functionality. The HD-9ST is perfect for small garages and spaces that are already filled to near-capacity. Its narrow width is designed for spaces and service bays that need to fit more lift in less space.
A slim lift is a smart choice for owners more compact vehicles. Because the HD-9ST features an open center, it doubles as both narrow parking lift and maintenance lift. This makes it the ideal four-post lift for wrenchers with a limited amount of space. In addition to the narrow design, the columns are only 88” high, so it’s low-profile too. The runways raise to a max height of 75”, so the HD-9ST fits easily in low ceilings yet doesn’t sacrifice lifting height. Ample clearance underneath ensures that full-grown men and women over 6-feet tall will have no problem performing oil changes, comfortably adjusting transmission jacks and removing and replacing exhaust systems. Other lifts may sacrifice lifting height as they reduce their overall widths to accommodate smaller vehicles, but not this one. This is one four-post lift that’s every bit as comfortable to use as its standard-width and super-wide sister models in the HD-9 series.
The HD-9ST may be smaller, but it’s not weaker than other designs, nor is it a hobby lift. In fact, this car lift is fully ALI certified. It’s used every day in professional shops around the world, and many motorists prefer it to the standard-length HD-9 simply because it leaves more room in their garage for tools and equipment.
Safety is a priority - Ten position pneumatic automatic safety locks up and down each column ensure your peace of mind. Added to that is a secondary slack cable locking system that will engage in the event off cable failure. Only true commercial quality lifts have dual safeties like this. Does that other lift you're looking at have dual safeties? Odds are, it doesn't. It also has an air solenoid safety release mechanism. Much more reliable than the typical mechanical safety release found on most lifts. Air compressor is required for safety lock operation. Plus, these lifts are ALI Certified. If the other lift you're looking at isn't, then you need to keep looking.
Superior Lifting Systems - Superior lifting system features FOUR high tensile strength (rated at 14,500 lbs. each) cables that are used on model HD9 portable garage lifts. All rollers are made of hardened steel and utilize self-lubricating bearings. Bend-Pak's four post lifts also use a futuristic UHMW ultra-high molecular weight polyethylene load bearings. They never need lubrication and last virtually the life of the lift.
The HD-9ST four-post lift has the same narrow drive through clearance as the HD-9STX. It has the standard length runways of the HD-9, as well as the standard lifting height of the HD-9. Check out the dimensional drawing in our MORE INFO tab for more detail. If you're tight on garage floor space, but want to fit one typical passenger car over another on it, then this is the model for you. Store everything from ATV's, cars, motorcycles, lawn tractors and more up top. But this is not just a great storage lift. Add the rolling jack or jack plate, and you've got a full on service rack as well. Utilize all of the wasted space in your garage. Then, if you want to move it, go ahead and roll it right out of your garage with the optional caster kit.
Dependable design - Heavy duty aircraft lifting cables are made of stainless steel and premium hydraulic cylinder is conveniently located up underneath the runway making this a truly maintenance free product.
Dual-hub cable sheaves - Most manufacturers use single hub sheaves. Using dual hub sheaves may caost a little more, but means greater longevity. Plus, all pulleys are double diameter. This significantly extends the life of your cables. When you buy BendPak, you get premium features found only on commercial quality models.
Multiple level locking positions - The HD‐9 lifts are all fitted with multiple locking positions that are also adjustable. The adjustability is an unusual feature that most manufacturers don't offer. This is a handy feature that will help you adjust for various ceiling heights and for slope in your floor. A pneumatic safety release mechanism tops it all off by assuring that all four safeties disengage at the same time.
Heavy duty aircraft cable - Many competitors take a shortcut on the cables. BendPak uses heavy duty stainless steel aircraft quality cables that are rated at 14,000 lbs. each, providing a capacity that is 640 % greater than the rated capacity of the lift. Take a look under the runways. These cables are safely and neatly enclosed up underneath the runway in a system that makes sure that they won't flop around and catch on things like may others will.
Electric / hydraulic power system - So many inferior hydraulic power units are prominent in the market today. We see complaints from customers about other manufacturers units failing after only a few years. We utilize a maintenance free electric power unit that is dependable, reliable, and won't let you down after only a few years. One unique feature you'll find on the BendPak 4 post lifts is that the power unit is located to run in-line with the lift, not on the outside of the column. This means it wont take up as much floor space. Very important in a tight garage.
Large base plates - 12 x 10" base plates allow the lift to be free standing, and makes for a secure footing that won't cut out from under you.
Premium Hydraulic cylinder - Located safely up underneath one of the runways, so it won't get in the way. These are industrial grade cylinders. Not the inferior consumer grade cylinders that you'll find on competing models This is where you'll see many manufacturers take shortcuts. Premium single piece hydraulic cylinders are machined to precision with a pilot fitted hardened steel piston which is wrapped with custom fitted piston seals and wear bands and back ups, greatly reducing potential for leakage. The chrome rod is forged micro smooth to provide years of dependable use well beyond that of a typical cylinder and has a polished finish, plated to .001" diametrically. Advanced rod seals and rod wiper construction means that abrasion and wear are diminished to a fraction of the competition. Base materials with this attention to detail means that your end product will supply years of reliable service beyond the typical mass produced cylinder.
Durable powder coat finish - The powder coating process used on the all XPR series lifts is superior to others in that it is a meticulous process that takes 10 steps to complete. First, all components are inspected to ensure they are clean before being sandblasted. After sandblasting, all components are washed through 5 stages of huge phosphate tanks that can handle parts up to 25 feet long. Once cleaned, the parts are dried immediately to prevent rust. Then, the components are Out-gassed, which is a process that pre-bakes the components in an oven to prep for coating. Many systems take a shortcut here. Doing that could cause problems with the final coat, including imperfections like chipping and bubbling, which is common on many inferior models. High temperature masking tape and silicone plugs are then used to cover any holes or components that need to be covered. Next, all components are given a thinner wipe to remove any possible prints or debris that could have occurred. After that, they are suspended on an electro-statically grounded conveyor line. and an electrostatic spray gun applies the powder. Finally, the parts are cured in 400 degree ovens for 3/4 of an hour.
All this leads to the most durable powder coat finish in the industry, capable of standing up to the most harsh environments and chemicals you can dish out.
Five models to choose from Take your pick. There's the extra-wide, standard height HD‐9XL. The HD-9ST is the narrow model with standard height and length, the HD-9 is the wide model with standard height and length, the HD-9STX is the narrow-width, tall model car lift. Then, there is the HD9XW, extra high, extra wide, extra long model.
Integrated design - all components are fully enclosed within the structure of the hoist. Lifting cables, hoses, and safety mechanisms, and pulleys are all out of the way so as to protect them and also to not provide pinch points.
Longer approach ramps - Having approach ramps that are slightly longer allows you to drive lower profile cars up onto the runways without fear of bottoming out. You'll appreciate that if you've got a low clearance sports car. Extra long approach ramps are also available as an optional accessory.
Automatic safety locks - heavy duty cylinders assure that all four safeties will disengage when you press a button. This is a superior system to the typical mechanical safety release most lifts utilize. Safety locks are spring loaded and engage automatically when you raise the lift. plus, as an additional safety feature, there is a slack cable safety that automatically engages if the cable were to beak or slip off a pulley. Note - a small air compressor is required to disengage the safeties.
Why Should you purchase a Bend Pak lift from ASEdeals?
1) Guaranteed Lowest Prices - Listen, we monitor our competition's prices. We know we usually have the lowest price on most of our equipment most of the time. In the unlikely event you find any of our automotive lifts advertised anywhere on the web for less, just tell us where you saw them, and we'll beat them. It's that simple. Our prices will not be beaten!
2) Largest BendPak distributor -This means that you enjoy the benefit of our size. Not only does this allow us to offer the best pricing available, If you have any warranty issues that you feel are not being addressed quickly enough, or to your satisfaction, we have the influence with the manufacturer to get your issue resolved right away.
3) Years of Experience - So many internet companies have popped up over the past few years, claiming to have all kinds of experience, and then when you dig a little deeper, you'll find out that they've only been around for a few years. We've been carrying Bend Pak equipment for over 17 years now. When you call and speak to us, you're not getting just an order taker that knows nothing about the product. We know these products better than most. Not only will get you answers to your questions, we will make sure that you get the proper lift for your application.
4) Reputation - Right along with the years of experience comes our reputation. Check out our reputation on all of the various car enthusiast forums out there, such as Garage Journal or Corvette Forum. You'll find countless satisfied customers, praising not only our prices, but also our integrity, honesty and ability to help you choose the right product for your application. And then, there's our hundreds of satisfied customer pictures and testimonials to back it up. We'll gladly put our reputation up against anybody's.
*Not all BendPak lift models meet the standards as prescribed by ANSI/ALI ALCTV-2006 or ANSI/UL 201. Conact ASEdeals for a complete list.
Features and Specs
FEATURES BendPak Four Post Lift Model HD-9ST
- 9,000-lb. maximum lifting capacity
- Two different ramp lengths to choose from
- Narrow width for space efficiency
- Freestanding design
- Perfect for parking, storage and service
- Runways accommodate narrow and standard vehicles
- Runways include rail-kit for optional accessories
- Electric / hydraulic power system
- Single hydraulic cylinder mounted underneath runway
- Fully enclosed lifting cables, safety locks and sheaves
- Internal anti-sway slider blocks in each column
- Oversized self-lubricating cable rollers
- Features heavy-duty 3/8" aircraft cable
- Rugged 1-1/4" roller axles
- Multi-position safety locks in each column
- Adjustable lock ladders
- Runways feature non-skid surface
- Push-button pneumatic safety release
- Independent backup slack-cable safety latches
- Customizable power unit location
- Removable steel approach ramps included
- Extra long approach ramps for low-ground clearance vehicles optional
- Optional drive-thru ramps available
- Optional drip trays available
- Optional solid deck available to increase storage capacity
- Optional 4,500-lb. air / hydraulic rolling jacks available (Model RJ-45)
- ETL Approved
- Lifting capacity*:9,000 lbs. / 4,082 kg
- *Max capacity / front axle: 4,500 lbs. / 2,041 kg
- *Max capacity / rear axle: 4,500 lbs. / 2,041 kg
- Overall width: 99-3/4" / 2,534 mm
- Outside length: 174" / 4,420 mm
- Overall length: 200" / 5,080 mm
- Height of columns: 88" / 2,235 mm
- Runway min height: 4-1/2" / 114 mm
- Max rise: 70" / 1,778 mm
- Max lifting height: 74-1/2" / 1,892 mm
- Width between posts: 89-3/4" / 2,280 mm
- Runway width: 19" / 483 mm
- Width between runways: 37-1/2" / 952 mm
- Runway center line: 56-1/2" / 1,435 mm
- Outside edge of runways: 75-1/2" / 1,918 mm
- Length of runways: 164" / 4166 mm
- Min. wheelbase @ rated capacity: 115" / 2,921 mm
- Min. wheelbase @ 75% capacity: 100" / 2,540
- Min. wheelbase @ 50% capacity: 85" / 2,159 mm
- Min. wheelbase @ 25% capacity: 70" / 1,778 mm
- Locking positions: 12
- Lock spacing: every 4" / 102 mm
- Lifting time: 45 sec
- Motor: 220 VAC / 60 Hz / 1 Ph
- Shipping weight: 1,872 lbs. / 851 kg
- Shipping dimensions: 180" x 22" x 40" / 4,572 mm x 559 mm x 1,016 mm
Notes: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.110 volt power unit available at no extra charge. Please specify when ordering. The wide models have two different options for runway placement. Runways can be placed 37.25” apart or 44” apart (distance between runways). Can be used for wide or narrow vehicles. Runways are 75.25” apart from outside of runway to outside of runway on HD9ST lift. If your vehicle's wheels are further apart that that, (from outside of wheels) you will need a wide model lift.
*Not all BendPak lift models meet the standards as prescribed by ANSI/ALI ALCTV-2006 or ANSI/UL 201. Consult ASE Deals.com for a complete list.
