BendPak HDS-14LSXE Alignment Package
BendPak Alignment Package Deals
Our premium Alignment Packages offer everything you need to equip your shop with the latest in 3D alignment capability, all at promotional package pricing. Included in each of these perfectly tailored bundles is an HDS series alignment lift, two rolling bridge jacks and a 3D imaging aligner. With three unique lift combinations and a state-of-the-art 3D aligner, these capably-matched wheel alignment packages are everything you need to increase revenue, service expertise and the value of your business.

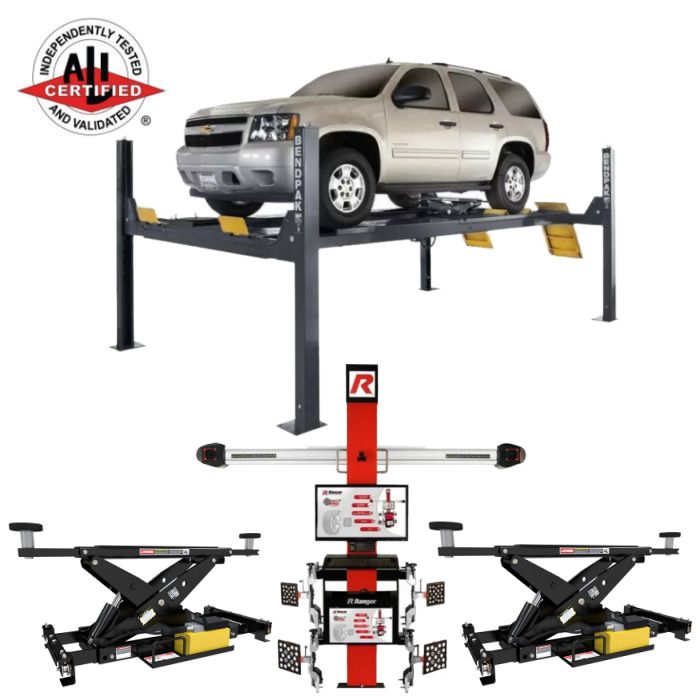

BendPak HDS-14LSXE (SKU# 5175894) Alignment Package
(1) HDS-14LSXE + (1) 3DP4100R + (2) RBJ7000 | Includes Aligner Set-up & Training
Included in this Package Deal:
BendPak HDS-14LSXE (SKU# 5175172) 14,000-lb. Capacity |
Alignment Lift | Limo Extended | Includes Turnplates and Slip Plates
The HDS-14LSXE alignment lift is the "limo style" version of the HDS-14LSX. Compared to the standard length version, this lift extends the overall length of the lift, as well as the runways, by 30". This significant increase makes it possible to load longer cars, trucks, SUVs and even some limousines. The legendary, 14,000-lb. capacity HDS-14LSX alignment lift pulls double duty as both car lift and alignment system. We’ve integrated industrial-strength slip plates and turn plates right into the runways to maximize convenience. The wheels respond to every adjustment with virtually no resistance. BendPak's HDS series four post lifts are engineered beyond traditional industry standards. They are engineered, designed and fabricated to last longer, provide better performance, and increase safety, productivity and the overall user experience time after time, day after day, every time you lift a vehicle.
BendPak 3DP4100R (SKU# 5140101) Target 3D Pro Imaging
Wheel Alignment System (Complete) | Includes Set-up & Training
The Target 3DPro is one of the fastest and most accurate wheel alignment systems in the industry, thanks to advanced imaging technology that delivers fast, accurate alignments. A graphic display is used along with high-definition cameras to provide visual and directional assistance.
(2) BendPak RBJ7000 (SKU# 5175986) 7,000-lb. Capacity Rolling Bridge Jacks
These 7,000-lb. capacity rolling bridge jacks are made for an HD-14 four-post lift. Each rolling jack comes complete with three safety-lock positions and stackable pad adapters to provide added clearance when needed.
Extended-Length Alignment Lift Offers 14,000 lbs. of Power
This model is essential for hundreds, if not thousands, of shops across the country. Busy bays are going to service a variety of vehicles, and depending where you work, you're likely to get some exceptionally big vehicles in need of alignment services. This model all but guarantees you'll be ready to handle anything. With a 14,000-lb. capacity, the HDS-14SLXE lifts virtually all residential vehicles, from sedans to heavy-duty pick-up trucks to municipal vehicles and farming equipment.
Turn plates in the front and multi-caster slip plates in the back allow for perfectly precise, free-floating alignments.
Aluminum-alloy construction turn plates are easily positioned using BendPak’s turn plate pockets. Larger and more robust than our previous slip-plate design, they're also lighter in construction and feature dual "popsicle gap stops" for your convenience. Angled steel lock pins conveniently hold the plate in place when you want to use your machine strictly as a maintenance or storage lift.
Dual-hub cable sheaves
To increase longevity, ensure low cost of ownership and keep your purchase low-maintenance over time, we use the biggest and best sheaves throughout the lift. Massive 10.5” diameter cable sheaves are held within the runway cross tubes, outfitted with 2.25” diameter sheave axles that are equally durable.
Heavy-duty aircraft cable
These cables are meant to be used continuously for years on end without issue. They're extremely resistant to rubbing and other abrasions (e.g., weather, chemicals, hydraulic oil). A 1/2” diameter 6 x 25 aircraft-quality stainless-steel lifting cable runs through each column.
Adjustable height locking positions
No need to reach or bend for the turn plates. Every few inches, a convenient built-in safety lock will let the runways auto-engage into the post. All locks engage simultaneously as the runways evenly ascend the columns.
Grease fittings make it easy to focus on the alignment of your wheels without worrying about the constant lubrication of the sheaves.
You'll probably never experience a hose rupture, but we have you covered just in case. BendPak's unique hydraulic flow divider provides a smooth descent, making your alignment lift structure safe to operate at all times.
Spring-loaded safety locks
As the alignment lift runways rise to your preferred service level, springs "snap" and hold the locks into place at each ladder position. The spring-loaded, multi-locking devices are adjustable. The design also compensates for slight slopes in your garage.
Push-button pneumatic lock release
A simple push-button pneumatic lock release simplifies lowering operations. Stainless steel and aluminum pneumatic cylinders provide years of maintenance-free service.
Secondary lock system
BendPak doesn't cut corners on safety, even going above and beyond required safety standards. We offer a slack-cable lock system as a backup safety mechanism that’s ready at all times to shut off the alignment lift in the development of dangerous cable slack.
The cables, sheaves, airlines and hydraulic cylinder run within the lift structure. This congregation of high safety and improved aesthetics gives our lifts a highly distinguished look that also increases user safety and comfort.
Electric-hydraulic power system
The zero-maintenance power system features ergonomically located controls for easy operator access during repetitive daily use.
Liquids and hazardous oil spills will not hinder the grip of the runways. Your customers' vehicles will always rotate on the turn plates without slipping off the ramps. The runway surface is rugged enough to hold tires in all shop conditions.
Longer approach ramps
Longer ramps make it easier to load low ground-clearance vehicles onto the car lift structure. Alignments on these vehicle types are no hassle, and of course, larger trucks and SUVs can glide on just as easily as low ground-clearance sports cars.
Flexible protective conduit
An extra-tough yet flexible conduit protects all airlines and hydraulic hoses from daily wear. You'll handle your alignment lift with greater confidence knowing the cables won’t deliver sudden shocks, ruptures or fluid leaks.
Rolling bridge jacks
Convert your four-post into a fully functional wheel service lift. Optional rolling jacks make a great addition and increase service capacity. Bridge jacks raise vehicles by the frame, so wheel and brake service can be performed without moving the vehicle to a different car lift. Telescoping arms and frame contact pads extend over runways and target the vehicle's lifting points. Runways are fully adjustable for different tread widths. Three locking positions offer additional operator control
Align Like a Pro with Ranger's 3DPro Imaging Technology
Our latest wheel aligner design features a streamlined appearance that eliminates a larger computer in favor of an ultra-fast PC Stick with Intel® Apollo Lake N3455/4 CPU, 4GB DDR3 RAM, 32GB Memory, 2.4G/5G Internet & Wi-Fi, 4K HDMI, Bluetooth 4.2. This memory stick takes up virtually no space on the aligner. Its small, durable design greatly reduces the chance of damage occurring to the processor. The new interface is also our fastest and most reliable hardware/software integration ever.
The Advanced 3DPro™ Imaging Wheel Aligner System increases productivity by allowing technicians to do more wheel alignments in less time compared to conventional systems. This wheel aligner is perfect for wheel service repair shops handling a high volume of wheel alignments, especially those who would like to see a dramatic increase in profitability. With minimal investment and reduced training, this wheel aligner expands your service potential and sends more profit to your bottom line. The ProSpec® feedback that assists technicians in diagnosing problems will help increase your customer satisfaction and improve shop efficiency.
All alignment steps, from start to finish, are clearly shown onscreen with vibrant animation and graphics, providing a faster, simpler and more profitable alignment procedure. Easy-to-read results enable you to identify potential problem areas specifically related to suspension components, and our latest wheel aligner gives you the option of selecting the most effective measuring routines before starting alignment procedures.
We have also integrated Deep Freeze™ Reboot-to-Restore Technology to preserve the computer configuration at all times. Any changes, either malicious or unintentional, are reversed on reboot. That means your Ranger wheel aligner is protected against data loss from viruses, accidental power disconnects, etc. Each computer reboot restores the computer to its original OEM configuration. Deep Freeze literally makes the aligner software virtually indestructible and guarantees 100% recovery upon restart.
You won’t find wheel aligners like ours: it includes standard options for a program-guided routine with initial and final measurements; rapid procedure for measurements without caster steering angle and/or run-out compensation; and free measurement for checking individual values as required.
The advanced 3DPro Imaging Wheel Aligner System with ProSpec offers:
- Deep Freeze Reboot-to-Restore Technology
- Increase in bottom-line revenue
- 30% average increase in read-rate accuracy
- Fewer costly re-reads and investigations
- Decline in come-backs and customer complaints
- Specially designed for ease-of-use, speed and helpful technician feedback
- Choose from three individual alignment procedures
- Comes standard with start-to-finish computer-guided program
- Quick readings without caster steering angle and/or run-out compensation
Free range measuring for checking individual readings as required screen displays include:
- Front and rear camber (-15º to +15º)
- Front and rear toe (also "super toe”—toe out on turns)
- Front caster (-28º to +28º)
- Individual caster, camber and toe
- Front and rear setback, SAI and thrust angle, included angle
- Elevated 3 Point or rolling run-out compensation
- Elevated adjustments
- Individual zoom readings allows operators to clearly see screen and software function from any wheel position
- Customer database with customer notes and comments
- Before and after adjustment readings
- Visual vehicle adjustment help
- ProSpec software is available in multiple languages. Check for current language availability.
- Optional yearly specification and software updates are available on PC network or by simply installing a new program cartridge.
- Help Menu
Lift 7,000 lbs. for Full Wheel Service Capability
The HD-14 car lift is one of our most popular units for lifting medium-duty vehicles, as well as low-stance sports cars. Its extended approach ramps make it easy to safely engage your vehicle’s wheels, but what do you do when it’s time for a tire swap? Unless you want to expand your capabilities with a two-post lift, a simple pair of RBJ7000 rolling bridge jacks is necessary to lift the vehicle. (Each jack lifts half the vehicle frame.)
Rubber contact pads
BendPak rubber contact pads are included with every rolling bridge jack we sell. The RBJ7000 pads engage the lift points of large vehicle chassis with ease. We recommend purchasing the optional frame cradle pads for larger trucks and SUVs, as well.
Because different suspension rigs and vehicle bodies sit at different heights above the ground, the RBJ7000 rubber contact pads come with stackable adapters. This lets you reach the lift points without sacrificing how much rise you get from the jack. The adapters work on every vehicle type; all you need to know is whether the RBJ7000 is the right jack for what you want to lift.
High-pressure hydraulic power unit
A single, air-hydraulic pump is fitted to the side of the RBJ7000 rolling bridge jack. Your car lift has its own electric-hydraulic system that runs independent of your jack’s. After connecting the air line to the jack (needs 125 PSI and 10-20 CFM), an easy-to-use foot pedal activates the jack.
Three lock levels
For your convenience, BendPak rolling bridge jacks can be lifted to three different positions. They lock automatically as the jack rises and release together as the jack descends. Your car lift operations are separate from those of the bridge jack.
Features and Specs
BendPak HDS-14LSXE Features
- 14,000 pound lifting capacity
- CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN 1493
- Two runway lengths to choose
- Heavy‐duty turn plates and integrated rear slip‐plates included
- Multi‐position turn plate pockets
- Automatic leveling system
- Multiple auto-leveling locking positions
- Automatic leveling system
- Runways include rail‐kit for optional accessories
- Electric / hydraulic power system
- Single hydraulic cylinder mounted underneath runway
- Fully enclosed lifting cables, safety locks, and sheaves
- Internal "Anti-Sway" slider blocks in each column
- Features oversize sheaves and heavy‐duty 1/2" aircraft cable
- Rugged 1‐3/8" roller axles and oversize self‐lubricating cable sheaves
- Multi‐position safety locks in each column with push‐button safety release
- Runways adjust for different tread widths and feature non‐skid surface
BendPak HDS-14LSXE Specifications
- Lifting Capacity*: 14,000 lbs. (6,350 kg)
- *Max Capacity / Front Axle: 7,000 lbs. (3,175 kg)
- *Max Capacity / Rear Axle: 7,000 lbs. (3,175 kg)
- A - Min. Runway Height: 7.625" (194 mm)
- B - Max. Rise: 70" (1,778 mm)
- C - Max. Lifting Height: 77.625" (1,972 mm)
- Time to Full Rise: 60 seconds
- D - Overall Width: 130" (3,302 mm)
- E - Outside Length: 243" (6,172 mm)
- F - Overall Length: 271" (6,883 mm)
- G - Height of Columns: 93" (2,362 mm)
- H - Width Between Columns: 120" (3,048 mm)
- I - Drive-Thru Clearance: 98" (2,489 mm)
- J - Runway Width: 20" (508 mm)
- K - Length of Runways: 229" (5,817 mm)
- L - Width Between Runways: 37.5" (953 mm) or 51" (1,295 mm)
- M - Min. 4-Wheel Alignment: 89" (2,261 mm)
- N - Max. 4-Wheel Alignment: 156" (3,962 mm)
- O - Max. 2-Wheel Alignment: 212" (5,385 mm)
- Rated Capacity: 165" (4,191 mm)
- 75% Capacity: 140" (3,556 mm)
- 50% Capacity: 115" (2,921 mm)
- 25% Capacity: 95" (2,413 mm)
- Locking Positions: 13
- Lock Spacing: 4"
- Motor: 220 VAC / 60 Hz / 1 Ph
- Noise: 45 dB
- Shipping Weight: 3,175-lbs. (1,440 kg)
- Shipping Dimensions: 241" x 24" x 42" (6,121 mm x 609 mm x 1,066 mm)
Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.
*Not all BendPak lift models meet the standards as prescribed by ANSI/ALI ALCTV-2006 or ANSI/UL 201. Consult www.autolift.org for complete listing.
BendPak lifts are supplied with concrete fasteners that meet the criteria of the American National Standard ANSI/ALI ALCTV-(Current). Buyer is responsible for all charges relating to any special regional structural or seismic anchoring requirements specified by any other agencies or codes such as the Uniform Building Code (UBC) or International Building Code (IBC).
Ranger 3DP4100R Features
- Self-balancing, variable height camera lift system is built with precision bearing slides for easy adjustment.
- Commercial-grade cameras are designed with full frame optical lenses that ensure accuracy and stability.
- High-resolution drive-on approach camera provides full on-screen frontal view of vehicle driving on lift platforms.
- Equipped with a large additional lower flat panel LCD monitor that provides operator with easy-to-read screen views, even from the rear underside of the vehicle. No need for separate portable hand-held monitors.
- Interactive software provides demonstration screens that help the technician to easily proceed systematically through the adjustment process.
- Rugged checkerboard shockproof wheel targets are drop-tested for worry-free handling and are built with anti-corrosion components capable of withstanding harsh working environments.
- Deep Freeze Reboot-to-Restore Technology
- Powerful PC Stick: Intel Apollo Lake N3455/4 CPU, 4GB DDR3 RAM, 32GB Memory, 2.4G/5G Internet & Wi-Fi, 4K HDMI, Bluetooth 4.2.
- CPU features built-in cooling fan & cooling plate.
- In less than 2 minutes, technicians can complete total vehicle setup (including run-out compensation) and obtain full geometry alignment readings.
- Exclusive One-Touch enhanced software interface results in increased productivity.
- A web-based application that can be accessed from iPhone and iPad users to enjoy full wireless remote operation.
- A reduction in the number of vulnerable electric components results in reduced downtime, lower operating costs and a longer service lifecycle of the equipment.
- Superior screen graphics with vibrant animation and displays deliver easy to understand visuals and instruction.
- Alignment functions and measurements are controlled via the mouse, keyboard or remote control.
- Self-explanatory graphic user surface provides simple understanding.
- Compatible with low ride-height vehicles or those with ground-effects.
- Self-centering wheel-clamp adapters cover an extended range of vehicles.
- Cordless design removes hassle of connecting cables.
- Technician has the option to customize alignment units of measure, accuracy, language, etc.
- Technician has a choice of rolling or lifted run-out modes.
- Features self-diagnostic help screen and system information.
- Continuous checking ensures accurate toe measurements.
- On-screen display indicates if sensor leveling is required.
- Vehicle adjustment illustrations and multiple adjustment bar graphs.
- Adjustment illustrations provide illustrated diagrams and instructional information of recommended OEM adjustment methods.
- Valuable customer information can be conveniently stored in the database allowing shop personnel to quickly reference previous alignment work orders.
- Before and after measurements can be printed in full-color to explain service and record work performed.
Ranger 3DP4100R Standard Equipment
- (1) Target 3DPro variable height camera tower
- (1) Intel Atom Quad Core CPU, 2GB RAM, 32GB Memory, HDMI, 2xUSB, Bluetooth 4.0
- Full-sized, sloped keyboard for easy use. Provides user-friendly control of all alignment procedures.
- (1) Computer mouse
- (1) Console keyboard
- (1) Remote control
- (1) 32" diagonal Upper Flat Panel LCD Monitor designed for complete comfort and convenience with 1280x1024 pixels resolution for sharp and brilliant images of text and graphics. Offers wide viewing angle of 160° horizontal and vertical.
- (1) 19" diagonal Lower Flat Panel LCD Monitor designed for complete comfort and convenience with 1280x1024 pixels resolution for sharp and brilliant images of text and graphics. Offers wide viewing angle of 160° horizontal and vertical.
- (1) Rugged tower cabinet with integrated storage
- (4) 13" - 25" wheel clamps
- (1) Target 3DPro variable height camera tower
- (1) Steering wheel lock
- (1) Brake pedal depressor
- Current year domestic and foreign car vehicle specifications
Ranger 3DP4100R Specifications
- Power Requirements: 115 VAC / 50/60 Hz / 1Ph / 8 amp - 230 VAC / 50/60 Hz / 1Ph / 8 amp
- Shipping Weight: 466 lbs. (211 kg)
- Shipping Dimensions: 113'' x 24'' x 24'' (2,870 mm x 609 mm x 609 mm)
BendPak RBJ7000 Features
- 7,000-lb. lifting capacity
- Rubber contact pads
- Stackable adapters
- High-pressure hydraulic power unit
- Optional air-line kit
- Stackable adapters
BendPak RBJ7000 Specifications
- Lifting Capacity*: 7,000 lbs. (3,175 kg)
- Rise A - Max. Height + Pad Only: 18.8" (478 mm)
- Rise B - Max. Height + Pad + Adapter: 21.8" (554 mm)
- Rise C - Min. Height + Pad Only: 8" (203 mm)
- Rise D - Min. Height + Pad + Adapter: 11" (279 mm)
- Time to Full Rise: 45 seconds
- Reach F - Support Arm Width: 36" (914 mm) - 46" (1,168 mm)
- Reach G - Max. Arm Reach: 56" (1,422 mm)
- Reach H - Min. Arm Reach: 42" (1,067 mm)
- Motor: Air-Hydraulic Pump
- Noise: 45 dB
- Shipping Weight: 445
- Shipping Dimensions: 42" x 24" x 15" / 1,066 mm x 609 mm x 381 mm
Included commercial-grade air-hydraulic pump requires 125 psi and 10 - 20 CFM.
Note: Not all BendPak lift models meet the standards as prescribed by ANSI/ALI ALCTV-2017 or ANSI/UL 201. Consult www.autolift.org for a complete list or contact BendPak via firstname.lastname@example.org.
*BendPak lifts are supplied with concrete fasteners that meet the criteria of the American National Standard ANSI/ALI ALCTV-(Current). Buyer is responsible for all charges relating to any special regional structural or seismic anchoring requirements specified by any other agencies or codes such as the Uniform Building Code (UBC) or International Building Code (IBC).
