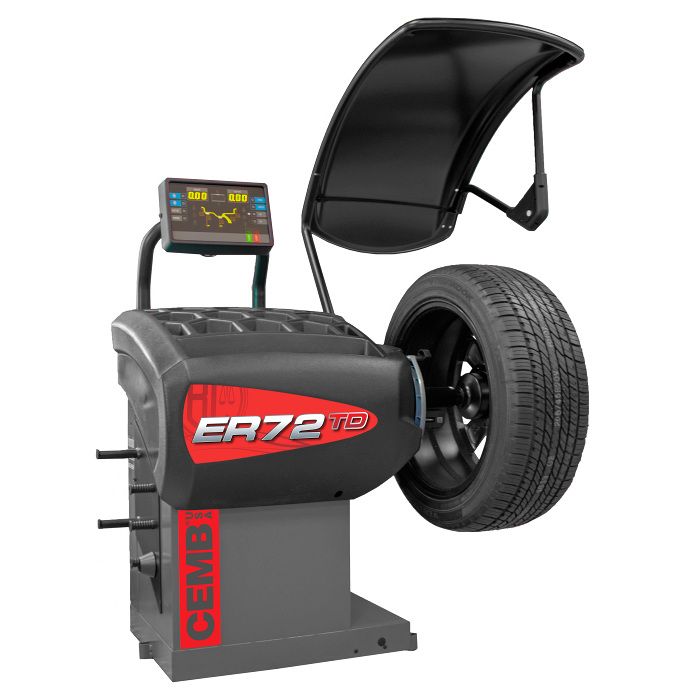

CEMB ER72TD Spotter Digital Wheel Balancer

In stock
SKU
ER72TD
Our Price $8,040.00 Regular Price $8,925.00

CEMB ER72TD Spotter Professional Digital Wheel Balancer for Tire Dealers
Tire Dealers Choice - Professional digital wheel balancer with automatic distance and diameter entry with width sonar (3D), with new spotter laser system, full-time static on screen, quick release wingnut and 42" wheel guard standard.

Description

CEMB USAThe CEMB Digital Wheel Balancer ER72TD is made especially for busy tire shops. This new series has the latest technology in wheel balancing, "Spotter" lasers that actually pinpoints the exact location of stick-on wheel weights. This is done with little or no chance of operator error when entering dimensions (major cause of check spin errors).

Full Time Static on screen for a perfect balance. The automatic arm measures diameters up to 30", automatic entry of the dimensions with width sonar 3D. It comes fully assembled.

  • One Plane Balancing (OPB)
  • AutoAdaptive Mode
  • Automatic Gauge (3D)
  • Ergonomic Design
  • Laser Spotter
  • Manual Locking
  • EMS Sonar
  • Automatic Positioning System
Autoadaptive Mode - The innovative tolerance calculation system AutoAdaptive Mode is based on the evaluation of the residual imbalance limit value corresponding to an acceptable perceived vibration. For each wheel that is balanced, the software AutoAdaptive Mode detects weight and dimensions and calculates the tolerance value that will cancel any vibration perceived on the steering wheel. AutoAdaptive Mode grants the highest comfort when driving, and together with OPB Program, saves balancing time.

One Plane Balancing - OPB eliminates both static and dynamic unbalance with a single counterweight, indicating the exact position to apply the weight inside the rim. The balancer automatically detects if it is possible to correct both unbalances with only one weight, and activates OPB program (One Plane Balancing). A real revolution in wheel balancing. OPB saves you time and money while maximizing your productivity.

Laser Spotter - During the correction, the Laser Spotter pinpoints the exact position for stick-on weights application inside the rim. Thanks to the electric brake – which locks the wheel into the exact angular position of the unbalance – and the laser spotter you avoid possible errors during the weight application making the balancing process faster, simpler and more precise.

Features and Specs

Features
  • Professional digital wheel balancer especially designed for tire dealers
  • Automatic Distance & Diameter Entry with Width Sonar (3D)
  • Fully automatic Spotter Laser System for best correction possible
  • Full-time accuracy with Static unbalance always displayed on screen
  • LED to light the work space inside the rim
  • New automatic arm to measure automatically diameters up to 30"
  • Standard locking with Quick Nut
  • Electromagnetic brake for easy weight placement
  • Available 110VAC or 220VAC
  • Wide working space
  • Direct selection ounces/grams
  • Optimization program for compensation of rim and tire unbalance
  • One Button Split & Hidden Weight Program
Specifications
  • Power Supply: 110VAC or 220VAC, 50/60 Hz, 1 ph
  • Balancing Speed: < 100 rpm
  • Balancing Accuracy: < 0.1 oz (< 1 g)
  • Average Cycle Time: 5 seconds
  • Rim Diameter Capacity: 10" - 30" (265 - 765 mm)
  • Rim Width Capacity: 1.5" - 20" (40 - 510 mm)
  • Max. Wheel Weight: 165 lbs (75 kg)
  • Max. Tire Diameter: 42" (1,067 mm)
  • Operating Temperature: 32 - 113°F (0 - 45°C)
  • Shaft Size: 40 mm
  • Gross Ship. Weight: 370 lbs (168 Kg)
Standard Accessories
  • Quick release wingnut
  • Reverse mounting cup with no mar-ring + Pressure ring
  • 4 cones covering hole sizes 1.69" (43mm) to 5.2" (132mm)
  • 2 piece truck cone kit for light truck wheels for hole from 3.82" (97mm) to 7.09" (180mm)
  • Rim width gauge for measuring wheel width
  • 40mm threaded shaft
  • Can be used as balanced weight hammer, cutting pliers for trimming wheel weights, and puller to remove the old wheel weights
  • Test weight
  • 8mm allen wrench to mount the 40mm threaded shaft
  • Wheel guard
  • Automatic Width Sonar reading (3D)
  • New extended gauge for diameter measurement of rims up to 30"
  • Spotter Laser System for best correction possible
  • LED to light the working space inside of the rim
  • Electric brake for easy weight placement
  • 5 pegs for adaptors storage
Optional Accessories
  • Pneumatic lift for wheel balancers
  • Universal motorcycle and scooter adaptor kit with 15mm arbor, cones and spacers for bearing type wheels and single side arm (flange) type wheels (Wheel guard required)
  • Universal stud adaptor (for hub centric wheels with 3-4-5-6 holes, 75-210mm bolt pattern). To be used with inside centering cone.
  • Stud adapter for rim protection and high precision (on lug centric wheels). To be used without centering cone.
  • Universal bolt pattern adaptor (for wheels 3-4-5 holes or without center hole)
  • WD wheel support spacer for very wide wheels + DC spring pusher bush
  • Large diameter plastic cup for alloy rims protection (8.11"/206mm for alloy rims, includes no-mar ring)
  • 2 piece truck cone kit + GG spacer ring to fit Ford F-350, 450 and 550
  • Cone for GMC 6500 series & International using 19.5" rims (must be used with 3 Piece Truck Cone Kit)
