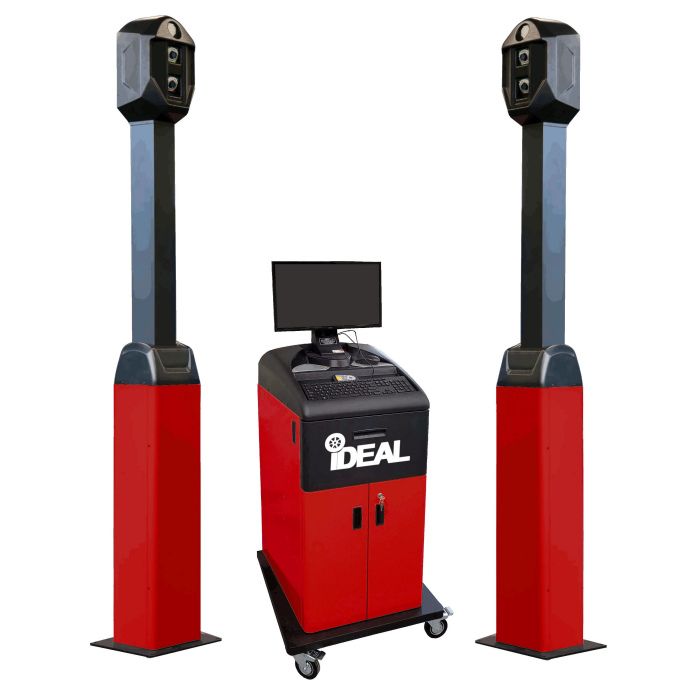

iDEAL IWA-60-8500-HD-K 3D HD Multi-Axle Image Wheel Aligner System

In stock
SKU
IWA-60-8500-HD-K
Our Price $24,599.00 Regular Price $27,828.00

iDEAL IWA-60-1500-K High Definition 3D Image Wheel Aligner System
Heavy-Duty 'Multi-Axle' Image Wheel Alignment System
The iDEAL IWA-60-1500-K 'Multi-Axle' High Definition 3D Image Wheel Aligner System is one of the most economical & advanced heavy duty 3D multi-axle imaging alignment systems on the market today. The iDEAL 3D HD Imaging Wheel Aligner provides multi-axle wheel alignments for trucks, semi-trailers, and buses quickly & accurately without the need for vehicle lifting!

INCLUDES FREE SHIPPING

Wheel Clamps, Targets, HD Turntables, and Drive-On Ramp Sets All Included!

Also Includes Storage Stands for Wheel Clamps!

Description

iDEAL

iDEAL IWA-60-1500-K High Definition 3D Image Wheel Aligner System

The iDEAL IWA-60-1500-K 'Multi-Axle' High Definition 3D Image Wheel Aligner System is one of the most economical & advanced heavy duty 3D multi-axle imaging alignment systems on the market today. The iDEAL 3D HD Imaging Wheel Aligner provides multi-axle wheel alignments for trucks, semi-trailers, and buses quickly & accurately without the need for vehicle lifting!

Heavy-Duty 'Multi-Axle' Image Wheel Alignment System

The iDEAL IWA-60-1500-K 'Multi-Axle' High Definition 3D Image Wheel Aligner System is one of the most economical & advanced heavy duty 3D multi-axle imaging alignment systems on the market today. The iDEAL 3D HD Imaging Wheel Aligner provides multi-axle wheel alignments for trucks, semi-trailers, and buses quickly & accurately without the need for vehicle lifting! Four high definition industrial cameras enable readings on up to four axles simultaneously,  plus the ability to align vehicles with even more axles. Wide Scope technology allows the system to read over an extensive range of lengths and wheelbases providing .01 degrees of accuracy, along with real-time measurements for improved productivity. Modern lightweight targets are quick & easy to mount on many styles of tire rims. Alignment software also includes specialized data for trucks, with shim assistance, when setting rear axle thrust. User-friendly features provide precise & easy-to-understand instructions with high-quality LCD screen graphics, illustration diagrams & integrated help system, just to list a few. The iDEAL 3D HD Image Wheel Aligner is fully supported in the United States!

High Quality European Design and Manufacturing by Techno Vector

Expert USA Product Set-Up and Warranty Support

Premium Products at Affordable Prices!!

Features and Specs

Features

  • Multi-Axle Floor Alignment System - No Vehicle Lift Required!
  • Designed To Measure Long Vehicles & Vehicles With Trailers
  • High Resolution / Extended Range 3D Tower Cameras Measures Up To Four Axles At Once
  • Integrated Quick Reference Vehicle Database For Commercial Vehicles
  • Includes Hd Turntable & Drive-On Floor Ramp Sets For Quick & Easy Front End Alignments
  • Dynamic Led Tower Guide Changes Shape To Guide Technician
  • Mobile Cabinet Allows For Side Or Front Centered Placement For 'Drive-Thru' Or 'Dead-End' Set-Up Configurations
  • Drive-Over Cable Plates Included For 'Drive-Thru' Configuration
  • (8) Each Compact Lightweight Targets
  • (8) Each Adjustable Wheel Clamps 15"- 27" Fits Most Standard Rim Sizes
  • Convenient Storage Stands For Wheel Clamps
  • Dual Towers Provide Max View Range Up To 50 Ft.
  • Wireless Remote Control Operation When Unable To Reach Cabinet & Keyboard
  • Illustration Diagrams & Integrated Help System
  • Live Reading Screens For Front & Rear Axle Readings
  • Recalls / Prints Current & Past Info For Customized Reports
  • Optional Yearly Vehicle Spec Updates
  • Convenient Customer Database Feature
  • Steering Wheel Holder, Brake Depressor & Wheel Chocks Included
  • Computer, Monitor, Keyboard, Mouse & Color Printer Also Included

Standard Accessories

  • (4) High Resolution 3D Extended Range Industrial Cameras
  • (2) Camera Towers
  • (1) Storage Cabinet with Swivel Poly Casters
  • (2) HD 11,000 lbs. | 17" Diameter Turntables
  • (2) 43" Long Drive-On Floor Ramps
  • (1) PC Windows
  • (1) Console Keyboard & Computer Mouse
  • (1) Flat Panel LCD Monitor
  • (1) Inkjet Color Printer
  • (1) UPS with AVR (Surge & Auto Voltage Regulation)
  • (8) Compact Style Targets
  • (2) Wheel Clamp Storage Stands
  • (1) Steering Wheel Holder
  • (1) Brake Depressor
  • (1 pair) Wheel Chocks
  • (1 set) Drive-Over Cable Plates
  • (2) Pair Tower Concrete Anchor Bolts
  • Most Current Alignment Software Specifications Available at Time of Purchase

Specifications

  • Aligner Type: Heavy Duty 3D Multi-Axle Imaging
  • Operating System: Windows
  • Software: Techno Vector 7
  • Accuracy: 0.01 Degrees
  • Certification: CE
  • Target Size: (8) Standard
  • Cameras: (Total) 4
  • Lift Compatible: No
  • 4 Post Hoist Compatibility: No
  • Standard Wheel Clamps (8): 15"-27"
  • Toe Adjustment: Yes
  • Lifted Runout: Yes
  • Live Caster: Yes
  • Runout Compensation: Yes
  • Wheel Alignment Modes: Variable 2-8 Wheels
  • Database Update: Yes
  • Customer Manager: Yes
  • Max Width: Up to 13 feet
  • Max Wheelbase: Up to 50 feet
  • Power: 120V-15 Amp / 1PH / 60HZ
  • Ship Weight: 1,285 lbs. (3 pcs)
  • Warranty: (1) Year Limited Parts and Labor

Expert USA Product and Warranty Support

  • Free Technical Phone Support for Initial Set-Up and Operational Instructions
  • Manufacturer Limited Warranty: (1) Year Parts & Labor*
  • Parts Replacement Shipping Cost Covered During Initial 30 Days or Operation
  • Software Updates Available on an Annual Basis
  • Aligner is Shipped Partially Assembled, Set-Up, Supported and Shipped from USA (Some Assembly Required)

*For Items Tech Support Determines Must Be Shipped In for Service and Repair

Limited (1) Year Warranty
Tuxedo Distributors, LLC (Tuxedo) offers a limited one-year warranty to the original purchaser of Lifts and Wheel Service equipment in the United States and Canada. Tuxedo will replace, without charge, any part found defective in materials or workmanship under normal use, for a period of one year after purchase. The purchaser is responsible for all shipping charges. This warranty does not apply to equipment that has been improperly installed or altered or that has not been operated or maintained according to specifications.

Other Limitations
This warranty does not cover:

  • Parts needed for normal maintenance
  • Wear parts, including but not limited to cables, slider blocks, chains, rubber pads and pulleys
  • Replacement of lift and tire changer cylinders after the first 30 days. A seal kit and installation instructions will be sent for repairs thereafter
  • On-site labor

More Information

More Information
more

iDEAL IWA-60-8500-HD-K Multi-Axle Aligner Brochure (.pdf)

iDEAL IWA-60-8500-HD-K Multi-Axle Aligner Manual (.pdf)
