iDEAL PSB-AFCF23B-1PH Paint Spray Booth 1PH Motor

In stock
Guaranteed Lowest Price $17,099.00 Regular Price $18,485.00

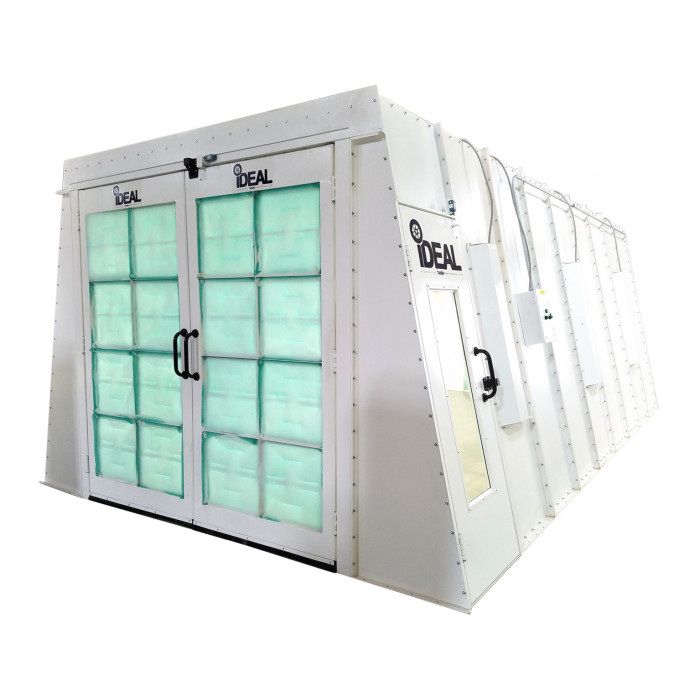

iDEAL PSB-AFCF23B-1PH Paint Booth Cross Flow Draft w/ 1 Phase Motor
Economical, tilt panel design with powder coated finish both inside and outside. Cross draft airflow design.



iDEAL PSB-AFCF23B Paint Booth Cross Flow Draft w/1 Phase Motor

This cross draft airflow paint booth is economical with tilt panel design, constructed with precision punched heavy duty 18-gauge panel construction it's iDeal choice for any auto body repair shop. We advise checking with city/state to make sure codes are met since every city/state is different.

iDeal Paint Spray Booth PSBAFCF23ASY

Features and Specs


  • Cross Draft Airflow
  • Economical, Tilt Panel Design for Optimal Lighting Coverage
  • Powder Coated Finish (Inside & Outside)
  • Heavy Duty Precision Punched 18-gauge Panel Construction
  • 5/16" Bolt & Nut installation
  • Personnel Door with Viewing Window
  • Dayton 24" Tube Axial Fan 3HP 1PH, Spark Resistant, Aluminum Blades, Made in USA
  • Rammstein Air Deluxe Control Panel, UL Listed
  • LDPI Industrial Lighting, 6 each High Quality UL Listed Light Fixtures
  • Light Bulbs Included
  • Air Filtration Co. Inc., High Quality Intake & Exhaust Filters


  • Inside Dimensions: 22'-6"L x 13'W x 8'-6"H
  • Outside Dimensions: 25'-4"L x 13'-4"W x 8'-10"H
  • Fans: 24" Tube-Axial Non-Spark, NEMA Rated
  • Motor: 3HP-1PH-230/460VAC-60HZ
  • DFM: 9,500 @ .5 Static Pressure
  • Lighting: 6 each T-8 Light Fixtures, Four Bulbs
  • Light Bulbs Included

Filters, lights, fans included.

Deluxe control panel included

Duct work not included - Cross Flow paint booths require one 25" duct

Optional Electric heater only for cross flow models (no gas)

No plenum needed with electric heater


More Information

More Information


iDEAL PSB-AFCF23ASY Paint Booth Brochure (.pdf)

iDEAL PSB-AFCF23ASY Paint Booth Manual (.pdf)


So you want great quality products, but you don’t want to over-spend? Have we got the manufacturer for you! iDEAL is a division of Tuxedo Distributors based in Alvarado, TX. We have been proudly distributing their products since 2004. They manufacture all kinds of auto shop equipment for home hobby car buffs, as well as the professional technician or auto mechanic. iDEAL is Tuxedo’s premium line of equipment - made for the discriminating professional who wants a higher quality product at a reasonable price. They’ve been proven over time to be among some of the best products we carry. Products include car lifts, frame straighteners, frame racks, paint spray booths with accessories, mobile column lifts, motorcycle lifts, and more. They provide expert technical support, and always have inventory of most of their products for immediate shipment out of their headquarters warehouse in TX. Add to that their dozen or so satellite warehouses that they have across the country, and they offer a unique competitive advantage over many other manufacturers who typically ship out of only one location. This allows them to save on freight, passing on the saving to the end user, as well as offering faster shipping times than a majority of the other automotive equipment distributors out there. Give us a call today to learn more...
