ASEplatinum RAJ-8K-L Rolling Air Jack

In stock
Guaranteed Lowest Price $1,850.00 Regular Price $2,030.00

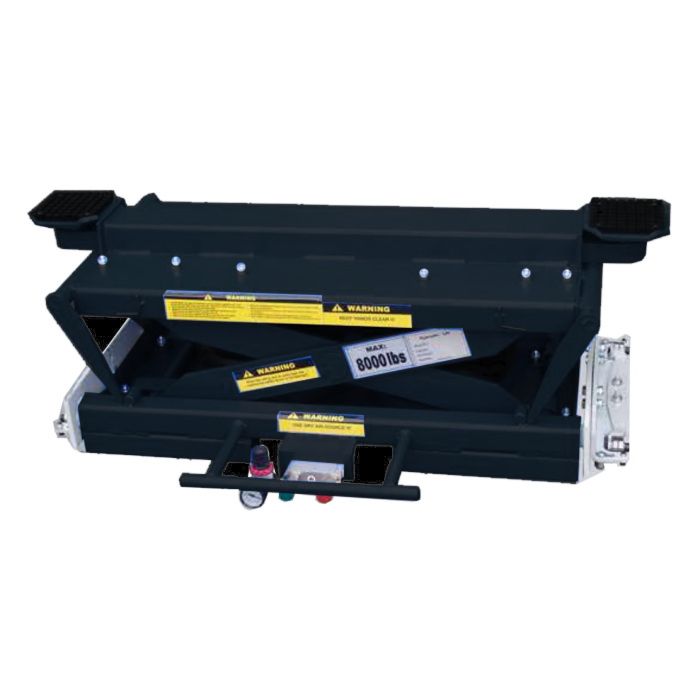

ASEplatinum Rolling Air Jack Model RAJ-8K-L
8,000 lb. Capacity | "Low Mount" Rolling Jack
The RAJ-8K -H Rolling Air Jack is a professional quality, low profile, air bag scissor type rolling bridge jack with pneumatic operation. Ideal for use with 4 post lifts.


ASEplatinum Logo

ASEplatinum RAJ-8K-L 8,000 lb. Low Mount Rolling Jack with Universal Body Assemblies

The RAJ-8K-L rolling air jack is a high quality, low profile, air bag, scissor type rolling bridge jack. The "low mount" rolling jack has pneumatic operation that includes exclusive telescoping Universal Roller Body Bracket Assemblies designed for either high or low mount applications. The RAJ-8K-L has an adjustable ‘spring loaded’ roller body assemblies also consist of dual precision ‘on-rail’ type roller bearing wheels and side bearing guide wheels designed for smooth and safe operation. The RAJ-8K-L jack also comes standard with stackable pad & height adaptors, dual air bags, adjustable pressure regulator & locking height position.

The RAJ-8K-L is the "low mount" model. This model incorporates adjustable height roller body brackets suitable for use with four post lifts using low profile jacks with medium to high mount jack rails, it will provide enough clearance for proper operation when lift is fully lowered. Two adjustable mounting height positions available.

Features and Specs

  • Universal roller body design with dual "spring loaded" precision.
  • Roller bearing and side guide wheels with adjustable height for low, medium and high jack rail configurations.
  • Low profile configuration
  • Rolls on top edge of jack rail for smooth maneuverability
  • Dual height telescoping support arms
  • Pneumatic operation w/ adjustable pressure regulator
  • Dual air bags
  • Stackable pad & height adaptors – 1.25” & 5” height adaptors (1 pair each)
  • Ships in sturdy wood crate
  • Lift Capacity: 8,000 lbs.
  • Telescoping Support Arms - Min: 38-3/8" Max: 60” (Roller body wheel center)
  • Lifting Arms - Min / Max: 35-7/16” – 57-1/2” (Pad center)
  • Lifting Height - Min/Max: 6-9/16” – 14-7/8” (Pad adaptor only)
  • ‘High Mount’ - adjustable Roller Body Bracket Height: 1”
  • ‘Low Mount’ - adjustable Roller Body Bracket Height: 1”
  • Stackable Adaptor Heights: 1-5/16” & 5” (1 Pair)
  • Locking Positions: 1 Each
  • Required Power: 100 - 125 PSI / 10 - 20 CFM
  • Ship Weight: 426 lbs.
  • Package Size: 43”L x 29” W x 12” H
