ASEplatinum RAJ-8K-H Rolling Air Jack
ASEplatinum Rolling Air Jack Model RAJ-8K-H
8,000 lb. Capacity | "High Mount" Rolling Jack

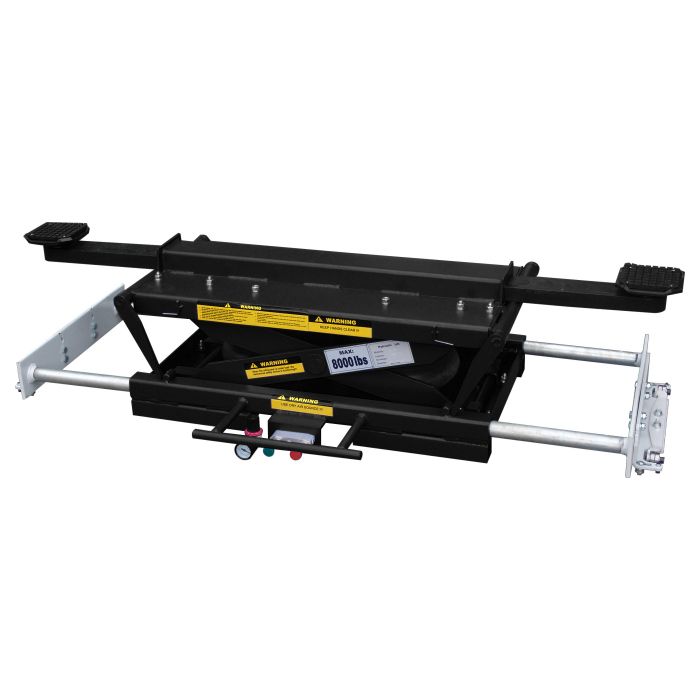

The RAJ-8K -H Rolling Air Jack is a professional quality, low profile, air bag scissor type rolling bridge jack with pneumatic operation. Ideal for use with 4 post lifts.
The ASEplatinum RAJ-8K-H Rolling Air Jack is a high quality, low profile, air bag, scissor type rolling bridge jack. The "high mount" rolling jack has pneumatic operation that includes exclusive telescoping Universal Roller Body Bracket Assemblies designed for either high or low mount applications. The RAJ-8K-H has an adjustable ‘spring loaded’ roller body assemblies also consist of dual precision ‘on-rail’ type roller bearing wheels and side bearing guide wheels designed for smooth and safe operation. The RAJ-8K-H jack also comes standard with stackable pad & height adaptors, dual air bags, adjustable pressure regulator & locking height position.
The RAJ-8K-H is the "high mount" model. The rolling jack incorporates adjustable height roller body brackets suitable for four post lifts using low profile jacks with low mount jack rails and high profile runways, to provide enough clearances for proper operation and from touching the ground when fully lowered. Two adjustable mounting height positions available.
Features and Specs
- 8,000 lbs. capacity
- Universal Roller Body design with dual ‘spring loaded’ precision roller bearing & side guide wheels with adjustable height for low, medium & high jack rail configurations.
- Low profile configuration
- Rolls on top edge of jack rail for smooth maneuverability
- Dual height telescoping support arms
- Pneumatic operation w/ adjustable pressure regulator
- Dual air bags
- Stackable pad & height adaptors – 1-5/16” & 5” height adaptors (one pair each)
- Ships in sturdy wooden crate
- Lifting Arms - Min / Max: 35-7/16” – 57-1/2” (Pad center)
- Telescoping Support Arms: Minimum 38-3/8" Maximum 60" (Roller body wheel center)
- Lifting Height - Min/Max: 6-9/16” – 14-7/8” (Pad Adaptor only)
- ‘High Mount’ - adjustable Roller Body Bracket Height: 1”
- ‘Low Mount’ - adjustable Roller Body Bracket Height: 1”
- Stackable Adaptor Heights: 1-5/16” & 5” (1 Pair)
- Locking Positions: 1ea
- Required Power: 100 - 125 PSI / 10 - 20 CFM
- Ship Weight: 426 lbs. p
- Package Size: 43”L x 29” W x 12” H
