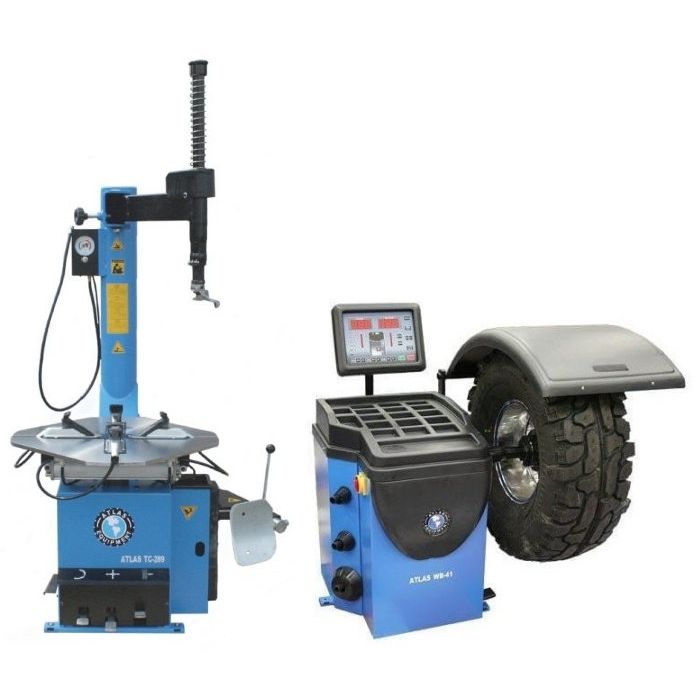

Atlas TC289 Wheel Clamp Tire Changer + WB41 Computer Wheel Balancer Combo

In stock
SKU
TC289+WB41
Our Price $4,399.00 Regular Price $4,650.00

Atlas TC289 Electric/Pneumatic Wheel Clamp Tire Changer +
Atlas WB41 Self-Calibrating Computer Wheel Balancer Combo


Atlas's TC289 entry level semi-automatic swing arm tire changer is suitable for car and light commercial vehicle, clamping range 13"-26", dual clamping cylinders with inflators on each clamp, adjustable bead breaker, press arm and bead pressing tool standard.

Atlas's WB41 is very a simple, yet sophisticated wheel balancer. Each electrical component part is virtually "plug and play" so repair is easy when it is time to replace parts. The Atlas WB41 is capable of self-diagnosing problems and displays error codes so the operator can make the necessary adjustments or repairs in his own shop. There is no need to wait for the high priced service technician to visit your store. The simplicity of the Atlas WB41, both in ease of use and ease of repair, make this balancer the perfect choice for your professional tire shop.

Description

Atlas TC289 Wheel Clamp Tire Changer + WB41 Computer Wheel Balancer Combo

Atlas Automotive Equipment

Atlas TC289 Electric/Pneumatic Wheel Clamp
Tire Changer with Bead Blaster

The Atlas TC289 wheel clamp tire changer is the perfect wheel clamp tire changer for most general automotive service departments and medium sized tire stores. This tire changer is perfect for changing the tires on large SUV and one ton trucks. The Atlas TC289 can be fitted with the LH assist arm, RH assist arm, or Atlas DAA arm assembly.

The Atlas wheel clamp tire changers are designed to change the tires on both high priced alloy wheels and steel wheels without damaging the rim or the tire. The powerful ADUSTABLE bead breaker located on the side of the tire changer is designed to break even the most stubborn and rusted beads without damage to the rim. The turntable jaws (which can be covered with the standard protective plastic inserts) hold the rim securely without damaging the surface of the rim. These jaws can be moved to three different positions along the slides of the turntable to either increase or decrease the clamping range of the Atlas TC289 wheel clamp tire changer.

The Atlas TC289 wheel clamp tire changer comes standard with the powerful bead blast system and inflator hose adapter and pressure gauge.



Atlas Automotive Equipment

Atlas WB41 Self-Calibrating Computer Wheel Balancer

The Atlas WB41 is the larger model of our extremely popular Atlas WB11 Computer Wheel Balancer.

The Atlas WB41 is very a simple, yet sophisticated wheel balancer. Each electrical component part is virtually "plug and play" so repair is easy when it is time to replace parts. The Atlas WB41 is capable of self-diagnosing problems and displays error codes so the operator can make the necessary adjustments or repairs in his own shop. There is no need to wait for the high priced service technician to visit your store. The simplicity of the Atlas WB41, both in ease of use and ease of repair, make this balancer the perfect choice for your professional tire shop.

The Atlas WB41 wheel balancer balances wheels that weigh up to 150 lb. Many balancers claim that they have 150 lbs. wheel capacity. There is a BIG difference between the shaft being able to support a 150 lbs. wheel assembly and the balancer being able to accurately balance the 150 lb. wheel assembly.

Features and Specs

TC289 Wheel Clamp Tire Changer Features
  • Tire Inflator
  • Adjustable Bead Breaker
  • 3 Positions For Clamping Jaws
  • Oil, Filter, Regulator Included
  • 90-110 PSI
  • Bead Blaster
  • 110V
  • Inner Clamp: 14" - 30"
  • Outer Clamp: 12" - 28"
  • Max Tire Diameter: 47 1/2"
  • Max Wheel Width: 18 1/2"
TC289 Wheel Clamp Tire Changer Specifications
  • Rims: Steel, Aluminum, Alloy
  • External Clamping Range: Position 1) 11 7/8" - 26"
  • External Clamping Range: Position 2) 12 7/8" - 27"
  • External Clamping Range: Position 3) 13 3/4" - 28"
  • Internal Clamping Range: Position 1) 13 7/8" - 27 7/8"
  • External Clamping Range: Position 2) 14 5/8" - 28 7/8"
  • External Clamping Range: Position 3) 15 5/8" - 29 7/8"
    With Flip Adapters In The ATV Configuration
  • External Locking Rim Dimension: Position 1) 5" - 19 1/8"
  • External Locking Rim Dimension: Position 2) 5 7/8" - 20 1/8"
  • External Locking Rim Dimension: Position 3) 6 7/8" - 21 1/8"
    With Flip Adapters In The Motorcycle Configuration
  • External Locking Rim Dimension: Position 1) 15" - 29 1/8"
  • External Locking Rim Dimension: Position 2) 15 7/8" - 30"
  • External Locking Rim Dimension: Position 3) 16 7/8" - 31"
  • Bead Blaster: Yes
  • Maximum tire diameter: 47"
  • Operating voltage: 110V 1Ph
  • Maximum wheel width (Bead Breaker): Position 1) 14"
  • Maximum wheel width (Bead Breaker): Position 2) 18"
  • Air pressure: 90-110 psi
  • Maximum Inlet Pressure not to exceed: 170 PSI*
  • Turntable Rotating Torque: 885 ft/lbs.
  • Wheel clamping: 4 jaws: internal/external
  • Bead breaker: Pneumatic 5,500 LB. force
  • Oiler, filter, regulator: Included
  • Soap reservoir: Included
  • 4 Black plastic rim protectors: Included
  • Shipping Weight: 618 lbs
Warranty: 1-Year Limited

*Inlet pressure is the amount of air pressure that your air compressor is supplying.


WB41 Self-Calibrating Computer Wheel Balancer Features
  • Easy To Read Display
  • Large Weight Tray
  • Auto Positioning
  • Auto / Pedal Brake
  • Auto Start / Stop
  • Static And Dynamic Balancing Modes
  • Rapid Optimization
  • Self-Diagnosis
  • Self-Calibration
  • Exceptional Stability In Reading The Unbalance Between Planes
  • Metric And Standard
  • No Anchor-Down Installation
WB41 Self-Calibrating Computer Wheel Balancer Specifications
  • Max Tire Diameter: 39" (3" 6')
  • Rim Sizes (Cars And Light Trucks): 10"-32" (2" 8' *
  • Rim Width: 1 1/2"-20" (1" 8')
  • Shaft Size: 40mm
  • Max. Wheel Weight: 150 lb.
  • Balancing Speed: 150 rpm
  • Truck Adapter Set: Optional
  • Power Supply: 110 V 1Ph
  • Motor: 1/4 Hp
  • Display: Standard Or Metric
  • Accuracy: 1g
  • Weight Position Resolution: 1.4 Degrees
  • Self Calibration: Yes
  • Shipping Weight: 300 lb.
Warranty: 1-Year Limited

*Requires manual input of some data from 23"-32"

Accessories/Options

More Information

More Information
more

TC289 Wheel Clamp Tire Changer Documentation

Atlas TC289 Wheel Clamp Tire Changer Manual (.pdf)

Atlas TC289 Wheel Clamp Tire Changer Parts (.pdf)

Atlas TC289 Wheel Clamp Tire Changer FRL Info (.pdf)



WB41 Self-Calibrating Computer Wheel Balancer Documentation

Atlas WB41 Computer Wheel Balancer Manual (.pdf)

Atlas WB41 Computer Wheel Balancer Quick Start (.pdf)

Atlas WB41 Computer Wheel Balancer Parts (.pdf)
