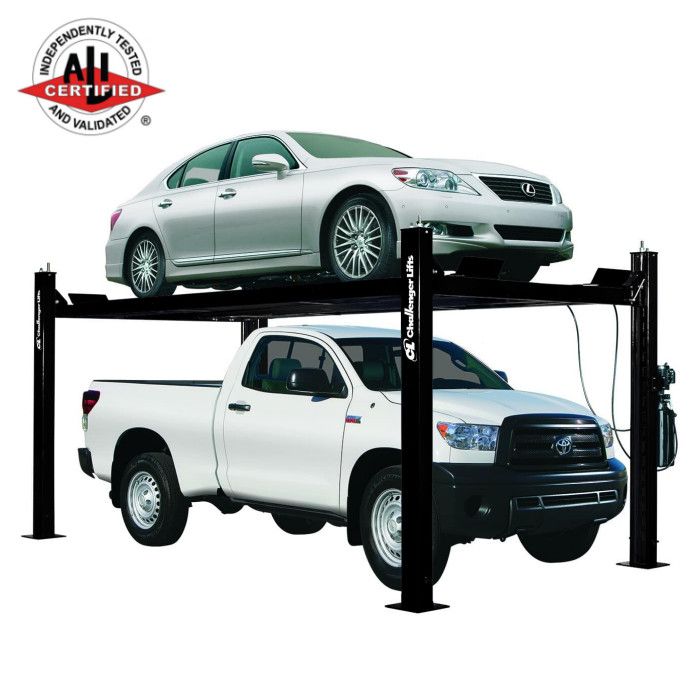

Challenger Lifts CL4P9X Home Storage Four Post Lift Extended Height

In stock
SKU
CL4P9X-SR
Our Price $6,044.00 Regular Price $6,880.00
ALI Certified Automotive Lift

Challenger Lifts CL4P9X Home Storage Four Post Lift
9,000 lbs. Lifting Capacity Extended Height

Challenger's Home Storage /DIY light duty general service lifts are commercial grade, yet economical for DIY enthusiasts. Features 115v electric/hydraulic operation for simple plug in and lift capability. Can be free standing for mobility or bolted to the floor for even more stability. Challenger's CL4P9X is ALI and ETL Certified.
This lift now offered ONLY in Textured Black Powder Coat Finish.

You choose - Ramp Length Options:
CL4P9X-SR with Standard Ramps
CL4P9X-ER with Extended Ramps

Description

Challenger Lifts

Challenger Lifts CL4P9X Home Storage Four Post Lift
9,000 lbs. Lifting Capacity Extended Height

Challenger Lifts CL4P9X Four Post Lift - Extended Height

These lifts are the absolute best 4 post lift on the home / hobby market.
Why? - Because they're actually just a smaller scaled down version of the larger popular Challenger 14,000 pound four post lifts. They don't miss a thing. And to prove it, they're also ALI certified, just like most premium commercial grade 4 post lifts from premium manufacturers.

Challenger Lifts’ 9,000 lbs. capacity CL4P9S, CL4P9X and CL4P9W 4-post home car lifts are perfect for light duty commercial service or storage applications. Challenger Lifts 9,000 lbs.4 post lift and commercial service lift units give you unlimited options for your shop's layout.

Another great feature of the CL4P9 series free standing 4 post lift is its portability. You can choose between bolting it down and leaving it free-standing so you can relocate it anywhere. If convenience is important to you, the free standing 4 post lift is a great option.

With optional rolling jacks, ramp upgrades, oil drain pan, you'll be able to accommodate just about anything that comes in the garage and afford room to grow with its reasonable cost. The 36” aluminum approach ramps are standard with lift.

Service Application
Professional grade quality with 80” high rise and multiple lock positions ensures you're always at a comfortable working height. The CL4P9S is perfect for light duty service up to 9,000 lb. capacity. Optional rolling jacks and jack trays provide quick tire and brake work access.

Challenger Lifts CL4P9S Service Lift

Storage Application
Service your vehicles or store them up top. With 80” rise height, most full size vehicles are easily parked underneath for everyday use. Optional drip tray set completes the storage application, keeping any fluids from contacting the vehicle underneath.

Challenger Lifts CL4P9S 4 Post Storage Lift

Multiple Power Unit Locations The power unit can be placed either on the front column of the drivers side or the back column of the passenger side of the lift. This provides convenient power control accessibility and versatility for any garage layout.

Challenger Lifts Multiple Power Unit Locations

CL4P9 home car lifts are available in black only

Challenger’s CL4P9 Series 9,000 lb. capacity 4-post home car lifts were designed with versatility in mind. From home enthusiast and commercial storage applications to light duty general service applications, these home garage lifts compliment your service needs and are loaded with real benefits. They are essential for the "do it yourself" home garage, providing the best of both worlds - store a vehicle up top and below with up to 80" of clearance when the lift is fully raised, or use these vehicle lifts to service your vehicles.

Whether you're a gear head skinned knuckles type of guy (or gal), a professional car collector, just need more room in your garage or looking for commercial storage capacity, the CL4P9 home garage car lifts will greatly improve your garage's image.

Challenger Lifts meet strict industry standards and bear the “Gold Label” of the ANSI Accredited ALI Certification Program. As an active board member of the Automotive Lift Institute (ALI), Challenger Lifts  promote high quality product standards and safe design, construction and use of vehicle lifts. From design to manufacture, they take great pride in ensuring quality at every stage of production of their lifts.

So, you want the best? Of course you do!
That's why you're looking at a challenger lift right now.
You know Challenger. They've been around much longer than a strong majority of all those other inferior auto lift manufacturers out there. And it shows. Nobody makes them better. When it comes to their two post lifts, their CL10 Series lifts are the pride of the industry. They boast features that other competitors wish they could offer. Plus, many models are also made in the USA. Contact us for details. When these other manufacturers claim they're just as good as, or the same as a Challenger, don't believe them. There's a reason they have such a long term list of satisfied customers. The cylinders are premium grade and offer ultra-smooth functionality, and they won't start leaking a day after the warranty expires. They were the first manufacturer to offer three stage arms on their top two post lift models, and most models are ALI certified. Many two post models offer the innovative Versymmetric feature invented by Challenger back in 1992 that allows you to adjust the vehicle forward or rearward on the lift, to adjust the center of gravity closer to the columns. This gives you the best of both worlds, so you don't have to choose between symmetric or asymmetric. They are the true pioneers of the industry. Always leading, always innovating, and always providing smart solutions to satisfied auto shop owners.

Features and Specs

CL4P9X Home Garage Lift

What features and benefits can you expect from the CL4P9 home garage lift? Not only does the lift offer a versatile design with a heavy duty lifting capacity, it also comes with many other benefits. Take a look below to see if the features match your requirements.

Features

  • 7,000 lbs. lifting capacity or 9,000 lbs. lifting capacity models available
  • Up to 85.5" service rise height in top locked position
  • Up to 80" clearance in top locked position for storage application
  • Multiple heights, lengths and widths available (9,000 lb. models only)
  • Adjustable lock ladders allow for a versatile install with sensitivity to uneven floors
  • Commercial-grade formed runways ensure a strong, stable unit
  • Single-point manual lock release disengages column locks simultaneously
  • Air not required for operation
  • Anchoring not required to maintain ALI/ETL certification
  • Larger columns and base plates add stability (9,000 lb. models only)
  • Built-in runway rail system provides versatility to add convenience options like rolling jacks and oil drip trays (sold separately)
  • Powder coat finish provides long-lasting durability

To properly choose the right home garage lift, you need to be aware of factors like lift capacity, size dimensions, speed of rise and other specifications. In the table below, you can compare the specifications of the CL4P home storage car lifts from Challenger Lifts - CL4P7, CL4P9S, CL4PX, and CL4PW.

Make sure you have enough ceiling clearance - Use the Calculator!

Specifications

 Challenger Lifts CL4P9S Layout

Model Number CL4P7 CL4P9S CL4P9X CL4P9W
Lifting Capacity 7,000 lbs. 9,000 lbs. 9,000 lbs. 9,000 lbs.
Length Overall 195.5" 209.5" 233.5" 233.5"
Width Overall 100.5" 112.25" 112.25" 127.25"
Inside Columns 92.125" 95" 95" 110"
Between Columns 147.5" 160.5" 184.75" 185.75"
Height of Columns 6’ 7.5" 7’ .5" 8’ .5" 8’ .5"
Height of Runways (Floor to top of Runway) 5.75" 7" 7" 7"
Width of Runways 20" 20" 20" 20"
Width Between Runways 38" 38" 38" 38"
Rise Height (Top of Runway at top position) 68.125" 73.25" 85.5" 85.5"
Clearance Height (Storage) 63' 67.75" 80" 80"
Max. Wheelbase* 141.5" 155" 179" 179"
Crossbeam Clearance Height 63" 68" 80" 80"
Motor 1HP/2HP 1HP/2HP 1HP/2HP 1HP/2HP
Voltage (1 Phase Std) 115v/230v 115v/230v 115v/230v 115v/230v
Speed of Rise (115v/230v) 120/60 s 120/60 s 120/60 s 120/60 s
Min. Recommended Bay Size 10’ x 20’ 11’ x 22’ 11’ x 22’ 14’ x 22’
ALI/ETL Certified Yes Yes Yes Yes
Colors Available Black Black Black Black
Warranty (5) Yrs Structure, (2) Yrs Parts, (1) Yr Labor

* Maximum wheelbase is based on a tire diameter of 30”
1 Height to bottom of cross beam measured with lift sitting in highest lock position
2 Optional 220v power (provides 60 second rise time) available. Must be specified at time of order.
Available in black only.

Challenger Lifts Warranty Statement
Challenger Lifts, Inc. (CLI) lifts are guaranteed to the original owner. CLI shall repair or replace, at CLI option, for the full warranty period those parts that prove upon inspection to be defective and pay for all reasonable costs of transportation and/or labor for replacement of said parts for the warranty period stated below. This warranty shall not apply unless the product is installed, used and maintained according to CLI's specifications set forth in CLI's installation, operation, and maintenance instructions. Use of any unapproved parts or accessories will void your warranty. This limited warranty extends only to the original purchaser and in not transferable. This warranty is valid only if the product has been registered with Challenger lifts.

This warranty does not cover normal maintenance or adjustments, damage or malfunction caused by improper handling, installation, abuse, misuse, negligence, carelessness of operation, or normal wear and tear. In addition, this warranty does not cover equipment when repairs have been attempted or made by anyone other than a CLI authorized service representative.

This warranty is exclusive and is in lieu of all other warranties expressed or implied including any implied warranty of fitness for a particular purpose, which implied warranties are expressly excluded. No employee, agent, representative, dealer or other person or entity is authorized to give any warranties of any nature on behalf of CLI.

The remedies described are exclusive and in no event shall CLI, Inc. be liable for special, consequential or incidental damages for the breach of or delay in performance of the warranty. This warranty shall be governed by the Commonwealth of Kentucky, and shall be subject to the exclusive jurisdiction of the Court in the Commonwealth of Kentucky in the County of Jefferson.

Functional parts are considered the power units, cylinders, sheaves, sheave pins, hoses, hydraulic & pneumatic fittings, cables, adapters, latched, valves, and controls.

Structural parts are considered the carriage, columns, column extensions, overhead beams, arms, cross beams, runways, wheel stops, ramps, bolsters., sync rails, and plungers.

Note: Warranty registration must be completed online at challengerlifts.com/register-your-lift or warranty period will begin from invoice date of lift purchase.

Accessories/Options

More Information

More Information
more

Challenger Lifts CL4P Series Brochure (.pdf)

Challenger Lifts CL4P Series Spec Sheet (.pdf)

Challenger Lifts CL4P Series Catalog (.pdf)

Challenger Lifts CL4P9 Manual (.pdf)
