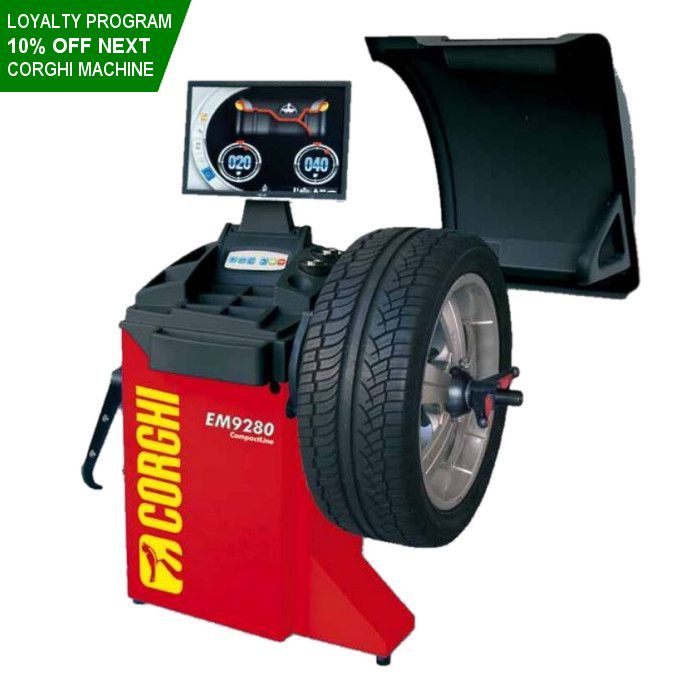

Corghi EM9280 Wheel Balancer with LCD Monitor
The Corghi EM9280 is a professional wheel balancer with a high resolution LCD monitor and new larger wheel guard for reliable wheel balancing.
Description
Corghi EM9280 Wheel Balancer with LCD Monitor | CompactLine
The Corghi EM9280 is a professional wheel balancer with a high resolution LCD monitor and new larger wheel guard for reliable wheel balancing.
|
LCD Monitor LCD monitor ideal for displaying high resolution graphics and dedicated software. Control keypad with reduced number of keys for simple and rapid machine use. Weight Tray Weight tray ergonomic and functional, it features many large tray to house all different types of weights and the various tools. |
|
Spin Unit Spin unit derives from the superior models of the B-Series and provides functional features typical of the upper models: reduced cycle time, measuring wheels weighing up to 165 lbs. and wheel balancing with inside offset of up to 10.8" without using additional spacer. The innovative drive and zero maintenance ensure maximum reliability. |
|
Wheel Guard The new wheel guard allows use whit wheel sizes up to 44". |
|
Wheel Dimension Detection SMART-ARM: electronic input of wheel diameter and distance with FSP function which automatically activates the balancing programs, avoiding keypad selection. Three modes to position the adhesive weights: with the weight holder clip (optional), with the 6 o'clock laser indicator (standard) or manually at 12 o'clock. |
|
AWD Sonar Device (Optional) AWD automatic sensor (Auto width Device) for contactless measurement of wheel width. |
|
Calibration Quickly and intuitive sensitivity calibration. The new sample weight supplied with the machine is simply applied directly to the spin unit, ensuring maximum precision and eliminating operator error. |
|
Automatic Positioning and LED Illuminator Automatic wheel positioning in the point where the balancing weight has to be applied and electrical positioning brake (RPA). LED spotlight to light-up the work area and make it easier to clean the rim, check the wheel and apply weights. The adhesive weights can be positioned extremely rapidly using the laser pointer at 6 o'clock (standard). |
|
Support Base (Standard) Front support base for balancing wheels up to 110.2 lbs. without fastening the machine to the ground. |
|
Weight Management As standard, the Weight Management program suite which includes Lessweight. This software allows a significant reduction of balancing weights, through the analysis of different threshold values, according to the vehicle type: fast or slow (unique on the market). |
|
Hidden Weight Keeps rims looking great by dividing the external side balancing adhesive weight into two equivalent weights applied in hidden locations behind the spokes. |
|
Opt Flash Minimizes road noise by allowing the operator to alter the position of the tyre on the rim in order to optimise quietness. |
|
AWC - Auto Width Calculation Automatic calculation of the width (AWC function) even if the AWD external sensor is not present. The wheel balancer calculates the width by reducing the operational time. |
Features and Specs
Features
- LCD Monitor
- New Larger Wheel Guard
- Wheel Dimension Detection
- AWD Automatic Width Device Sensor
- AWC Automatic Width Calculation
- Automatic Positioning
- LED Illuminator
- Front Support Base
- Ergonomic and Functional Weight Tray
- Hidden Weight for Hiding Weights Behind Spokes
- Weight Management
- Opt Flash
Specifications
- Power Supply Voltage: 230V / 1ph / 50hz, 115V / 1ph/ 60hz
- Total Power Absorption: 122 W
- Spinning Speed: 90-130 rpm
- Max. Unbalance Value Calculated: 999 g
- Unbalance Measurement Accuracy: 1 g
- Average Measurement Time: 7 s
- Shaft Diameter: 40 mm / 1.57"
- Rim Width Setting Range: 1.5"-20"
- Rim Diameter Setting Range: 1"-35"
- Rim Diameter Measurement Range: 10"-28"
- Max. Wheel Width: 23.6" / 600 mm
- Max. Wheel Diameter: 44" / 1117 mm
- Max. Wheel/Machine Distance: 10.82" / 275 mm
- Max. Wheel Weight: 165 lbs. / 75 kg
- Machine Weight: 180.7 lbs. / 82 kg
- Warranty: (3) Years Parts and (1) Year Labor
Corghi USA Limited Warranty Statement
General Terms
Corghi USA expressly warrants its products will be free from defects in material and/or workmanship for the time period specified. Corghi USA must be informed in writing within (7) days after discovery of a defect. Corghi USA reserves the right to repair or replace a product at our discretion. Consumable products and accessories such as but not limited to; plastic protection parts, bead breaker pads, inflation hoses, and rollers, are not covered under this warranty.
This warranty does not cover any damage resulting from abuse or failure to perform any necessary maintenance (i.e. damage due to or resulting from, faulty installation, neglect, misuse, improper electrical connections or electrical surges, problems resulting from excessive water, contaminated air system, or pollutant of any nature, fire or freight damage).
Corghi machines are warranted to be free of defects as follows:
Tire Changers:
A2030, A2024TI, 2024LL, A9824, A9824LL, A9830, A9222, Service Pro 124, Service Pro 324, BC200S, A2002 - (3) years parts and (1) year labor. Additional Transmission Warranty Models: A9222 - (5) years parts only. A2030, A2024TI, 2024LL, A9824, A9824LL, A9830 - (10) years parts only. AM50, AM500, AM5000, Master J, Master Code, Master28 - (3) years parts and (1) year labor. HD700, HD1300, HD1400, Monster TT, HD1800, Service Pro 440, Service Pro 426 - (3) years parts and (1) year labor. NOTE: Rubber pads, air lines, gauges, mount/demount heads, and swabs - (90) day warranty.
Wheel Balancers:
PL60, Service Pro 750, EM9250, EM9280, EM9580, EM9780, EM9980C, ET1450, ET88 - (3) years parts and (1) year labor.
Alignment Machines and Specialty Equipment:
(3) years parts and (1) year labor.
Disclaimer & Limitation on Liability
Corghi USA agreement to repair a tire changer or balancer is expressly in lieu of all other warranties, express, implies or statutory, including any warranties for merchantability and fitness for a particular purpose. Corghi USA maximum liability shall be limited to the cost of the machine. In no event shall Corghi USA be responsible for owner's lost profits, goodwill or other incidental or consequential damages. Corghi USA is not responsible for equipment or accessories damages in shipment. Freight claims are to be made directly with the carrier. We will be more than happy to assist you with any questions regarding filing claims.
More Information
| more | Corghi EM9280 Wheel Balancer Brochure (.pdf) Corghi EM9280 Wheel Balancer Manual (.pdf)
|
|---|
