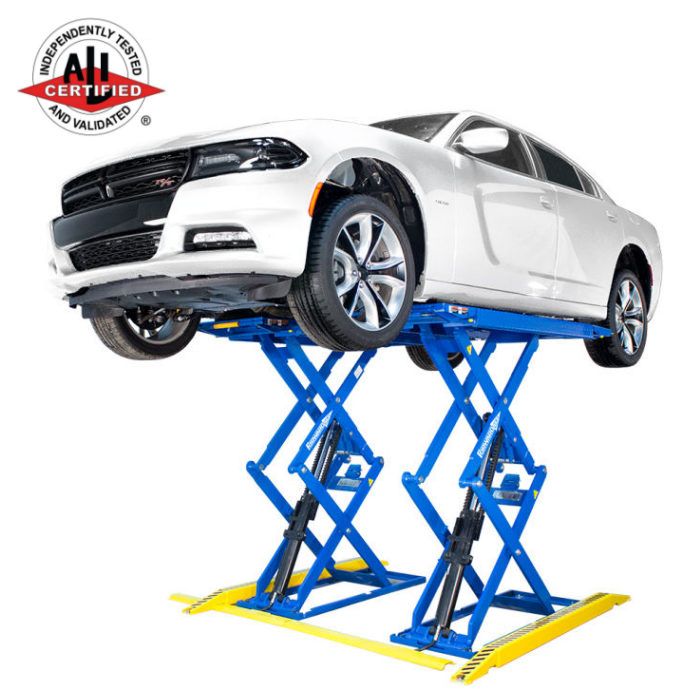

Forward Lift FS77 Full Rise Scissor Lift

Features

• Patent pending inverse piston synchronizer manifold system synchronizes the platform's movement.
• Provides more positive platform equalization than systems with flow dividers, encoders, string pots, or other feedback devices
• Both platforms stop lowering when one platform is stopped by an obstruction or engaged lock
• Simple design is easy to install, use and maintain
• 7,700 lbs. capacity for raising most passenger cars and light trucks.
• Low 4 1/8" collapsed height accommodates lower clearance vehicles.
• Reliable, high quality composite bearings reduce required maintenance.
• Easy to use control panel with 24 volt DC, non-high voltage switches used.
• Open front and rear with no structural connection between platforms or bases increases work area for technician.
• Galvanized bottom for corrosion resistance.
• Powder coated durable paint finish
• Hinged ramps fold 65 degrees away allowing clearance for wheel work
• Locking ramps increase platform pick-up points
• Ramp rollers protect floors from damage
• Diamond plate ramps increase drive on traction and maintain rubber block positioning.

Specifications

• Capacity: 7,700 lbs. (3492kg)
• Lifting Height: 78-5/8" (1997mm)
• Lowered Height: 4-1/8" (104mm)
• Overall Length: 85" (2159mm)
• Overall Width: 85" (2159mm)
• Runway Width: 24-3/4" (628mm)
• Width Between Platforms: 23-5/8" (600mm)
• Platform Length (Platform Only): 59" (1498mm)
• Platform with Ramps Length: 85-1/16" (2160mm)
• Ramp Length: 13" (330mm)
• Electrical Power: Single Phase - 4 Hp, 60Hz, 230V
• Compressed Air Connection: 85-110 psi
• Time of Full Rise: 39 seconds
• Warranty: (5) Years on Structure, (1) Year on Parts, (1) Year Labor

Forward Lift Warranty Statement
All Forward Lift products are warranted to the original owner. Forward lifts are warranted for 5 years from invoice date on structural components (columns, arms, runways, and carriages) to be free of defects in material and workmanship. Non-structure items (cylinder, power unit and parts) are warranted for 12 months from invoice date. Forward Lift shall pay for reasonable costs of labor and transportation for replacement of said parts for the first twelve months.

All accessories are warranted for 1 year from invoice date to the original owner (parts only). Optional twenty four month Extended parts warranty (non-structural items) is available upon request at an additional charge. This warranty shall not apply unless the product is installed, operated, used and maintained in accordance with Forward Lift specifications set forth in the installation, operation and maintenance instructions. This warranty is exclusive and all other expressed or implied warranties including merchantability or fitness for a particular purpose are hereby expressly excluded. The remedies described are exclusive and in no event shall Forward Lift or any sales agent be liable for any special, consequential or incidental damages of any kind including damages for breach of or delay in performance of the warranty. This warranty shall be governed under the laws of the State of Indiana, and shall be subject to the exclusive jurisdiction of the Court in the State of Indiana in the County of Jefferson. This warranty does not apply to the following:

• Normal wear and tear items such as cables, sheaves, sliders, plastic and rubber components.
• Normal maintenance and adjustments as required by the owner's manual.
• Failure to follow installation and operation instructions or user neglect or abuse.
• Damage to components incurred during transportation or unloading.
• Any lift that has been altered from the original design or improperly repaired.
• Cosmetic defects or blemishes that do not interfere with functionality of the lift.
• Damage caused by improper lifting or overloading.
• Damage caused by corrosion of any kind.

*Specifications subject to change without notice or liability.
