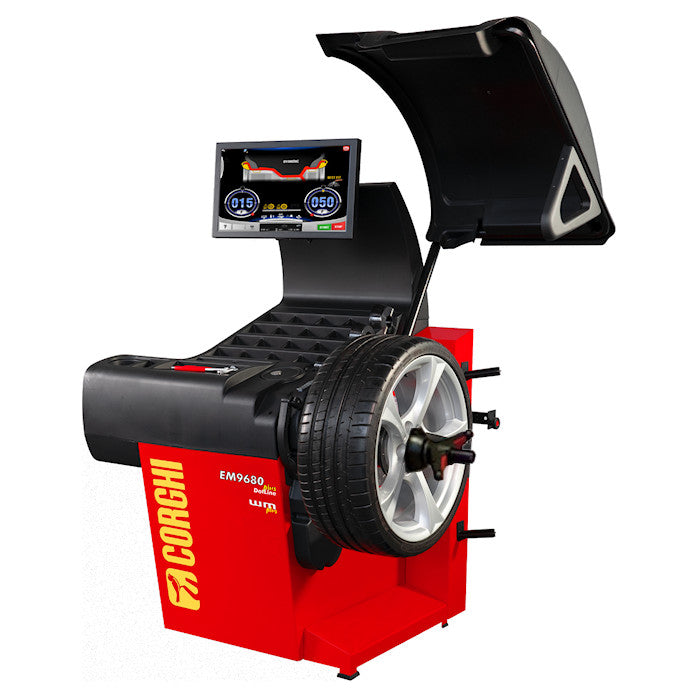

Corghi EM9680 Plus Dotline 3D Wheel Balancer

Name: Corghi EM9680 Plus Dotline 3D Wheel Balancer
Brand: ASEDeals
SKU: 0-21109682/00
Price: 8520.0 USD
Availability: InStock

In Stock SKU 0-21109682/00

OUR PRICE: $8,520.00

Regular Price: ~~$8,949.00~~

$236.66 / mo

INCLUDES FREE SHIPPING*

Short Description

Corghi EM9680 Plus Dotline 3D Wheel Balancer
Performance in a TOUCH!
The Corghi EM9680 Plus Dotline 3D Wheel Balancer delivers next-generation wheel balancing performance through an advanced 22" touchscreen interface designed for fast, intuitive operation. Equipped with the innovative Smart Arm Pro digital gauge and integrated LaserDot technology, the machine provides precise rim measurements up to 28" and visually guides operators to exact adhesive weight placement with exceptional accuracy and speed. Weight Management Plus technology helps reduce balancing time by up to 20% and counterweight usage by up to 30%, improving both profitability and environmental efficiency. Intelligent Positioning Lite further enhances ride quality by analyzing wheel imbalance and recommending optimal wheel placement on the vehicle for maximum comfort and safety. Additional professional features include Hidden Weight, Bike Split, OPT Flash, and optional sonar run-out diagnostics, making the EM9680 Plus Dotline an ideal solution for high-performance automotive service environments.

Description

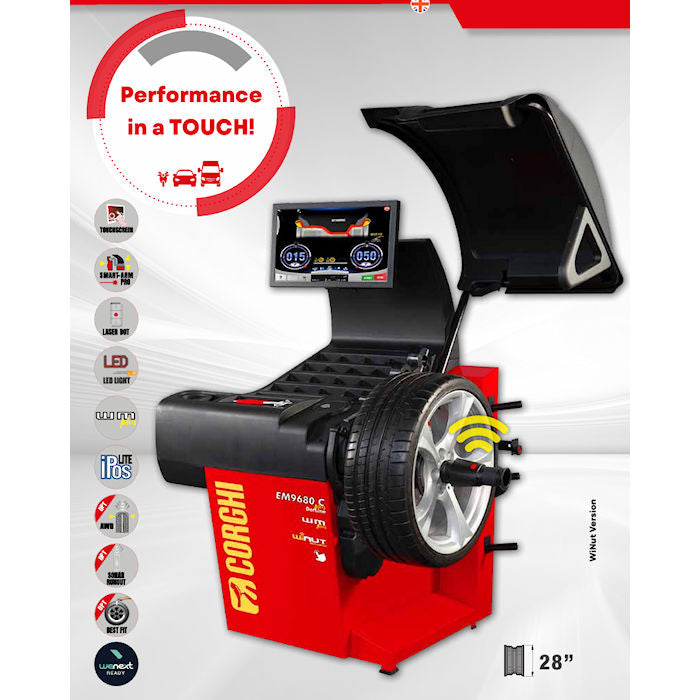

Corghi EM9680 Plus Dotline 3D Wheel Balancer
Performance in a TOUCH!

The Corghi EM9680 Plus Dotline 3D Wheel Balancer delivers next-generation wheel balancing performance through an advanced 22" touchscreen interface designed for fast, intuitive operation. Equipped with the innovative Smart Arm Pro digital gauge and integrated LaserDot technology, the machine provides precise rim measurements up to 28" and visually guides operators to exact adhesive weight placement with exceptional accuracy and speed. Weight Management Plus technology helps reduce balancing time by up to 20% and counterweight usage by up to 30%, improving both profitability and environmental efficiency. Intelligent Positioning Lite further enhances ride quality by analyzing wheel imbalance and recommending optimal wheel placement on the vehicle for maximum comfort and safety. Additional professional features include Hidden Weight, Bike Split, OPT Flash, and optional sonar run-out diagnostics, making the EM9680 Plus Dotline an ideal solution for high-performance automotive service environments.

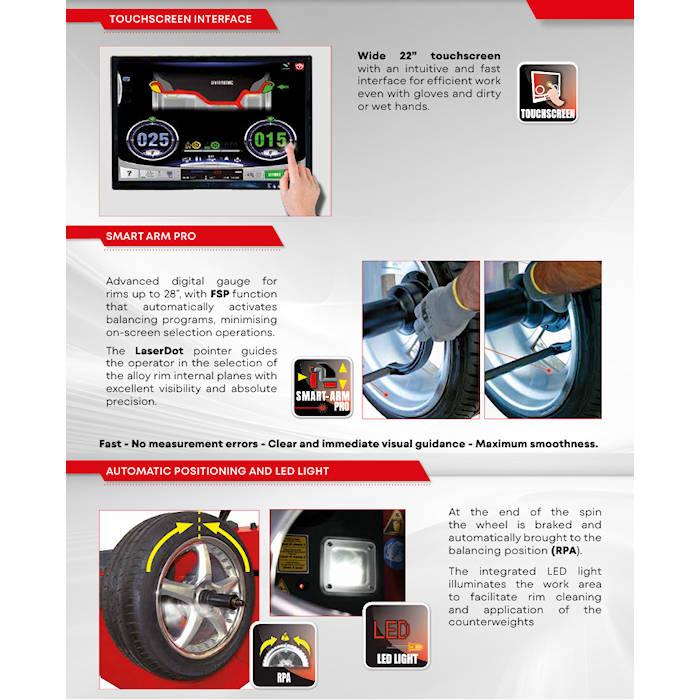

Touchscreen Interface
Wide 22" touchscreen with an intuitive and fast interface for efficient work even with gloves and dirty or wet hands.

Smart Arm Pro
Advanced digital gauge for rims up to 28", with FSP function that automatically activates balancing programs, minimizing on-screen selection operations. The LaserDot pointer guides the operator in the selection of the alloy rim internal planes with excellent visibility and absolute precision.
Fast - No measurement errors - Clear and immediate visual guidance - Maximum smoothness

Automatic Positioning and LED Light
At the end of the spin the wheel is braked and automatically brought to the balancing position (RPA). The integrated LED light illuminates the work area to facilitate rim cleaning and application of the counterweights.

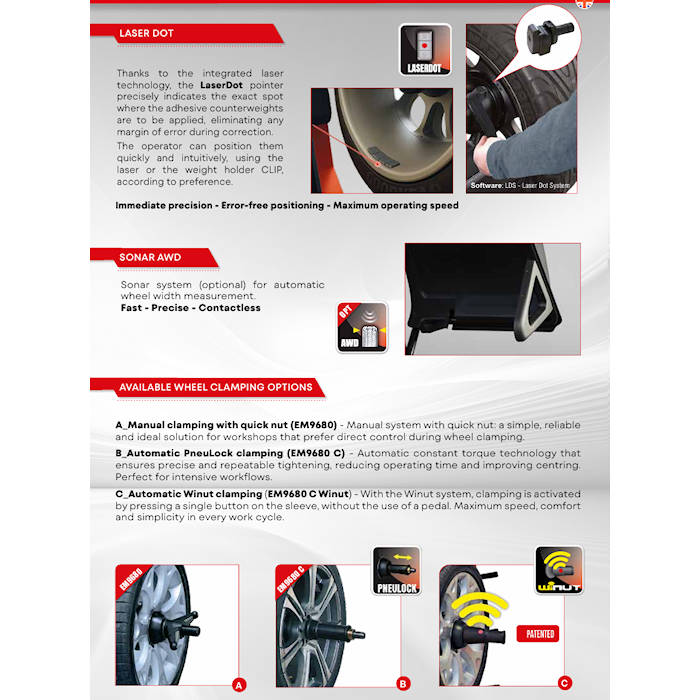

Laser Dot
Thanks to the integrated laser technology, the LaserDot pointer precisely indicates the exact spot where the adhesive counterweights are to be applied, eliminating any margin of error during correction. The operator can position them quickly and intuitively, using the laser or the weight holder CLIP, according to preference.
Immediate precision - Error-free positioning - Maximum operating speed

Sonar AWD
Sonar system (optional) for automatic wheel width measurement.
Fast - Precise - Contactless

Manual Clamping With Quick Nut
Manual system with quick nut: a simple, reliable and ideal solution for workshops that prefer direct control during wheel clamping.

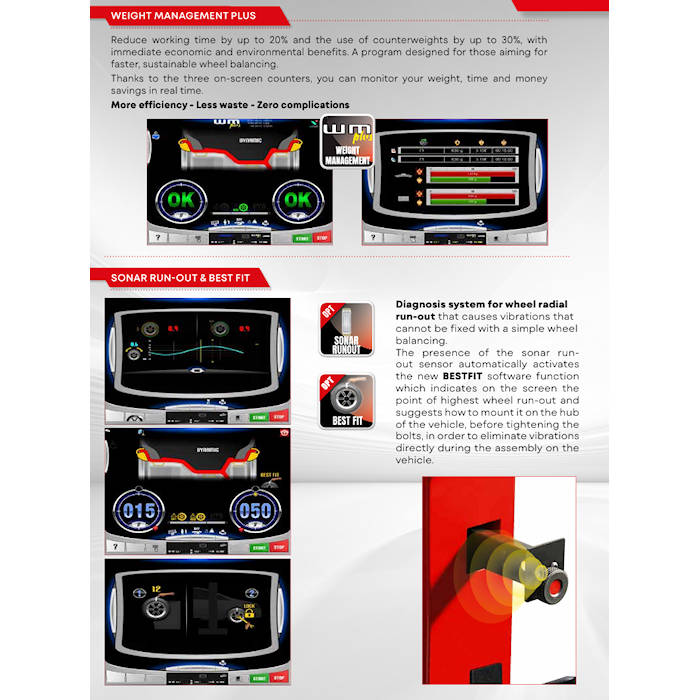

Weight Management Plus
Reduce working time by up to 20% and the use of counterweights by up to 30%, with immediate economic and environmental benefits.A program designed for those aiming for faster, sustainable wheel balancing. Thanks to the three on-screen counters, you can monitor your weight, time and money savings in real time.
More efficiency - Less waste - Zero complications

Sonar Run-Out & Best Fit
Diagnosis system for wheel radial run-out that causes vibrations that cannot be fixed with a simple wheel balancing. The presence of the sonar run-out sensor automatically activates the new Best Fit software function which indicates on the screen the point of highest wheel run-out and suggests how to mount it on the hub of the vehicle, before tightening the bolts, in order to eliminate vibrations directly during the assembly on the vehicle.

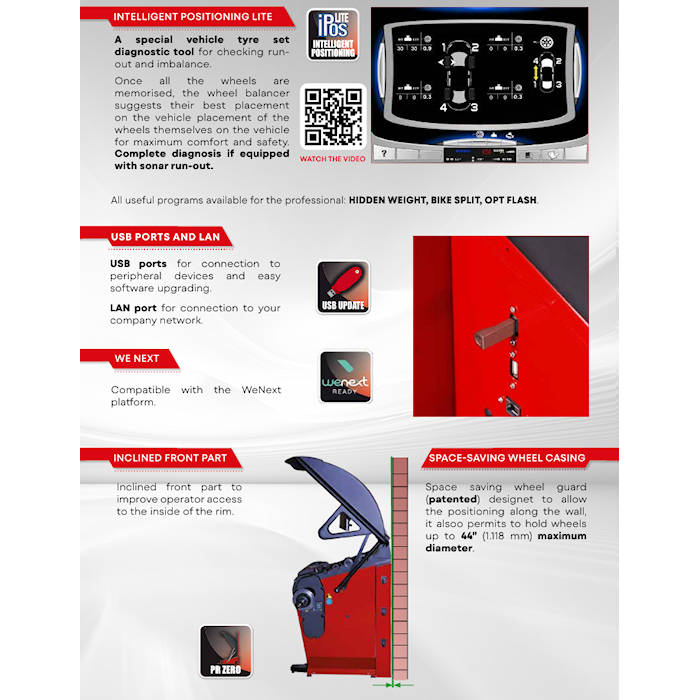

Intelligent Positioning Lite
A special vehicle tire set diagnostic tool for checking run-out and imbalance. Once all the wheels are memorized, the wheel balancer suggests their best placement on the vehicle placement of the wheels themselves on the vehicle for maximum comfort and safety. Complete diagnosis if equipped with sonar run-out. All useful programs available for the professional: HIDDEN WEIGHT, BIKE SPLIT, OPT FLASH.

USB Ports & Lan ports for connection to peripheral devices and easy software upgrading. LAN port for connection to your company network.

WeNext Platform Compatible

Inclined Front Part to improve operator access to the inside of the rim

Space Saving Wheel Guard patented design to allow the positioning along the wall, it also permits to hold wheels up to 44" (1.118 mm) maximum diameter.

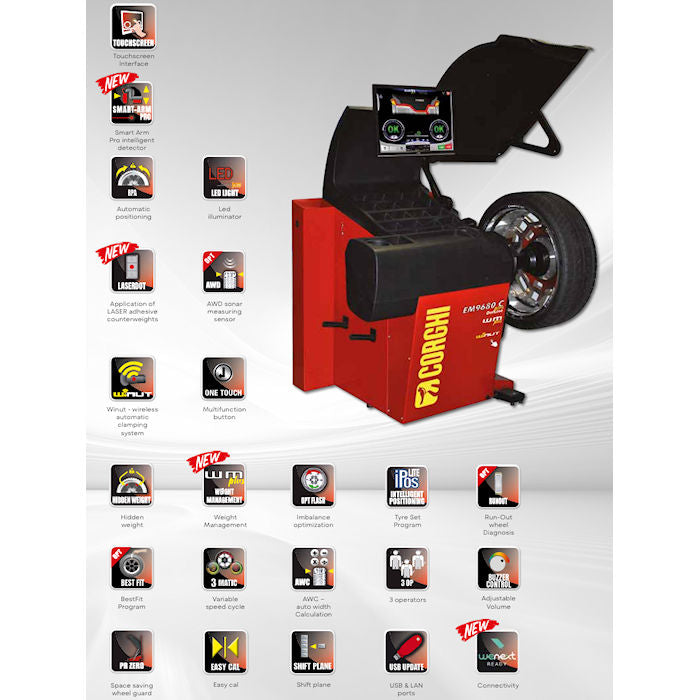

Features & Specs

Features

Touchscreen Interface
Smart Arm Pro
Automatic Positioning and LED Light
Laser Dot
Sonar AWD
Manual Clamping With Quick Nut
Weight Management Plus
Sonar Run-Out & Best Fit
Intelligent Positioning Lite
USB Ports & Lan
WeNext Platform Compatible
Inclined Front Part
Space Saving Wheel Guard

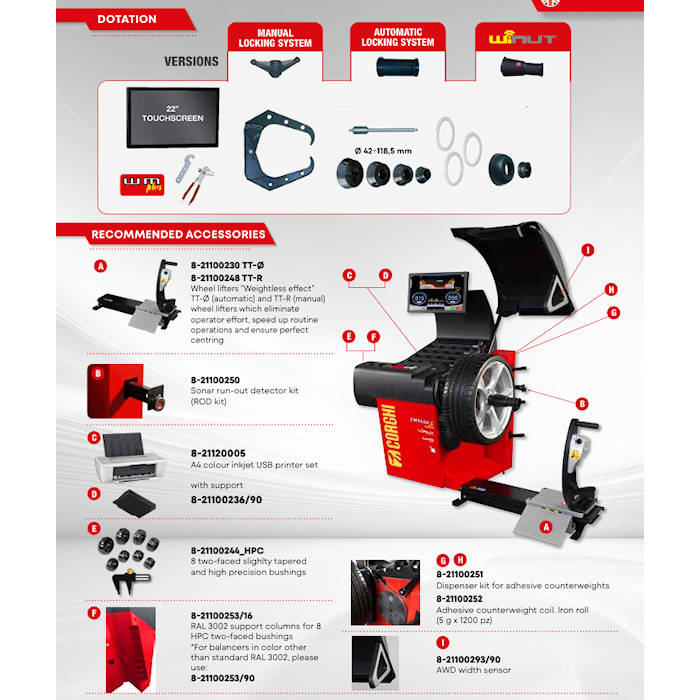

Optional Accessories

8-21100230 TT-0 Automatic Wheel Lifter
8-21100248 TT-R Manual Wheel Lifter
8-21100250 Sonar Run-Out Detector Kit
8-21120005 A4 Color Inkjet Printer Set
8-21100236/90 Printer Support Tray
8-21100244-HPC Two-Faced Slightly Tapered and High Precision Bushings
8-21100253/16 RAL3002 Support Columns for Bushings
8-21100251 Dispenser Kit For Adhesive Counterweights
8-21100252 Adhesive Counterweight Coil Iron Roll 5g x 1200pcs
8-21100293/90 AWD Width Sensor

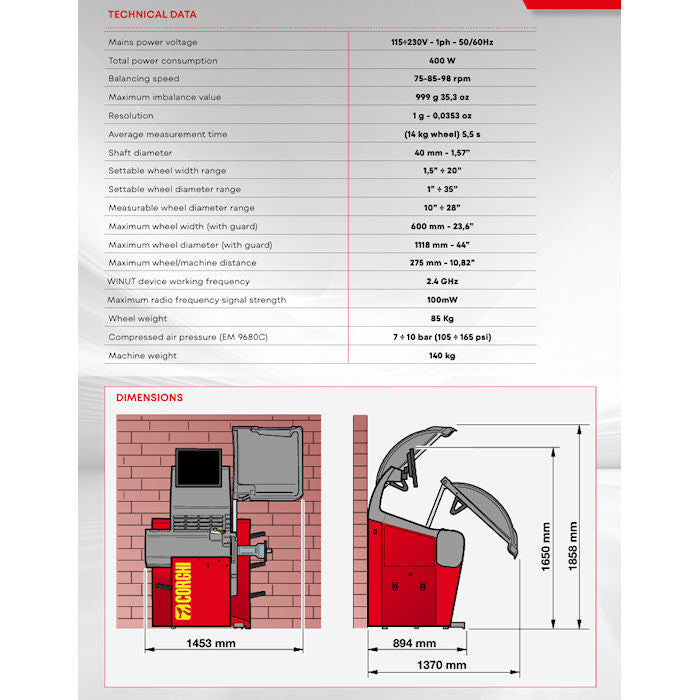

Specifications

Mains Power Voltage: 115/230V - 1ph - 50/60Hz
Total Power Consumption: 400 W
Balancing Speed: 75-85-98 rpm
Maximum Imbalance Value: 35.3 oz (999g)
Resolution: 0.0353 oz (1g)
Average Measurement Time: 5.5 s (14 kg wheel)
Shaft Diameter: 1.57" (40mm)
Settable Wheel Width Range: 1.5"-20"
Settable Wheel Diameter Range: 1"-35"
Measurable Wheel Diameter Range: 10"-28"
Maximum Wheel Width (With Guard): 23.6" (600mm)
Maximum Wheel Diameter (With Guard): 44" (1,118mm)
Maximum Wheel/Machine Distance: 10.82" (275mm)
Maximum Radio Frequency Signal Strength: 100mW
Wheel Weight: 187.39 lbs. (85kg)
Compressed Air Pressure (Em 9680C): 105-165 PSI (7-10 bar)
Machine Weight: 308.64 lbs. (140kg)
Dimensions With Hood Up: 73.14" H x 57.2" W x 35.19" D (1,858 x 1,453 x 894mm)
Dimensions With Hood Down: 64.96" H x 57.2" W x 53.93" D (1,650 x 1,453 x 1,370mm)
Warranty: (3) Years Parts, (1) Year Labor
