Corghi EM9780 Plus AutomaticLine 3D Wheel Balancer

Name: Corghi EM9780 Plus AutomaticLine 3D Wheel Balancer
Brand: ASEDeals
SKU: EM9780
Price: 10080.0 USD
Availability: InStock

In Stock SKU EM9780

OUR PRICE: $10,080.00

Regular Price: ~~$10,589.00~~

$280.00 / mo

INCLUDES FREE SHIPPING*

Short Description

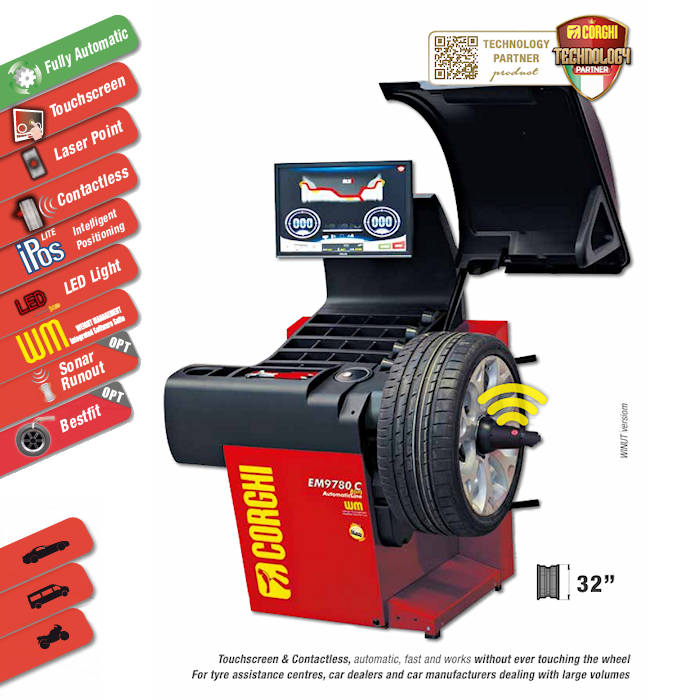

Corghi EM9780 Plus AutomaticLine 3D Wheel Balancer
Touchscreen & Contactless!
Take your wheel balancing to the next level with the Corghi EM9780 Plus AutomaticLine - a fully automatic, touchscreen wheel balancer engineered for maximum speed, precision, and operator ease. Featuring contactless wheel measurement, optional automatic wheel clamping, laser-guided weight placement, LED work illumination, and advanced diagnostic capabilities like Radial Rim/Tire Sonar Run-Out and Best Fit optimization, the EM9780 delivers fast, accurate results with minimal operator input. Weight Management Plus technology helps reduce balancing time and counterweight usage. The Intelligent Positioning Lite recommends optimal wheel placement on the vehicle for maximum comfort and safety. This innovative state of the art technology makes every job smoother, faster, and more profitable for today’s high-volume tire shops. The EM9780 is available with a Manual Locking Wing-Nut or and Electronic Locking Shaft.

Description

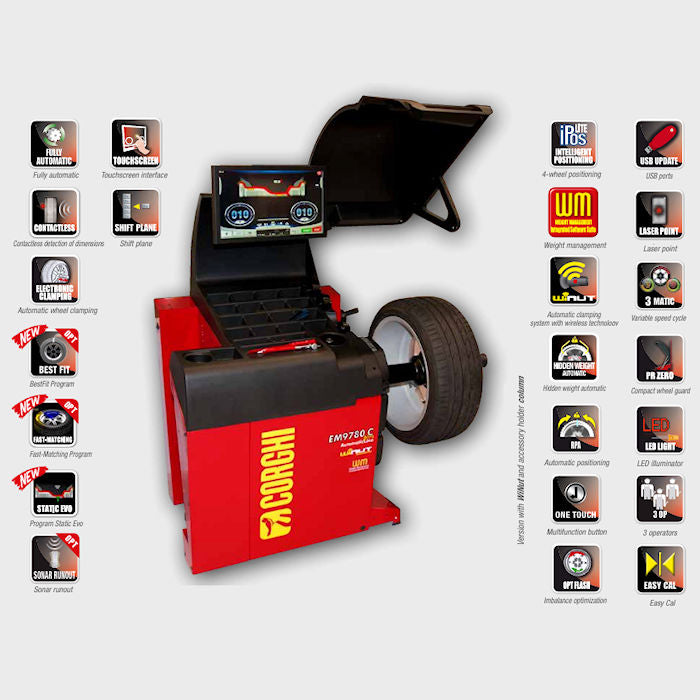

Corghi EM9780 Plus AutomaticLine 3D Wheel Balancer
Touchscreen & Contactless!

Take your wheel balancing to the next level with the Corghi EM9780 Plus AutomaticLine - a fully automatic, touchscreen wheel balancer engineered for maximum speed, precision, and operator ease. Featuring contactless wheel measurement, optional automatic wheel clamping, laser-guided weight placement, LED work illumination, and advanced diagnostic capabilities like Radial Rim/Tire Sonar Run-Out and Best Fit optimization, the EM9780 delivers fast, accurate results with minimal operator input. Weight Management Plus technology helps reduce balancing time and counterweight usage. The Intelligent Positioning Lite recommends optimal wheel placement on the vehicle for maximum comfort and safety. This innovative state of the art technology makes every job smoother, faster, and more profitable for today’s high-volume tire shops. The EM9780 is available with a Manual Locking Wing-Nut or and Electronic Locking Shaft.

Automatic, Fast and Works Without Ever Touching The Wheel!

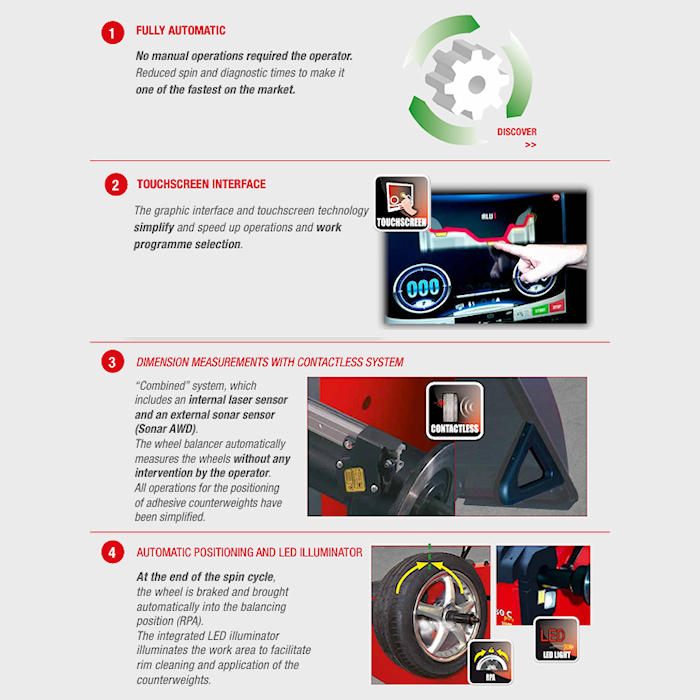

Fully Automatic
No manual operations required the operator. Reduced spin and diagnostic times to make it one of the fastest on the market.

Touchscreen Interface
The graphic interface and touchscreen technology simplify and speed up operations and work program selection.

Dimension Measurements With Contactless System
"Combined" system, which includes an internal laser sensor and an external sonar sensor (Sonar AWD). The wheel balancer automatically measures the wheels without any intervention by the operator. All operations for the positioning of adhesive counterweights have been simplified.

Automatic Positioning and LED Illuminator
At the end of the spin cycle, the wheel is braked and brought automatically into the balancing position (RPA). The integrated LED illuminator illuminates the work area to facilitate rim cleaning and application of the counterweights.

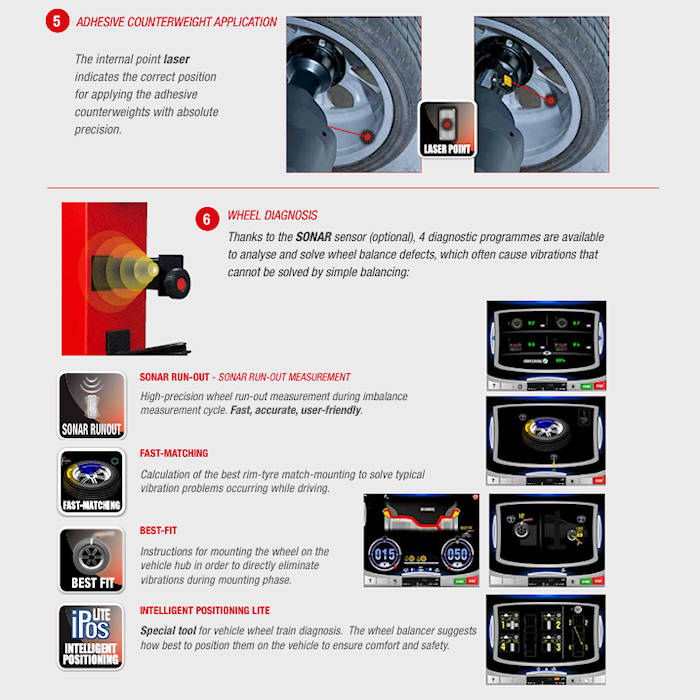

Adhesive Counterweight Application
The internal point laser indicates the correct position for applying the adhesive counterweights with absolute precision.

Wheel Diagnosis
Thanks to the SONAR sensor (optional), 4 diagnostic programs are available to analyze and solve wheel balance defects, which often cause vibrations that cannot be solved by simple balancing:

Sonar Run-Out Measurement high-precision wheel run-out measurement during imbalance measurement cycle. Fast, accurate, user-friendly.

Fast-Matching calculation of the best rim-tire match-mounting to solve typical vibration problems occurring while driving.

Best-Fit instructions for mounting the wheel on the vehicle hub in order to directly eliminate vibrations during mounting phase.

Intelligent Positioning Lite special tool for vehicle wheel train diagnosis. The wheel balancer suggests how best to position them on the vehicle to ensure comfort and safety.

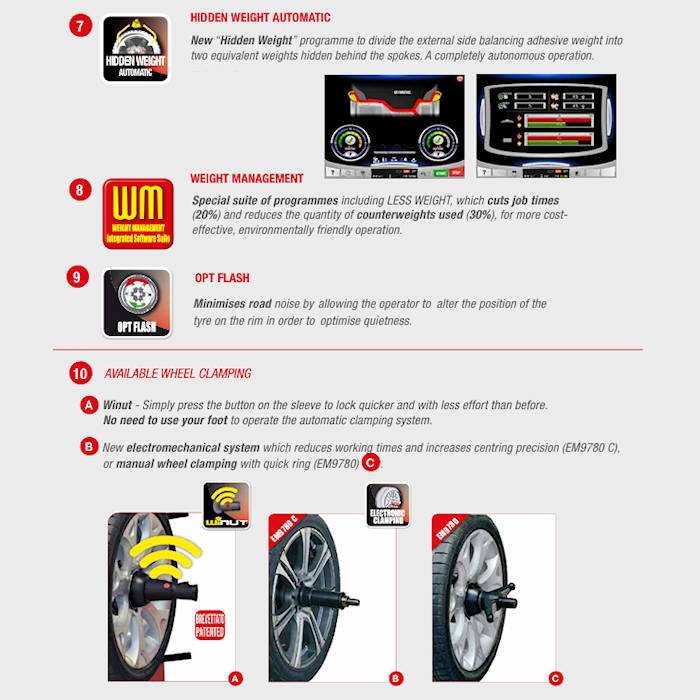

Hidden Weight Automatic new "Hidden Weight" program to divide the external side balancing adhesive weight into two equivalent weights hidden behind the spokes. A completely autonomous operation.

Weight Management special suite of programs including LESS WEIGHT, which cuts job times (20%) and reduces the quantity of counterweights used (30%), for more cost effective, environmentally friendly operation.

Opt Flash minimizes road noise by allowing the operator to alter the position of the tire on the rim in order to optimize quietness.

Available Wheel Clamping EM9780 with Manual Wing-Nut or EM9780-C with Electronic Locking Shaft

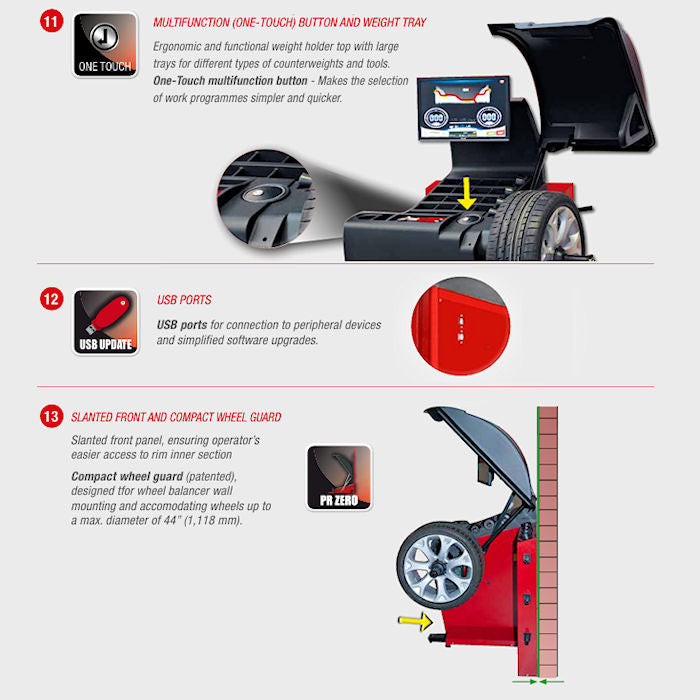

One-Touch Multifunction Button makes the selection of work programs simpler and quicker.

Weight Tray ergonomic and functional weight holder top with large trays for different types of counterweights and tools.

USB Ports for connection to peripheral devices and simplified software upgrades.

Slanted Front Panel ensures operator's easier access to rim inner section.

Compact Wheel Guard (patented) designed for wheel balancer wall mounting and accommodating wheels up to a max. diameter of 44" (1,118 mm).

Features & Specs

Features

Touchscreen & Contactless!
Automatic, Fast and Works Without Ever Touching The Wheel!
Fully Automatic
Touchscreen Interface
Dimension Measurements With Contactless System
Automatic Positioning and LED Illuminator
Adhesive Counterweight Application
Wheel Diagnosis
Sonar Run-Out Measurement
Fast-Matching
Best-Fit
Intelligent Positioning Lite
Hidden Weight Automatic
Weight Management
Opt Flash
One-Touch Multifunction Button
Weight Tray
USB Ports
Slanted Front Panel
Compact Wheel Guard
Available Wheel Clamping

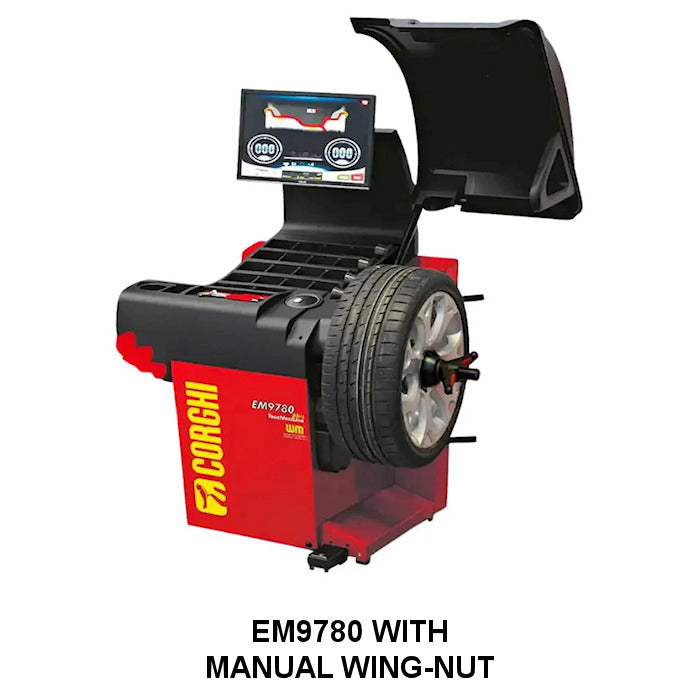

EM9780 with Manual Wing-Nut

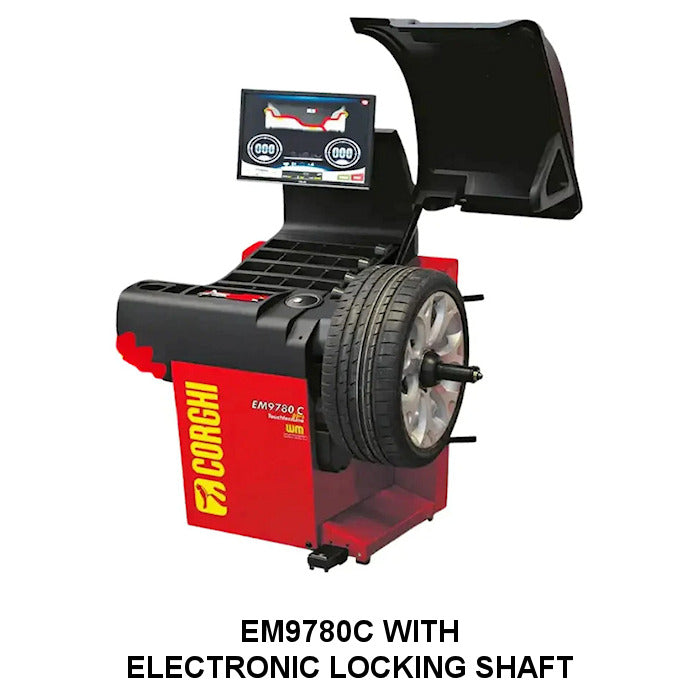

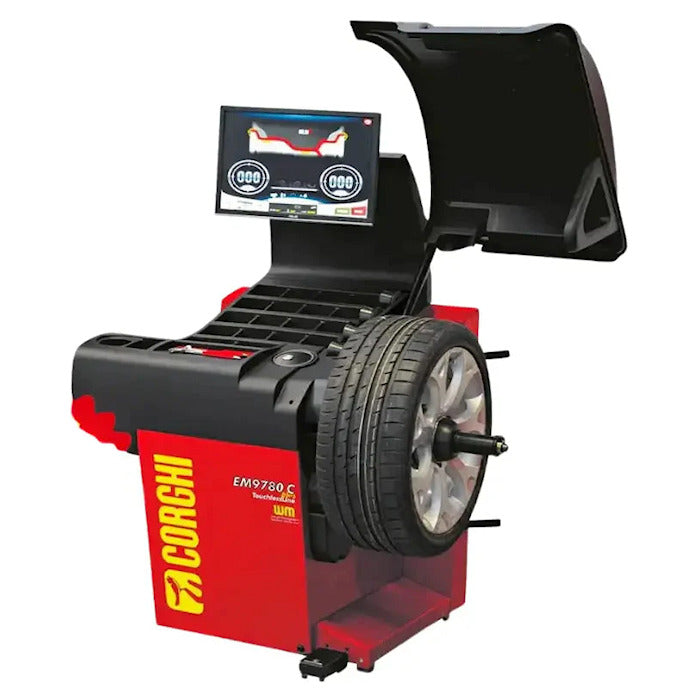

EM9780-C with Electronic Locking Shaft

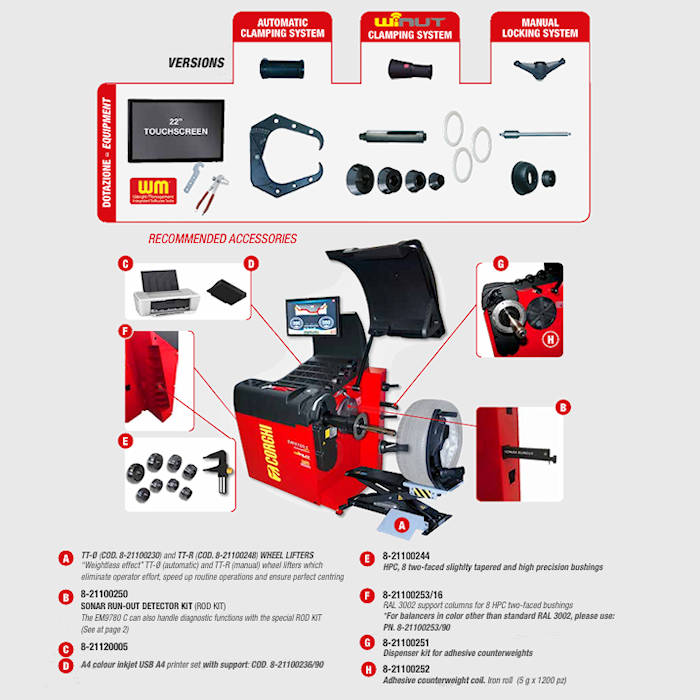

Optional Accessories

8-21100230 TT-0 Automatic Wheel Lifter
8-21100248 TT-R Manual Wheel Lifter
8-21100250 Sonar Run-Out Detector Kit
8-21120005 A4 Color Inkjet Printer Set
8-21100236/90 Printer Support Tray
8-21100244-HPC Two-Faced Slightly Tapered and High Precision Bushings
8-21100253/16 RAL3002 Support Columns for Bushings
8-21100251 Dispenser Kit For Adhesive Counterweights
8-21100252 Adhesive Counterweight Coil Iron Roll 5g x 1200pcs

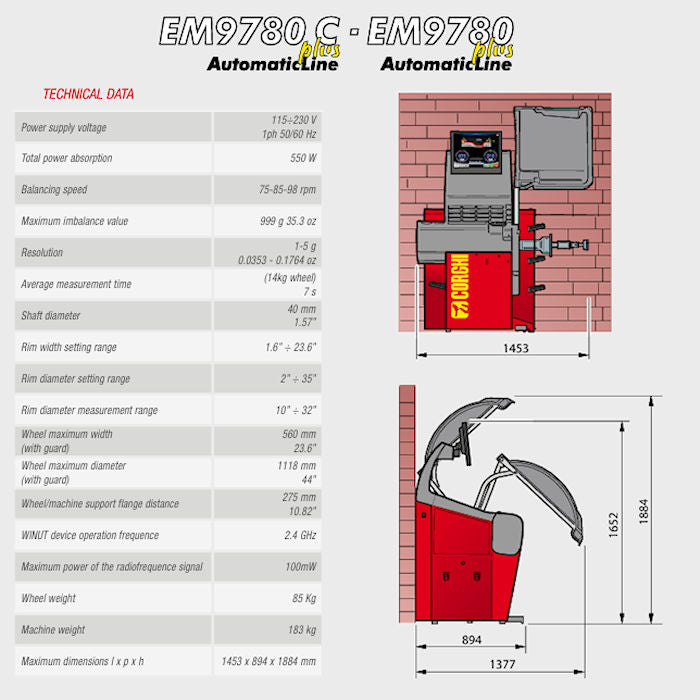

Specifications

Power Supply Voltage: 115V/230V - 1ph - 50/60Hz
Total Power Absorption: 550 W
Balancing Speed: 75-85-98 RPM
Maximum Imbalance Value: 35.3 oz (999g)
Resolution: 0.0353-0.1764 oz (1-5g)
Average Measurement Time: 7 s (14kg wheel)
Shaft Diameter: 1.57" (40mm)
Rim Width Setting Range: 1.6"-23.6"
Rim Diameter Setting Range: 2"-35"
Rim Diameter Measurement Range: 10"-32"
Wheel Maximum Width with Guard: 23.6" (560mm)
Wheel Maximum Diameter with Guard: 44" (1,118mm)
Wheel/Machine Support Flange Distance: 10.82" (275mm)
Maximum Power Of The Radiofrequence Signal: 100mW
Maximum Wheel Weight: 187.39 lbs. (85kg)
Machine Weight: 403.44 lbs. (183kg)
Dimensions with Hood Up: 74.17" H x 57.2" W x 35.19" D (1,884 x 1,453 x 894mm)
Dimensions with Hood Down: 65.03" H x 57.2" W x 54.21" D (1,652 x 1,453 x 1,377mm)
Warranty: (3) Years Parts, (1) Year Labor

Corghi USA Limited Warranty Statement
General Terms
Corghi USA expressly warrants its products will be free from defects in material and/or workmanship for the time period specified. Corghi USA must be informed in writing within (7) days after discovery of a defect. Corghi USA reserves the right to repair or replace a product at our discretion. Consumable products and accessories such as but not limited to; plastic protection parts, bead breaker pads, inflation hoses, and rollers, are not covered under this warranty.

This warranty does not cover any damage resulting from abuse or failure to perform any necessary maintenance (i.e. damage due to or resulting from, faulty installation, neglect, misuse, improper electrical connections or electrical surges, problems resulting from excessive water, contaminated air system, or pollutant of any nature, fire or freight damage).

Corghi machines are warranted to be free of defects as follows:

Tire Changers:
A2030, A2024TI, 2024LL, A9824, A9824LL, A9830, A9222, Service Pro 124, Service Pro 324, BC200S, A2002 - (3) years parts and (1) year labor. Additional Transmission Warranty Models: A9222 - (5) years parts only. A2030, A2024TI, 2024LL, A9824, A9824LL, A9830 - (10) years parts only. AM50, AM500, AM5000, Master J, Master Code, Master28 - (3) years parts and (1) year labor. HD700, HD1300, HD1400, Monster TT, HD1800, Service Pro 440, Service Pro 426 - (3) years parts and (1) year labor. NOTE: Rubber pads, air lines, gauges, mount/demount heads, and swabs - (90) day warranty.

Wheel Balancers:
PL60, Service Pro 750, EM9250, EM9280, EM9580, EM9780, EM9980C, ET1450, ET88 - (3) years parts and (1) year labor.

Alignment Machines and Specialty Equipment:
(3) years parts and (1) year labor.

Disclaimer & Limitation on Liability
Corghi USA agreement to repair a tire changer or balancer is expressly in lieu of all other warranties, express, implies or statutory, including any warranties for merchantability and fitness for a particular purpose. Corghi USA maximum liability shall be limited to the cost of the machine. In no event shall Corghi USA be responsible for owner's lost profits, goodwill or other incidental or consequential damages. Corghi USA is not responsible for equipment or accessories damages in shipment. Freight claims are to be made directly with the carrier. We will be more than happy to assist you with any questions regarding filing claims.
