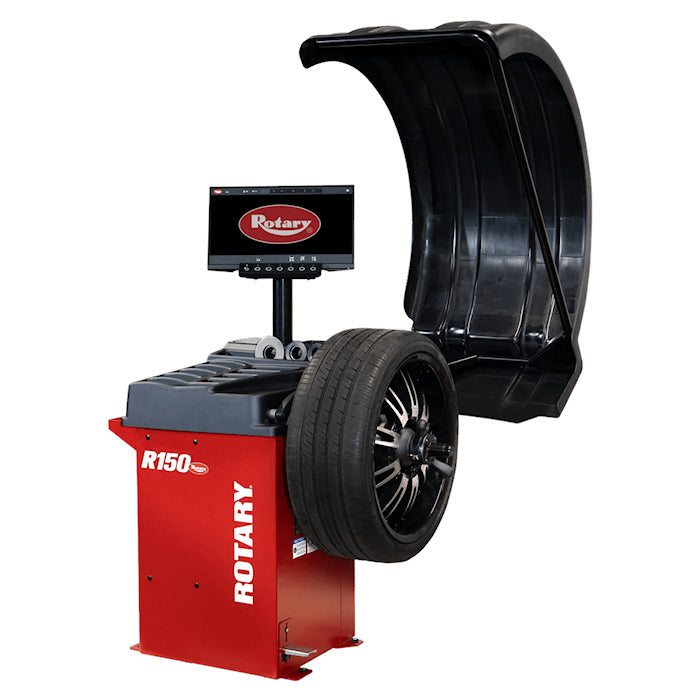

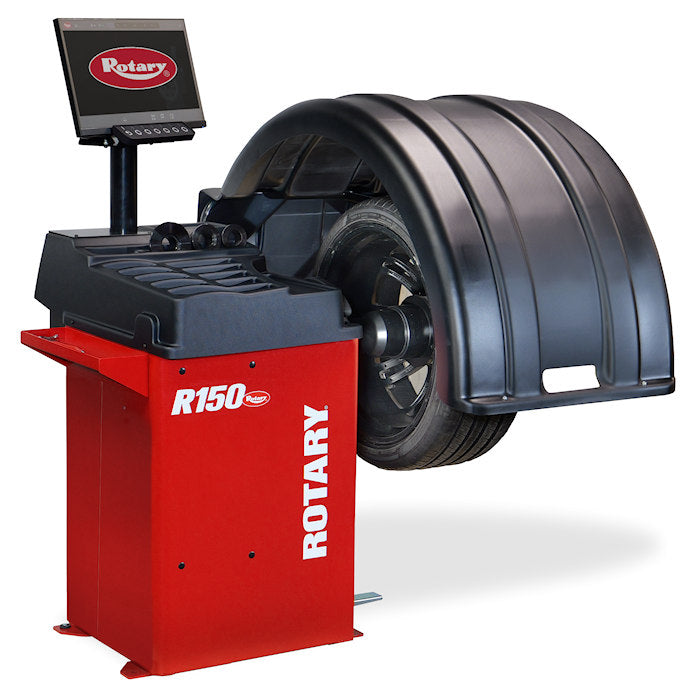

Rotary R150 2D Automatic Wheel Balancer

Features & Specs

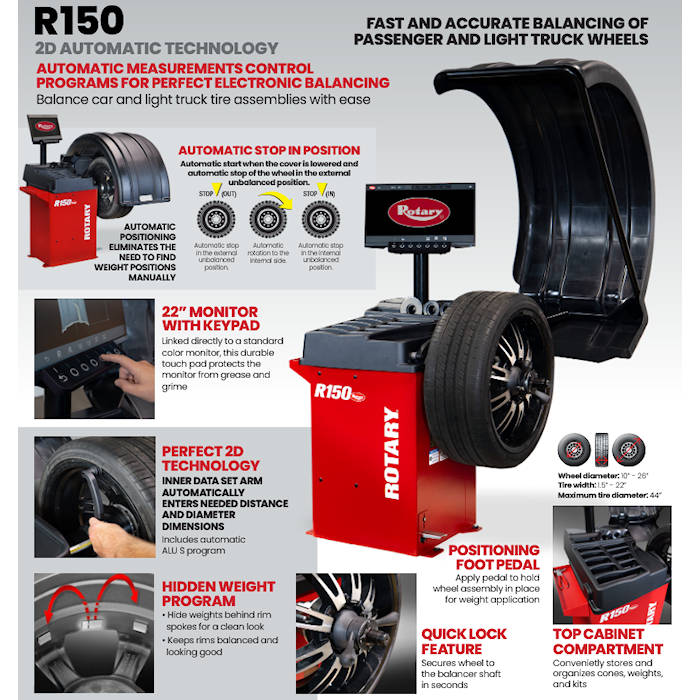

Features

• Fast and Reliable Accurate balancing of Passenger and Light Truck Wheels
• Automatic Measurements Control Programs For Perfect Electronic Balancing
• Wheel Diameter: 10"-26", Tire Width: 1.5"-22"
• Max Tire Diameter: 44", Max Assembly Weight: 154 lbs.
• 2D Automatic Data Entry
• Automatic Stop In Position

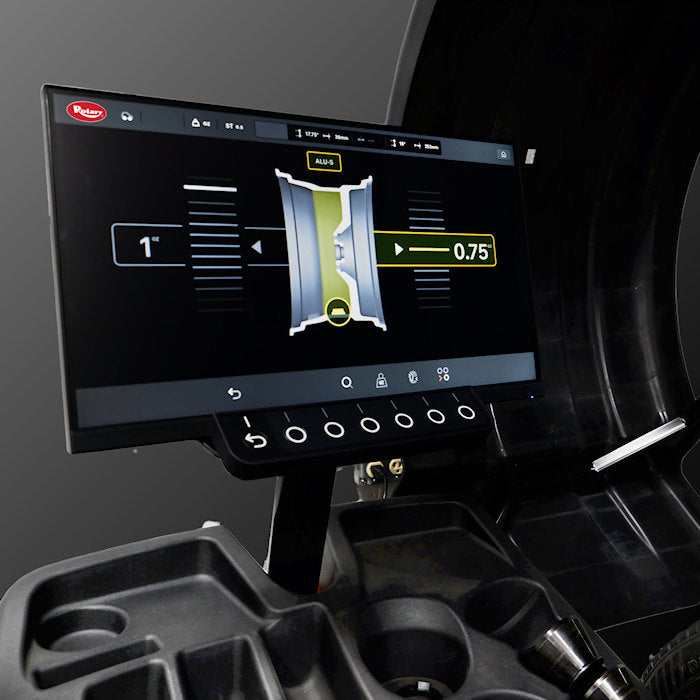

• 22" Monitor With Keypad

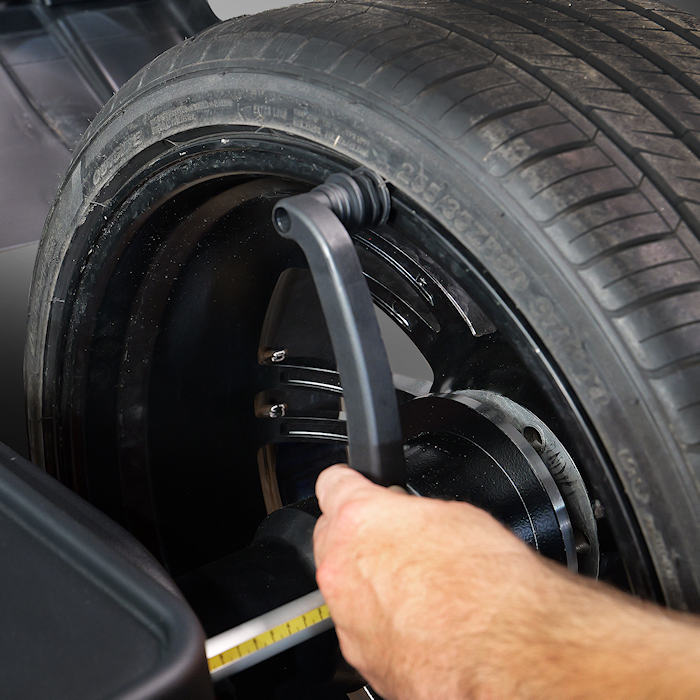

• Perfect 2D Technology

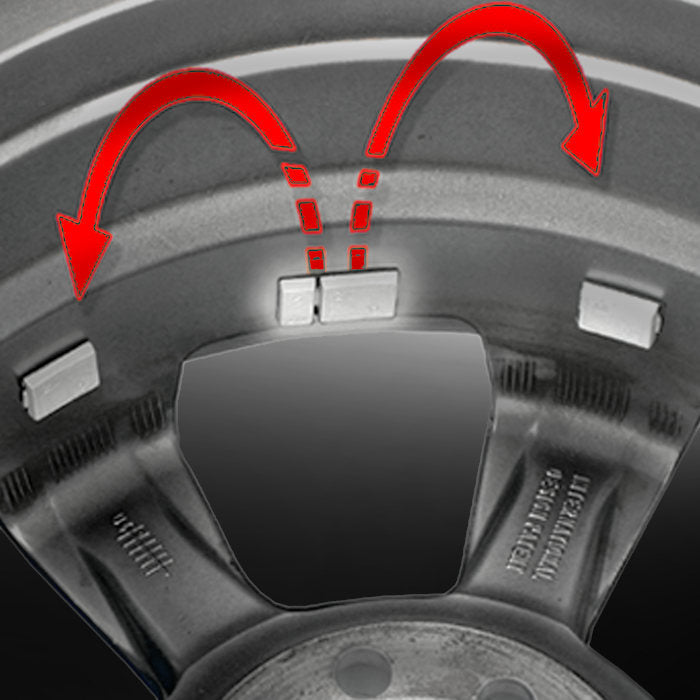

• Hidden Weight Program
• Positioning Foot Pedal
• Quick Lock Feature

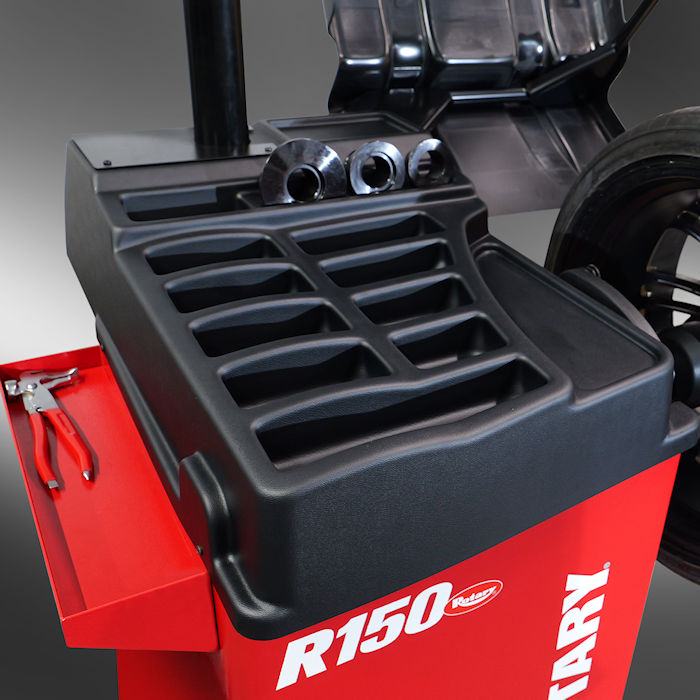

• Top Cabinet Compartment
• Passenger, Light Truck Adapters Standard
• Features For Car, Light Trucks And Motorcycle Wheels

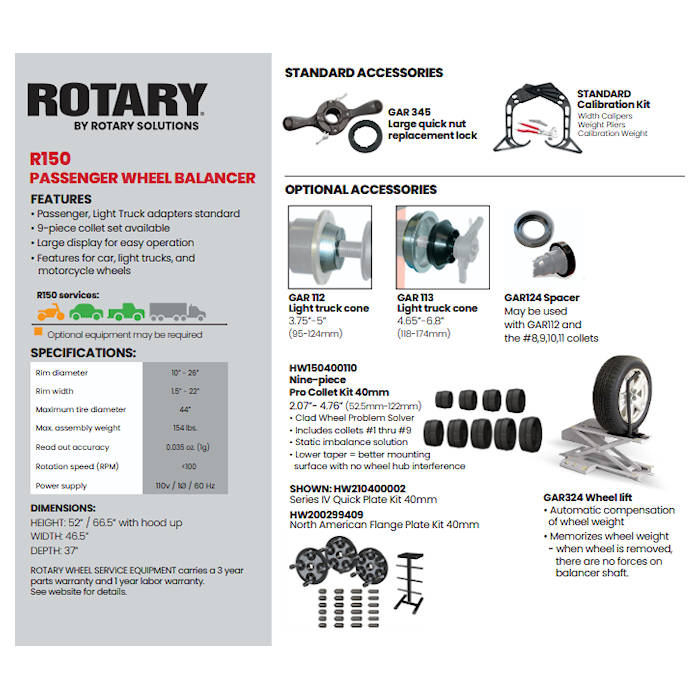

Standard Accessories

• GAR345 Large Quick Nut Replacement Lock
• Standard Calibration Kit
• Width Calipers
• Weight Pliers
• Calibration Weight

Optional Accessories

• GAR112 Light Truck Cone 3.75"-5" (95-124mm)
• GAR113 Light Truck Cone 4.65"-6.8" (118-174mm)
• GAR124 Spacer May Be Used with GAR112 and the #8, 9, 10, 11 Collets
• GAR 324 Wheel Lift Automatic compensation of wheel weight
• HW150400110 Nine-Piece Pro Collet Kit 40mm 2.07"-4.76" (52.5-122mm)
• HW210400002 Series IV Quick Plate Kit 40mm
• HW200299409 North American Flange Plate Kit 40mm

Specifications

• Rim Diameter: 10"-26"
• Rim Width: 1.5"-22"
• Maximum Tire Diameter: 44"
• Max. Assembly Weight: 154 lbs.
• Read Out Accuracy: 0.035 oz. (1g)
• Rotation Speed (RPM): <100
• Power Supply: 110v / 1Ph / 60 Hz
• Dimensions Hood Up: 66.5" H x 46.5" W x 37" D
• Dimensions Hood Down: 52" H x 46.5" W x 37" D
• Machine Warranty: (3) Years Functional, (1) Year Labor

Rotary Wheel Service Warranty Statement
All Rotary Wheel Service serialized products are covered under warranty for a period of three years to the original owner. Important: The warranty period begins once the product is invoiced to an authorized Distributor/ Purchaser/ Account. This date can be adjusted by submitting to VSG Customer Service the Warranty Activation Form indicating either the installation date or proof of retail purchase date. This warranty covers any failure of the serialized product under normal use and service, caused by a defect in VSG material or factory workmanship ("Warrantable Failure"). VSG shall pay for reasonable costs of transportation and labor for replacement of warrantable parts only during the first 12 months of the warranty period.​

Accessories are warranted to the original owner for a period of one year from the retail invoice date. If a retail invoice cannot be produced, the date of the original VSG invoice shall initiate the one-year warranty period. ​

VSG warrants against defects in material and factory workmanship only. VSG does not cover wear or wear out of covered parts due to normal wear and tear.​

VSG, at its option, will repair or replace any part that is found to have failed due to a Warrantable Failure. VSG, at its discretion, may require the part returned to VSG for inspection to determine warrantability.​

This warranty does not cover normal maintenance or adjustments, including routine calibrations, remedies for routine maintenance; damage or malfunction caused by, but not limited to improper handling, installation, abuse, misuse, negligence, carelessness of operation; or force majeure events. In addition, this warranty does not cover equipment on which unauthorized repairs or alterations have been attempted and/or made to the product.​

This warranty is exclusive and all other expressed or implied warranties including merchantability or fitness for a particular purpose are hereby expressly excluded. The remedies described are exclusive and in no event shall VSG be liable for any special, consequential, or incidental damages of any kind including but not limited to damages for breach of or delay in performance of the warranty.​

This warranty shall be governed by the laws of the State of Indiana and shall be subject to the exclusive jurisdiction of the Court in the State of Indiana in the County of Jefferson.
