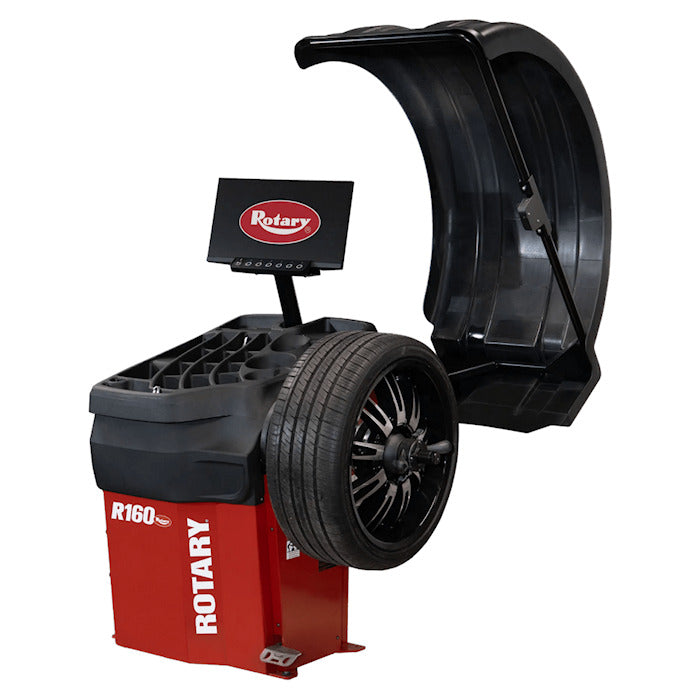

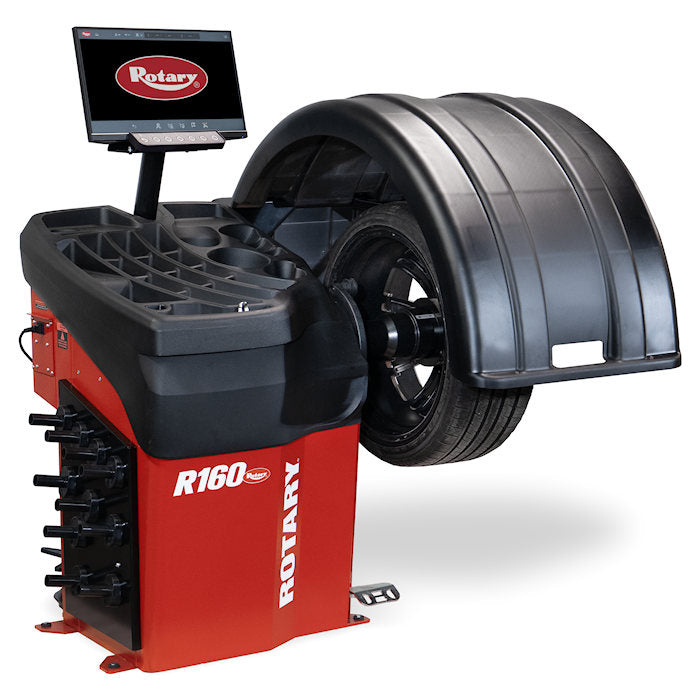

Rotary R160 3D Automatic Wheel Balancer

Name: Rotary R160 3D Automatic Wheel Balancer
Brand: ASEDeals
SKU: ROT.BR160P0.200280
Price: 8904.0 USD
Availability: InStock

In Stock SKU ROT.BR160P0.200280

OUR PRICE: $8,904.00

Regular Price: ~~$9,349.00~~

$247.33 / mo

INCLUDES FREE SHIPPING*

Short Description

Rotary R160 3D Automatic Wheel Balancer
Enhanced Productivity
Experience a next level wheel service with the Rotary R160 3D Automatic Wheel Balancer. Engineered for speed, precision, and ease of use, the R160 features a 22" Monitor, 3D automatic data entry measurements, advanced sonar technology, and a variety of productivity enhancements that provide a faster and precise wheel balancing experience. Includes standard 8 piece double sided collet kit and light truck cones. Accommodates wider range of OE and Aftermarket tire and wheel assemblies. The R160 is perfect for medium-to-high volume shops seeking faster cycles, interactive guidance for technicians, and support for a wider range of wheel sizes.

Purchase your R160 between June 16, 2026 and July 14, 2026 and claim your $200.00 Rebate by August 31, 2026.

Description

Rotary

Rotary R160 3D Automatic Wheel Balancer
Enhanced Productivity

Experience a next level wheel service with the Rotary R160 3D Automatic Wheel Balancer. Engineered for speed, precision, and ease of use, the R160 features a 22" Monitor, 3D automatic data entry measurements, advanced sonar technology, and a variety of productivity enhancements that provide a faster and precise wheel balancing experience. Includes standard 8 piece double sided collet kit and light truck cones. Accommodates wider range of OE and Aftermarket tire and wheel assemblies. The R160 is perfect for medium-to-high volume shops seeking faster cycles, interactive guidance for technicians, and support for a wider range of wheel sizes.

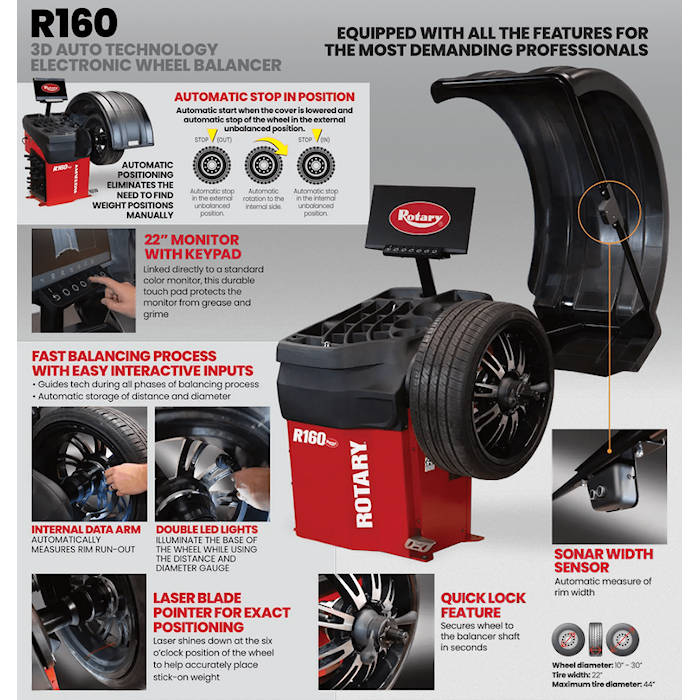

Equipped With All The Features For The Most Demanding Professionals

Wheel Diameter: 10"-30"
Tire Width: 1.5"-22"
Max Tire Diameter: 44"
Max Assembly Weight: 176 lbs.

3D Automatic Data Entry
Interactive guidance through the balancing process for faster and more accurate results.

Automatic Stop In Position
Automatic start when the cover is lowered and automatic stop of the wheel in the external unbalanced position. Automatically eliminates the need to find weight positions manually.

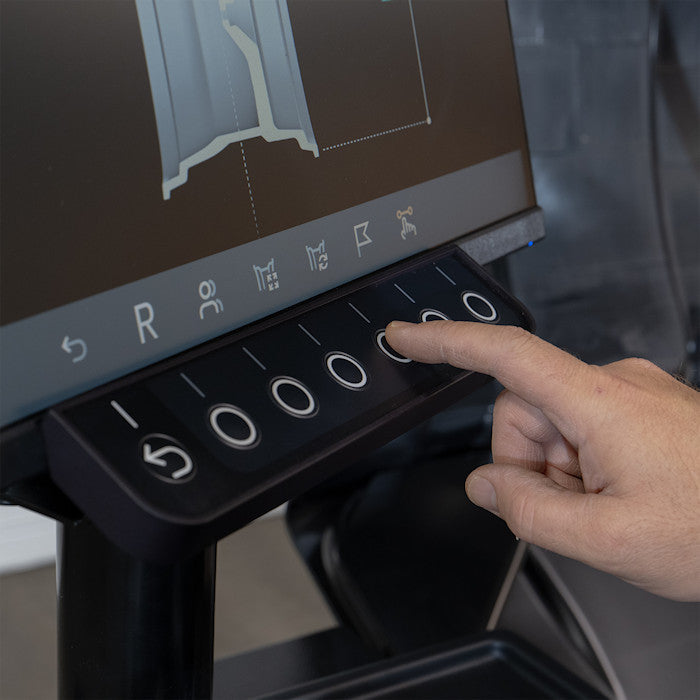

22" Monitor With Keypad
Linked directly to a standard color monitor, this durable touch pad protects the monitor from grease and grime while providing clear visual feedback.

176 lbs. Maximum Assembly Weight
Accommodates a wider range of OE and aftermarket tires and wheels.

Fast Balancing Process With Easy Interactive Inputs
Guides technician during all phases of the balancing process. Automatic storage of distance and diameter.

Inner Data Set Arm
Automatically measures rim run-out.

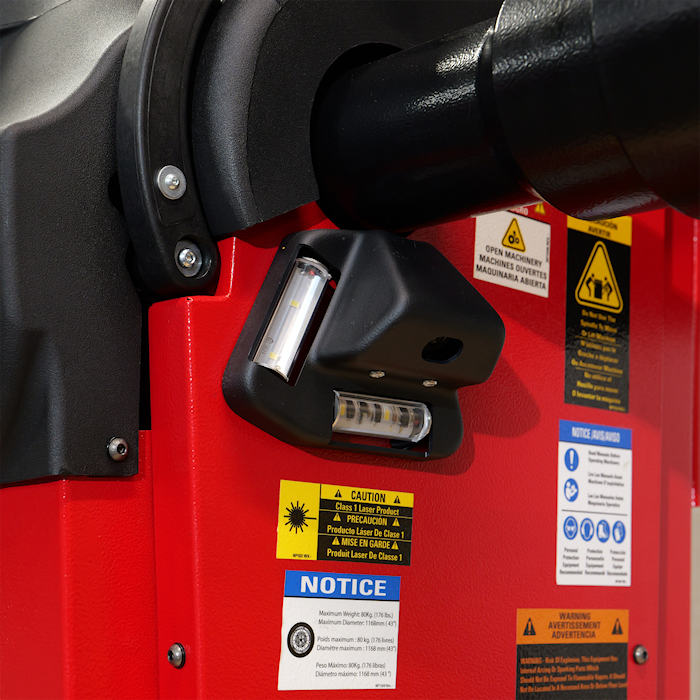

Double LED Lights
Illuminate the base of the wheel while using the distance and diameter gauge.

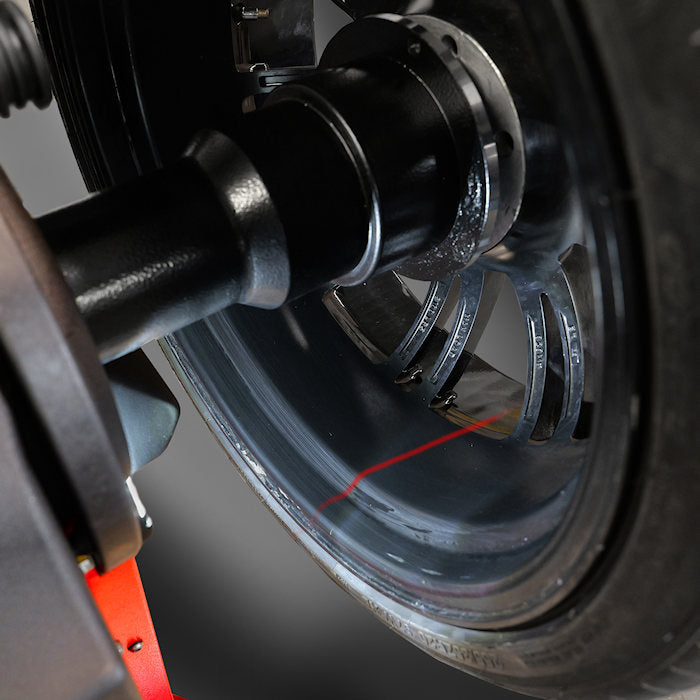

Laser Line Pointer For Weight Positioning
Laser shines down at the six o'clock position of the wheel to help accurately place the stick-on weight.

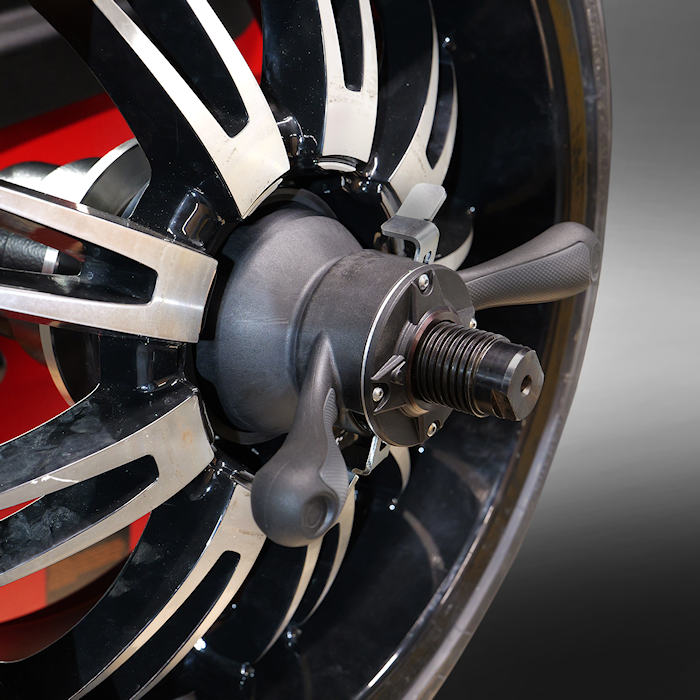

Quick Lock Feature
Secures wheel to the balancer shaft in seconds.

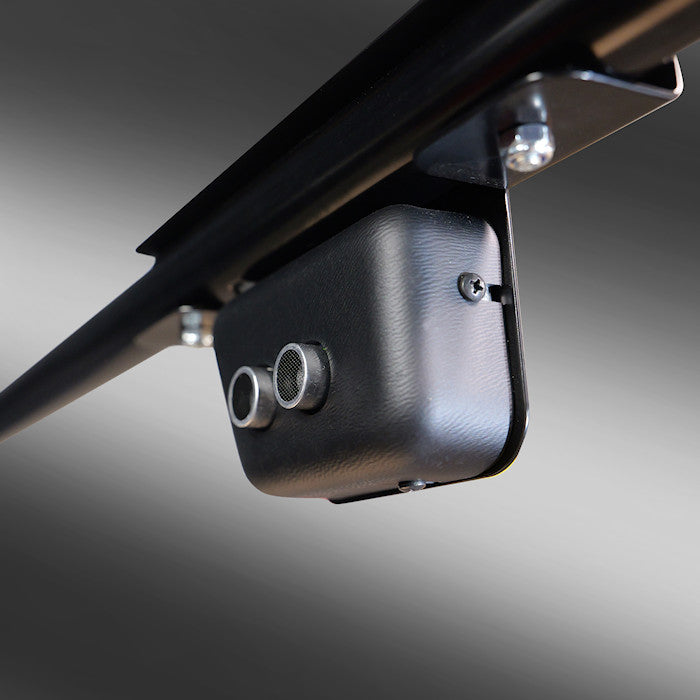

Sonar Width Sensor
3D sensor for automatic measure of rim width.

Hidden Weight Program
Conceals weights behind rim spokes for a clean, professional look. Keep rims balanced and looking good.

Positioning Foot Pedal
Apply pedal to hold wheel assembly in place for weight application.

Top Cabinet Compartment
Conveniently stores and organizes cones, weights, and kits.

Features & Specs

Features

Fast and Reliable Accurate balancing of Passenger and Light Truck Wheels
Automatic Measurements Control Programs For Perfect Electronic Balancing
Wheel Diameter: 10"-30", Tire Width: 1.5"-22"
Max Tire Diameter: 44", Max Assembly Weight: 176 lbs.
3D Automatic Data Entry
Automatic Stop In Position
22" Monitor With Keypad
176 lbs. Maximum Assembly Weight
Fast Balancing Process With Easy Interactive Inputs
Inner Data Set Arm
Double LED Lights
Laser Line Pointer For Weight Positioning
Quick Lock Feature
Sonar Width Sensor
Hidden Weight Program
Positioning Foot Pedal
Top Cabinet Compartment

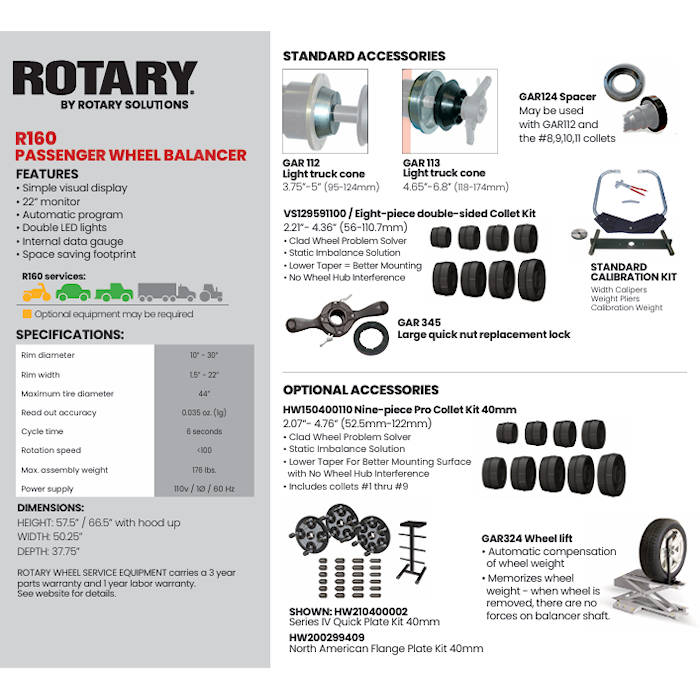

Standard Accessories

GAR112 Light Truck Cone 3.75"-5" (95-124mm)
GAR113 Light Truck Cone 4.65"-6.8" (118-174mm)
GAR124 Spacer May Be Used with GAR112 and the #8, 9, 10, 11 Collets
VS129591100 Eight-Piece Double-Sided Collett Kit
GAR345 Large Quick Nut Replacement Lock
Standard Calibration Kit

Width Calipers
Weight Pliers
Calibration Weight

Optional Accessories

GAR 324 Wheel Lift Automatic compensation of wheel weight
HW150400110 Nine-Piece Pro Collet Kit 40mm 2.07"-4.76" (52.5-122mm)
HW210400002 Series IV Quick Plate Kit 40mm
HW200299409 North American Flange Plate Kit 40mm

Specifications

Rim Diameter: 10"-30"
Rim Width: 1.5"-22"
Maximum Tire Diameter: 44"
Max. Assembly Weight: 176 lbs.
Read Out Accuracy: 0.035 oz. (1g)
Cycle Time: 6 Seconds
Rotation Speed (RPM): <100
Power Supply: 110v / 1Ph / 60 Hz
Dimensions Hood Up: 57.5" H x 50.25" W x 37.57" D
Dimensions Hood Down: 50.25" H x 50.25" W x 37.75" D
Machine Warranty: (3) Years Functional, (1) Year Labor

Rotary Wheel Service Warranty Statement
All Rotary Wheel Service serialized products are covered under warranty for a period of three years to the original owner. Important: The warranty period begins once the product is invoiced to an authorized Distributor/ Purchaser/ Account. This date can be adjusted by submitting to VSG Customer Service the Warranty Activation Form indicating either the installation date or proof of retail purchase date. This warranty covers any failure of the serialized product under normal use and service, caused by a defect in VSG material or factory workmanship ("Warrantable Failure"). VSG shall pay for reasonable costs of transportation and labor for replacement of warrantable parts only during the first 12 months of the warranty period.

Accessories are warranted to the original owner for a period of one year from the retail invoice date. If a retail invoice cannot be produced, the date of the original VSG invoice shall initiate the one-year warranty period.

VSG warrants against defects in material and factory workmanship only. VSG does not cover wear or wear out of covered parts due to normal wear and tear.

VSG, at its option, will repair or replace any part that is found to have failed due to a Warrantable Failure. VSG, at its discretion, may require the part returned to VSG for inspection to determine warrantability.

This warranty does not cover normal maintenance or adjustments, including routine calibrations, remedies for routine maintenance; damage or malfunction caused by, but not limited to improper handling, installation, abuse, misuse, negligence, carelessness of operation; or force majeure events. In addition, this warranty does not cover equipment on which unauthorized repairs or alterations have been attempted and/or made to the product.

This warranty is exclusive and all other expressed or implied warranties including merchantability or fitness for a particular purpose are hereby expressly excluded. The remedies described are exclusive and in no event shall VSG be liable for any special, consequential, or incidental damages of any kind including but not limited to damages for breach of or delay in performance of the warranty.

This warranty shall be governed by the laws of the State of Indiana and shall be subject to the exclusive jurisdiction of the Court in the State of Indiana in the County of Jefferson.
