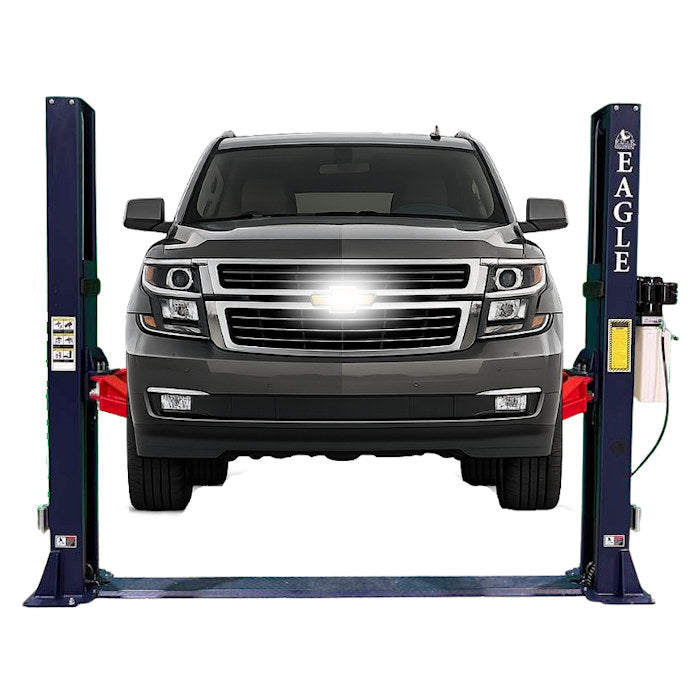

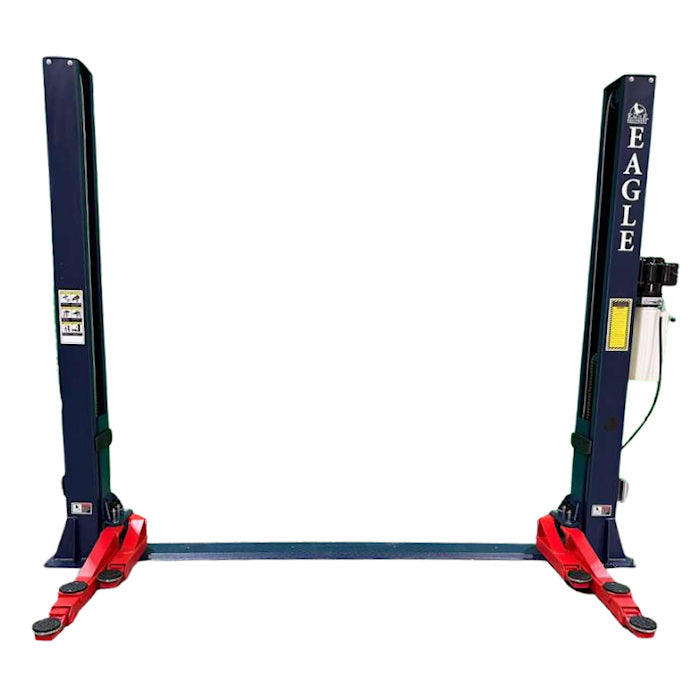

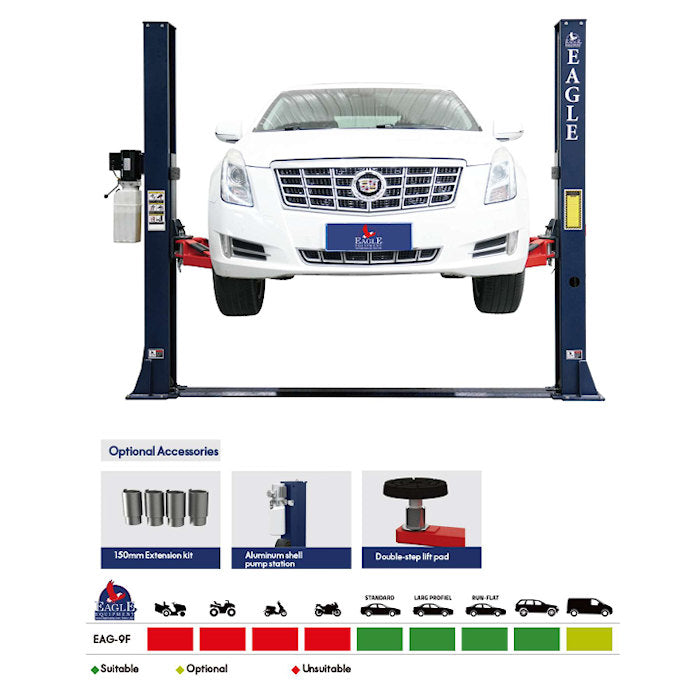

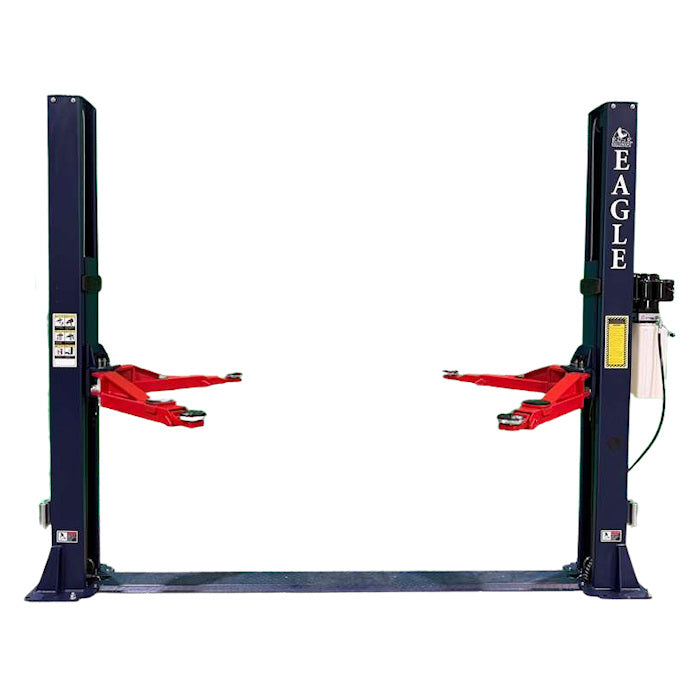

Eagle EAG-9F Floor Plate Two Post Lift

Features & Specs

Features

• Dead Man's Type Control: The operator is required to hold the controls in the engaged position to raise or lower the lift.

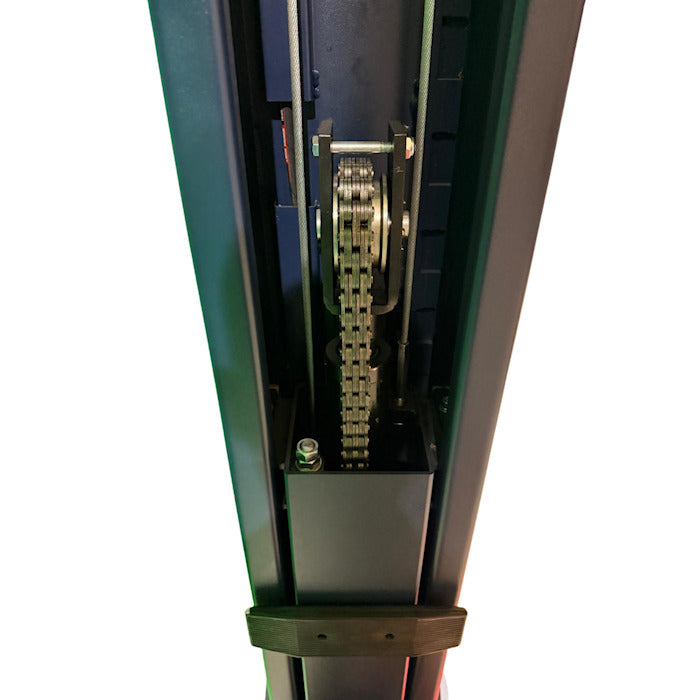

• Equalizing System: Equalizing cables to ensure level movement of both carriages.
• Collision Prevention Switch: Electric-operated limit switch prevents collisions between the vehicle roof and ceiling.

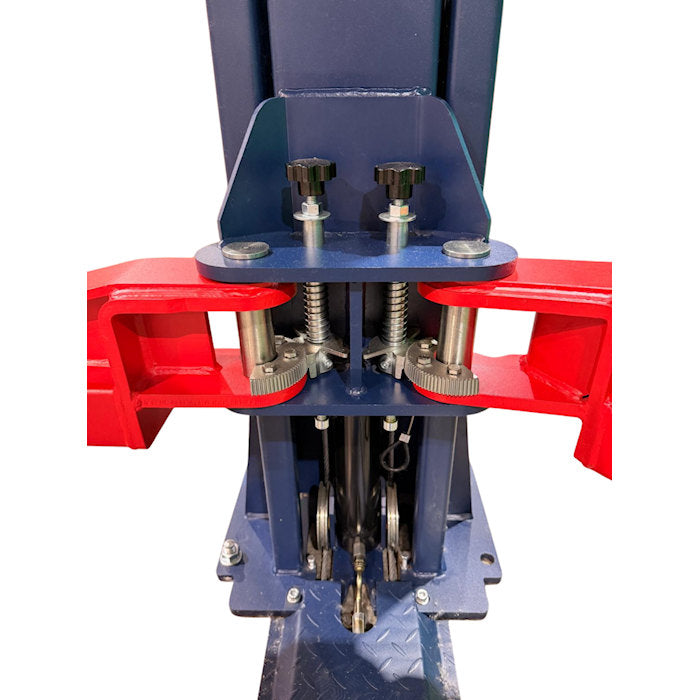

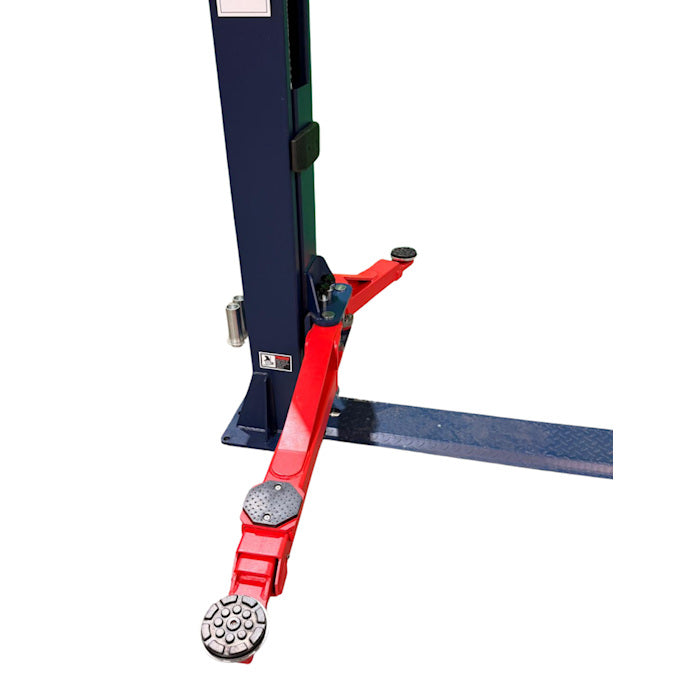

• Automatic Arm Restraint: Arm restraints are locked automatically to avoid any swivel under load.
• Pipe Break Valve: Hydraulic cylinders are equipped with pipe break valves to prevent sudden lowering movements.
• Pressure Relief Valve: Pressure relief valve is used to limit the hydraulic working pressure to a maximum of 2,175 PSI.

Specifications

• Style: Asymmetric
• Lifting Capacity: 9,000 lbs.

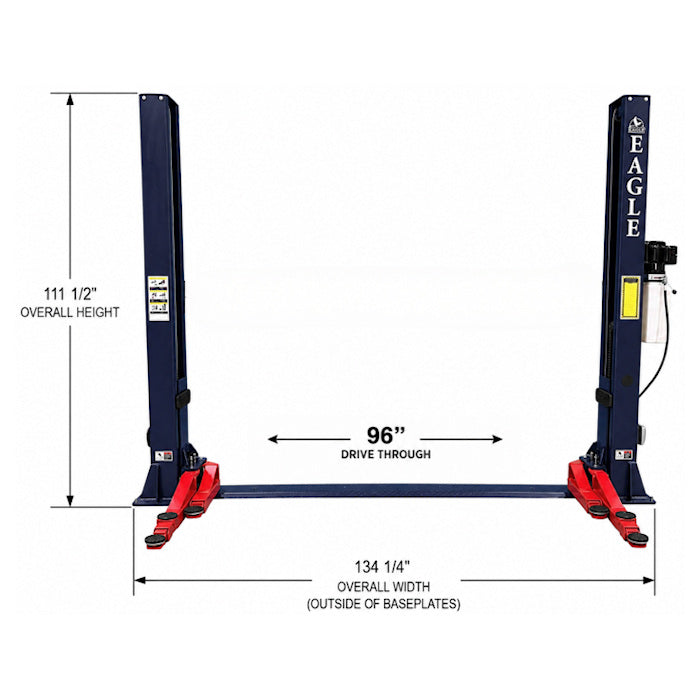

• Overall Height: 111.5"
• Overall Width (Outside Of Base Plate): 134.250"
• Width (Outside Of Columns): 124.75"
• Inside Columns: 110"

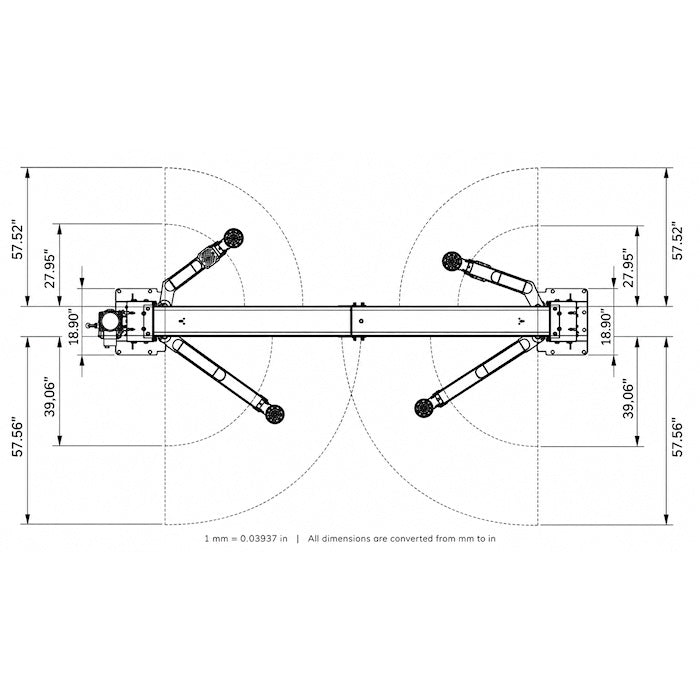

• Front Arm Min Reach: 39"
• Front Arm Max Reach: 57.5"
• Rear Arm Min Reach: 27.95"
• Rear Arm Max Reach: 57.5"
• Min Pad Height: 4"

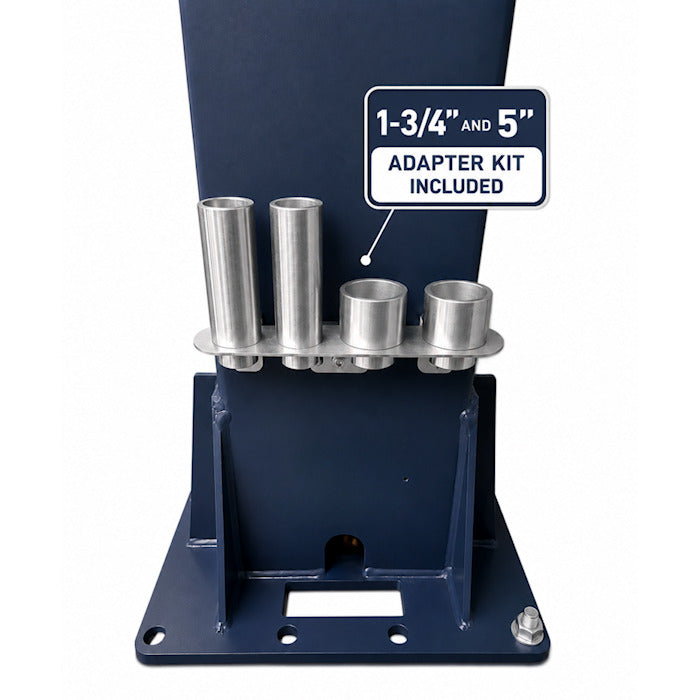

• Height Adapters: 1.75" - 5"

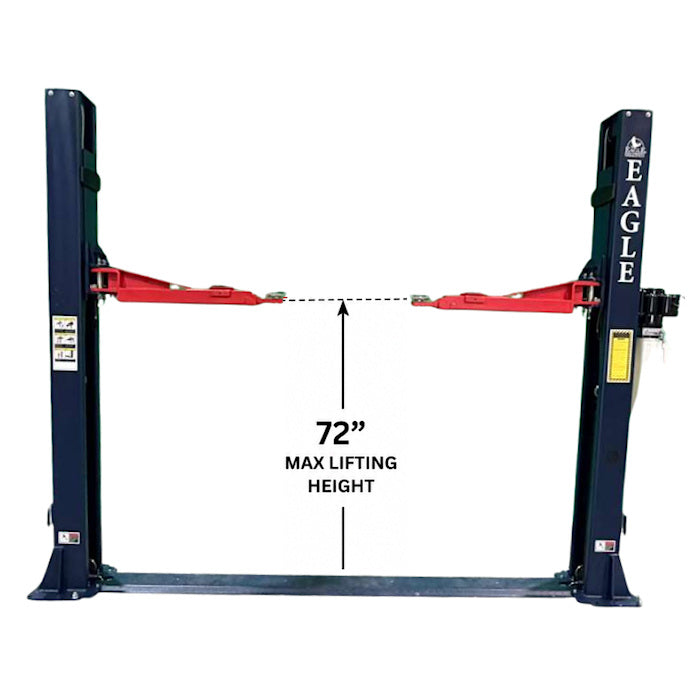

• Lift Height Max (Pad Only): 72"
• Drive-Through Clearance: 96"
• Time To Full Rise (No Load): 45 Seconds
• Concrete Grade Min: 4" of 3,000 PSI or Greater
• Motor Power: 2HP (1.5KW)
• Power Supply: 220V/380V, 50Hz/60Hz
• Shipping Dimensions: 116"L x 21"W x 30 1/2"H (with Power Unit)
• Shipping Weight: 1,500 lbs. (with Power Unit)
• Warranty: (5) Years Structural, (2) Years Hydraulic Components, (1) Year Power Unit, No Labor

Eagle Equipment Lift Warranty
Eagle Equipment warrants to the original retail purchaser of an Eagle Automotive Lift that, under normal use and service within the United States and Canada, it will repair or replace, at its sole discretion, any part found to be defective in material or workmanship during the applicable warranty period.

Warranty Coverage

• Structure: Five (5) years from the date of purchase
• Hydraulic Components: Two (2) years from the date of purchase
• Electric/Hydraulic Power Unit: One (1) year from the date of purchase

This warranty covers replacement parts only. The purchaser is responsible for all labor, travel, shipping, installation, and other related costs.

Exclusions
This warranty will not apply to any lift that:

1. Has not been operated or maintained in accordance with Eagle Equipment's instructions and specifications.
2. Has been abused, misused, neglected, modified, altered, or improperly maintained.
3. Has been improperly installed, assembled, or repaired.

Additional Limitations
This warranty is non-transferable and applies only to the original retail purchaser.

The determination of whether a component is defective and the appropriate remedy shall be made by Eagle Equipment in its sole discretion. Eagle Equipment may elect to repair or replace the defective component or provide replacement parts as it deems appropriate.

Warranty coverage is limited to the specific defective part or component and does not extend the original warranty period of the replacement part.

This warranty does not cover:

1. Routine maintenance items.
2. Normal wear items, including but not limited to cables, slider blocks, chains, rubber pads, filters, hydraulic fluids, and lubricants.
3. On-site service, labor, travel expenses, freight charges, or related service costs.

General Provisions
Eagle Equipment reserves the right to make improvements or design changes to its products at any time without incurring any obligation to modify, update, or retrofit previously manufactured or sold equipment.

This warranty is the sole and exclusive warranty provided for Eagle Automotive Lift equipment and is in lieu of all other warranties, express or implied, including, but not limited to, any implied warranties of merchantability or fitness for a particular purpose.

To the fullest extent permitted by law, Eagle Equipment shall not be liable for loss of use, loss of time, inconvenience, commercial loss, lost profits, or any incidental, indirect, special, or consequential damage arising from the use or inability to use the equipment.
