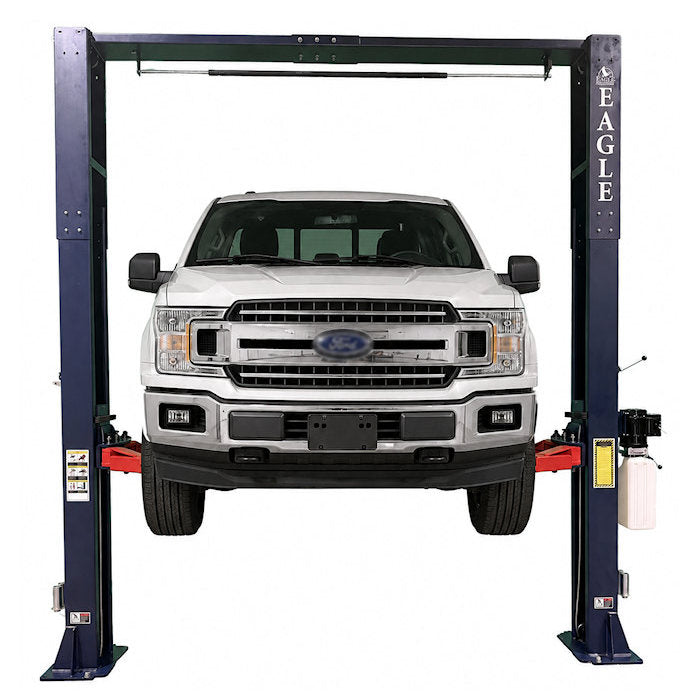

Eagle EAG-10C Clear Floor Two Post Lift

Features & Specs

Features

• Heavy-Duty Lifting Capacity: 10,000 lbs.
• Arm Capacity 2,500 lbs. Each
• Durable Power Unit

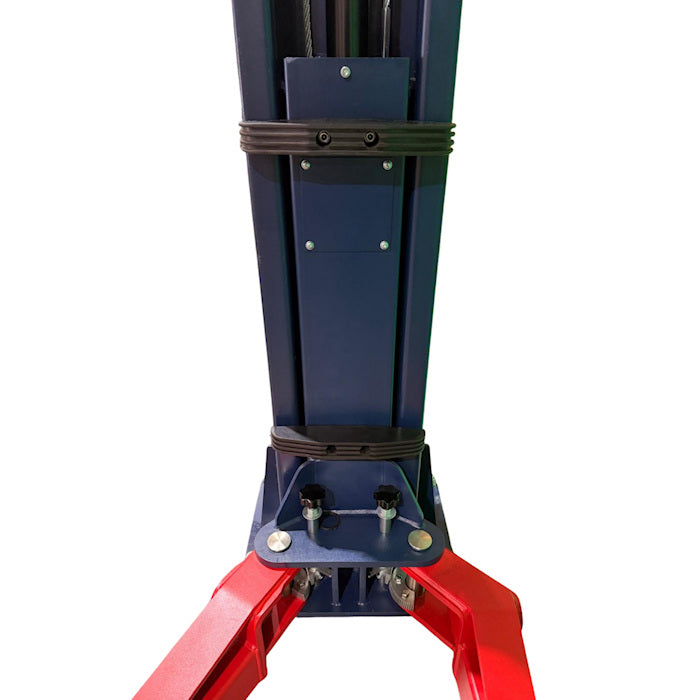

• Door Guards
• Outer Hose Guards

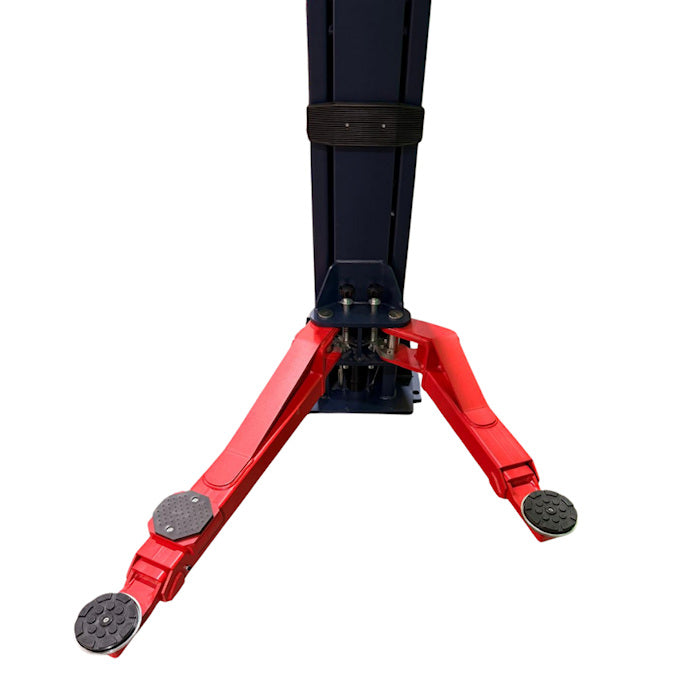

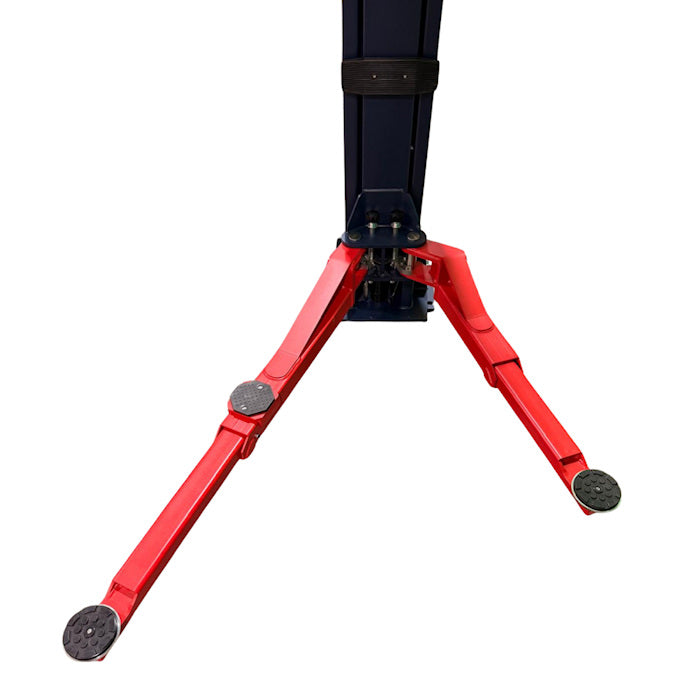

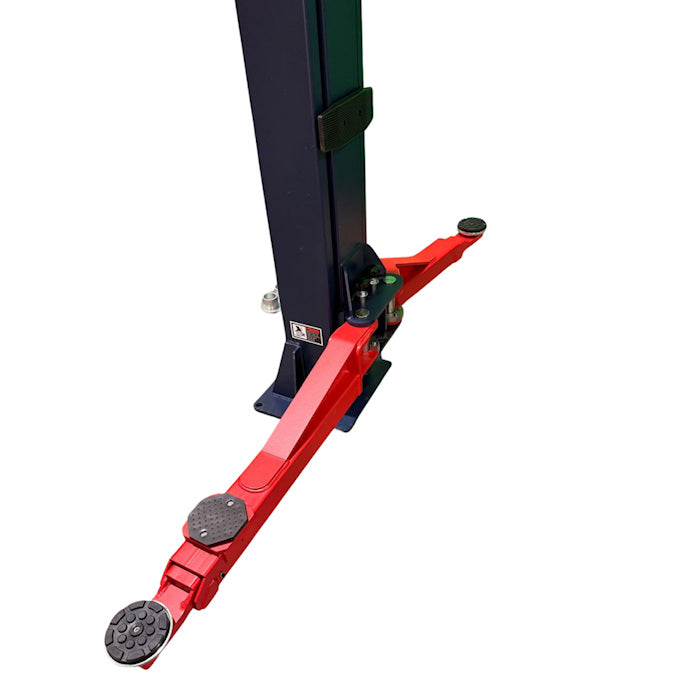

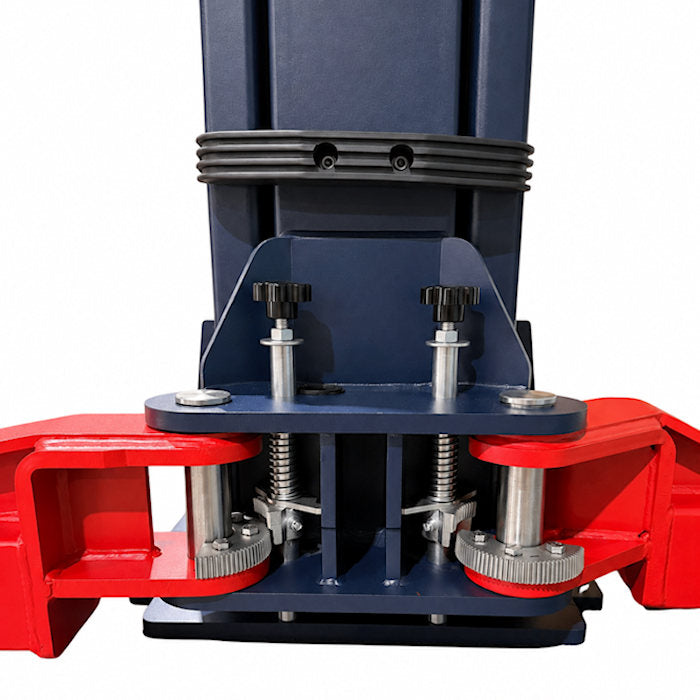

• Heavy-Duty Arm Restraint System
• Oversized Rugged Steel Gears, Pins and Springs
• Dual Lock Lelease
• Includes 2" & 4" Height Adapters

Specifications

• Style: Asymmetric
• Lifting Capacity: 10,000 lbs.

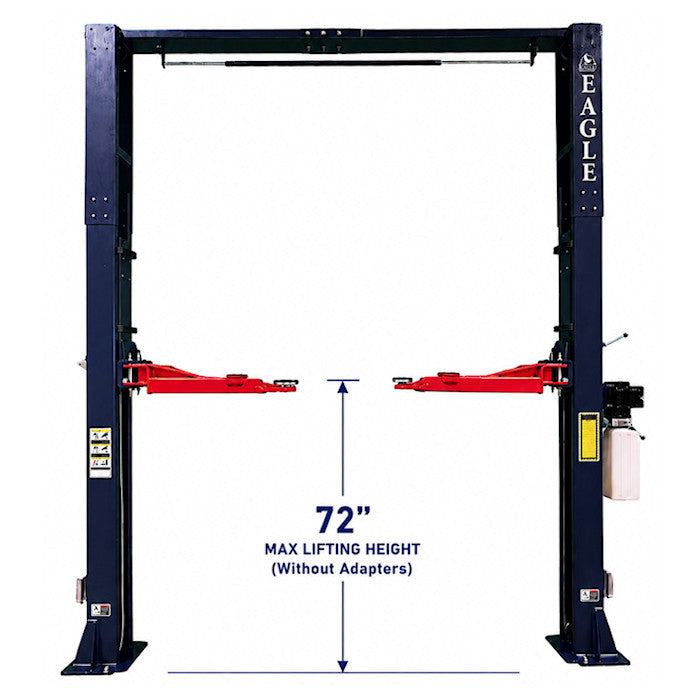

• Max Lifting Height: 72" - 78" with Extensions

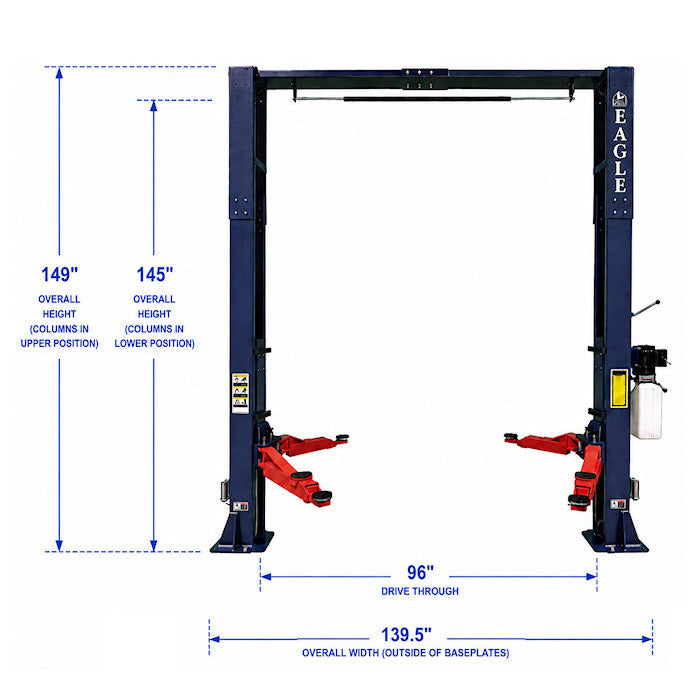

• Total Width: 139.5"
• Drive-Through Clearance: 96"
• Maximum Height: 145-149"
• Floor To Overhead Switch: 136.75-140.75"

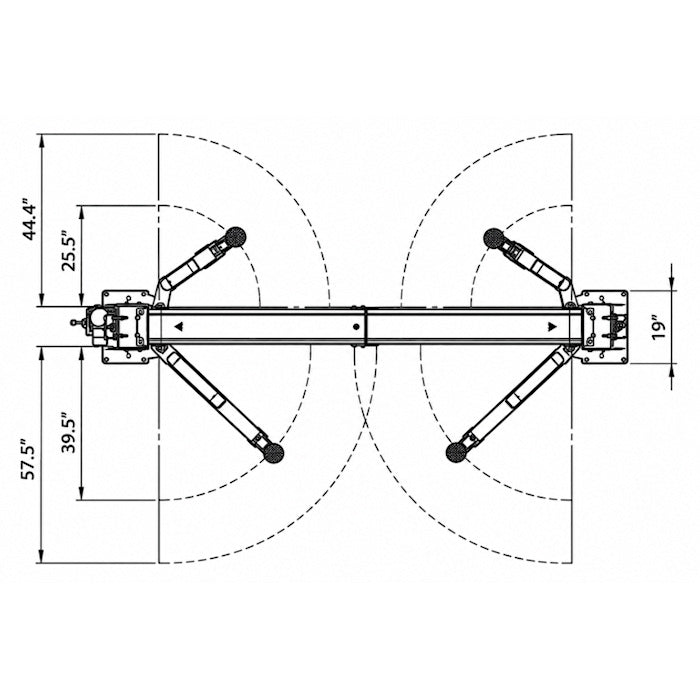

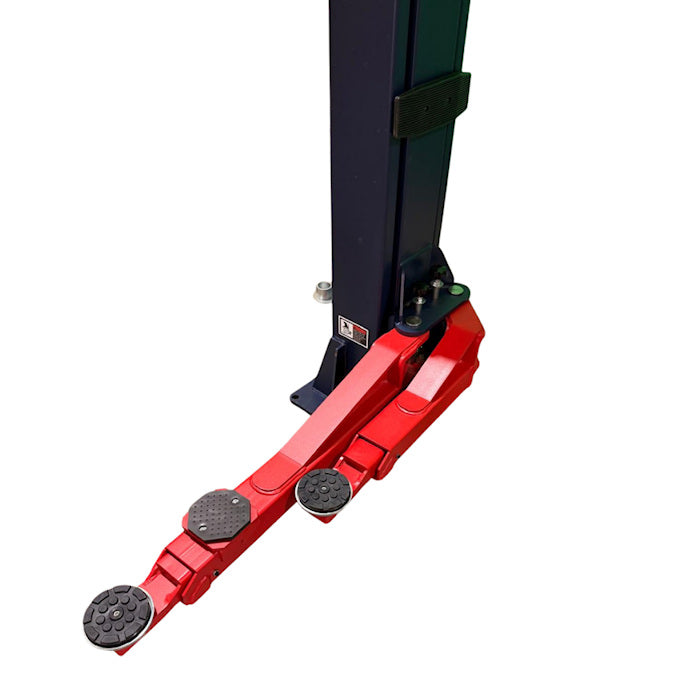

• Front Arm Reach (Min/Max): 25.5-44.5"
• Rear Arm Reach (Min/Max): 39.5-57.5"
• Drop-In Pad Height: 4"
• Inside Column Width: 115.75"
• Motor: 3HP
• Voltage: 208-230V Single Phase
• Rise Time: 50 Seconds
• Shipping Weight: 1,665 lbs.
• Warranty: (5) Years Structural, (2) Years Hydraulic Components, (1) Year Power Unit, No Labor

Eagle Equipment Lift Warranty
Eagle Equipment warrants to the original retail purchaser of an Eagle Automotive Lift that, under normal use and service within the United States and Canada, it will repair or replace, at its sole discretion, any part found to be defective in material or workmanship during the applicable warranty period.

Warranty Coverage

• Structure: Five (5) years from the date of purchase
• Hydraulic Components: Two (2) years from the date of purchase
• Electric/Hydraulic Power Unit: One (1) year from the date of purchase

This warranty covers replacement parts only. The purchaser is responsible for all labor, travel, shipping, installation, and other related costs.

Exclusions
This warranty will not apply to any lift that:

1. Has not been operated or maintained in accordance with Eagle Equipment's instructions and specifications.
2. Has been abused, misused, neglected, modified, altered, or improperly maintained.
3. Has been improperly installed, assembled, or repaired.

Additional Limitations
This warranty is non-transferable and applies only to the original retail purchaser.

The determination of whether a component is defective and the appropriate remedy shall be made by Eagle Equipment in its sole discretion. Eagle Equipment may elect to repair or replace the defective component or provide replacement parts as it deems appropriate.

Warranty coverage is limited to the specific defective part or component and does not extend the original warranty period of the replacement part.

This warranty does not cover:

1. Routine maintenance items.
2. Normal wear items, including but not limited to cables, slider blocks, chains, rubber pads, filters, hydraulic fluids, and lubricants.
3. On-site service, labor, travel expenses, freight charges, or related service costs.

General Provisions
Eagle Equipment reserves the right to make improvements or design changes to its products at any time without incurring any obligation to modify, update, or retrofit previously manufactured or sold equipment.

This warranty is the sole and exclusive warranty provided for Eagle Automotive Lift equipment and is in lieu of all other warranties, express or implied, including, but not limited to, any implied warranties of merchantability or fitness for a particular purpose.

To the fullest extent permitted by law, Eagle Equipment shall not be liable for loss of use, loss of time, inconvenience, commercial loss, lost profits, or any incidental, indirect, special, or consequential damage arising from the use or inability to use the equipment.
