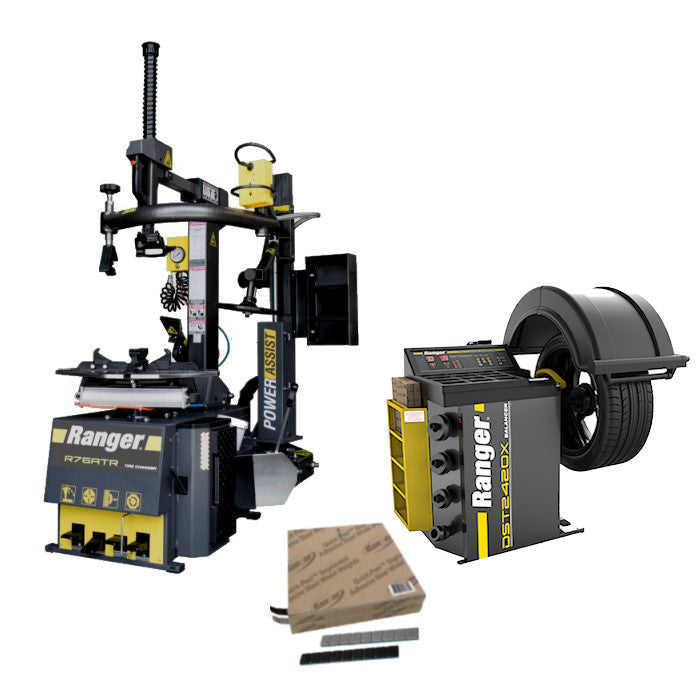

Ranger R76ATR-L Tire Changer + DST2420X Wheel Balancer + Weights Combo

In Stock SKU 5140314

OUR PRICE: $10,095.00

Regular Price: $10,599.00

$280.41 / mo
INCLUDES FREE SHIPPING*

Short Description

Ranger Wheels and Tires Package Deal

The Wheel and Tire package from Ranger includes a Tire Changer, Wheel Balancer and convenient twin-pack of self-dispensing steel tape weights. Each Wheel and Tire package is savings-packed at special bundle pricing so you get everything you need at just the right price. Increase your wheel service capacity, or simply replace your old worn out machines with modern technology. Your future wheel service profits have never looked so good.R76ATR-L+DST2420X+WEIGHTS 5140314

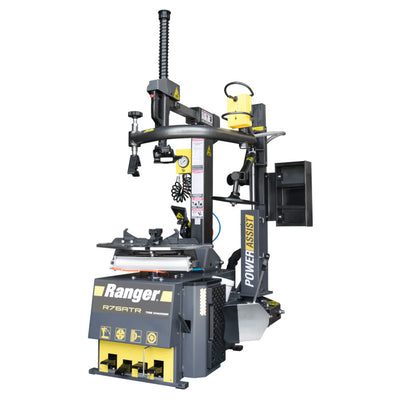

Ranger R76ATR-L Tilt-Back Tire Changer & Single Tower Assist
2 HP Motor (110 VAC 50-60 HZ) 10 - 30" Capacity
The Ranger R76ATR-L is a brilliant time saver. Its tilt-back tower allows you to operate different tire-and-wheel combos without adjusting the duck head, and the swing-arm design with tower assist ensure stiff sidewalls are never a problem. RimGuard clamps extend 10" - 30" for maximum versatility. The R76ATR-L tire service machine performs masterfully on a wide variety of wheels including virtually all OEM and performance tire and wheel configurations.30" clamping ability. 110V "Low Voltage" model supports a standard 110V outlet with a 20-amp breaker.

Ranger DST2420X Wheel Balancer
40mm Shaft 115/230VAC 7-Second Balancing Times
The Ranger DST2420X Wheel Balancer handles wheels up to 30" in diameter. It is a highly accurate and dependable no-frills balancer that features our proprietary Digital Sensor Technology for critical reliability and repeatability. From one-bay shops to high-volume garages, the DST2420X is built with a gritty toughness that produces perfectly balanced wheels day after day. Like all of our DST Series wheel balancers, it's a precision-engineered performer featuring our proven Direct-Axis drive system, accurate to within 0.01 oz., ensuring wheels are balanced vibration-free.

Tape Wheel Weights Combo Rolls
(Black & Silver 1,400 pcs. - 0.25 oz. - 1/2" Wide)
This combo Quick-Peel adhesive steel wheel weights are an effective and environmentally friendly way to quickly balance wheels using as little weight as possible.

Description

Ranger

Ranger R76ATR-L Tilt-Back Tire Changer & Single Tower Assist
2 HP Motor (110 VAC 50-60 HZ) 10 - 30" Capacity

When it comes to your tire repair business, Ranger's R76ATR-L has everything you need for safer, faster tire changes, even when working with tricky aluminum wheels. Extraordinarily easy-to-use, adjustable RimGuard clamps extend as far as 10" - 30", and the tilt-back tower saves significant time when loading a new set of wheels - no more adjusting the duck head to match each wheel's diameter. The assist tower helps change low-profile and run-flats (anything with a stiff sidewall), and it holds the bead in the drop-center, protecting the tire. A centering cone further assists with external clamping, and a specialized saucer/roller combo offers yet another line of defense against stubborn beads.

110V "Low Voltage" Model
If you don't mind getting your hands dirty, then the R76ATR-L model is the tire changer for you! The "L" model sports a 2 HP motor and requires a 20-amp breaker. This configuration supports a standard 110V outlet, meaning if you want to perform tire changes in your own home, you're now able to. With the R76ATR-L model, Ranger puts you in charge! Now you won't have to worry about working on someone else's schedule.

Our Most Specialized, Versatile Tire Changer
Ergonomic controls are sensibly placed to minimize excessive reaching, walking or bending, resulting in more jobs per day and increased profits. Other time-saving features include a multi-profile traveling drop-center tool, top bead assist rollers, lower bead lifting disc and a nylon non-marring wheel restraint device. These important tire shop tools are designed to dramatically reduce effort, increase safety and help minimize operator fatigue. A large 30" capacity turntable features adjustable, hardened-steel RimGuard wheel clamps. These provide an internal clamping capacity of 9"- 28" and external clamping capacity of 10"- 30".

Electric Turntable
A high-torque electric turntable drive features increased speed and reversible direction for quicker tire removal and installation. Controlled speed gives low profile and run-flat beads time to relax and reduces the risk of tire damage.

Adjustable RimGuard Wheel Clamps
Durable, adjustable RimGuard wheel clamps are made from hardened steel and accommodate wheels from 9" up to 30" and feature internal and external multi€�teeth jaws with vertical mounting bolts that make replacement fast and simple.

Advanced Clamp Positioning
Versatile clamp positioning allows for improved control when clamping wheels. Position clamps exactly where you need them within the entire clamping range. No need for the clamps to cycle the full range.

Easier Bead Lubrication
A geometric tabletop makes bead lubrication easy. Operators are able to visibly inspect the lower bead during tire mounting and inflation.

Bead-Breaker Design
A completely new and proprietary bead-breaker design features bilateral pneumatic accelerators for lightning-fast bead-breaker speeds in both directions. A 100% stainless steel cylinder body means no more worrying about moisture contamination from corrosion. Other exclusive design features include a multi-axis, adjustable blade for multi-angle tire capacity, a large, dual-flange axle that eliminates blade flex and premature failure, and adjustable blade settings that help accommodate a larger variety of tire and wheel combinations.

Enhanced Bead-Breaker Blade
Enhanced bead-breaker blade features rugged box frame construction that increases the mechanical strength, as well as service life and overall performance. A large rubber bump-stop assures smooth return to help reduce shock loading and minimize wear on the pneumatic cylinder, guides and associated moving parts.

Balanced Flywheel
A balanced flywheel reduces vibrations during operation, as well as stress on the machine as a whole. In essence, well-balanced flywheels keep our tire changers running smoothly for years of zero or low-maintenance operation.

Simple Foot-Pedal Control
Rather than heavy, clunky cast iron, we make our foot pedals from forged steel that is durable enough for daily use in fast-paced shops and tire centers. The snap action spring return offers extremely accurate and safe operation, while the foot-pedal control valves are complete with multi-link rod connections for non-binding plunger movement and precise bilateral control.

Right-Side Tower Drop-Center Design
Right-side assist tower features a multi-profile traveling drop-center tool that holds stubborn sidewalls in the drop-center area of the wheel for swift, precise mounting. A single lower-bead lifting disc can be used to unseat stubborn lower beads or to elevate tires for tool placement. A power-drop top bead assist roller helps hold difficult top beads in place during removal and in installation of tough sidewall tires. These important tire shop tools dramatically reduce the effort required to change difficult, low-profile tires and help minimize operator fatigue. Upfront trigger control and articulating arm allow for variable tire and wheel configurations. A heavy-duty, tri-flange, cast-iron assist tower carriage features linear way bearings for maintenance-free operation.

Tilt-Back Tower Design
Ranger uses a tilt-back tower design for this tire changer because a tilt-back tower offers more ground clearance, as well as easier removal and inflation of tires. If you're using like sets of tires and wheels, a pneumatically locked tool head will remain in place on the tower return, allowing for more rapid setup on your next job.

Advanced Drive Belt System
The drive belt on the R76ATR tire changer is crafted with convex sidewalls that structurally carry and disperse stress (wear) throughout the unit's structure. Oil, weather, age, etc. do not affect belt performance, because flex-bonded cords and flex-weave covers protect the system at all times.

Stainless Steel and Aluminum Pneumatic Cylinders
All pneumatic cylinders prevent the tire changer from overly vibrating, reducing friction and contributing to the long lifespan of the equipment. End-of-stroke cushions are included to extend the life of all seals, as well as the wear band and piston rods. And of course, the entire cylinder system on the tire changer is self-lubricating and low-maintenance throughout the course of ownership.

Multi-Function Mount and Demount Head
The equi-dimensional shape of the hardened steel mount/demount head lets you change functions without moving the tool head. The remarkably smooth surface gently glides tire beads during mounting/demounting and prevents expensive tire damage. Additionally, a nylon tool head comes standard. Protect your customers' expensive alloy rims and wheels from marring or damage when mounting with our durable nylon tool head that comes as a standard accessory.

Spring-Assisted Tool Shaft
In order to prevent wheel damage, Ranger's mount/demount tool heads feature hardened-steel horizontal outrigger support arms, as well as a rigid 45 mm spring-assisted hexagonal vertical tool shaft. These standard features keep the tool head in the precise position you set it during service.

Guide Bearings For All Moving Parts
Ranger takes special care of all moving parts in our tire changers. Linear guide bearings make it easy to adjust both vertical and horizontal wheel settings. The horizontal arm's hardened lower roller guide assists in maintaining an even-tempo for the arm's oscillating movements. Durable rubber bump-stops ensure a safe return during tilt-back operations and lessen shock loading. Wear is minimal on tower guides and other moving parts.

Foot-Controlled Tire Inflator
Tire changers require two hands to operate, so we keep both of your hands free with our easy-to-use foot pedal tire inflator. A push-button air pressure dump valve is integrated into the unit, letting you release tire pressure as necessary.

TurboBlast Bead Seating
Ranger's TurboBlast bead seating system efficiently shoots a burst of air between the tire and rim, thus seating beads quickly without doing damage to the tire structure. For a more controlled air discharge, the system features a nylon discharge barrel with a contoured tab that locks against the rim.

Motorcycle Clamps (Optional)
If your shop services motorcycles, or you'd like to expand your business, Ranger offers an optional series of turntable clamps specifically designed to cater to motorcycle wheels and tires.

Ranger

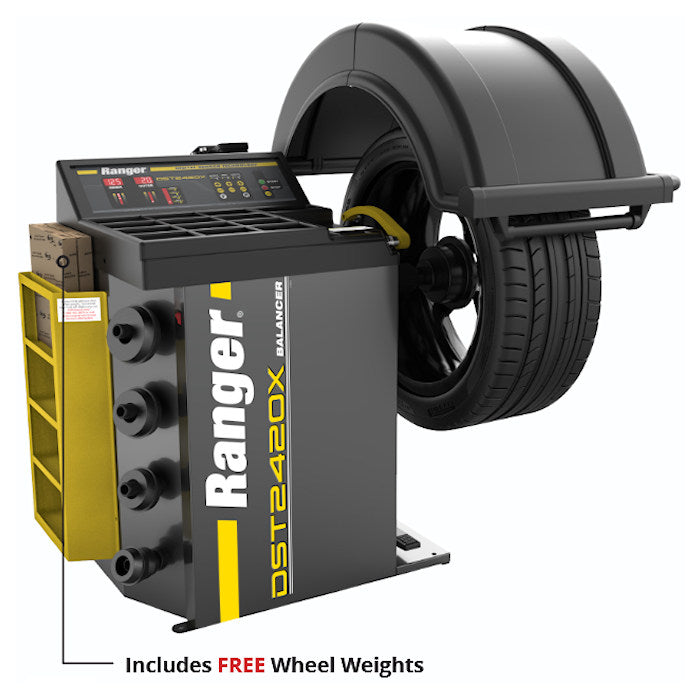

Ranger DST2420X Wheel Balancer
40mm Shaft 115/230VAC 7-Second Balancing Times

The Ranger DST2420X Wheel Balancer handles wheels up to 30" in diameter. It is a highly accurate and dependable no-frills balancer that features our proprietary Digital Sensor Technology for critical reliability and repeatability. From one-bay shops to high-volume garages, the DST2420X is built with a gritty toughness that produces perfectly balanced wheels day after day. Like all of our DST Series wheel balancers, it's a precision-engineered performer featuring our proven Direct-Axis drive system, accurate to within 0.01 oz., ensuring wheels are balanced vibration-free.

Extreme Accuracy, Speed & Reliability in a Wheel Balancer
The DST2420X automatically calculates the exact weight needed to achieve an optimal balance for almost every tire and wheel configuration possible. It also features bright display LEDs that mark the exact amount and location of the weight correction in just six seconds. A full menu of time-saving features, including Dynamic, Static, and Performance Alloy settings, allows you to balance OEM wheel configurations and performance wheels with minimal effort and speed.

Highly Precise Digital Sensor Technology
Our advanced Digital Sensor Technology utilizes a high-speed, single-chip microprocessor to deliver exceptional accuracy, faster cycle times, and consistent repeatability - especially when performing complex balance and weight placement on today's high-tech OEM and aftermarket wheels.

Single-chip circuit board architecture provides an inherent performance and reliability advantage compared to multi-chip designs of the same functionality. In addition to overall latency reductions, the single-chip architecture significantly boosts device throughput. An extremely fast and dedicated hyper transport protocol allows data to communicate with the micro-processor at much faster speeds. This solution offers unmatched integration of features and functionality that results in both lower power consumption and dissipated heat.

Multi-Directional Quartz Piezoelectric Load Sensors
Dual-component piezoelectric quartz load sensors and digital rotation encoder measure longitudinal, transversal and shear effects for multi-directional force unbalance detection. The piezoelectric force sensors are the most sensitive sensors we have ever made, offering superior stability and fatigue resistance for unlimited service life with your wheel balancer. The high-rigidity quartz crystal sensors offer high-frequency detection in all three measured directions.

Quick and Precise Setup
Multi-size center collets and a full rubber perimeter no-mar "Quick-Nut" bell adapter allow for fast, secure wheel mounting while minimizing the risk of costly damage. Designed for speed and efficiency, the system reduces setup time and ensures precise centering - helping shops move more jobs through the bay with confidence

Mounting Collet Package
The DST2420X tooling package not only includes our standard car and light truck collets, but also a heavy-duty truck collet. This well-equipped package includes three automotive and light truck collets: 2" - 2.75", 2.5" - 3.25", 3" - 3.8", and 3.7" - 4.4" as well as one truck collet 4.5" - 5".

Automatic Weight Optimization
The DST2420X automatically calculates the minimum amount of weight needed to achieve an optimal balance for the tire and wheel configuration, so you use less weight. This adds up to real savings and increases your bottom line.

User-Friendly Operation
A touch-pad display panel features tire and wheel assembly graphics to help simplify speed entry of wheel data and guide technicians through balancing procedures. Operator function keys are labeled with simple, easy-to-read icons to help operators identify and command all balancing functions.

LED Rolling Wheel Weight Displays
Bright LED weight placement indicators show weight positions as the wheel is gently rolled to the exact top-dead-center. Tiered weight placement indicators help identify out-of-sight weight placement, such as split-weight or hidden "behind-the-spoke" techniques. Aids with clip-on and tape weight placement at precise locations for zero-on balancing every time.

Wheel Weight Starter Kit
A free kit of wheel weights is included with the DST2420X along with a built-in tape weight feeder and storage compartment. Each unit's starter kit contains one bulk roll of 100 silver adhesive steel tape weights, one bulk roll of 100 black adhesive steel tape weights and one starter box of mixed clip-on steel weights. It's our way of getting you off on the right foot. Additional Ranger wheel weights are available for purchase at any time.

Ample Storage
Integrated weight trays, cone hangers, and tool holders keep DST-2420X accessories organized and within reach. Everything stays on the machine; reducing clutter, speeding workflows, and keeping high-volume truck balancing efficient and repeatable.

Tape Weight Feeder
An integrated open-top feeder on the side shelf keeps Ranger Quick-Peel adhesive weights within easy reach, speeding up weight placement and minimizing downtime between jobs. Designed for efficiency in high-volume environments. (Weights sold separately in bulk rolls.

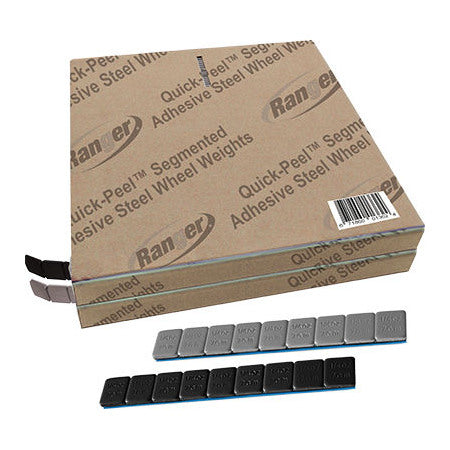

Ranger Tape Wheel Weights

Quick-Peel Segmented Adhesive Black &
Silver Steel Tape Wheel Weights

Many states are banning the use of lead wheel weights. Ranger steel weights come in black and silver. Our Stick-On Steel Wheel Weights offer the best overall fit, as well as the most reliable and cost-effective choice. Ranger steel wheel weights are designed to have less impact on the environment and are corrosion resistant. Our .25 oz. wheel weights are perfectly sized and weighted for most wheel balancing applications, and when paired with a Ranger wheel balancer, you'll never use more weight than necessary for the job. Our adhesive is extra-sticky, lessening the chance of the weight falling off the wheel and improving your level of customer service. Customers will know the quality difference when you service their vehicle with Ranger wheel weights.

Features & Specs

R76ATR-L Tire Changer Features

  • 4 Clamps (Internal / External)
  • Dual Pneumatic Cylinders
  • Adjustable Pneumatic Blade
  • Tilt-Back Tower Design
  • Vertical Shaft / Tool Head Positioning
  • Inflation System
  • Inflation Gauge & Integrated Air Dump Valve
  • Inflation Pressure Regulator/Limiter
  • Water Filter
  • Oiler / Lubricator
  • Air Regulator
  • Bead Tool/Tire Iron
  • Alloy-Steel Mount-Demount Head
  • Nylon Mount-Demount Head
  • Large Soap Bucket
  • Soap Brush
  • Turboblast Bead Seating System
  • Tool Tray / Bin Storage
  • Motorcycle Turntable Clamps (Optional)

R76ATR-L Tire Changer Specifications

  • Motor: 2 HP (110 VAC 50-60 HZ)
  • Drive System Type: Electric / Hydraulic
  • Air Requirement: 110-175 PSI (8-12 BAR)
  • Wheel Clamping Method: 4 Clamps - Internal / External
  • Table Clamping System: Dual Pneumatic Cylinders
  • Bead Breaking System: Adjustable Pneumatic Blade
  • Tower Design: Tilt-Back
  • Power Assist Tower(s): Single / Right-Side
  • Bead Lifting Roller(s): Single / Right-Side
  • Upper Bead Assist Roller: Single / Right-Side
  • Vertical Shaft / Tool Head: Pneumatic / Locking
  • Powerful Bead Seating System: TurboBlast
  • A - Inside (Wheel) Clamping Range: 10" - 30" (254 - 762 mm)
  • B - Outside (Wheel) Clamping Range: 8" - 26" (203 - 660 mm)
  • Maximum Rim Width: 15" (381 mm)
  • Maximum Tire Diameter: 43" (1,092 mm)
  • Recommended Footprint: 60" x 50" x 78" (1,524 x 1,270 x 1,981 mm)
  • Shipping Dimensions: 50" x 50" x 68" (1,270 x 1,270 x 1,727 mm)
  • Shipping Weight: 920 lbs. (417 kg)
  • Warranty: Warranty: (2) Years Structure, (1) Year Components, (1) Year Labor, (1) Year Shipping

DST2420X Wheel Balancer Features

  • Dynamic, Static, and Performance Alloy settings
  • A multi-user save function holds presets to increase productivity
  • An ergonomic control board and easy-to-read LED display have vibrant visual cues and a keypad to
    • improve efficiency and proper balancing techniques for faster floor-to-floor times
  • Simple wheel data entry for precise distance, diameter, and width measurements
  • Precise and accurate rolling wheel weight readings displays exact weight needed saving valuable time and minimizing errors
  • Low RPM balancing speed and rapid six-second cycle time
  • Automatic braking & Self-calibration function
  • Gram/ounce selection and millimeter/inch selection
  • Automatic round-off with top-dead-center weight position indicator
  • Tiered weight placement indicators help identify out of-sight position weight placement such as split-weight or hidden "behind-the-spoke" techniques
  • Manual or automatic start when the hood is lowered
  • High-volume top weight tray and side shelf storage give you room to inventory a wide variety of wheel weights and tools
  • Newly designed side shelf features an open-top design that accommodates Ranger Quick-Peel adhesive tape weight convenient bulk rolls
  • Integrated tape weight feeder storage keeps adhesive weights neatly organized and immediately accessible at the balancer, reducing reach time and workflow interruptions while improving overall balancing efficiency
  • Rugged 40 mm shaft makes the balancer stiffer, more accurate, and better suited for modern heavier wheels, while also supporting industry-standard cones and accessories
  • Quick-release hub nut for dramatically reduced set-up times
  • Side-position restraint pedal holds wheels securely and accurately during weight installation procedures
  • Side collet storage pegs keep accessories readily available
  • New "open-side" hood design allows for a broader coverage of tire shapes and sizes

DST2420X Wheel Balancer Specifications

  • Voltage: 115 - 230V, 50/60 Hz, 1 Ph*
  • FLA: 7A
  • Working Temp: 23°F to 104°F (-5°C to 40°C)
  • Max. Tire Diameter: 31" (787 mm)
  • Max. Wheel Weight: 145 lbs. (65 kg)
  • Max. Wheel Diameter: 8" to 30" (203 mm to 762 mm)
  • Wheel Width Capacity: 2" to 18" (51 mm to 457 mm)
  • Balancing Increments: 0.25 oz. (5 grams)
  • Height, Guard Up: 65" (1,651 mm)
  • Height, Guard Down: 52" (1,321 mm)
  • Overall Width: 52.5" (1,333 mm)
  • Depth, Cover Up: 40" (1,016 mm)
  • Depth, Cover Down: 41" (1,041 mm)
  • Unit Weight: 297 lbs. (135 kg)
  • Shipping Weight: 362 lbs. (165 kg)
  • Warranty: (2) Years on Equipment Structure, (1) Year on Operating Components, (1) Year Labor, (1) Year Labor, (1) Year Free Shipping

*Note: Standard electrical configurations shown. Additional voltage options available upon request.

Accessories/Options

More Information

Ranger R76ATR Tire Changer Brochure (.pdf)

Ranger R76LT R76ATR Tire Changer Manual (.pdf)

Ranger DST2420X Wheel Balancer Brochure (.pdf)

Ranger Wheel Service Equipment Warranty (.pdf)

Customer Pictures & Testimonials:


'Hi Guys. I received my equipment on Friday. On that note I was very impressed with them and got them hooked up and immediately tried them out and am very happy with both of machines! I've attached a picture of them in my garage. I'm very much looking forward to using it more and all its awesome features! Thanks.'
-Kevin Laskowski
-Tonawanda, NY

What MakesRanger NexGen Tire Changers Superior? - Click Here To Find Out
