Ranger DST2420X Wheel Balancer

Features & Specs

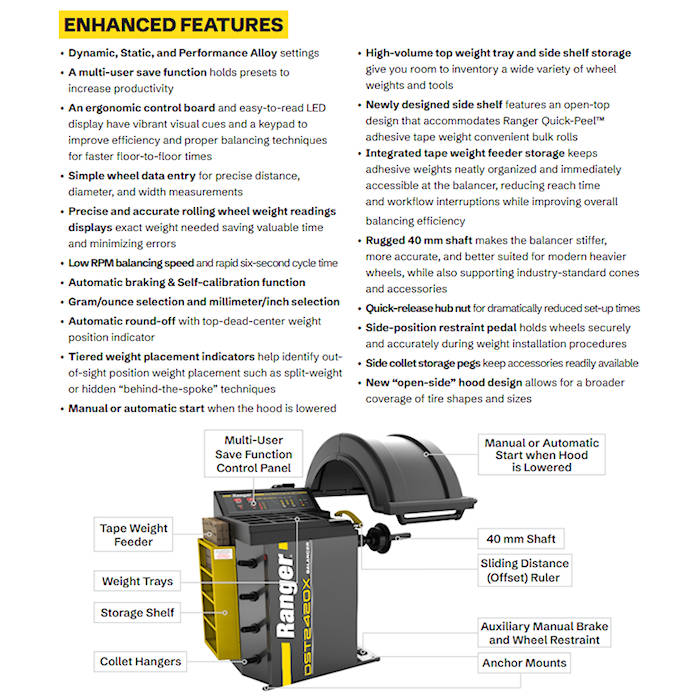

Features

• Dynamic, Static, and Performance Alloy settings
• A multi-user save function holds presets to increase productivity
• An ergonomic control board and easy-to-read LED display have vibrant visual cues and a keypad to
improve efficiency and proper balancing techniques for faster floor-to-floor times
• Simple wheel data entry for precise distance, diameter, and width measurements
• Precise and accurate rolling wheel weight readings displays exact weight needed saving valuable time and minimizing errors
• Low RPM balancing speed and rapid six-second cycle time
• Automatic braking & Self-calibration function
• Gram/ounce selection and millimeter/inch selection
• Automatic round-off with top-dead-center weight position indicator
• Tiered weight placement indicators help identify out of-sight position weight placement such as split-weight or hidden "behind-the-spoke" techniques
• Manual or automatic start when the hood is lowered

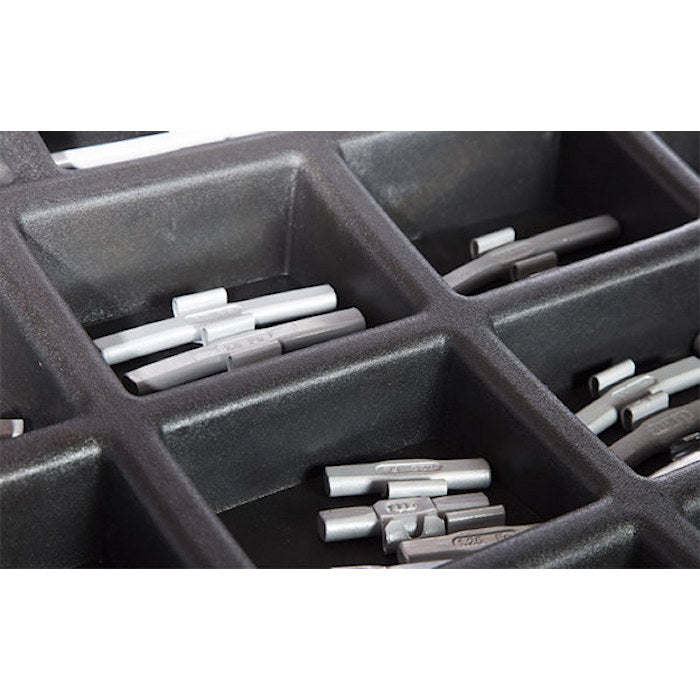

• High-volume top weight tray and side shelf storage give you room to inventory a wide variety of wheel weights and tools
• Newly designed side shelf features an open-top design that accommodates Ranger Quick-Peel adhesive tape weight convenient bulk rolls
• Integrated tape weight feeder storage keeps adhesive weights neatly organized and immediately accessible at the balancer, reducing reach time and workflow interruptions while improving overall balancing efficiency
• Rugged 40 mm shaft makes the balancer stiffer, more accurate, and better suited for modern heavier wheels, while also supporting industry-standard cones and accessories
• Quick-release hub nut for dramatically reduced set-up times
• Side-position restraint pedal holds wheels securely and accurately during weight installation procedures

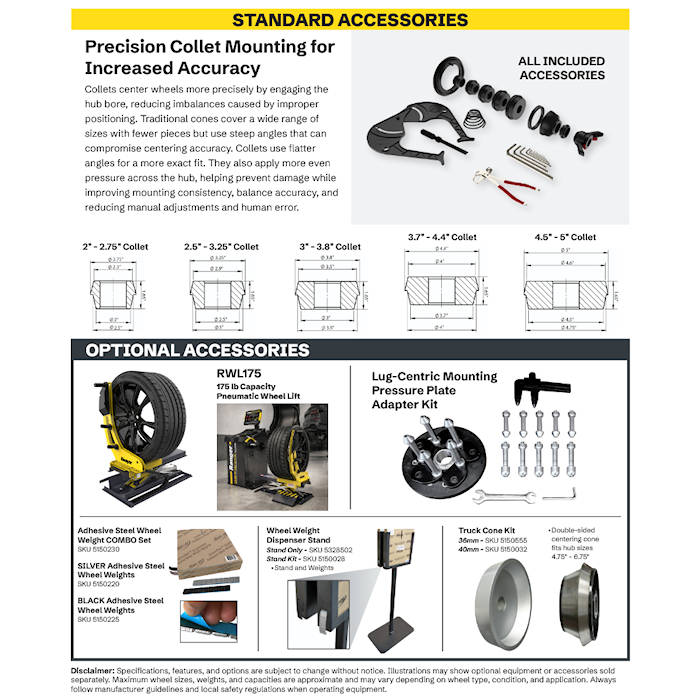

• Side collet storage pegs keep accessories readily available
• New "open-side" hood design allows for a broader coverage of tire shapes and sizes

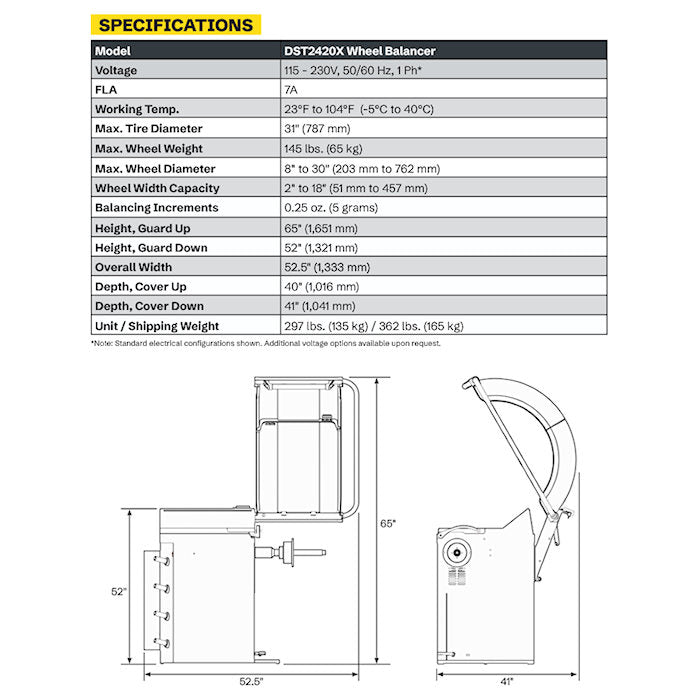

Specifications

• Voltage: 115 - 230V, 50/60 Hz, 1 Ph*
• FLA: 7A
• Working Temp: 23°F to 104°F (-5°C to 40°C)
• Max. Tire Diameter: 31" (787 mm)
• Max. Wheel Weight: 145 lbs. (65 kg)
• Max. Wheel Diameter: 8" to 30" (203 mm to 762 mm)
• Wheel Width Capacity: 2" to 18" (51 mm to 457 mm)
• Balancing Increments: 0.25 oz. (5 grams)
• Height, Guard Up: 65" (1,651 mm)
• Height, Guard Down: 52" (1,321 mm)
• Overall Width: 52.5" (1,333 mm)
• Depth, Cover Up: 40" (1,016 mm)
• Depth, Cover Down: 41" (1,041 mm)
• Unit Weight: 297 lbs. (135 kg)
• Shipping Weight: 362 lbs. (165 kg)
• Warranty: (2) Years on Equipment Structure, (1) Year on Operating Components, (1) Year Labor, (1) Year Labor, (1) Year Free Shipping

*Note: Standard electrical configurations shown. Additional voltage options available upon request.

Ranger Wheel Service Equipment Warranty
Duration: From the date of purchase by original Purchaser or 24‐12 months from the date of shipment by BendPak/Ranger or whichever comes first.

• Two Years (24-Months) Warranty on equipment structure*
• One Year (12-Months) Warranty on operating components
• One Year (12-Months) Labor Warranty on site or at factory
• One Year (12-Months) Free-Shipping** on ground‐freight charges related to warranty performance

Limited Warranty

1. Who gives this warranty (Warrantor): BendPak Inc., 1645 Lemonwood Dr., Santa Paula, CA 93060
2. Who receives this warranty (Purchaser): The original Purchaser (other than for purpose of resale)
3. What products are covered by this warranty (Product): Any Ranger brand tire changer, wheel balancer or brake lathe***
4. What is covered under this warranty: manufacturer defects due to material and/or workmanship with the exceptions noted below.
5. What is not covered under this warranty:
1. Any failure that results from Purchaser's abuse, neglect or failure to operate, maintain or service Product in accordance with instructions provided in the owner's manual(s) supplied.
2. Any damage caused by overloading Product beyond rated capacity.
3. Items or service normally required to maintain the Product, i.e. lubricants, oil, etc.
4. Items considered general wear parts such as rubber pads/blocks, etc. unless wear or failure is a direct result of manufacturer defect due to material and/or workmanship.
5. Any component damaged in shipment or any failure caused by installing or operating lift under conditions not in accordance with installation and operation guidelines or damaged by contact with tools or surroundings.
6. Motor or pump failure caused by rain, excessive humidity, corrosive environments or other contaminants.
7. Rusted components due to improper maintenance or corrosive environments.
8. Cosmetic defects that do not interfere with Product functionality.
9. Damage due to incorrect voltage or improper wiring.
10. Any failure that results from improper installation or use not according to specifications.
11. Damage caused by disasters such as fire, flood, wind, and lightning.
12. Damage caused by unauthorized attachments or modifications.
6. Responsibilities of Warrantor under this warranty: Repair or replace, at Warrantor's option, component which is defective, has malfunctioned and/or failed to conform within duration of the warranty period. Warrantor will pay reasonable labor costs for the first 12 months only.
7. Responsibilities of Purchaser under this warranty/ notice of claims:
1. Provide dated proof of purchase and maintenance records.
2. In some cases, components may be required to be shipped to the nearest BendPak Authorized Service Center. Freight costs, after 12‐months, must be borne by the Purchaser.
3. Use reasonable care in the operation and maintenance of the Products as described in the owner's manual(s).
8. When Warrantor will perform repair or replacement under this warranty: Repair or replacement will be scheduled and serviced according to the normal work flow at the servicing location, and depending on the availability of replacement parts.

*Equipment structure is defined as any non‐moving permanently affixed frame or main body, or sub‐structures that are non‐moving and permanently affixed or attached to any main equipment structure or frame. **Free‐shipping applies to direct shipping points within the 48 continental United States. Rural area shipping surcharge may apply for remote addresses. ***For all Ranger brand tire changers, wheel balancers or brake lathes manufactured on or following 11/1/2011.

Limitation of Liability
BendPak/Ranger shall have no obligation pursuant to this Warranty with respect to products which in our sole judgment have been altered damaged, misused, abused, badly worn, lost or improperly maintained. This Warranty is null and void if the customer or any other person other than an authorized representative of BendPak/Ranger has made any attempt to service or modify the tool prior to its return to BendPak/Ranger under this Warranty. In no event will either party be liable for any damage caused by the other party's failure to fulfill its responsibilities under these terms and conditions. In no event will either party be liable for any lost profits, lost savings, incidental damage, or other economic consequential damages BendPak/Ranger products are provided and sold as is without any express or implied warranties including warranties of merchantability or fitness for particular purpose. No warranties, expressed or implied, will apply after this period. BendPak may modify these terms and conditions at any time by either providing the customer with written notice or posting such revised terms on www.bendpak.com. Such revised terms shall be effective thirty days from the date of such written notice or posting.
