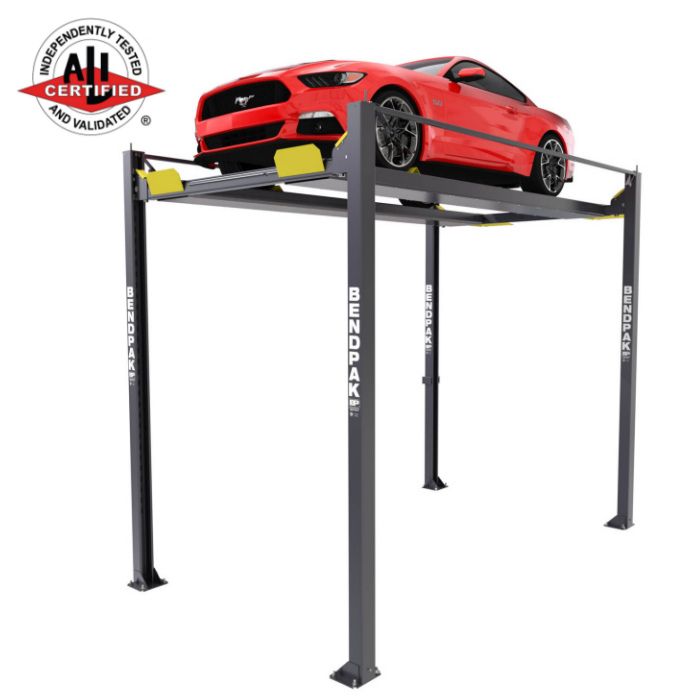

BendPak HD-7PXW Four Post Lift | Short Runway
BendPak HD-7PXW Four Post Car Lift |
Super Tall, WIDE, 7,000-lb Capacity
The HD-7PXW is literal giant. This 4 post lift will effortlessly lift up to 7,000 lbs. over 12' into the air! Perfect for stacking taller vehicles. The HD-7PXW is the wider model of this super tall lift.
Now in NEW Gunmetal Gray!
Current Lead Time 4-6 Weeks
Here it is! This is the garage lift you've been waiting for. Finally a super high lifting home / hobbyist four post parking / storage lift with all the features and quality of a true commercial lift.
Are you looking for an economical answer to finding increased parking space? Are you looking for a true commercial quality four post garage lift that won't cost a fortune but doesn't sacrifice quality? If you answered yes to either of these questions, then you need one of the BendPak HD-7 commercial-grade home / hobbyist four-post lifts. These garage lifts are perfect for the car enthusiast who wants to be able to store and service his vehicle without spending an outrageous amount of money, yet still maintain high quality.
Safety is a priority - Ten position pneumatic automatic safety locks up and down each column ensure your peace of mind. Added to that is a secondary slack cable locking system that will engage in the event off cable failure. Only true commercial quality lifts have dual safeties like this. Does that other lift you're looking at have dual safeties? Odds are, it doesn't. It also has an air solenoid safety release mechanism. Much more reliable than the typical mechanical safety release found on most lifts. Air compressor is required for safety lock operation. Plus, these lifts are ALI Certified. If the other lift you're looking at isn't, then you need to keep looking.
Superior Lifting Systems - Superior lifting system features FOUR high tensile strength (rated at 14,500 lbs. each) cables that are used on model HD9 portable garage lifts. All rollers are made of hardened steel and utilize self-lubricating bearings. Bend-Pak's four post lifts also use a futuristic UHMW ultra-high molecular weight polyethylene load bearings. They never need lubrication and last virtually the life of the lift.
Dependable design - Heavy duty aircraft lifting cables are made of stainless steel and premium hydraulic cylinder is conveniently located up underneath the runway making this a truly maintenance free product.
Dual-hub cable sheaves - Most manufacturers use single hub sheaves. Using dual hub sheaves may cost a little more, but means greater longevity. Plus, all pulleys are double diameter. This significantly extends the life of your cables. When you buy BendPak, you get premium features found only on commercial quality models.
Multiple level locking positions - The HD‐7 lifts are all fitted with multiple locking positions that are also adjustable. The adjustability is an unusual feature that most manufacturers don't offer. This is a handy feature that will help you adjust for various ceiling heights and for slope in your floor. A pneumatic safety release mechanism tops it all off by assuring that all four safeties disengage at the same time.
Heavy duty aircraft cable - Many competitors take a shortcut on the cables. BendPak uses heavy duty stainless steel aircraft quality cables that are rated at 14,000 lbs. each, providing a capacity that is 640 % greater than the rated capacity of the lift. Take a look under the runways. These cables are safely and neatly enclosed up underneath the runway in a system that makes sure that they won't flop around and catch on things like may others will.
Electric / hydraulic power system - So many inferior hydraulic power units are prominent in the market today. We see complaints from customers about other manufacturers units failing after only a few years. We utilize a maintenance free electric power unit that is dependable, reliable, and won't let you down after only a few years. One unique feature you'll find on the BendPak 4 post lifts is that the power unit is located to run in-line with the lift, not on the outside of the column. This means it wont take up as much floor space. Very important in a tight garage.
Large base plates - 12 x 10" base plates allow the lift to be free standing, and makes for a secure footing that won't cut out from under you.
Premium Hydraulic cylinder - Located safely up underneath one of the runways, so it won't get in the way. These are industrial grade cylinders. Not the inferior consumer grade cylinders that you'll finmd on competing models This is where you'll see many manufacturers take shortcuts. Premium single piece hydraulic cylinders are machined to precision with a pilot fitted hardened steel piston which is wrapped with custom fitted piston seals and wear bands and back ups, greatly reducing potential for leakage. The chrome rod is forged micro smooth to provide years of dependable use well beyond that of a typical cylinder and has a polished finish, plated to .001" diametrically. Advanced rod seals and rod wiper construction means that abrasion and wear are diminished to a fraction of the competition. Base materials with this attention to detail means that your end product will supply years of reliable service beyond the typical mass produced cylinder.
Durable powder coat finish - The powder coating process used on the all XPR series lifts is superior to others in that it is a meticulous process that takes 10 steps to complete. First, all components are inspected to ensure they are clean before being sandblasted. After sandblasting, all components are washed through 5 stages of huge phosphate tanks that can handle parts up to 25 feet long. Once cleaned, the parts are dried immediately to prevent rust. Then, the components are Out-gassed, which is a process that pre-bakes the components in an oven to prep for coating. Many systems take a shortcut here. Doing that could cause problems with the final coat, including imperfections like chipping and bubbling, which is common on many inferior models. High temperature masking tape and silicone plugs are then used to cover any holes or components that need to be covered. Next, all components are given a thinner wipe to remove any possible prints or debris that could have occured. After that, they are suspended on an electrostatically grounded conveyor line. and an electrostatic spray gun applies the powder. Finally, the parts are cured in 400 degree ovens for 3/4 of an hour.
All this leads to the most durable powder coat finish in the industry, capable of standing up to the most harsh environments and chemicals you can dish out.
Integrated design - all components are fully enclosed within the structure of the hoist. Lifting cables, hoses, and safety mechanisms, and pulleys are all out of the way so as to protect them and also to not provide pinch points.
Longer approach ramps - Having approach ramps that are slightly longer allows you to drive lower profile cars up onto the runways without fear of bottoming out. You'll appreciate that if you've got a low clearance sports car. Extra long approach ramps are also available as an optional accessory.
Automatic safety locks - heavy duty cylinders assure that all four safeties will disengage when you press a button. This is a superior system to the typical mechanical safety release most lifts utilize. Safety locks are spring loaded and engage automatically when you raise the lift. plus, as an additional safety feature, there is a slack cable safety that automatically engages if the cable were to beak or slip off a pulley. Note - a small air compressor is required to disengage the safeties.
Color Options - The standard BendPak color is gunmetal gray.
BendPak offers red, blue or black at an additional cost. Custom colors available for an additional fee as well.
Why Should you purchase a Bend Pak lift from ASEdeals?
1) Guaranteed Lowest Prices - Listen, we monitor our competition's prices. We know we usually have the lowest price on most of our equipment most of the time. In the unlikely event you find any of our automotive lifts advertised anywhere on the web for less, just tell us where you saw them, and we'll beat them. It's that simple. Our prices will not be beaten!
2) Largest BendPak distributor -This means that you enjoy the benefit of our size. Not only does this allow us to offer the best pricing available, If you have any warranty issues that you feel are not being addressed quickly enough, or to your satisfaction, we have the influence with the manufacturer to get your issue resolved right away.
3) Years of Experience - So many internet companies have popped up over the past few years, claiming to have all kinds of experience, and then when you dig a little deeper, you'll find out that they've only been around for a few years. We've been carrying Bend Pak equipment for over 17 years now. When you call and speak to us, you're not getting just an order taker that knows nothing about the product. We know these products better than most. Not only will get you answers to your questions, we will make sure that you get the proper lift for your application.
4) Reputation - Right along with the years of experience comes our reputation. Check out our reputation on all of the various car enthusiast forums out there, such as Garage Journal or Corvette Forum. You'll find countless satisfied customers, praising not only our prices, but also our integrity, honesty and ability to help you choose the right product for your application. And then, there's our hundreds of satisfied customer pictures and testimonials to back it up. We'll gladly put our reputation up against anybody's.
*Not all BendPak lift models meet the standards as prescribed by ANSI/ALI ALCTV-2006 or ANSI/UL 201. Contact ASEdeals for a complete list.
Features and Specs
FEATURES BendPak HD-7PXW Auto Lift
- 7,000-lb. maximum lifting capacity
- Super-tall lift
- Runways include outside guide rails
- Electric / hydraulic power system
- Single hydraulic cylinder mounted underneath runway
- Internal anti-sway slider blocks in each column
- Oversized self-lubricating cable rollers
- High-speed lifting
- Features heavy-duty 3/8" aircraft cable
- Rugged 1-1/4" roller axles
- Multi-position safety locks in each column
- Adjustable lock ladders
- Runways feature non-skid surface
- Push-button pneumatic safety release
MODEL HD-7PXW (Rev. M)
Configuration Wide / Super-Tall Rise
Lifting Capacity 7,000 Lbs. / 3175 Kg.
Max Capacity / Front Axle 3,500 Lbs. / 1588 Kg.
Max Capacity / Rear Axle 3,500 Lbs. / 1588 Kg.
A - Overall Width 110-1/4" / 2800 mm.
B - Outside Length 198” / 5029 mm.
C - Overall Length 213” / 5410 mm.
D - Height of Columns 158” / 4011 mm.
E – Min. Runway Height 4-1/2” / 114 mm.
F – Max. Rise 140” / 3556 mm.
G - Max. Lifting Height 145” / 3685 mm.
H - Width Between Columns 100‐1/4” / 2,555 mm.
I - Runway Width 19” / 483 mm.
J - Width Between Runways (*) NARROW 37-1/2" / 952 mm.
J - Width Between Runways (*) WIDE 44-3/8" / 1127 mm.
K - Runway Centerline (*) NARROW 56-1/2" / 1435 mm.
K - Runway Centerline (*) WIDE 63-3/8" / 1610 mm.
L - Outside Edge of Runways (*) NARROW 75-1/2" / 1918 mm.
L - Outside Edge of Runways (*) WIDE 82-3/8" / 2092 mm.
M - Drive-Thru-Clearance 86-1/2" / 2197 mm.
N - Length of Runways 188" / 4775 mm.
Min. Wheelbase @ Rated Capacity 135" / 3429 mm.
Min. Wheelbase @ 75% Capacity 115" / 2921 mm.
Min. Wheelbase @ 50% Capacity 95" / 2413 mm.
Min. Wheelbase @ 25% Capacity 80" / 2032 mm.
Locking Positions 30
Lock Spacing Every 4" / 102 mm.
Lifting Time 60 Seconds
Standard Motor (**) 208-230 VAC / 50-60 Hz. / 1Ph
Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.
Concrete requirements - 3.5" thick at 3000 psi.
*Not all BendPak lift models meet the standards as prescribed by ANSI/ALI ALCTV-2006 or ANSI/UL 201. Consult www.autolift.org for a complete list.
