Challenger Lifts TR-07 Turf Rail

In stock
Guaranteed Lowest Price $5,092.83 Regular Price $7,173.00

Challenger Lifts TR-07 Turf Rail
For use with Challenger Lifts Models CL10, CL12, CLFP9, E12, LE10 and SA10 Series Two Post Lifts

Price shown is when shipped with a lift.
Please contact us for pricing when shipped separately.


Challenger Lifts

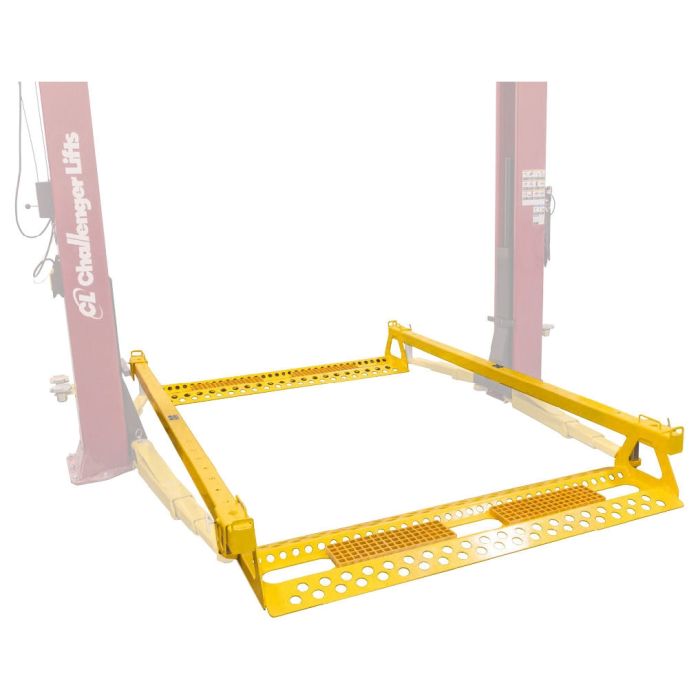

The Challenger Lifts TR-07 Turf Rail is an attachment for two post automotive lifts, designed to pick up turf and all terrain equipment by wheel engagement. The patented system has two rails that engage onto the height adapters of most two post symmetric designed lifts and then two adjustable trays attach to the rails and are fully adjustable from wheelbases ranging from 26" to 116".

Perfect fit for golf courses, airports, parks departments, turf care and landscape companies and all types of grounds care facilities.

Features and Specs

  • 7,000 lbs. Lifting Capacity
  • Lift capacity up to 3,500 lbs. per tray
  • Fits most surface mounted two post lifts
  • Easy installation in as little as two minutes WITHOUT REMOVING THE SWING ARMS!
  • Takes less valuable shop space than four post lifts
  • Patent pending rail system allows adjustable wheel bases from 26" to 116"
  • Full under vehicle access.
  • Quickly converts to turf lift or back to arm engaging lift in minutes
  • Offers maximum flexibility to service cars, light trucks, turf equipment or golf carts all on the "Turf Rail"
  • Includes all necessary adapters, fits
  • For use with CL10, CL12, CLFP9, E12, LE10, and SA10 Series Two Post Lifts
  • Drive Over Height over tray: 3.25 in. (82.5 mm)
  • Max Tire Diameter: 50 in. (1270 mm)
  • Max Track Width (outside of tire): 89 in. (2261 mm)
  • Min. Wheel Base: 26 in. (660 mm)
  • Max Wheel Base: 116 in. (2946 mm)
  • Min clear height under tray: 66.5 in. (1689 mm)
  • Total Lift Capacity: ** 7,000 lbs. (3175 kg)*

* Lift capacity ratings are based on loads equally distributed on lifting rails and trays.

** 3,500 lbs. per tray
