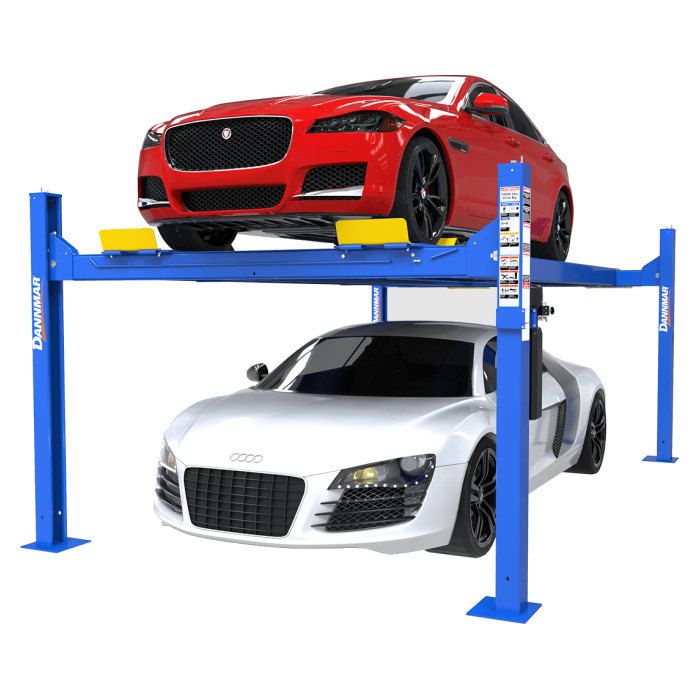

Dannmar D4-12 Four Post Lift | 12,000 lbs. Capacity
Dannmar's D4-12 four-post extended runway lift is engineered to handle a 12,000 lb. lifting capacity and to provide the rugged durability your shop or garage needs. These are commercial-grade vehicle lifts from Dannmar and they have become the benchmark of quality throughout the industry. If you need another lift for repairs, or the ability to lift heavier vehicles, or simply a way to increase parking capacity (maybe that cool project car) this is the lift for you.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description Features and Specs More Information Reviews

Description

Dannmar D4-12 Four Post Lift | 12,000 lbs. Capacity
Dannmar's four-post D4-12 lift is designed to work with most vehicles. With a 12,000 lb. capacity you not only know that it is capable of lifting most anything, but it also has to be built very strong, rugged, and durable. With Dannmar's extended runways, moving onto the runway is safe and simple for vehicles of all sizes.

The quality built into each Dannmar lift is demonstrated by the Dual-hub cable sheaves that reduce stress, fatigue and wear. Huge 10.5” diameter cable sheaves within the runway and cross tubes combine with massive 2.25” diameter sheave axles. These larger components help to share the load, which dramatically decreases cable wear and increases critical component lifespan.

To help raise and lower the hefty 12,000 lb. load are a series of heavy-duty aircraft cables. The Dannmar D4-12 incorporates four, 1/2” diameter, stainless-steel lifting cables specifically designed for lifting applications. To keep everything moving freely, the Dannmar D4-12 utilizes

Features and Specs

Features

12,000 lbs. Lifting Capacity
CE Approved and Certified
Meets or Exceeds the Standards Prescribed by European Standard EN-1493
Mid to Long-Style Approach Ramps for Low-Ground Clearance Vehicles
Runways Include Rail-Kit for Optional Accessories
Single Hydraulic Cylinder Mounted Underneath Runway
Fully Enclosed Lifting Cables, Safety Locks and Sheaves
Internal Anti-Sway Slider Blocks in Each Column
Pneumatic Push-Button Safety Release
Heavy-Duty 1/2" Aircraft Cable and 1.75" Roller Axles
Safety Locks Enclosed in Columns Minimize Pinch Points
Oversized Sheave Diameter Reduces Cable Fatigue
Large Self-Lubricating Cable Rollers
Multi-Position Safety Locks in Each Column
Customizable Power Unit Location
Approach Ramps Incorporate Built-In Rear-Wheel Chocks
Independent Backup Slack-Cable Safety Latches
Runways Feature Non-Skid Surface
ETL approved

Dimensions

Specifications

Lifting Capacity: 12,000 lbs. (5,443 kg)
A - Min. Runway Height: 6.75" (171 mm)
B - Max. Rise: 68.75" (1,746 mm)
C - Max. Lifting Height: 77.5" (1,969 mm)
D - Ramp Clearance* (Max. Rise): 49" (1,245 mm)
E - Height of Columns: 92" (2,337 mm)
F - Drive-Thru Clearance: 98" (2,482 mm)
G - Overall Width: 127.5" (3,239 mm)
H - Width Between Columns: 115.75" (2,940 mm)
I - Overall Length: 233.5" (2,940 mm)
J - Outside Columns: 115.75" (2,940 mm)
K - Width Between Runways: 34.5" (876 mm) or 41.5" (1,054 mm)
L - Runway Centerline: 54.5" (1,384 mm) or 61.5" (1,562 mm)
M - Outside Edge of Runways: 74.5" (1,892 mm) or 81.5" (2,070 mm)
N - Runway Width: 20" (508 mm)
O - Length of Runways: 194.75" (4,947 mm)
Min. Wheelbase @ Rated Capacity: 140" (3,556 mm)
Min. Wheelbase @ 75% Capacity: 120" (3,048 mm)
Min. Wheelbase @ 50% Capacity: 100" (2,540 mm)
Min. Wheelbase @ 25% Capacity: 80" (2,032 mm)
Locking Positions: 15 (spaced every 4" / 102 mm)
Time to Full Rise: 60seconds
Motor: 220 VAC / 60 Hz / 1 Ph

* Approach ramps can be removed.

Limited Warranty

Three Years (36-Months) Warranty on the Lift Structure [*] [**]
One Year (12-Months) Warranty on the Hydraulic Cylinder(s) and Power Unit [*] [**]
One Year (12-Months) Warranty on Operating Components [*] [**]
One Year (12-Months) Warranty on Electrical Components [*] [**]

*As determined by Warrantor in its sole discretion. Equipment structure is defined as any non-moving permanently affixed frame or main body, or sub-structures that are non-moving and permanently affixed or attached to any main equipment structure or frame.

**For all Dannmar brand Two-Post or Four-Post Vehicle Service Lifts (excluding specialty lifts, high rise, commercial parking, material handling, or models for particular purpose) manufactured on or following 6/1/2020.
