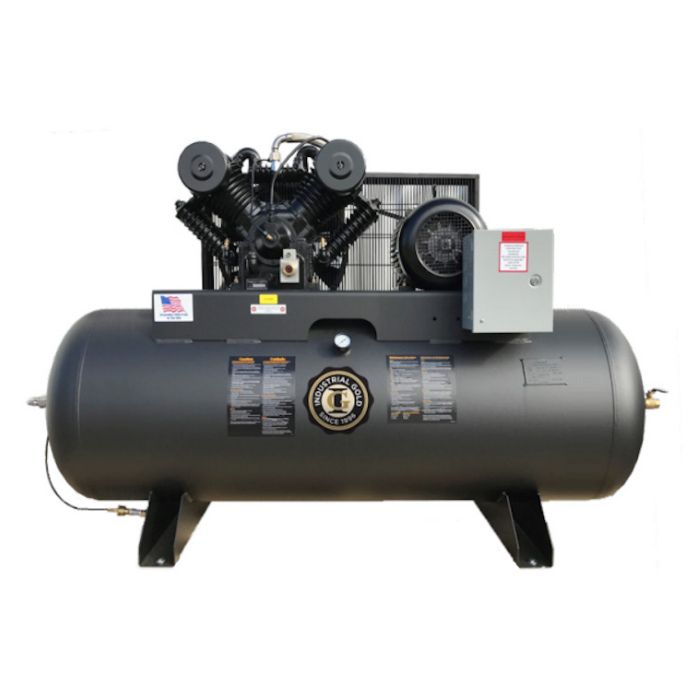

Industrial Gold Platinum Air Compressor CI1021E120H-P
Industrial Gold Horizontal Reciprocating Platinum Series Air Compressor
10HP / 1PH / 120 Gallon / 35.4 CFM / Model CI1021E120H-P
This isn't the standard series model. This is the Platinum series model.
What does that mean?
All Platinum Series air compressors come fully loaded with mag starter, automatic tank drain, low oil monitor, belt guard after cooler and vibration pads.
These are features you won't find on most competing air compressors.
If you want the finest compressors on earth, with all the premium features you would want. Then the Industrial Gold Platinum Series air compressors are for you. These elite commercial quality machines feature low oil level monitor, vibration pads, mag starter, automatic tank drain, and most importantly, the belt guard aftercooler for pure, dry air that you just won't get on typical air compressors.
What is the difference between the standard Industrial Gold air compressor and the Industrial Gold Platinum Series models? A lot. All Platinum Series commercial quality models are premium automotive shop air compressors for the commercial garage. They include the following premium features -
- Mag Starter
- Auto tank drain
- Vibration pads
- Beltguard after cooler
So, if you're comparing to other manufacturer's models, as well as other distributors that are carrying the same model number, if it cost less, make sure you're comparing apples to apples. The Platinum series include all of these premium features.
When you purchase an Industrial Gold air compressor you are getting a precision built compressor from the finest materials using the finest state of the art design and high-tech engineering. Quality, performance and trouble free operation will assure you a dependable supply of air power on demand.
The Industrial Gold Reciprocating Horizontal Air Compressor (Model CI1021E120H) is 10 Horsepower, 120 Gallon, 1-Phase Motor and comes standard with a heavy-duty two stage solid cast iron pump, auto start and stop, all UL electrical control, heavy-duty Air Compressor and a 1-year parts warranty.
Industrial Gold Model CI1021E120H features:
Vibration isolation pads- saves wear and tear on the tank and make installation easier, reduces vibration & noise
Automatic tank drain- the compressor tank is drained daily for you
Easy to read tank pressure gauge
Low oil monitor with red LED indication light
Centrifugal unloader-allows for more controls and fail safe head pressure bleed down after unit cycle is complete
Cast compressor inner cooler manifold-no flimsy copper pipe to break, allows for reliable day in day out compressor operation
Disk and spring compressor valves-allows for day in day out use, no flimsy reed valves to crack or break
Heavy duty steel compressor intake filter silencer- allows for noise reduction and protection of compressor filter element
Cast iron compressor discharge cooler manifold-allows for additional cooling and reliable day in day out compressor use
OSHA compressor belt guard-allows for safe use of the compressor system
Compressed air belt guard after cooler-aids in moisture reduction and cools compressor discharge air to within 20F of ambient air temperature
Industrial grade electric motor
Common operational pressure switch-allows for ease of use and reliability in the field
Common magnetic motor starter mounted and wired-allows for fast installation, ease of use and motor protection, by using a heavy duty reliable contactor
¾ npt air outlet-for ease of installation and package maintenance
ASME/CRN 200PSI working pressure rated air receiver
No start up kits needed for operation (Units ship factory filled)
Features and Specs
- Heavy-Duty two stage solid cast iron pump
- Disk and spring valves
- Bearings on both ends of the crank shaft
- Needle bearings, and inserts on rods
- Industrial grade electric motor
- ASME tested powder coated steel tank
- 2 grove B width motor pulley
- All UL electrical controls
- Access to compressor valves without compressor head removal
- Auto start/stop
- Fully enclosed belt guard
- Centrifugal unloader
- Heavy-duty air filter
- Swedish steel valves
- Torrington needle bearings
Horse Power10 Phase1 Voltage208-230Tank120 Gallon HorizontalOp Pressure145-175PSIPump Model:CI10Pump RPM:794CFM35.4 Dimensions70"L X 26"W X 45"H Amp Draw 230 Volt42 Amp Draw 480 VoltN/A Warranty1-year parts
We caught up with the folks at Industrial Gold at the huge SEMA show in Vegas in 2016.
