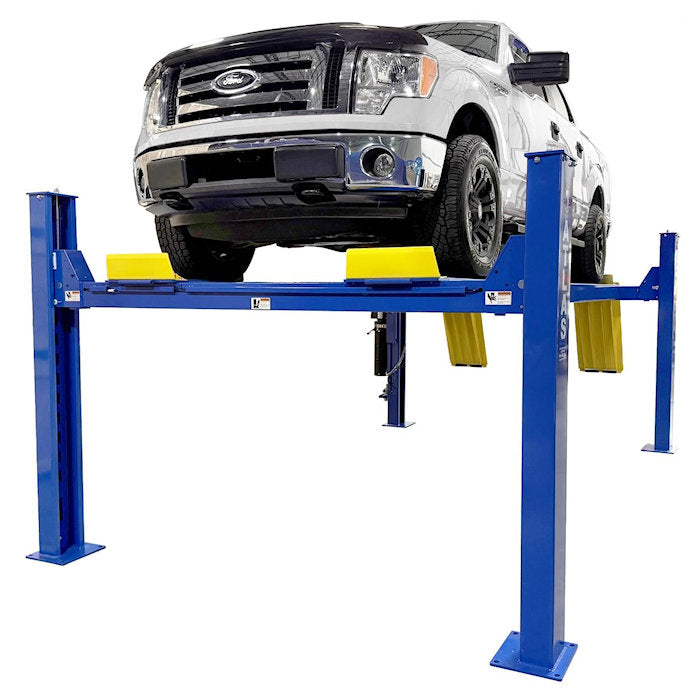

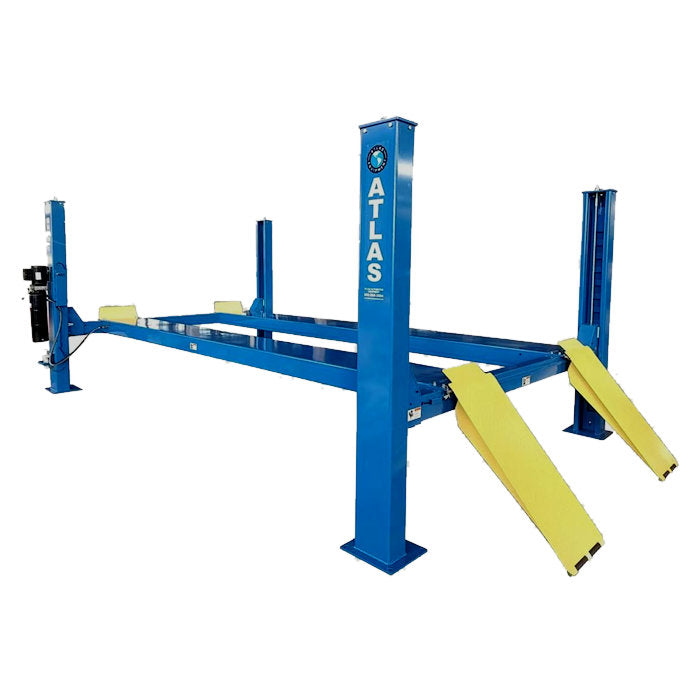

Atlas PRO14KCF-EXT Four Post Lift + Alignment Kit

Features & Specs

Features

• 14,000 lbs. Lifting Capacity
• Heavy Duty, Commercial Grade

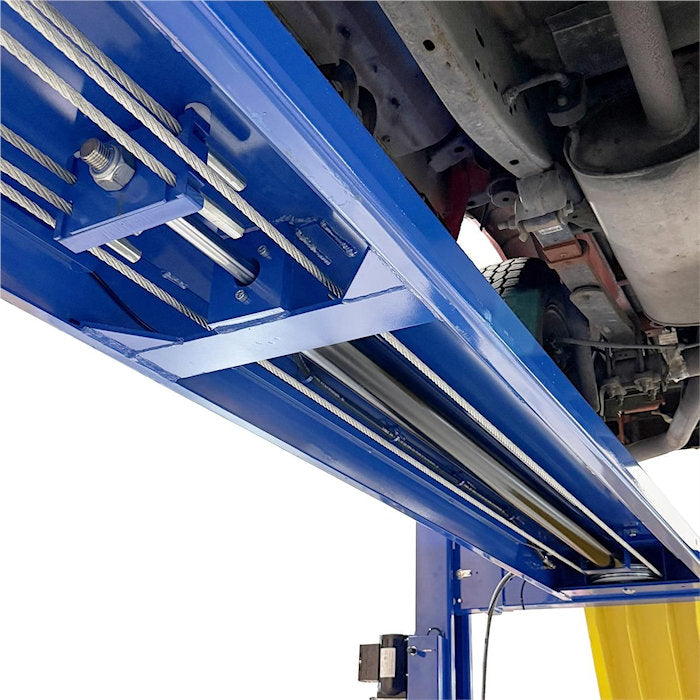

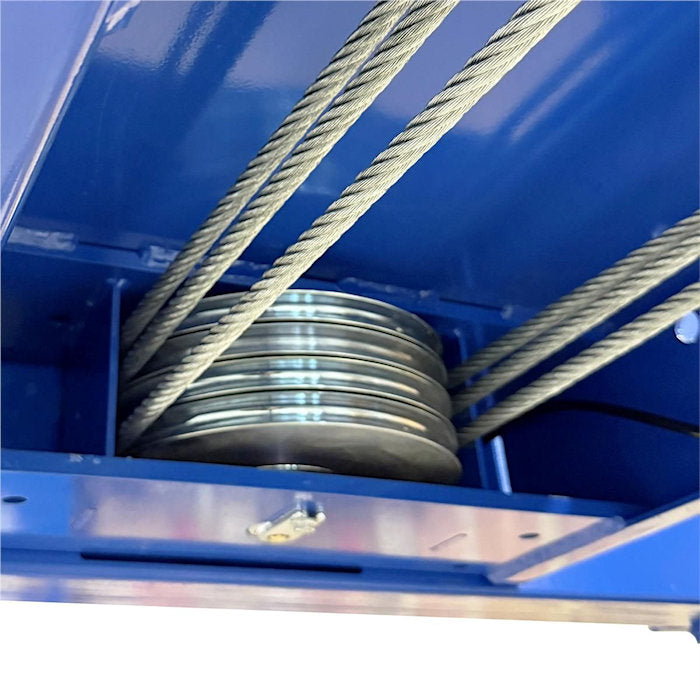

• High Strength Cable System
• Under Runway Oversized Hydraulic Cylinder
• Extra Tall & Extra Wide

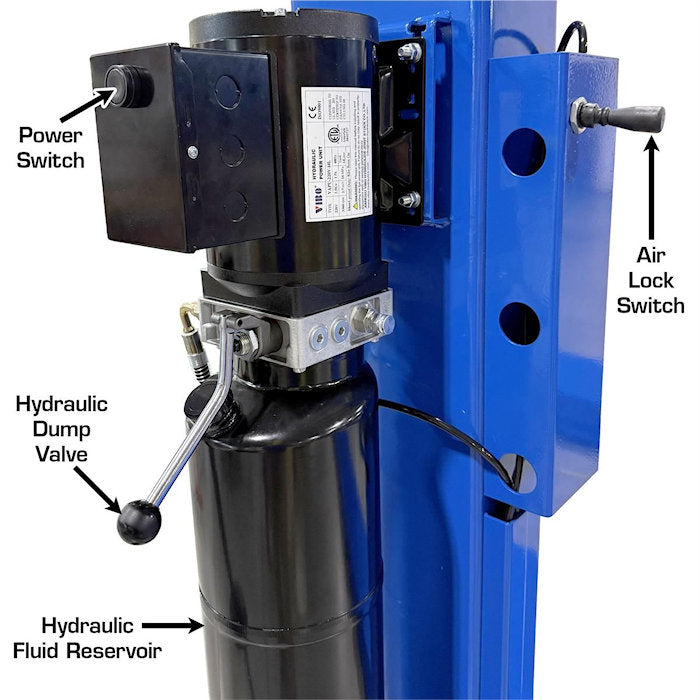

• Air Operated Single Point Lock Release (External Air Supply Required)

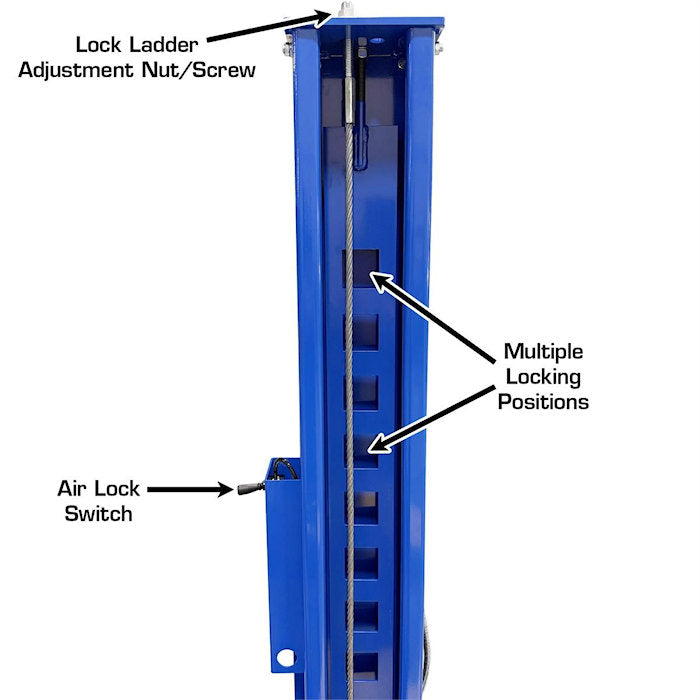

• Lock Ladder Design
• Double Lock Safety System

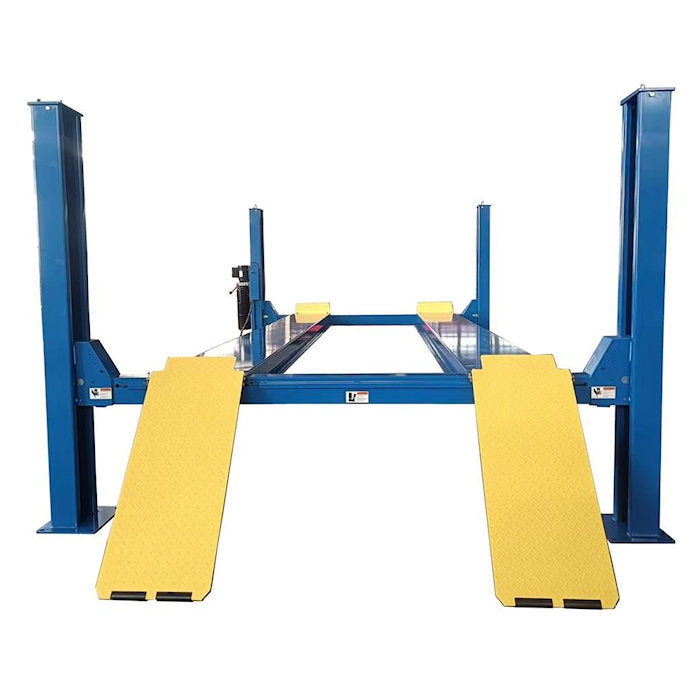

• Steel Approach Ramps Included
• Rubber Wheel Chocks Included
• Mounting Hardware Included

Specifications

• Lifting Capacity: 14,000 lbs.

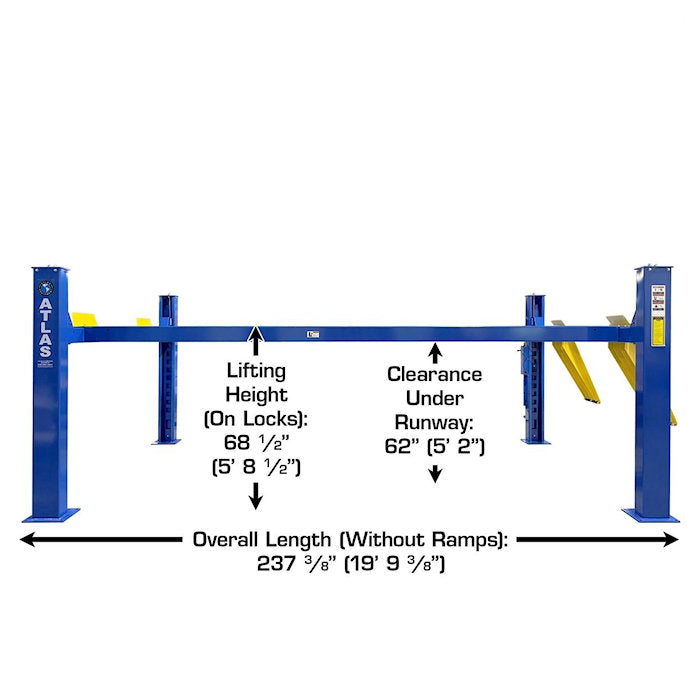

• Lifting Height, Top Lock: 68 1/2" (5' 8 1/2")

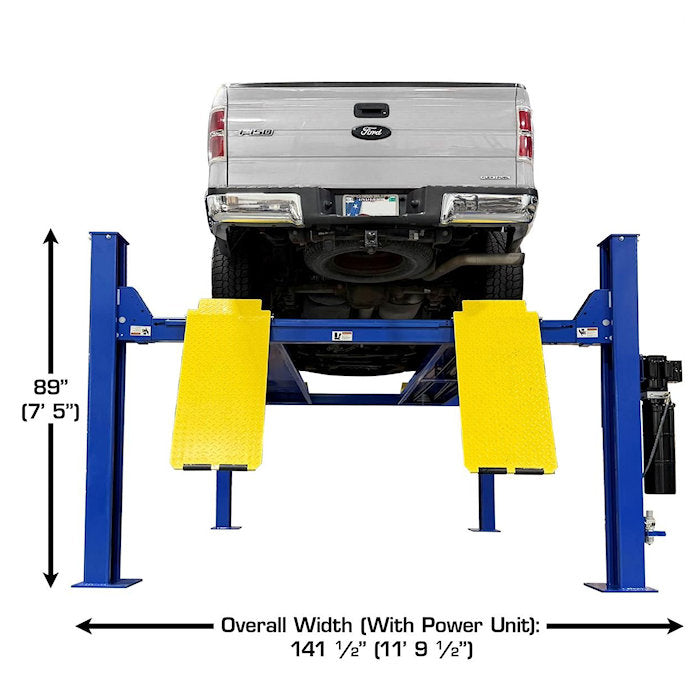

• Overall Width (w/ Motor): 141 1/2" (11' 9 1/2")

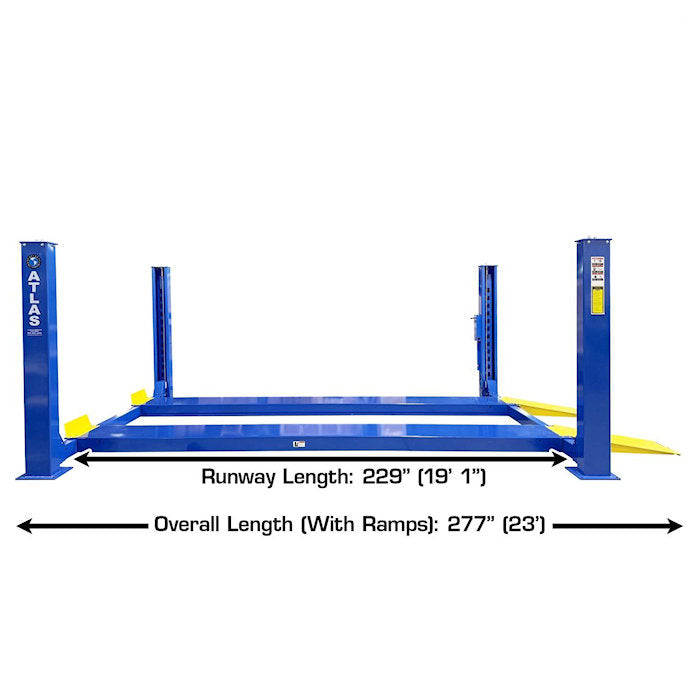

• Overall Length (w/ Approach Ramps): 277" (23' 1")
• Runway Length: 229" (19' 1")
• Length Between Columns: 213 3/4" (17' 9 3/4")

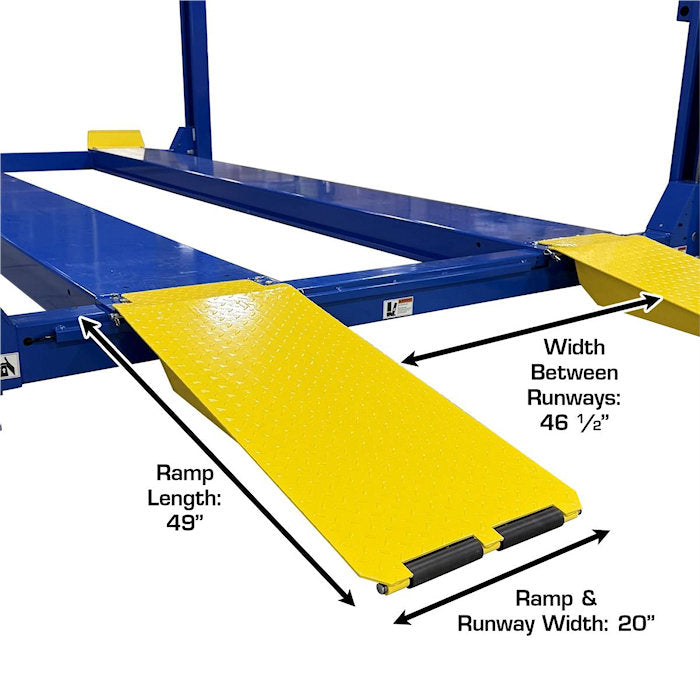

• Runway Width: 20"
• Width Between Runways: 42 1/2" - 46 1/2"
• Outside Runway to Outside Runway: 82 1/2" - 86 1/2"

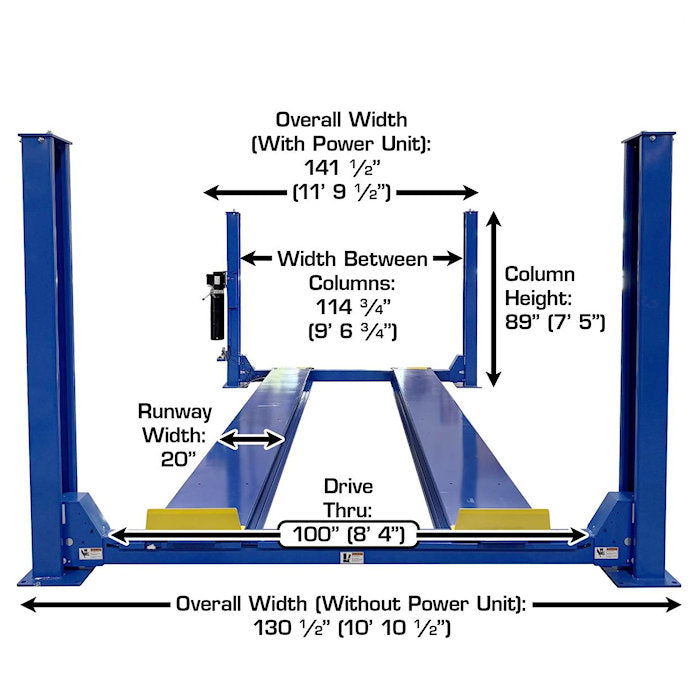

• Width Between Columns: 114 3/4" (9' 6 3/4")
• Drive Thru: 100" (8' 4")

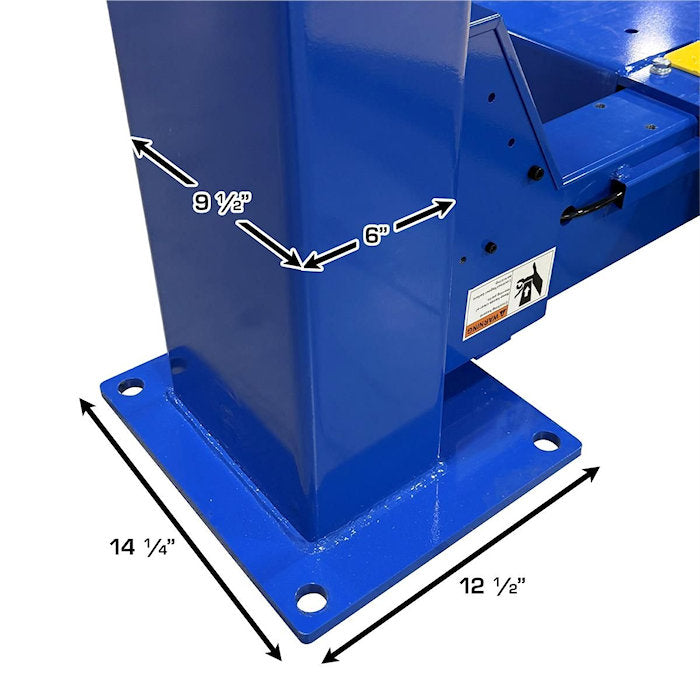

• Height of Columns: 89" (7' 5")
• Clearance Under Runways, Top Lock: 61 1/2" (5' 1 1/2")

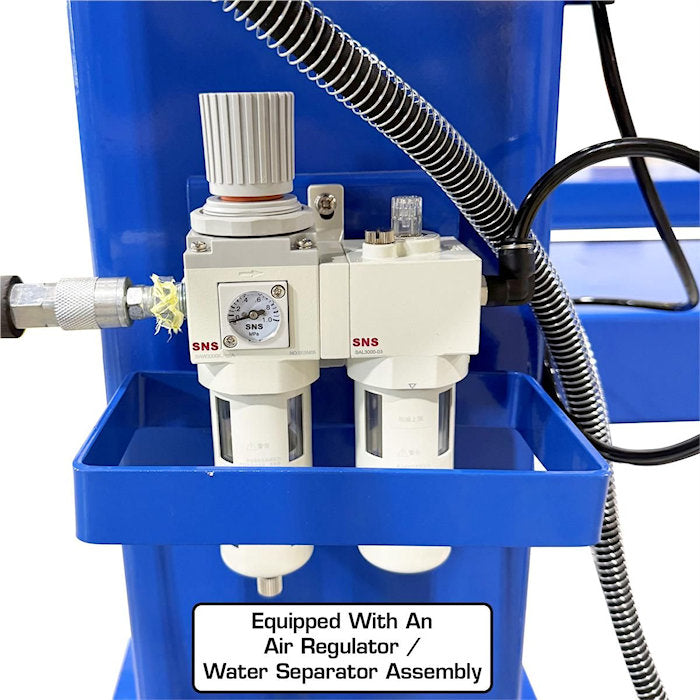

• Air Requirement: 85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED)
• Voltage: 220V 1PH
• Electrical Requirement: 30 Amp Breaker Recommended
• Oil Requirement: 3-5 Gallons AW32/AW46 (NOT INCLUDED)

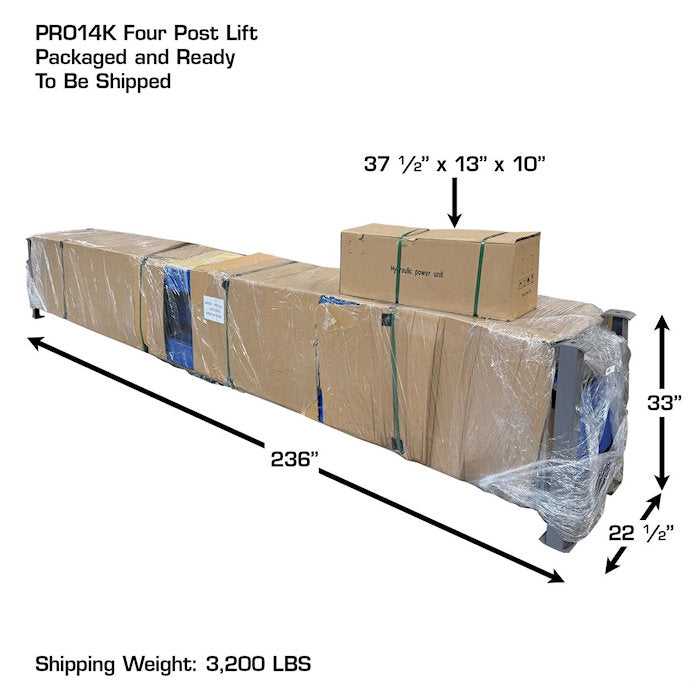

• Shipping Dimensions: 236" L x 22-1/2" W x 33" H
• Additional Carton Dimensions: 37-1/2" L x 13" W x 10" H
• Shipping Weight: 3,200 lbs.
• Warranty: 5 Years Structure, 2 Years Hydraulic Power Units & Cylinders, No Labor

Requires a minimum of 6" of concrete with a 3000 PSI rating.

5 Year Structural & 2 Year Hydraulic Warranty
Atlas Platinum Series Two-Post Lifts are warranted for five (5) years on structural components and two (2) years on the hydraulic system, power unit and cylinders effective from date of invoice. Wear items carry a 90-day warranty. Structural components are considered the Carriage, Columns, Yokes, Arms, Runways, Plungers, etc. Hydraulic components are cylinders, hoses, and fittings. Cables, sheaves, latches and controls are considered wear items.

This LIMITED warranty policy does not include a labor warranty.

NOTE: ALL WARRANTY CLAIMS MUST BE PRE-APPROVED BY THE MANUFACTURER TO BE VALID.

The Manufacturer shall repair or replace at their option for this period those parts returned to the factory freight prepaid, which prove after inspection to be defective. This warranty will not apply unless the product is installed, used and maintained in accordance with the Manufacturers installation, operation and maintenance instructions.

This warranty applies to the ORIGINAL purchaser only, and is non-transferable. The warranty covers the products to be free of defects in material and workmanship but, does not cover normal maintenance or adjustments, damage or malfunction caused by: improper handling, installation, abuse, misuse, negligence, carelessness of operation or normal wear and tear. In addition, this warranty does not cover equipment when repairs or alterations have been made or attempted to the Manufacturer's products.

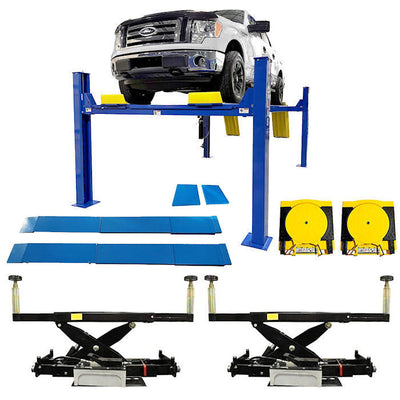

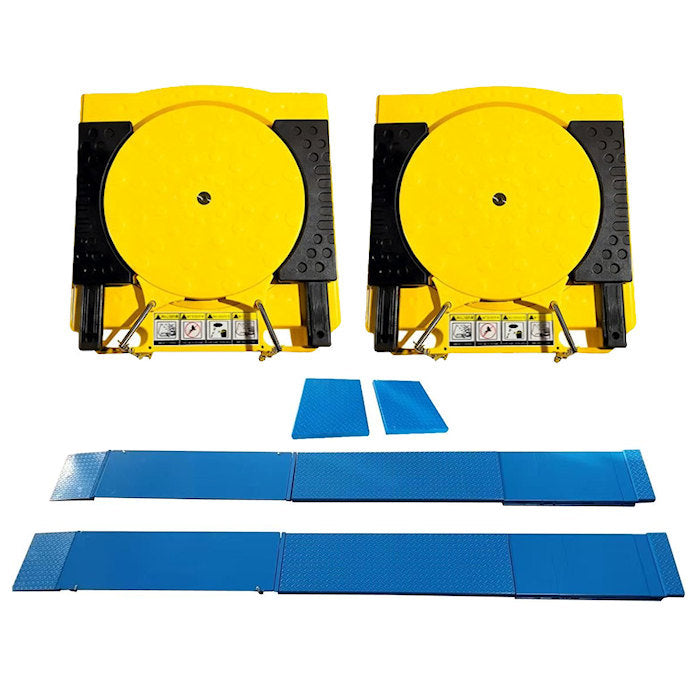

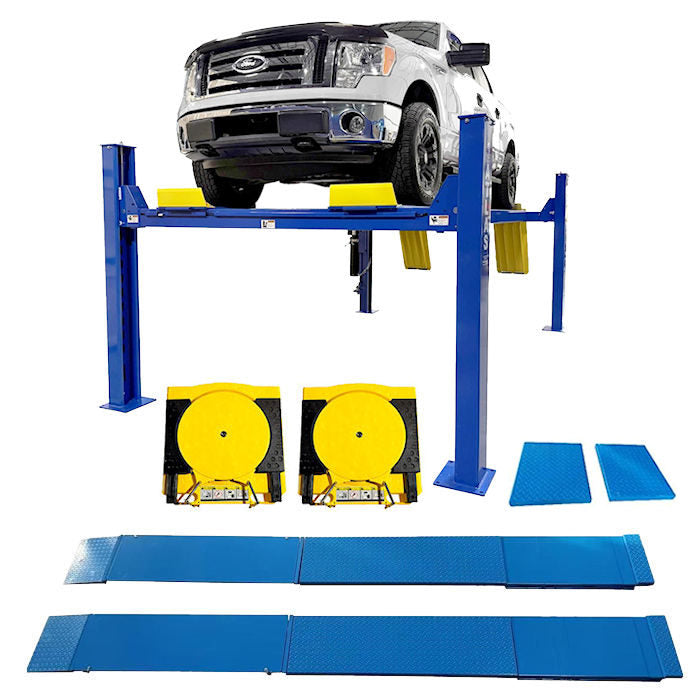

ALIKIT-EXT Bolt-On Alignment Kit Features

• Extended Length Bolt On Alignment Kit with Turntables
• Includes 24" Extensions
• Standard Bolt On Alignment Kit with Turntables
• Includes (2) Slip Plates
• Includes Ramps, Spacers, and Stationary Sections
• Includes (2) Alignment Turntables
• Standard Bolt On Alignment Kit with Turntables
• Includes (2) Slip Plates
• Includes Ramps, Spacers, and Stationary Sections
• Includes (2) Alignment Turntables
• (2) x Ramps: 15" (Bolt On)
• (2) x Main Stationary Section: 67-3/4" (Bolt On)
• (2) x End Stationary Section: 5" (Bolt On)
• (4) x Spacer: 4" (Moveable)
• (2) x Spacer: 11-3/4" (Moveable)
• (2) x Spacer: 20-1/2" (Moveable)
• (2) x Slip Plates: 66-1/2" (Bolt On), Actual Plate 63-3/4"
• (2) x Turntables: 18-1/2" x 19-1/2" x 2"
• Fits 4-Post lifts with 229" Runway Length & 20" Runway Width
