Autel IA700 ADAS Calibration Frame

Name: Autel IA700 ADAS Calibration Frame
Brand: Autel
SKU: IA700
Price: 14400.00 USD
Availability: InStock

In Stock SKU IA700 UPC 849438072667

OUR PRICE: $14,400.00

Regular Price: ~~$17,100.00~~

$400.00 / mo

INCLUDES FREE SHIPPING*

Short Description

Autel IA700 ADAS Calibration Frame
Wheel Alignment Pre-Check
The Autel IA700 ADAS Calibration Frame with robotic crossbar features six high-resolution positioning and tracking cameras, enabling target positioning and prompting unlevel floor compensation. The Autel IA700 compatibility with the MA600 and IA900 targets, patterns, and calibration components makes it the ideal solution for existing MA600 users seeking a mobile system with the speed and accuracy of optical positioning. IA900 users purchasing an IA700 can double calibration capacity without purchasing additional targets. Frame quickly disassembles for transport or space-saving storage. The frame ships with four tire clamps with camera targets, a steering wheel lock, brake chocks, power supply, alignment aid, and frame cover. Requires any MaxiSYS MS909, MS919, or MS Ultra tablet and an ADAS calibration software upgrade card for static and dynamic ADAS calibration coverage for most U.S., Asian, and European ADAS-equipped vehicles. A one-year Limited Warranty covers the MaxiSYS IA700 frame.

Description

Autel IA700 ADAS Calibration Frame
Wheel Alignment Pre-Check

The Autel IA700 ADAS Calibration Frame with robotic crossbar features six high-resolution positioning and tracking cameras, enabling target positioning and prompting unlevel floor compensation. The Autel IA700 compatibility with the MA600 and IA900 targets, patterns, and calibration components makes it the ideal solution for existing MA600 users seeking a mobile system with the speed and accuracy of optical positioning. IA900 users purchasing an IA700 can double calibration capacity without purchasing additional targets. Frame quickly disassembles for transport or space-saving storage. The frame ships with four tire clamps with camera targets, a steering wheel lock, brake chocks, power supply, alignment aid, and frame cover. Requires any MaxiSYS MS909, MS919, or MS Ultra tablet and an ADAS calibration software upgrade card for static and dynamic ADAS calibration coverage for most U.S., Asian, and European ADAS-equipped vehicles. A one-year Limited Warranty covers the MaxiSYS IA700 frame.

IA700 Advanced Modular ADAS Calibration System
Alignment Pre-Check & Optical Target Placement

Advanced optical wheel alignment pre-check and ADAS calibration system engineered for both in-shop and mobile applications.

The Autel IA700 is a state-of-the-art and versatile wheel alignment pre-check and ADAS calibration system engineered for both in-shop and mobile applications - move from bay to bay and shop to shop.

It features optical positioning that reduces target setup by 6X versus mechanical measurement, unlevel floor compensation that eliminates failed calibrations due to uneven surfaces, and integrated alignment pre-check in a single system and workflow.

The purchase of an IA700 system may include in-shop setup and onboarding training performed by an Autel ADAS expert. Please consult your preferred authorized Autel dealer for details.

For General Repair, Collision Repair, Wheel & Tire Dealers, and Automotive Dealerships

Advanced ADAS Functionality

Fully Optical Target Placement reduces setup time by 6X versus mechanical measurements.
Unlevel Floor Compensation eliminates failed calibrations due to uneven surfaces.
Integrated Wheel Alignment Pre-check ensures your workflow follows OEM-sourced procedures.
Guided ADAS for late model ADAS calibration.

State-Of-The-Art Modular ADAS System

6 High-definition Cameras & Tire Clamp Targets deliver industry-leading accuracy of 0.02°.
Robotic Height Adjustment automatically achieves proper crossbar calibration position.
Detachable Crossbar minimizes the system’s footprint for storage in tight spaces.
Quickly Disassembles into 5 primary parts in less than 90 seconds for easy transport.

Guided Instruction, OEM Procedures, and Validated Reporting

Visual Guidance and easy to follow step-by-step instructions reduce the training learning curve.
Digital Confirmation ensures correct target placement and prevents advancement when elements are out of spec.
One Stop OEM-sourced Procedures ensure accurate calibrations and repairs every time.
Validated Target Position Reporting confirms every calibration completed to OEM specs.

Advanced Diagnostics & Thorough Vehicle Coverage

Autel MaxiSYS Scan Tool featuring advanced diagnostics, secure gateway access, and the Remote Expert platform. Compatible with Ultra and Ultra S2 series tablets. ADAS Upgrade purchase required for new ADAS users.
Industry-leading Vehicle Coverage for U.S., Asian, and European vehicles.

Scalable Packages

IA700 Wheel Alignment Pre-Check
IA700T Wheel Alignment Pre-Check with Tablet
IA700LDW Alignment Pre-Check + LDW ADAS
IA700LDWT Alignment Pre-Check + LDW ADAS with Tablet
IA700AS Alignment Pre-Check + All-Systems ADAS
IA700AS Alignment Pre-Check + All-Systems ADAS with Tablet

A Streamlined Single System & Workflow
Modern vehicle software, sensors, components, and modules interact over multiple communication networks, requiring an advanced diagnostic tool to correct faults before advancing to any structural analysis and safety system calibrations.

Powered by an Autel MaxiSYS tablet, the IA700 delivers the industry's most comprehensive, key-to-key vehicle servicing available.

Advanced Diagnostics, Alignment Pre-Check, and ADAS Calibration

Integrated Wheel Alignment Pre-Check
Ensure Your Workflow Follows OEM-Sourced Procedures
Proper alignment is crucial for ADAS-equipped vehicles. These safety systems depend on an accurate thrust angle and alignment with the road to perform as designed, and misalignment can result in inaccurate and potentially dangerous ADAS calibrations.

IA700 Alignment Pre-check optically determines a vehicle's current alignment specifications and compares them with the manufacturer's allowed tolerances. If within OE-spec, the technician can proceed confidently to ADAS calibration.

Included in the IA700 documentation is an Alignment Pre-Check report that illustrates that the vehicle was tested to ensure it was within OE alignment tolerances before ADAS calibration.

Fully Optical Target Placement
Reduce Setup Time by 6X Versus Mechanical Measurements
The precise positioning of a camera pattern, target, or radar calibrator is vital to the successful calibration of any ADAS component. Without optical target positioning this process can be tedious and time-consuming.

The IA700 utilizes frame-embedded HD cameras, targeted tire clamps, and positioning software via the MaxiSYS tablet to accurately recognize targets and calculate the current angle, distance, and offset position of the frame to the vehicle.

Easy to follow onscreen instructions prompt the user to move the frame or adjust its angle. Green check marks will appear for each parameter once the required position values are achieved. And that's it - the vehicle is ready for calibration.

Automatic Height Adjustment
Robotic Crossbar Finds Proper Position
Removable crossbars feature six in-frame high-definition tracking cameras that monitor tire clamp target position and robotic frame movement that automatically sets the vertical calibration position with industry-leading accuracy of 0.02 degrees.

Unlevel Floor Compensation
Eliminate Failed Calibrations Due to Uneven Surfaces
Level flooring is one of the critical environmental factors required to achieve successful ADAS calibration. An uneven floor, perhaps due to shop drainage or an unfamiliar mobile site, can result in calibration failure or an unsafe calibration.

IA700 Unlevel Floor Compensation allows for the selection of any type of surface including level floor, unlevel floor, or on a rack, and delivers successful calibration regardless of the flooring status.

Quick Disassembly
The IA700 easily disassembles into 5 primary parts in less than 90 seconds for easy transport.

Cover & Store
Minimize the in-shop footprint with detachable crossbars and protect your investment with the included dust cover.

Scalable & Modular ADAS Platform
Industry-leading Vehicle & System Coverage
Autel leads the industry in vehicle brand and ADAS technology coverage. With the IA700, shops can calibrate every camera, lidar, and radar-based system on virtually every vehicle that enters their bay, while providing both dynamic and static calibrations.

Expansive Static & Dynamic ADAS System Coverage
Autel offers comprehensive static calibration packages with Lane Departure Warning targets and patterns for Mercedes-Benz, Nissan, Infiniti, Hyundai, Kia, Toyota, Lexus, Mazda, Mitsubishi, Subaru, Volkswagen, Audi, and Alfa Romeo ADAS-equipped vehicles, and Rear Collison Warning and Around View Monitoring mats for numerous vehicle brands including Nissan, Mercedes-Benz, Volkswagen, and Honda, General Motors, Toyota, and Mitsubishi.
Available packages also include radar, lidar, and night vision calibrators.

Step By Step Instructions With Visual Guidance
Increase Shop Efficiency And Reduce The Training Learning Curve
The Autel MaxiSYS tablet displays easy-to-follow step by step instructions and graphical illustrations to ensure every calibration is performed safely and accurately to OE specs. From pre-calibration vehicle and environment conditioning through positioning, calibration, and documentation, the Autel workflow ensures efficient and reimbursable calibrations every time.

Comprehensive Documentation & Reporting
Validated Target Positioning
No company offers more comprehensive and insurer-ready documentation than Autel. A Pre-scan identifies existing faults and all safety or convenience systems on the vehicle. The Post-scan includes a detailed report that ensures vehicle owners, sublets, and insurance companies that the faults were repaired, and all OE-required calibrations were performed to OE specifications, requirements, and guidelines.

Autel Guided ADAS and Remote Expert
Late Model Software & Calibration Coverage
Autel prides itself on having the fastest OE-released coverage to market in the industry. Still, we depend on vehicle manufacturers to share the latest model diagnostic, servicing, and calibration software and specifications, which creates a lag time for the newest vehicle coverage to reach our tablets. In response to this and to provide a comprehensive, all-in-one solution, we developed the Autel Guided ADAS application.

Autel ADAS users can utilize their MaxiSYS tablet, frame, targets, calibrators, and expedited setup, and a local laptop with an OE subscription or OE tools to calibrate the safety or convenience system on late model vehicles.

If OE subscriptions or OE tools are unavailable, the Autel Remote Expert platform enables access to experienced technicians with OE tools or subscriptions to complete the calibration. Remote Experts are also available for modular flashing, new ECU programming, and OE tasks that are currently not supported by Autel software.

The purchase of an IA700 system may include in-shop setup and onboarding training performed by an Autel ADAS expert. Please consult your preferred authorized Autel dealer for details.

Features & Specs

Features

Modular ADAS Calibration Frame with wheel alignment pre-check and optical positioning.
Compatible with MA600 and IA900 systems targets, patterns, and calibration components.
Ideal solution for existing MA600 users seeking a mobile system with the speed and accuracy of optical positioning. IA900 users purchasing an IA700 can double calibration capacity without purchasing additional targets.
Requires any MaxiSYS MS909, MS919 or MS Ultra tablet and an ADAS calibration software upgrade card for static and dynamic ADAS calibration coverage for most U.S., Asian, and European ADAS-equipped vehicles.
Frame features robotic crossbar and six-high definition positioning and tracking cameras for optical target positioning and prompting unlevel floor compensation.
Frame disassembles quickly for easy transport or space-saving storage.

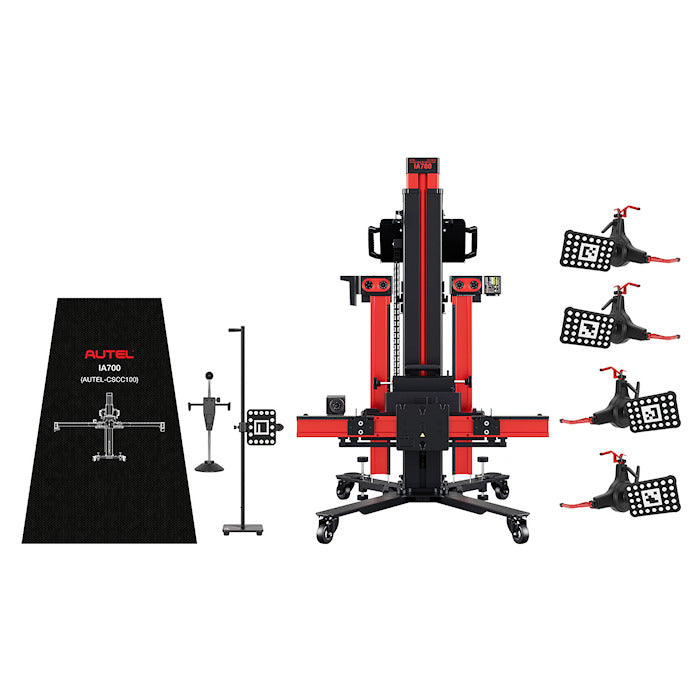

Includes four tire clamps with camera targets, a steering wheel lock, brake chocks, power supply, alignment aid, and frame cover.
Covered by one-year Limited Warranty

Specifications

Shipping Dimensions: 44" W x 58" L x 29" H
Shipping Weight: 370 lbs.
Warranty: One Year Limited

One-Year Limited Warranty
Autel warrants to its customers that this product will be free from all defects in materials and workmanship for a period of one (1) year from the date of the original purchase, subject to the following terms and conditions:

The sole responsibility of Autel under the Warranty is limited to either the repair or, at the option of Autel, replacement of the scan tool at no charge with Proof of Purchase. The sales receipt may be used for this purpose.
This warranty does not apply to damages caused by improper use, accident, flood, lightning, or if the product was altered or repaired by anyone other than the Manufacturer Service Center.
Autel shall not be liable for any incidental or consequential damages arising from the use, misuse, or mounting of the scan tool. Some states do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you.
All information in this manual is based on the latest information available at the time of publication and no warranty can be made for its accuracy or completeness. Autel reserves the right to make changes at any time without notice.

One-Year Limited Warranty: Store or dealer receipt acts as proof of purchase. In lieu of proof of purchase, tool or tablet is warranted one (1) year from tool/tablet registration.

Repair Cost: If under warranty, your Autel tool will be repaired or replaced free of charge unless damaged (including but not limited to a cracked screen, broken case, chemical exposure or liquid damage) to accident, abuse, misuse, natural disaster, insufficient or excessive electrical supply, abnormal mechanical or environmental conditions or unauthorized disassembly, repair or modification. If the repaired unit is out of warranty, the customer will be contacted and will be responsible for the repair fee.
