Autel MA800UPG Upgrade MA600 to MA800 Package
In Stock SKU MA800UPG UPC 849438038984
OUR PRICE: $6,925.00
Regular Price: $7,279.00
Short Description
Autel MA800UPG Upgrade MA600 to MA800 Package

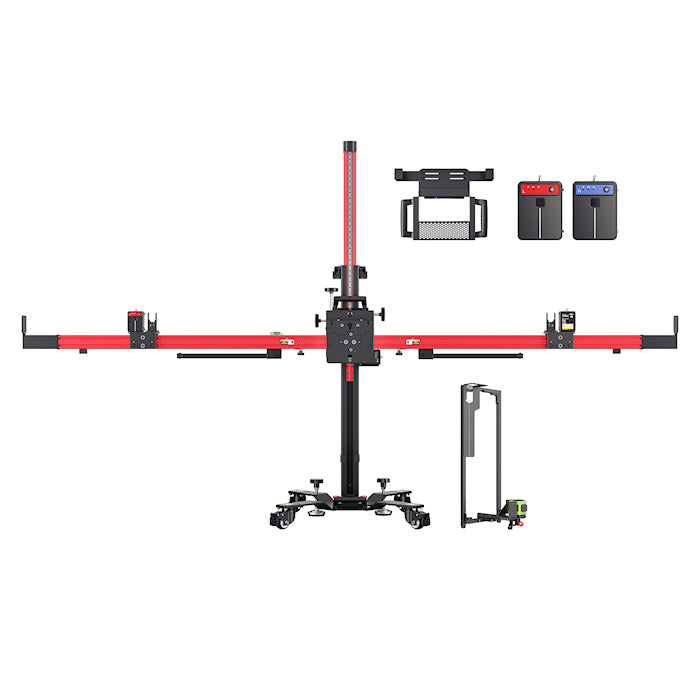

The Autel MA800UPG Upgrade MA600 to MA800 Package is designed as an upgrade for MA600 owners. It includes the MA800 mobile calibration frame, which breaks down into four pieces for convenient transport and storage, a tablet holder, left and right positioning laser units, an alignment stand, a laser measure unit, a two-line laser for vehicle centerline identification, a second two-line laser, a laser plate, a laser-assisted reflector, two rechargeable battery packs, and a power adapter. Compatible with existing MA600 targets and calibrators, the MA800 supports comprehensive vehicle coverage and replaces mechanical positioning with laser-guided vehicle centerline and target positioning to improve setup efficiency and accuracy. Independent pitch, roll, and yaw adjustments enable precise alignment, while setup measurements are transmitted to a compatible MaxiSYS tablet for verification against OE-specified tolerances and validated reporting. A MaxiSYS tablet with ADAS calibration software is required. The MA800UPG is covered by a one-year limited warranty.
Description
Autel MA800UPG Upgrade MA600 to MA800 Package
The Autel MA800UPG Upgrade MA600 to MA800 Package is designed as an upgrade for MA600 owners. It includes the MA800 mobile calibration frame, which breaks down into four pieces for convenient transport and storage, a tablet holder, left and right positioning laser units, an alignment stand, a laser measure unit, a two-line laser for vehicle centerline identification, a second two-line laser, a laser plate, a laser-assisted reflector, two rechargeable battery packs, and a power adapter. Compatible with existing MA600 targets and calibrators, the MA800 supports comprehensive vehicle coverage and replaces mechanical positioning with laser-guided vehicle centerline and target positioning to improve setup efficiency and accuracy. Independent pitch, roll, and yaw adjustments enable precise alignment, while setup measurements are transmitted to a compatible MaxiSYS tablet for verification against OE-specified tolerances and validated reporting. A MaxiSYS tablet with ADAS calibration software is required. The MA800UPG is covered by a one-year limited warranty.
MaxiSys MA800 Advanced Mobile ADAS Calibration System
The MA800 is an advanced mobile ADAS calibration system designed to deliver precise target positioning, expanded vehicle coverage, and a streamlined calibration workflow. Building on the proven MA600 platform, the MA800 combines dual laser positioning, mirror alignment, and independent pitch, roll, and yaw adjustment to help technicians quickly and accurately position calibration targets. Integrated validation communicates critical setup measurements, including target height, target distance, and vehicle-to-frame distance, enabling technicians to verify setup against OEM-specified tolerances before calibration begins.
The purchase of an MA800 system may include in-shop setup and onboarding training performed by an Autel ADAS expert. Please consult your preferred authorized Autel dealer for details.
Scalable Packages
- MA800UPG Frame Only. Requires ADAS enabled tablet or upgrade card. Targets not Included
- MA800CORE2 Frame + LDW Targets + MS906PRO2TS Tablet
- MA800LDW Frame + LDW Targets
- MA800LDWT Frame + LDW Targets + MS909S2 Tablet
- MA800AS Frame + All Systems Targets
- MA800AST Frame + All Systems Targets + MS909S2 Tablet
Less Measuring. Less Guesswork. More Calibrating.
Accurate ADAS calibration hinges on precise target placement. The MA800 combines a lightweight modular design, broad vehicle coverage, and laser-guided target positioning with integrated validation to simplify setup and deliver accurate, repeatable calibrations in the shop or on the road.
Mobility Designed For The Way You Work
Designed for in-shop and mobile use, the MA800 features a lightweight four-piece modular frame that assembles without tools, disassembles in approximately 60 seconds, and stores compactly for easy transport.
- Next-Level Precision - For Mobile Calibration, Glass Repair, & General Repair
- Mobile 4-Piece Frame - Lightweight, compact design for easy storage, disassembly, and transport.
- Validated Specs & Reporting - Bluetooth-connected laser measurements verify setup against OEM specifications and document the results.
- Laser-Guided Centerline & Target Positioning - Establish the vehicle centerline and position the frame and targets without plumb bobs or floor markings.
- Comprehensive Vehicle Coverage - Supports more than 95% of domestic, Asian, and European ADAS-equipped vehicles.
- Compact Storage & Transport - Compact design simplifies transport and storage when not in use.
- Dimensions - Weight Fully Assembled: 86.6lbs / Stored Height: 54" / Floor Space: 25" W x 24" D
- 60-Second Disassembly - Quick disassembly makes moving between calibration locations easier.
- Tool-Free Assembly - Fast assembly helps reduce setup time before calibration.
Validated Calibration Confidence
The MA800 provides laser-guided measurements directly to compatible Autel tablets. Measurements are compared with OEM-specified tolerances, enabling technicians to confirm setup before the calibration begins helping deliver accurate and repeatable calibration results.
Guided Precision For Accurate Target Placement
Precise ADAS calibration begins before the calibration routine starts. The MA800 combines dual laser positioning, mirror alignment, and precise frame adjustment to help technicians position calibration targets quickly, accurately, and repeatedly.
Dual Laser Positioning
Dual lasers help technicians establish accurate target placement and simplify frame positioning before calibration.
Precision Pitch, Roll & Yaw Adjustment
Independent pitch, roll, and yaw controls enable fine adjustment of the frame to compensate for uneven floors, vehicle ride height, and other real-world setup variables.
Mirror Alignment
Mirror alignment provides technicians with an intuitive method for establishing the correct relationship between the vehicle and calibration frame.
Coverage That Grows With Your Business
The MA800 supports more than 95% of Domestic, Asian, and European ADAS-equipped vehicles and is compatible with Autel's comprehensive target family. With support for forward-facing cameras, Adaptive Cruise Control, Blind Spot Detection, and Around View Monitoring, the MA800 gives shops broad calibration capabilities for today's vehicles while helping them stay ready for tomorrow's evolving ADAS technologies.
Advanced Diagnostics. Connected By Autel Cloud.
ADAS-Enabled Autel Tablets guide technicians through ADAS calibration procedures, validate critical setup measurements, and perform pre- and post-calibration scans from a single device. Autel Cloud securely stores and simplifies sharing of calibration reports, diagnostic results, and vehicle records, while continuous software updates help keep the MA800 ready for new vehicles and evolving ADAS technologies.
Features & Specs
Features
- Mobile ADAS calibration system with laser-guided positioning, pitch, roll and yaw adjustment, and setup validation, developed as an upgrade to the MA600.
- Includes MA800 frame, tablet holder, left and right positioning laser units, an alignment stand, a laser measure unit, a two-line laser for centerline, a second two-line laser, a laser plate, a laser-assisted reflector, two rechargeable battery packs and a power adapter.
- Upgrade path for MA600 owners. Works with existing MA600 targets and calibrators, protecting shop investment in targets and ADAS-enabled MaxiSYS tablet. (One tablet per system.)
- Four-piece modular frame assembles tool-free and breaks down in about 60 seconds for easy transport between bays or shops.
- Independent pitch, roll and yaw adjustment for precise frame positioning.
- Checks target height, target distance and vehicle-to-frame distance against OEM-specified tolerances before calibration begins, and documents the setup for reporting.
- Requires a MaxiSYS tablet with ADAS Upgrade calibration software (not included with this purchase).
- Transmits setup measurements for OE-tolerance verification and validated reporting.
- Integrated tablet holder. Keeps the MaxiSYS tablet (tablet not included) within reach during setup and calibration.
- Covered by one-year Limited warranty.
Specifications
- Shipping Dimensions: 31" W x 48" L x 25" H
- Shipping Weight: 190 lbs.
- Warranty: One Year Limited
