Autel MaxiHVAC AC909D Advanced A/C Diagnostic System

Description

Autel MaxiHVAC AC909D Advanced A/C Diagnostic System
Stop Guessing. Start Diagnosing.

The Autel MaxiHVAC AC909D is an advanced A/C and thermal management diagnostic system for precise, data-driven A/C service. Live micron-level vacuum measurements stream directly to the AC909 tablet, enabling technicians to verify moisture removal and perform automated decay testing rather than relying on evacuation time alone. The AC909D combines refrigerant data with live vehicle diagnostics, airflow, temperature, electrical, and sensor information for complete thermal management system visibility. Graphical diagnostics combine live refrigerant pressures, temperatures, humidity, and system measurements into a single analysis screen. Illustrated, step-by-step procedures help technicians isolate faults and verify repairs, while dedicated diagnostics support compressors, evaporators, condensers, metering devices, and system blockages. Leak testing, refrigerant service, and live vehicle diagnostics are combined in one guided workflow. Designed for electronically controlled A/C systems, hybrids, EVs, advanced heat pumps, and evolving refrigerant technologies, the AC909D helps reduce guesswork, avoid unnecessary repairs, and improve first-time fix confidence. Includes one year of software updates and a (1) year limited warranty. NAVAC vacuum pump includes a (2) year warranty.

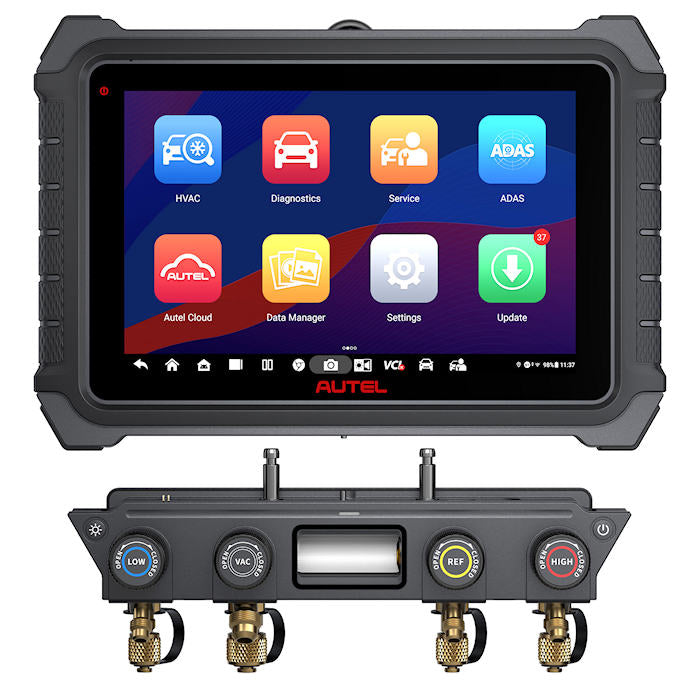

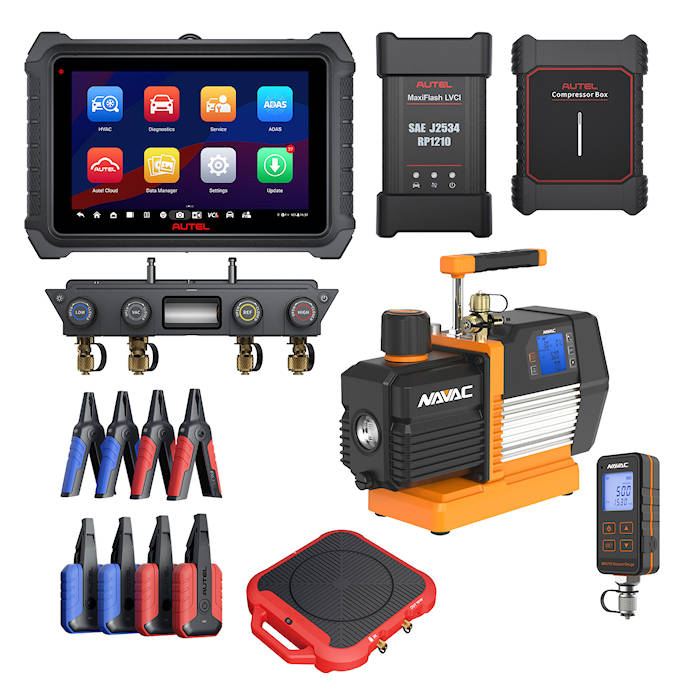

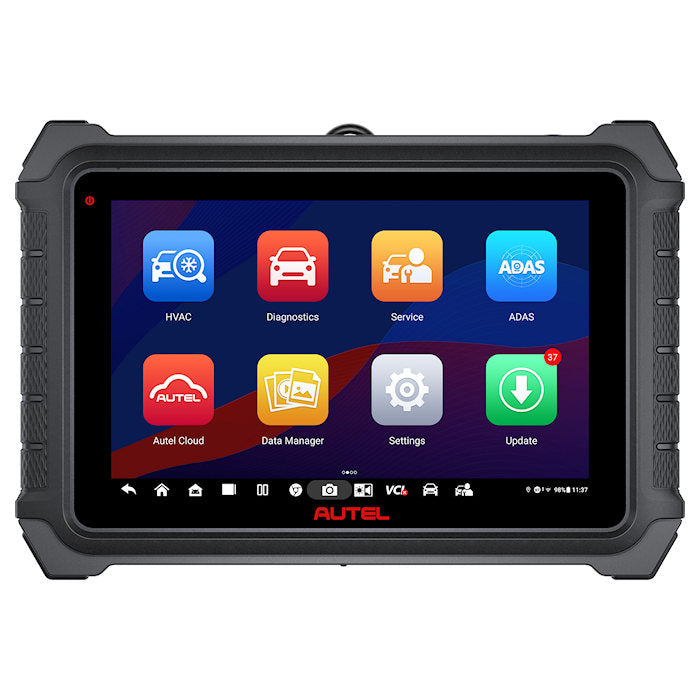

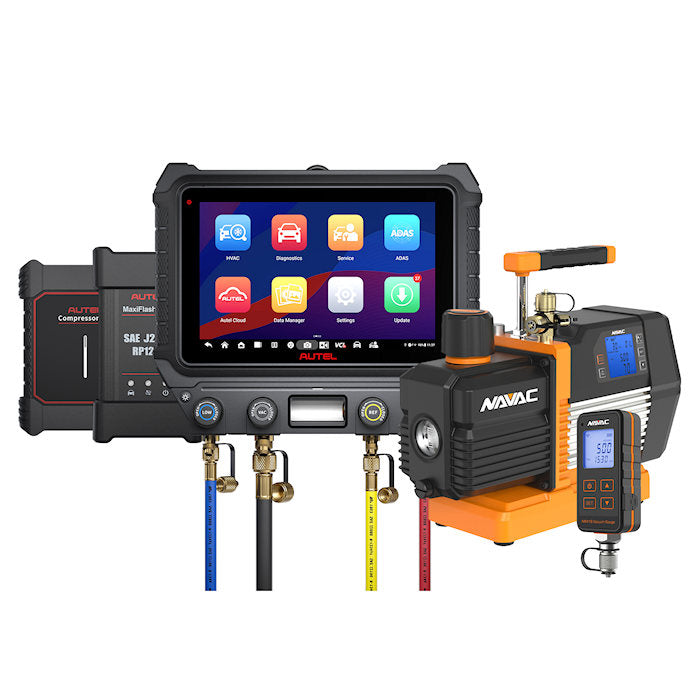

The system includes the AC909 tablet, MaxiFlash VCI, refrigerant scale, compressor box, NAVAC Bluetooth vacuum pump, digital micron gauge, 4-port manifold with large backlit sight glass, Bluetooth temperature and humidity probes, and Bluetooth temperature clamps. Additional included items consist of a nitrogen regulator, refrigerant hose, vacuum hose, 45° and 90° fittings, A/C hose 1/4" gaskets, vacuum pump 3/8" hose gaskets, red/blue R134a service couplings, red/blue R1234yf service couplings, and R134a and R1234yf adapters.

Yesterday's A/C Is Today's Thermal Management System

For decades, automotive A/C service has revolved around the same routine: recover, recycle, recharge, and hope the problem is fixed. But today's vehicles are built around intelligent thermal management. The Autel MaxiHVAC AC909 brings leak testing, refrigerant service, and live vehicle diagnostics together in one intelligent workflow - giving technicians complete system visibility to diagnose, repair, and verify with confidence. Instead of relying on pressures alone, the AC909 delivers visual analysis of the entire thermal management system by combining refrigerant data with vehicle diagnostics, airflow, temperature, electrical, and sensor information. By identifying the root cause before refrigerant is removed or components are replaced, technicians can reduce guesswork, avoid unnecessary repairs, and confidently verify every repair before returning the vehicle to the customer.

Live Micron-Level Verification By NAVAC
Vacuum Becomes Diagnostic Data

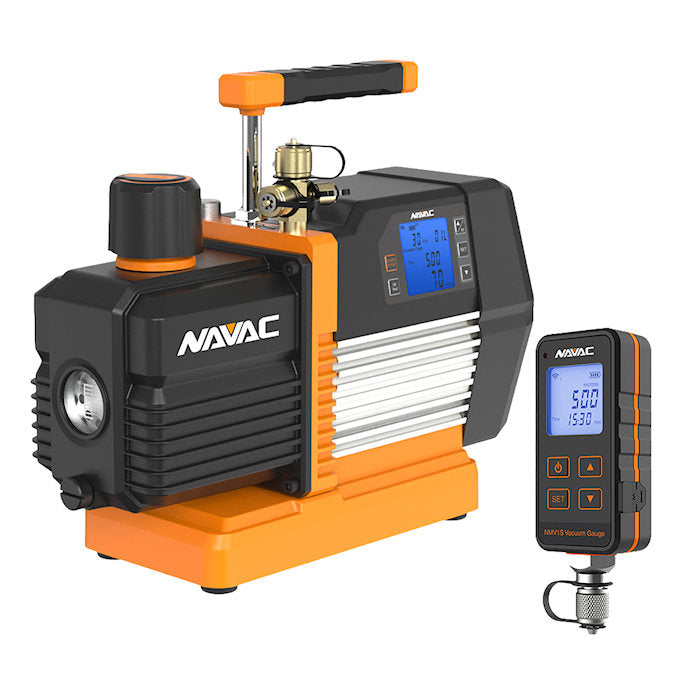

The included Bluetooth-enabled NAVAC Smart Vacuum Pump and digital micron gauge stream live measurements directly into the AC909 tablet and workflow, allowing technicians to verify moisture removal rather than rely on evacuation time alone. Live micron readings and automated decay testing turn vacuum into measurable diagnostic data, creating a more precise, documented evacuation process based on proven commercial HVAC practices.

• Step by step guided instructions for equipment hookup and the entire repair workflow
• Vehicle-specific overview of A/C specifications and locations, including compressor and refrigerant metering types
• A single screen workflow that incorporates HVAC live pressures and OBD sensor values, including blend door functionality and outlet temperature readings
• First A/C tool that will conclusively identify refrigerant leaks and/or excessive moisture
• Introducing the use of Nitrogen for a pressure leak test "system tightness test" and purge procedures for faster evacuation
• First A/C manifold gauge tool that decouples from the A/C lines while still monitoring low & high pressures
• Variable displacement compressors test by either OBD bidirectional commands and/or physical connection to the ECV valve while comparing live low & high side pressures on a single tool
• Large sight glass allows for visual inspection for excessive UV dye, oil contaminants, component failures caused by heat, and solid particulates
• Self-diagnostics to determine equipment efficiency, tightness, and accuracy

Complete System Visibility

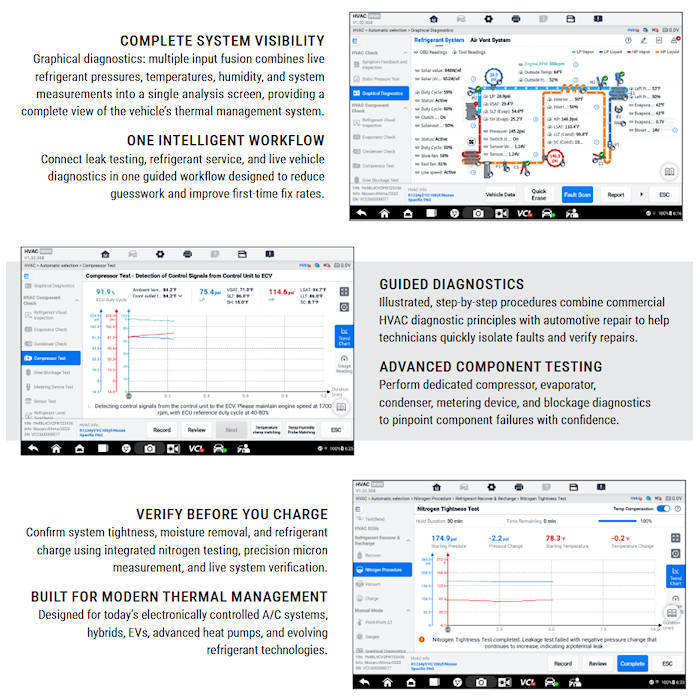

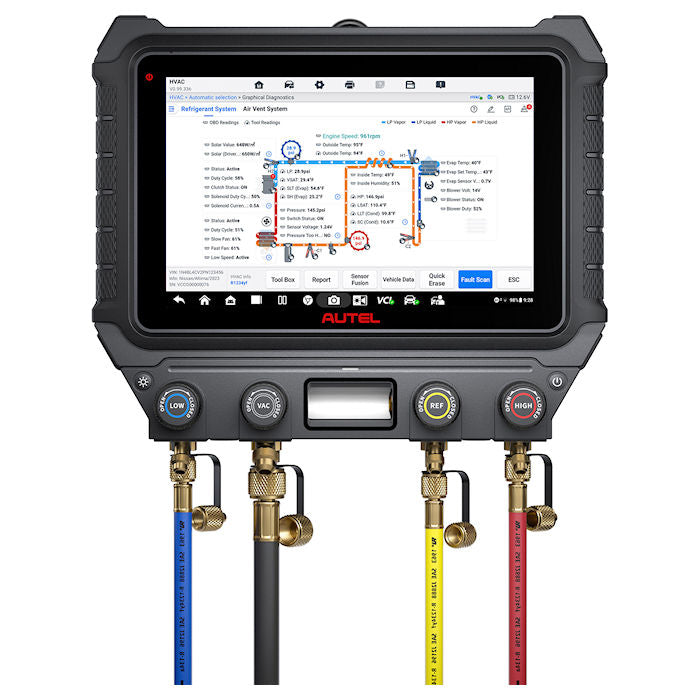

Graphical diagnostics: multiple input fusion combines live refrigerant pressures, temperatures, humidity, and system measurements into a single analysis screen, providing a complete view of the vehicle's thermal management system.

One Intelligent Workflow
Connect leak testing, refrigerant service, and live vehicle diagnostics in one guided workflow designed to reduce guesswork and improve first-time fix rates.

Guided Diagnostics
Illustrated, step-by-step procedures combine commercial HVAC diagnostic principles with automotive repair to help technicians quickly isolate faults and verify repairs.

Advanced Component Testing
Perform dedicated compressor, evaporator, condenser, metering device, and blockage diagnostics to pinpoint component failures with confidence.

Verify Before You Charge
Confirm system tightness, moisture removal, and refrigerant charge using integrated nitrogen testing, precision micron measurement, and live system verification.

Built For Modern Thermal Management
Designed for today's electronically controlled A/C systems, hybrids, EVs, advanced heat pumps, and evolving refrigerant technologies.

Introducing The AC909

From electronically controlled compressors to advanced heat pumps, modern vehicles demand diagnostic tools built for this new era - intelligent, connected, and precise.

Autel redefined vehicle diagnostics - and now we're transforming A/C and Thermal Management diagnostics and service.

The AC909 is just the beginning of a smarter, more connected future for climate control diagnostics. Harnessing Autel's "Graphic Diagnostic Diagram" for displaying essential data from multiple modules, coupled with actual HVAC system pressures and temperatures can now be viewed on a single screen.

Our revolutionary repair process gives a technician the ability to quickly and accurately diagnose the HVAC system at a single glance. This diagnostic sensor fusion approach within a graphic diagram can only be achieved utilizing modular test equipment.

The modular Autel MaxiHVAC design takes a new, innovative approach to an outdated industry standard. Each individual component meets the highest standards of quality and serviceability. This modular architecture also delivers greater operational flexibility, enabling technicians to use separate MaxiHVAC components across multiple vehicles simultaneously for increased efficiency and throughput.

Autel MaxiHVAC is uniting these elements into a purpose-built cart designed to organize, protect, and power every component of the MaxiHVAC system. It's a vision of smarter workflow, premium component quality, and unmatched versatility - because Autel believes advanced diagnostics should empower technicians, not limit them.
