CEMB 41FF082934 LCM Ultra Wheel Balancing System
In Stock SKU 41FF082934
OUR PRICE: $1,846.00
Regular Price: $1,939.00
Short Description
CEMB 41FF082934 LCM Ultra Wheel Balancing System
Light & Medium Duty Adjustable Pin Plate Adapter
The CEMB 41FF082934 LCM Ultra System is a light & medium duty adjustable pin plate adapter designed to fit industry standard 40mm wheel balancer shafts. This kit is designed to balance large bore, 6, 8, 10 lug wheels the most accurate way - by the hub and lug holes. This system replicates the wheel on vehicle and applies pressure the same way a lug nut would. This lug-centric balancing kit ensures high-accuracy balancing for large bore wheels, allowing technicians to easily balance wheels for 1/2-Ton, 3/4-Ton, 1-Ton, and some larger Trucks.
For Use With 40mm Shaft Wheel Balancers
Price shown is when purchased with a wheel balancer.
Please contact us for pricing when purchased separately.
Description
CEMB 41FF082934 LCM Ultra Wheel Balancing System
Light & Medium Duty Adjustable Pin Plate Adapter
The CEMB 41FF082934 LCM Ultra System is a light & medium duty adjustable pin plate adapter designed to fit industry standard 40mm wheel balancer shafts. This kit is designed to balance large bore, 6, 8, 10 lug wheels the most accurate way - by the hub and lug holes. This system replicates the wheel on vehicle and applies pressure the same way a lug nut would. This lug-centric balancing kit ensures high-accuracy balancing for large bore wheels, allowing technicians to easily balance wheels for 1/2-Ton, 3/4-Ton, 1-Ton, and some larger Trucks.
For Use With 40mm Shaft Wheel Balancers
Features & Specs
Features

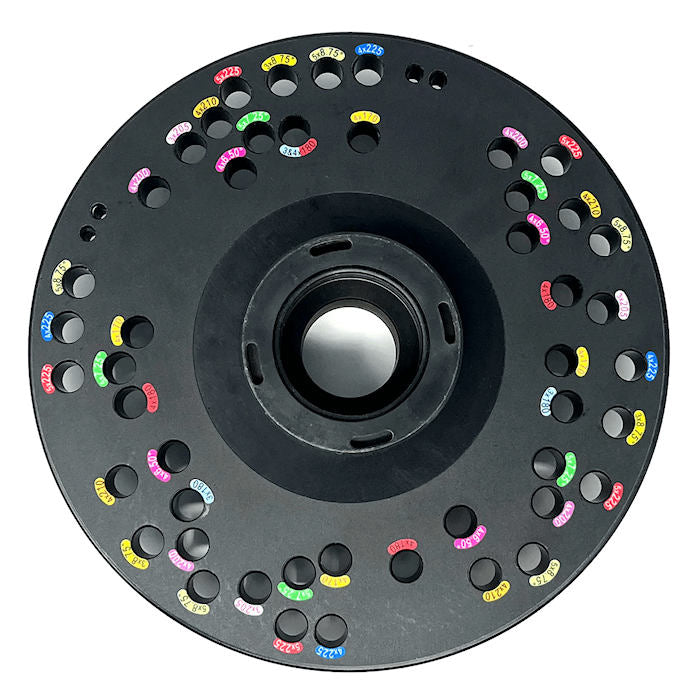

- CenTor Plate: Clamps the wheel by the hub and lug holes, replicating how the wheel mounts to the vehicle for a perfectly true balance.
- Hardened Steel Spacer Disc: Features an anti-rust black oxide finish. It prevents the denting and warping that commonly occurs with inferior aluminum plates, ensuring the wheel sits perfectly flat.

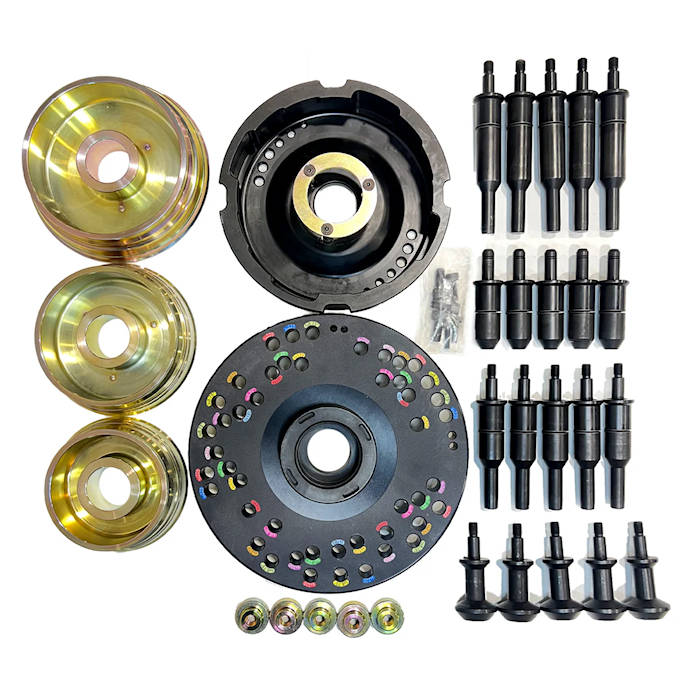

- Versatile Collets & Studs: Includes multiple heavy-duty collets and CenTor studs (including Isuzu and Mitsubishi Fuso applications) to easily accommodate various heavy-duty bolt patterns.
- Replicates Vehicle Fitment: Applies clamping pressure identically to how lug nuts function on the road, eradicating stubborn vibrations.
- For Use With 40mm Shaft Wheel Balancers
Wheel Center Bore and Bolt Patterns Supported
- 4.56" (GM 6 x 6.5")
- 4.60" (GM 8 x 6.5")
- 4.77" (Dodge/Ram 8 x 6.5")
- 4.88" (Ford 8 x 6.5")
- 124mm (GM 8 x 180mm)
- 125mm (Ford 8 x 170mm)
- 5.25" (GM 10 x 7.25")
- 5.46" (Ford 10 x 7.25")
- 138.8mm (Ford 6 x 180mm)
- 142mm (Ford/Ram 8 x 200mm)
- 154mm (GM 8 x 210mm)
- 161mm (Mercedes/Dodge/Freightliner 6 x 205mm)
- 164mm (Hino/Isuzu 6 x 8.75")
- 170mm (Ford 8 x 225mm & 10 x 225mm)
Specifications
- Shipping Weight: 50 lbs.
