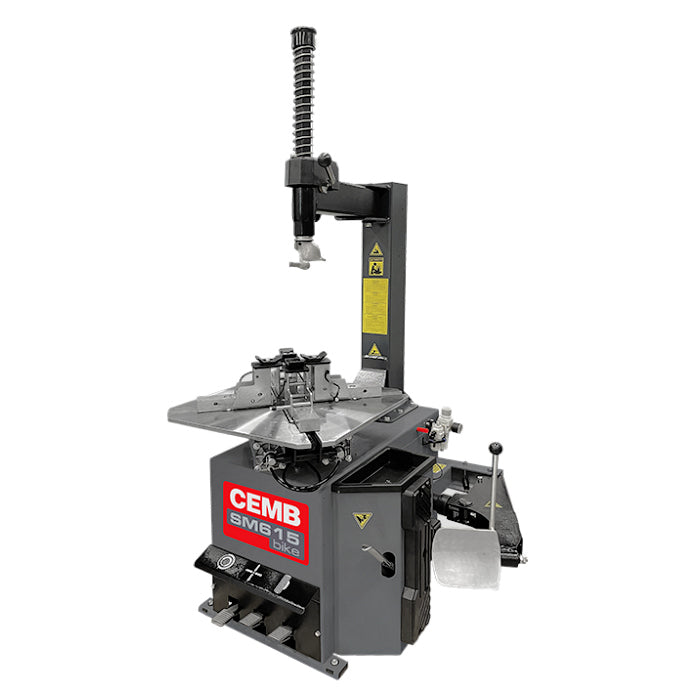

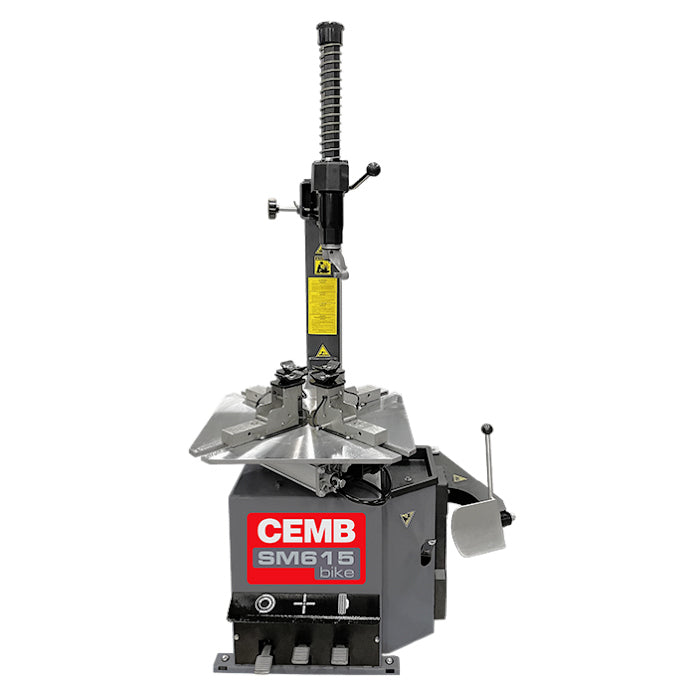

CEMB SM615BIKE Motorcycle Tire Changer
In Stock SKU SM615BIKE
OUR PRICE: $4,199.00
Regular Price: $4,409.00
Short Description
CEMB SM615 BIKE Motorcycle Tire Changer
Professional With Multi-Wheel Adaptability
The SM615 BIKE Motorcycle Tire Changer is the semi-automatic tire changer specifically manufactured for bike and scooter wheels, suitable for motorcycle wheels with a rim size from 3.6" to 22". Designed to make tire changes on motorcycles quick and easy, it features a horizontal moving arm that simplifies the process. The complete version includes an optional high-performing press arm system (SM615BIKE-PA).
Package Selection:
SM615BIKE Motorcycle Tire Changer
SM615BIKE-PA with High Performance Press Arm
Description
CEMB SM615BIKE Motorcycle Tire Changer
Professional With Multi-Wheel Adaptability
The SM615BIKE Motorcycle Tire Changer is the semi-automatic tire changer specifically manufactured for bike and scooter wheels, suitable for motorcycle wheels with a rim size from 3.6" to 22". Designed to make tire changes on motorcycles quick and easy, it features a horizontal moving arm that simplifies the process. The complete version includes an optional high-performing press arm system (SM615BIKE-PA).
The CEMB SM615BIKE represents specialized tire changing equipment designed specifically for motorcycle, ATV, and small wheel applications. This purpose-built motorcycle tire changer delivers precision handling for specialty wheels that standard automotive tire machines cannot properly service.
- Horizontal Moving Arm
- Dedicated Mounting Head
- High Performance Press Arm (SM615BIKEPA)
- Powerful Bead Breaker
- Self-Centering Plate
- Robust Body
Semi-automatic tire changer with swing arm, vertical working arm with lever lock, side positioning of the tool with respect to the rim by means of a knob, and vertical working arm with spring return. Fastening of the horizontal arm on the post has been designed to allow operating (with the appropriate accessories) on wheels with 3.6" to 22" rims (typical of motorcycles, karts, ATV wheels, and hobby and gardening machines).
- Self-Centering Plate With 3.6" - 22" Locking Capacity
- Mounting Head Specifically Designed For Motorcycle Wheels
- Body With Extractable Pedal Unit To Facilitate Technical Service
- Robust Reduction Unit
- Standard CE-Certified Inflation Pressure Limiter With Provision For Gun Connection
- Bead Breaker With Double-Acting Cylinder And Fixed Blade
The Motorcycle Specialist's Tire Changing Solution
Unlike general-purpose tire changers, the SM615BIKE provides specialized features for:
- Sport Bike Wheels With Sensitive Finish Requirements
- Custom Motorcycle Wheels Requiring Extra Protection
- ATV And UTV Wheels With Unique Mounting Challenges
- Specialty Wheels That Standard Tire Changing Machines Cannot Accommodate
Features & Specs
Features
- Horizontal Moving Arm
- Dedicated Mounting Head
- Powerful Bead Breaker
- Self-Centering Plate
- Robust Body
- High Performance Press Arm (SM615BIKE-PA)
Specifications
- Clamping Capacity: 3.6"-22"
- Max. Wheel Width: 10" (270 mm)
- Max. Wheel Diameter: 39.5" (1000 mm)
- Bead Breaker Force: 3,000 kgf
- Turn Table Speed: 8-15 RPM
- Power Supply: 110V 50Hz 1PH
- Motor Power: 0.75kW
- Noise Level: < 70 dB (A)
- Air Pressure: 145 PSI (10 bar)
- Max Spindle Torque: 1,200 Nm
- Max Intake Pressure: 145 PSI (10 bar)
- Max Inflating Pressure: 50 PSI (3.5 bar)
- Relief Valve On Inflating Device: 58 PSI (4 bar)
- Shipping Dimensions: 30" W x 38.3" L x 37.4" H (760 x 975 x 950mm)
- Machine Weight: 507 lbs. (230 Kg)
- Warranty: (2) Years on Parts, (1) Year Labor
CEMB Limited Warranty Statement
The BL Systems Co. (hereinafter "BL") warrants products manufactured and sold by it to be free from defects in material and workmanship for a period of 24 months parts, 60 months Wheel Balancer Motors, and 12 months labor from the date of installation, note: machine calibration is not a warranty item, except that parts sold from the repair or replacement of existing equipment will only be warranted for a period of 90 days from the date of installation.
If upon inspection by BL, any warranted product shall prove defective in materials or workmanship during the warranty period, that product shall be repaired or replaced at BL's option. BL must receive damaged part for full credit. Such repair or replacement shall
be BL's sole obligation and the buyer's exclusive remedy under this warranty.
This warranty supersedes all prior oral or written agreements, promises, advertising or representations. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER REPRESENTATIONS AND WARRANTIES, EXPRESS OR IMPLIED, AND BL EXPRESSLY DISCLAIMS AND EXCLUDES ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITMESS FOR A PARTICULAR PURPOSE. THESE ARE NO WARRANTIES THAT EXTEND BEYOND THE
DESCRIPTION OF THE FACE HEREOF. BL's liability in contract, in tort (negligence, strict liability, or any other theory) under any warranty, or under any other legal or equitable theory of whatever type, shall not exceed the purchase price paid by buyer, and under no circumstances shall BL be liable of special, indirect, incidental or consequential damages. The amount of the purchase price of the equipment is determined in part by the fact that buyer has agreed to so limit seller's liability. No action arising out of any transaction under this agreement may be brought by purchaser more than one year after the cause of action has accrued. Some states do not allow an exclusion or limitation of consequential or incidental damages, so the above limitation of liability may not apply to you.
Accessories/Options

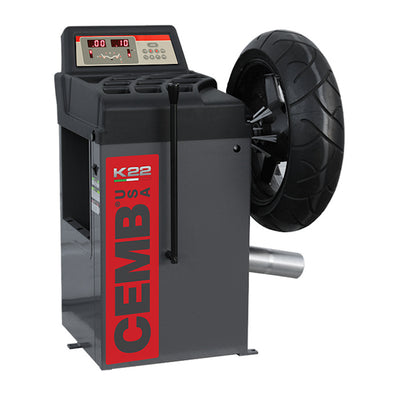

CEMB K22 Motorcycle Wheel Balancer
