Corghi A2002 Superbike Tire Changer

Name: Corghi A2002 Superbike Tire Changer
Brand: ASEDeals
SKU: 0-11607207/00
Price: 4690.0 USD
Availability: InStock

In Stock SKU 0-11607207/00

OUR PRICE: $4,690.00

Regular Price: ~~$4,929.00~~

$130.27 / mo

INCLUDES FREE SHIPPING*

Short Description

Corghi A2002 Superbike Tire Changer

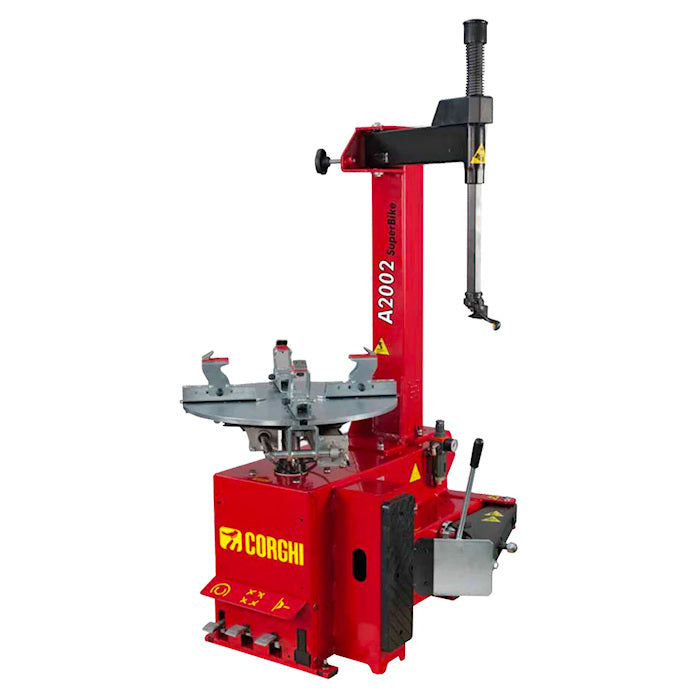

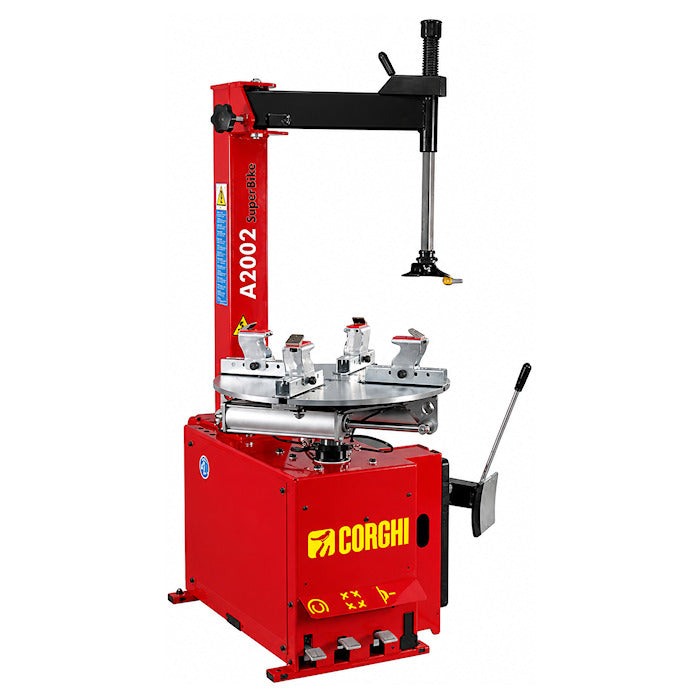

The Corghi A2002 Superbike Tire Changer is specifically designed for bikes, scooters and quad bikes. The A2002 is a semi-automatic tire changer with a clamping capacity 4"-26" featuring an extremely muti-purpose swiveling arm for bike, scooter, go-kart and high-profile wheels such as quad wheels. Great attention has been paid to the wheel clamping system. Both standard and special jaws allow correct clamping and protection of the rim profile. The tire changer structure is intentionally derived from car tire changer to offer greater robustness and performance.

All Corghi Rim Clamp Tire Changers Now Ship
Fully Assembled From The Warehouse

Description

Corghi A2002 Superbike Tire Changer

The Corghi A2002 Superbike Tire Changer is specifically designed for bikes, scooters and quad bikes. The A2002 is a semi-automatic tire changer with a clamping capacity 4"-26" featuring an extremely muti-purpose swiveling arm for bike, scooter, go-kart and high-profile wheels such as quad wheels. Great attention has been paid to the wheel clamping system. Both standard and special jaws allow correct clamping and protection of the rim profile. The tire changer structure is intentionally derived from car tire changer to offer greater robustness and performance.

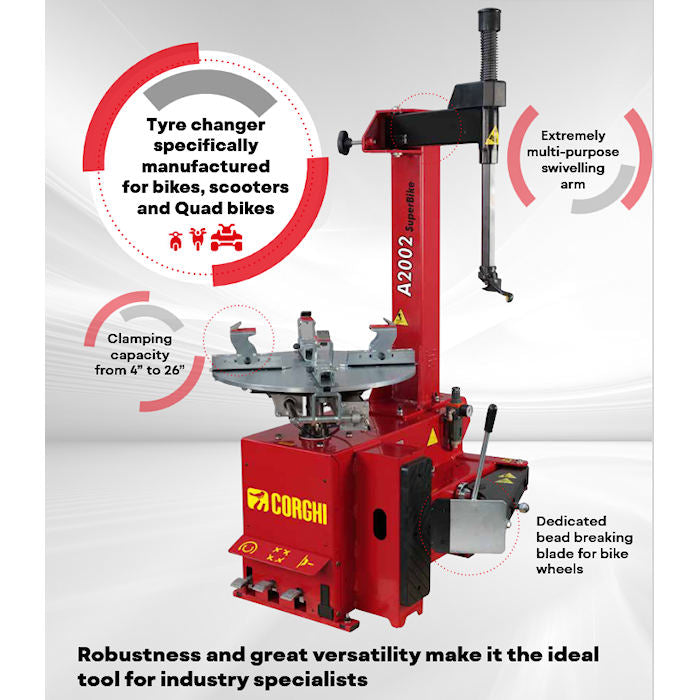

Robustness and Great Versatility Make It The Ideal Tool For Industry Specialists

Robust But Simple Operating Arm

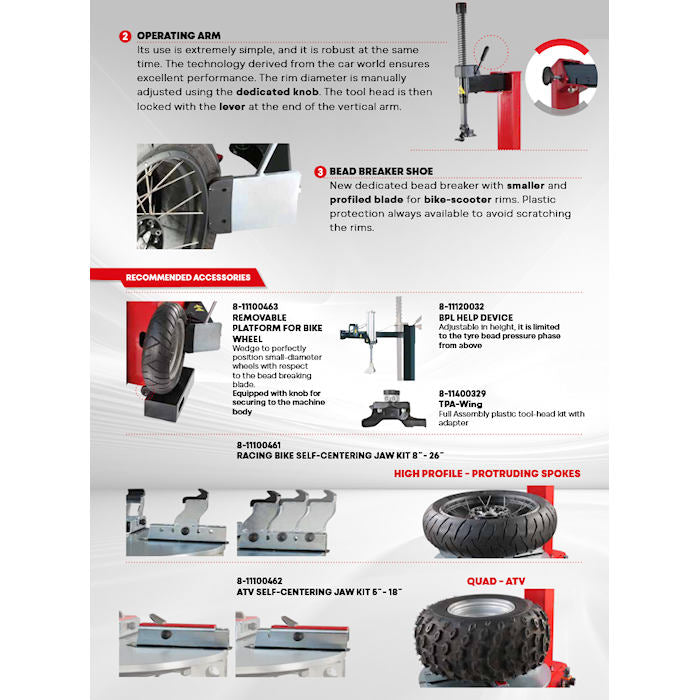

The operating arm is extremely simple, and it is robust at the same time. The technology derived from the car world ensures excellent performance. The rim diameter is manually adjusted using the dedicated knob. The tool head is then locked with the lever at the end of the vertical arm.

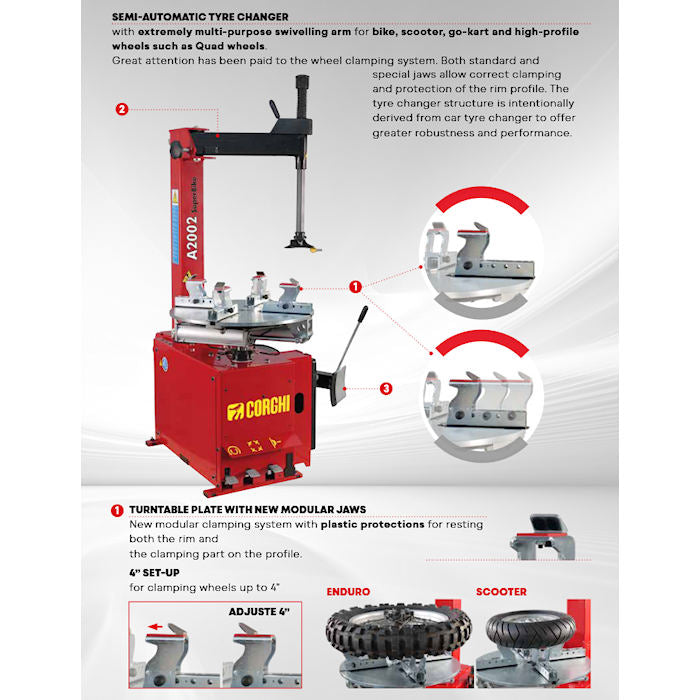

Turntable Plate With New Modular Jaws
New modular clamping system with plastic protections for resting both the rim and the clamping part on the profile.

4" Set-Up for Enduro and Scooter Wheels

Dedicated Bead Breaking Blade For Bike Wheels
New dedicated bead breaker with smaller and profiled blade for bike-scooter rims. Plastic protection always available to avoid scratching the rims.

Corghi Rim Clamp Tire Changers Ship Fully Assembled
Starting 4/15/2026, all Corghi Rim Clamp Tire Changers will be shipped fully assembled from the warehouse. The objective of this initiative is to simplify installation, ensure consistent machine configuration, and allow customers to place their equipment into operation more quickly.

Key Advantage Of The Program Include:

Fully Assembled Units - Each machine is assembled prior to shipment, ensuring consistent configuration and factory-level assembly.
Faster Start-Up For The Shop - With no on-site assembly required, technicians simply connect the machine to air and power to begin operation.
QR Code Video Support - Each machine includes access to unpacking and setup instructions via QR codes linking to step-by-step video guides.

A QR Code will be attached to each machine with a link to an informational video on unpacking instructions for your Corghi Rim Clamp Tire Changer. The sentence below the QR Code provides instructions on how to switch the YouTube audio from English to Spanish.
A QR Code will be attached to the top right of the tower of the machine with a link to a informational training video on the features and benefits of Corghi Rim Clamp Tire Changers.

See More Info section below for informational videos on Corghi Rim Clamp Tire Changer Functions, Features, and Helper Arms as well as a Corghi Rim Clamp Unpacking Video.

Features & Specs

Features

Robustness and Great Versatility
Ideal Tool For Industry Specialists
Robust But Simple Operating Arm
Turntable Plate With New Modular Jaws
4" Set-Up for Enduro and Scooter Wheels
Dedicated Bead Breaking Blade For Bike Wheels
Ships Fully Assembled

Optional Accessories

8-111004663 Removable Platform For Bike Wheel Wedge to perfectly position small-diameter wheels with respect to the bead breaking blade. Equipped with knob for securing to the machine body.

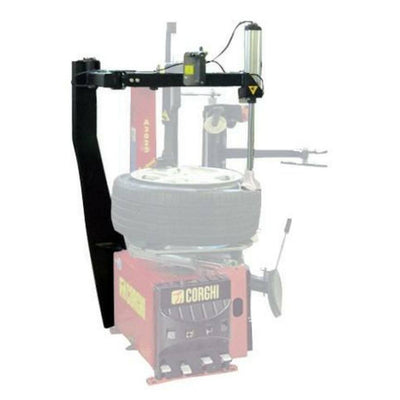

8-11120032 BPL Help Device Adjustable in height, it is limited to the tire bead pressure phase from above.
8-11400329 TPA-Wing Full assembly plastic tool-head kit with adapter.
8-111004661 Racing Bike Self-Centering Jaw Kit 8"-26"
8-11100462 ATV Self-Centering Jaw Kit 5"-18"

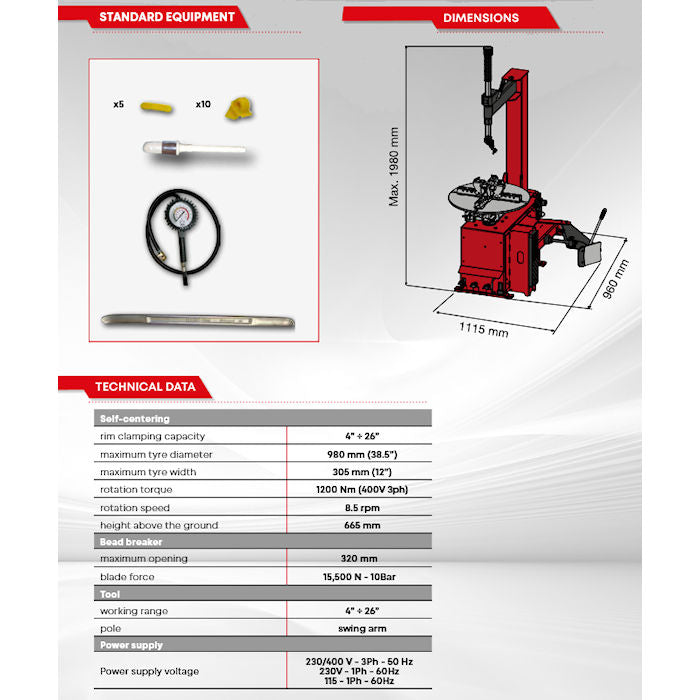

Specifications

Pole: Swing Arm
Rim Clamping Capacity: 4"-26"
Maximum Tire Diameter: 38.5" (980mm)
Maximum Tire Width: 12" (305mm)
Rotation Torque: 1,000 Nm (400V 3Ph)
Rotation Speed: 8.5 RPM
Height Above The Ground: 665mm
Maximum Opening: 320mm
Blade Force: 15,500 B-10Bar
Dimensions: 77.95" H x 43.89" W x 37.79" D (1,980 x 1,115 x 960mm)
Voltage: 115 - 1Ph - 60Hz
Warranty: (3) Years Parts, (1) Year Labor

Corghi USA Limited Warranty Statement
General Terms
Corghi USA expressly warrants its products will be free from defects in material and/or workmanship for the time period specified. Corghi USA must be informed in writing within (7) days after discovery of a defect. Corghi USA reserves the right to repair or replace a product at our discretion. Consumable products and accessories such as but not limited to; plastic protection parts, bead breaker pads, inflation hoses, and rollers, are not covered under this warranty.

This warranty does not cover any damage resulting from abuse or failure to perform any necessary maintenance (i.e. damage due to or resulting from, faulty installation, neglect, misuse, improper electrical connections or electrical surges, problems resulting from excessive water, contaminated air system, or pollutant of any nature, fire or freight damage).

Corghi machines are warranted to be free of defects as follows:

Tire Changers:
A2030, A2024TI, 2024LL, A9824, A9824LL, A9830, A9222, Service Pro 124, Service Pro 324, BC200S, A2002 - (3) years parts and (1) year labor. Additional Transmission Warranty Models: A9222 - (5) years parts only. A2030, A2024TI, 2024LL, A9824, A9824LL, A9830 - (10) years parts only. AM50, AM500, AM5000, Master J, Master Code, Master28 - (3) years parts and (1) year labor. HD700, HD1300, HD1400, Monster TT, HD1800, Service Pro 440, Service Pro 426 - (3) years parts and (1) year labor. NOTE: Rubber pads, air lines, gauges, mount/demount heads, and swabs - (90) day warranty.

Wheel Balancers:
PL60, Service Pro 750, EM9250, EM9280, EM9580, EM9780, EM9980C, ET1450, ET88 - (3) years parts and (1) year labor.

Alignment Machines and Specialty Equipment:
(3) years parts and (1) year labor.

Disclaimer & Limitation on Liability
Corghi USA agreement to repair a tire changer or balancer is expressly in lieu of all other warranties, express, implies or statutory, including any warranties for merchantability and fitness for a particular purpose. Corghi USA maximum liability shall be limited to the cost of the machine. In no event shall Corghi USA be responsible for owner's lost profits, goodwill or other incidental or consequential damages. Corghi USA is not responsible for equipment or accessories damages in shipment. Freight claims are to be made directly with the carrier. We will be more than happy to assist you with any questions regarding filing claims.

Accessories/Options

More Information

Corghi A2002 Tire Changer Brochure (.pdf)

Corghi 2026 Customer Loyalty Program

When you purchase a Corghi machine between 1/1/26 and 12/31/26 you are qualified to enter the Customer Loyalty Program. After emailing or faxing the completed form below, you will receive a "Corghi Cash" coupon, good towards the purchase of a subsequent machine. This coupon is only valid for 6 months. The coupon value will be either 10% or 5% of the machine & associated accessories just purchased. This is based on the subtotal. Taxes, freight, and other charges are not included. The value is 10% if second machine goes to the same location or 5% if the machine is purchased for an alternative company owned location.

Corghi Customer Loyalty Program Application (.pdf)
