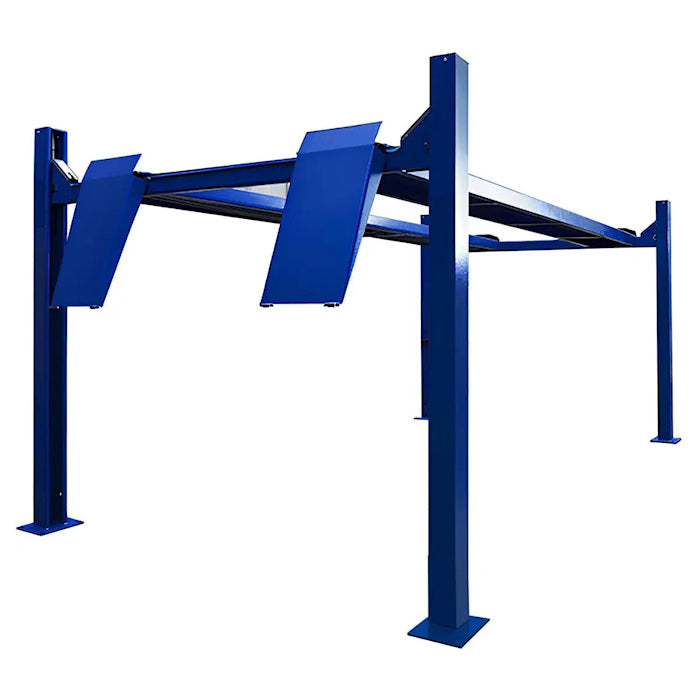

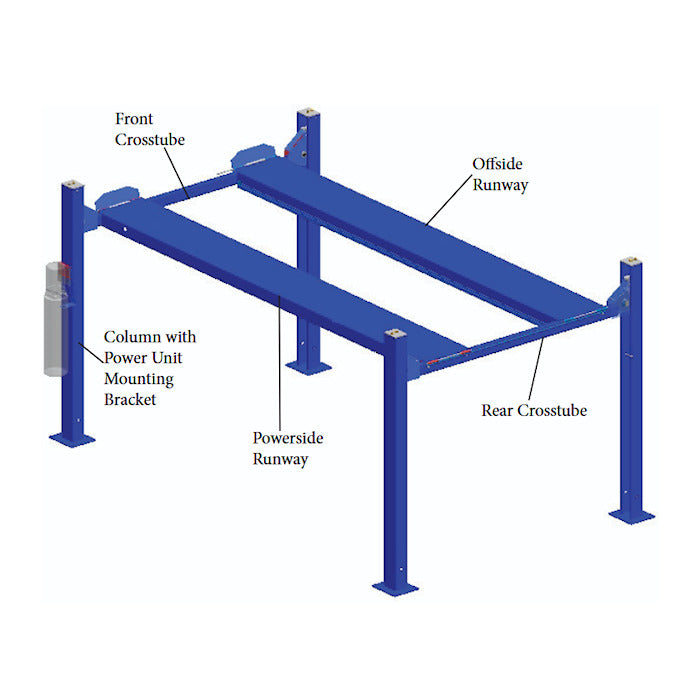

TCE QJY4040-DS 9K Four Post Parking Lift

Features & Specs

Features

• CE Certified Lift Structure and Hydraulic System
• Third-Party Tested
• Standardized For 115% Dynamic Load Capacity
• Tested For 150% Static Load Capacity
• Durable Hydraulic System
• Easy Operation and Maintenance
• Double Seal Rings
• Carriage Material Q355 Steel (ASTM A572)
• User-Friendly Controls
• Overload Prevention
• Cylinder Stroke Protection

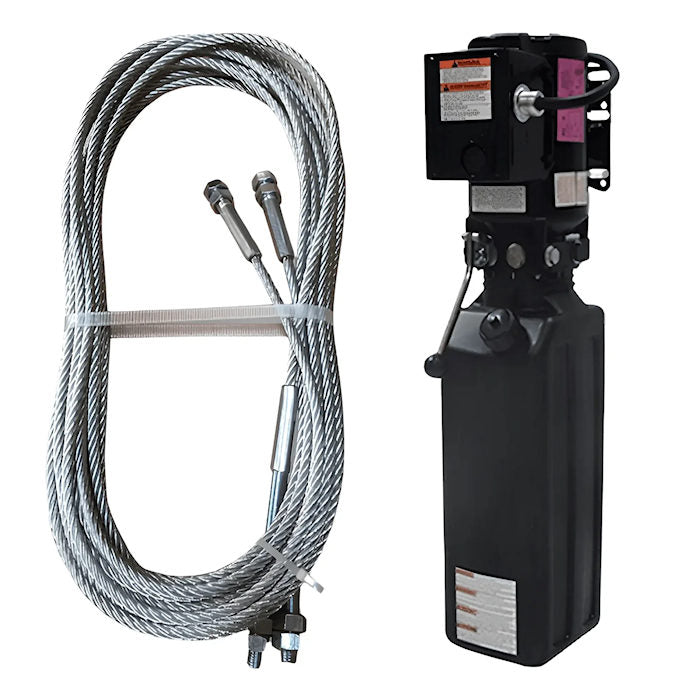

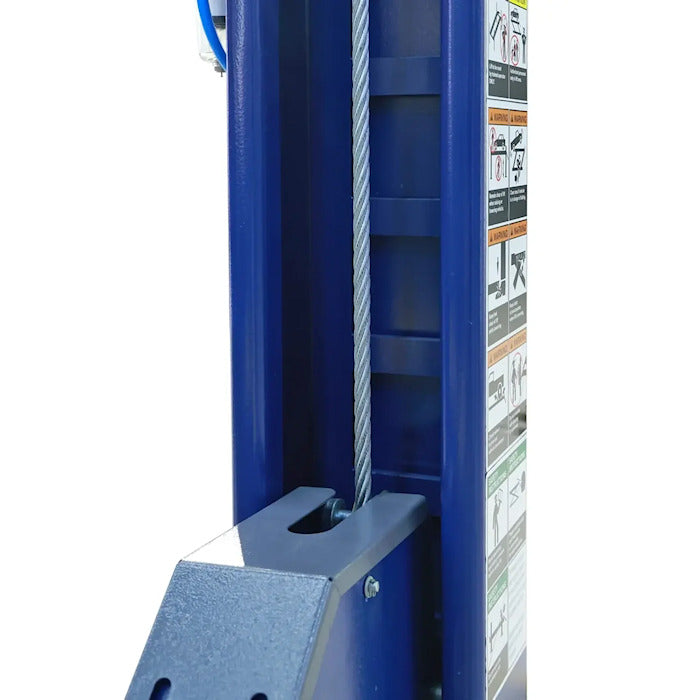

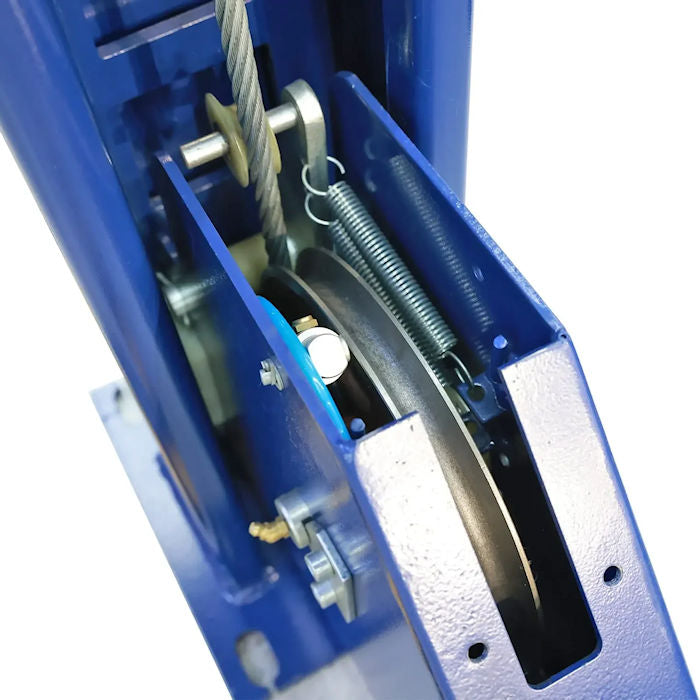

• Heavy-Duty 3/8" Cable And 5" Pulley
• Convenient Operation and Maintenance
• Longevity and Reliability

Specifications

• Lift Capacity: 9,000 lbs.

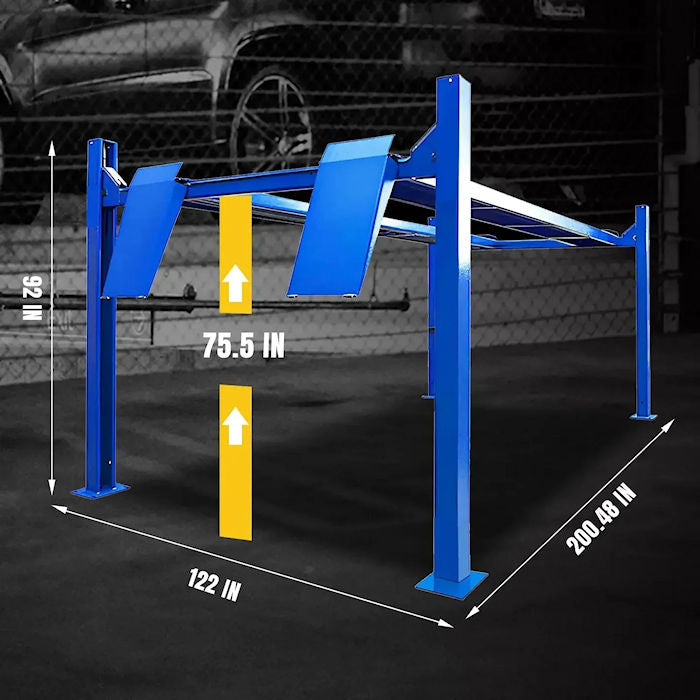

• Overall Length: 200.48"
• Overall Length Plate To Plate: 175.03"
• Overall Width: 131.7"
• Overall Height: 92"
• Overall Height Of Posts: 87.8"
• Max. Lifting Height To Top Of Run-Ways: 75.5"
• Max. Lifting Height To Top Of Run-Ways: 75.5"
• Max. Clearance Under Runways On Top Of Lock: 69"
• Minimum Ground Clearance: 5.5"

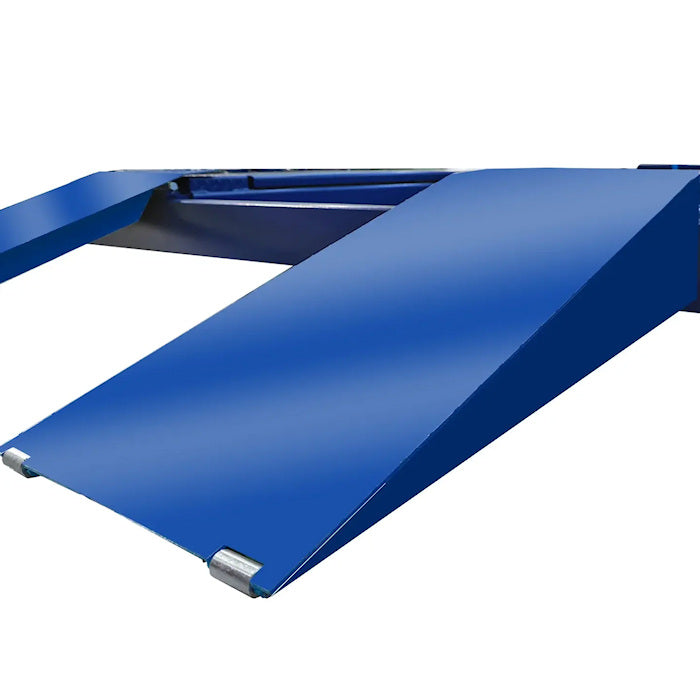

• Approach Ramp Length: 34.5"
• Runway Dimensions Length: 166"
• Runway Dimensions Width: 18.92"
• Runway Dimensions Height: 4.68"
• Outside Width With Both Runways (Adjustable): 76" / 81.9"
• Clearance Between Runways (Adjustable): 38.2" / 44.1"
• Overall Width Outside Of Posts: 117"
• Max. Clearance Between Posts: 106.9"
• Ramp Gauge Of Steel: 1/4"
• Post Dimensions: 6" L x 5" W
• Locking Positions (Qty.): 13
• Time Of Full Rise (Seconds): 60
• Electrical: 110V / 26 Amp / 1 Ph / 60 Hz

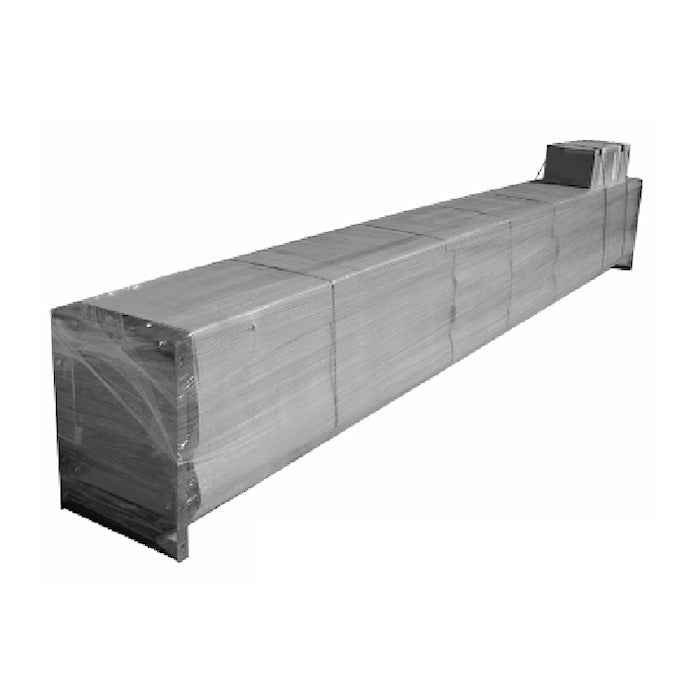

• Shipping Dimensions: 171" x 21" x 28"
• Product Weight: 1,764 lbs.
• Shipping Weight: 1,808 lbs.
• Warranty: (2) Years Limited, No Labor

TCE Warranty Statement and Technical Issues

• We offer a two-year warranty on parts sold separately.
• Customer satisfaction is most important to us. If you need any parts or have any technical issues that are not listed here, the best way is to email (tcecustomerservice@torin-usa.com) or text (1-909-390-8588) us with some pictures and the nameplate. Our technician will follow up with you as soon as possible.
• For car lifts, the nameplate is usually on one of the posts with serial number on it.
• Labor warranties are not included unless explicitly stated in the listings.
• For a 2-post car lift that is bolted to the ground, the warranty is voided if relocated.
• We ship replacement parts for free within the warranty time in lower 48 provinces. Please let us know if you have any problem with parts.
• We ship parts with FedEx, UPS, and USPS. Sorry but we do not do overnight shipping.

All warranty claims must be pre-approved by TCE in writing to be valid. If a part is found to be defective after inspection, the manufacturer will repair or replace it at their option. Defective parts must be returned to the factory with freight prepaid by the customer. TCE is not responsible for the cost of "outside parts or labor" unless specifically approved in writing in advance.

This warranty applies only to the ORIGINAL purchaser and is non-transferable. It covers defects in material and workmanship but does not cover:

• Normal maintenance, adjustments, or wear and tear.
• Damage caused by improper handling, installation, abuse, or negligence.
• Equipment that has been altered or repaired by unauthorized parties.
• Failure to follow the official installation, operation, and maintenance instructions.

Unauthorized Parts and Voiding of Warranty
IMPORTANT: If you obtain a replacement part without our prior written permission while a product is under warranty, we will not cover the cost of that part, and we reserve the right to void the product's entire warranty. Please ensure you always contact us first to initiate a valid warranty claim.

Shipping Companies

• For products under 150 Ibs, we utilize FedEx, UPS, or USPS for fast and secure delivery.
• For products exceeding 150 lbs, we utilize established LTL freight companies to ensure safe and efficient delivery.

Delivery and Additional Charges

• For car lifts (not including scissor lifts),we offer free shipping to lower 48 states with forklift (or similar) on-site, or free pickup at nearby terminal. Car lifts require on-site forklift (no liftgate) to unload from delivery truck. We are unable to deliver to other regions. Delivery site must be accessible for a 53-foot semi truck and trailer.
• For tire machines, scissor lifts, motorcycle lifts, and other auto equipment, we offer free shipping to commercial addresses (in business zones) with forklift (or similar) on-site, or free pickup at nearby terminals. Residential or farm addresses and liftgate service require additional shipping charges.
• Due to their size, 2-post and 4-post car lifts cannot be unloaded using a liftgate service.
• We strongly recommend against renting a forklift; equipment rental will not be reimbursed.
• Limited access deliveries (schools, hospitals, restaurants, golf courses, ski resorts, airports, ports, piers, lodging facilities, campgrounds, quarries, factories, military bases, government buildings, etc.) incur a $150 surcharge.
• Delivery to your address is limited to curbside. For placement inside a building or backyard, additional charges apply.
• Please track your shipment and ensure someone is available during the delivery (business hours for businesses and scheduled delivery window for residence). A $150 redelivery fee applies for missed deliveries.
• Please be prepared to unload your delivery within 30 minutes of the truck's arrival. If unloading exceeds this timeframe, a minimum $100 surcharge will apply.
• If additional freight charges apply during your delivery, please pay them promptly or we may forfeit the warranty.
