Titan Lifts SBJ-MS Sliding Bridge Jack Master Series
In Stock SKU SBJ-MS
OUR PRICE: $1,410.00
Regular Price: $1,489.00
Short Description
Titan Lifts SBJ-MS Sliding Bridge Jack Master Series
4,400 lbs. Capacity

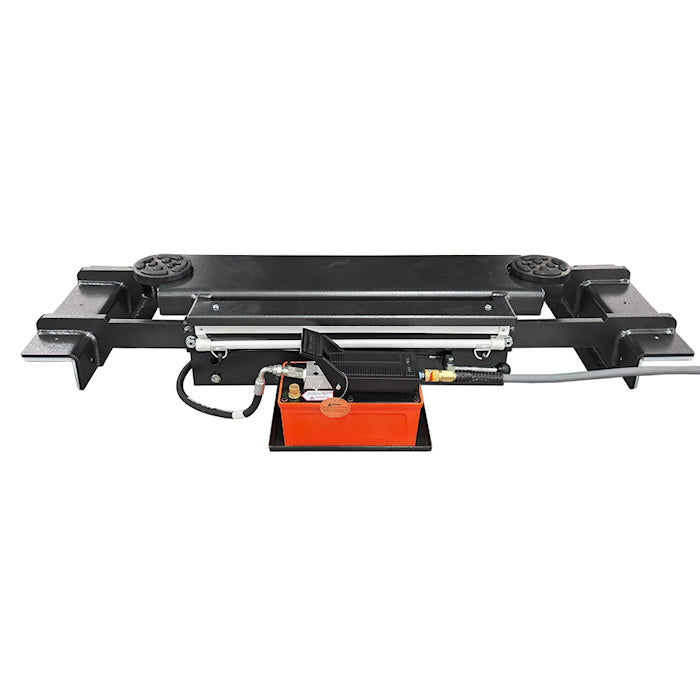

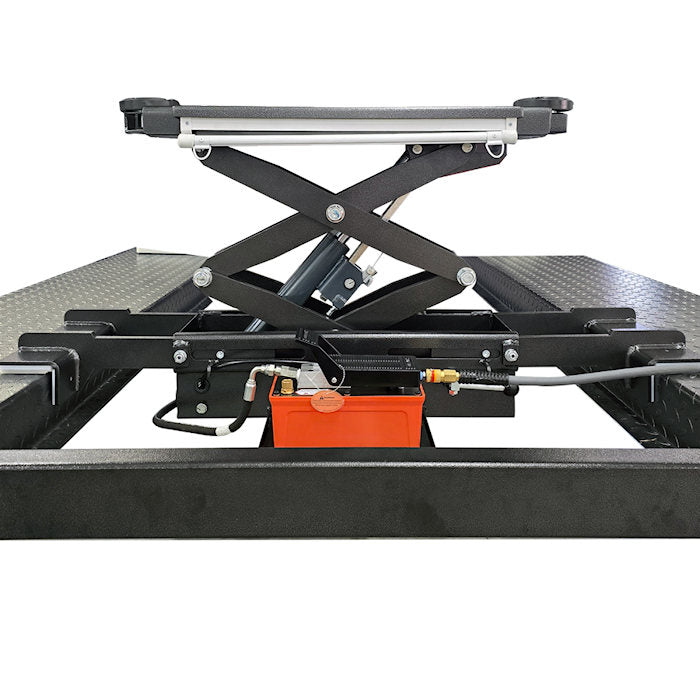

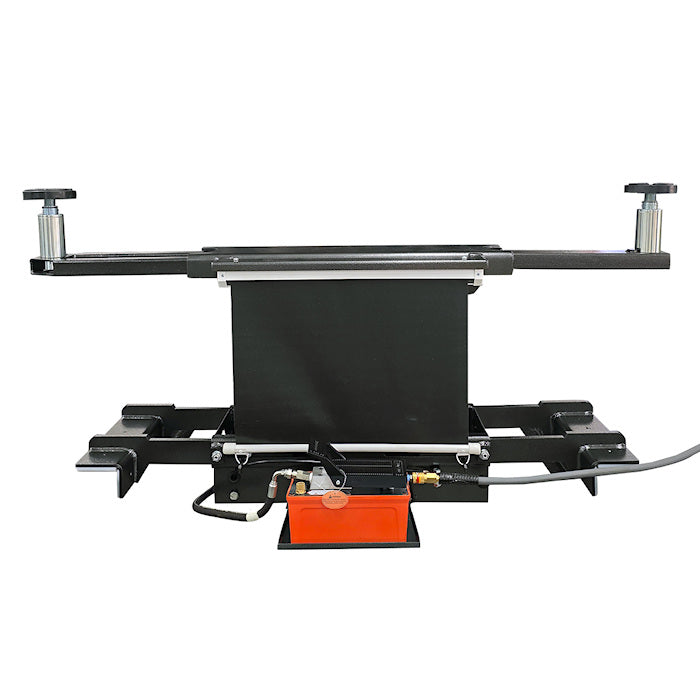

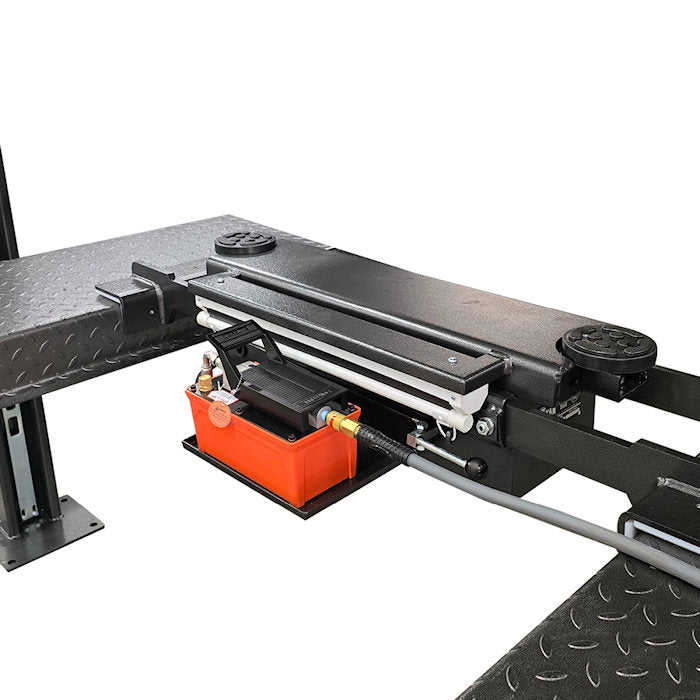

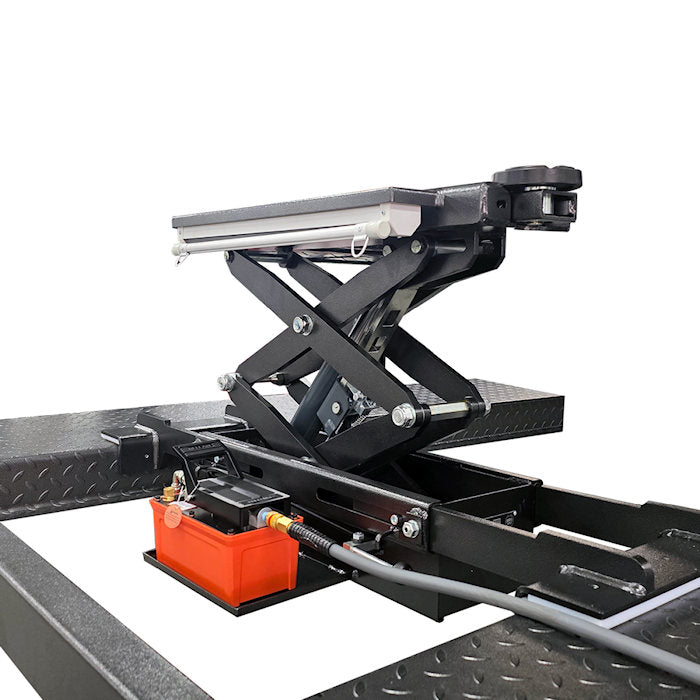

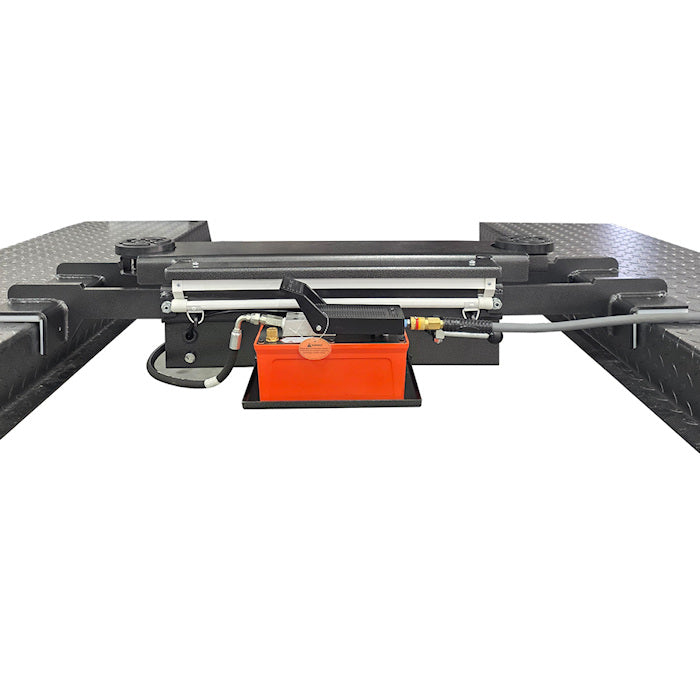

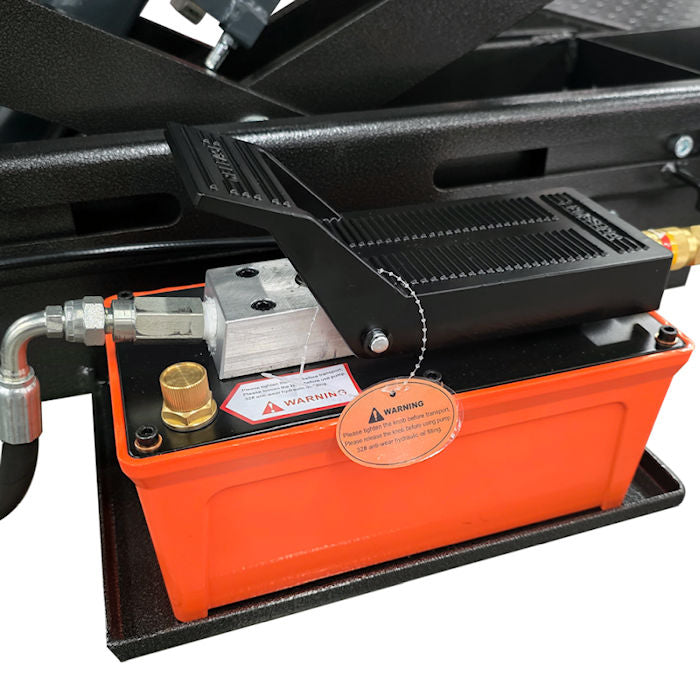

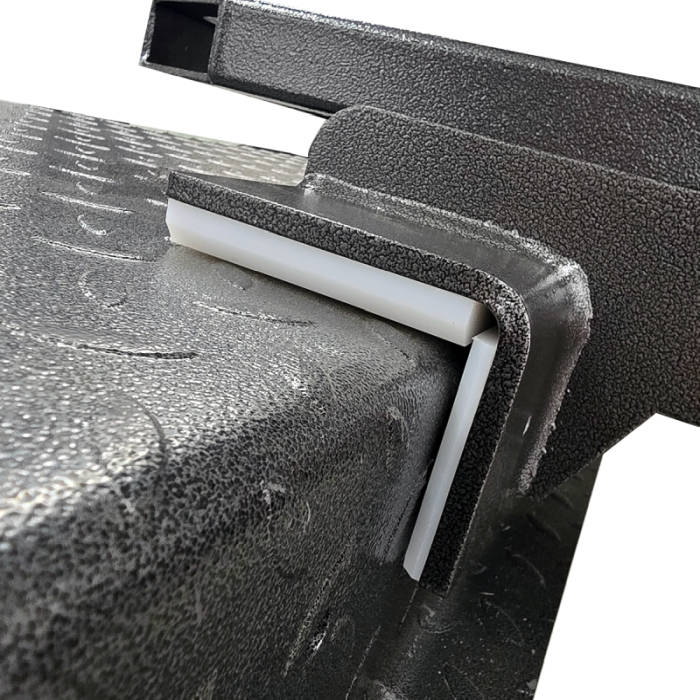

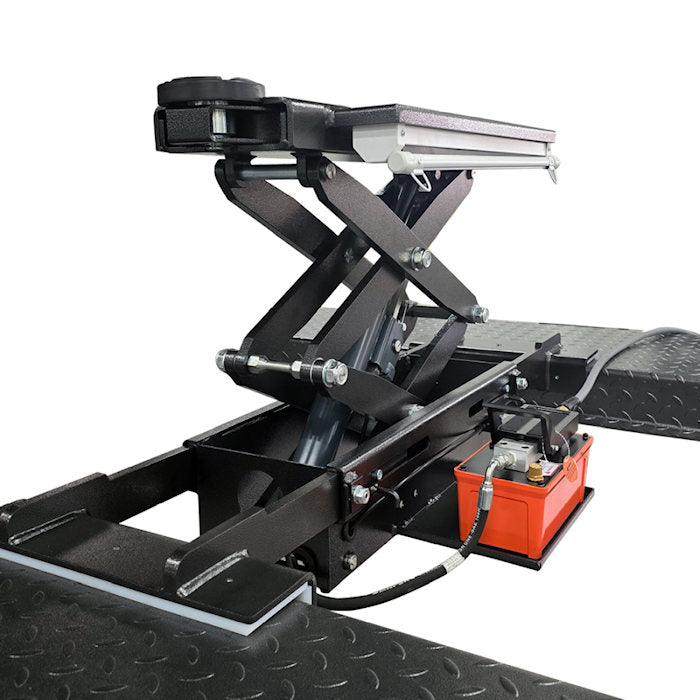

The Titan Lifts SBJ-MS Sliding Bridge Jack Master Series has a lifting capacity of 4,400 lbs. This is a sliding air operated pneumatic powered jack. It can be used on the Titan Lifts 7K, 7K-XLT, 8K, 8K-XLT and 9K four post lifts. This jack is designed to assist in lifting the front or back of a vehicle off the runways for wheel and suspension work. This is a scissor-style air over hydraulic jack that comes with four height adapters and two thread up adapters. It uses two telescoping arms that allow the jack to slide between the runways.
For Use With 7K, 7K-XLT, 8K, 8K-XLT and 9K Titan Four Post Lifts
Description
Titan Lifts SBJ-MS Sliding Bridge Jack Master Series
4,400 lbs. Capacity
The Titan Lifts SBJ-MS Sliding Bridge Jack Master Series has a lifting capacity of 4,400 lbs. This is a sliding air operated pneumatic powered jack. It can be used on the Titan Lifts 7K, 7K-XLT, 8K, 8K-XLT and 9K four post lifts. This jack is designed to assist in lifting the front or back of a vehicle off the runways for wheel and suspension work. This is a scissor-style air over hydraulic jack that comes with four height adapters and two thread up adapters. It uses two telescoping arms that allow the jack to slide between the runways.
For Use With 7K, 7K-XLT, 8K, 8K-XLT and 9K Titan Four Post Lifts
Features & Specs

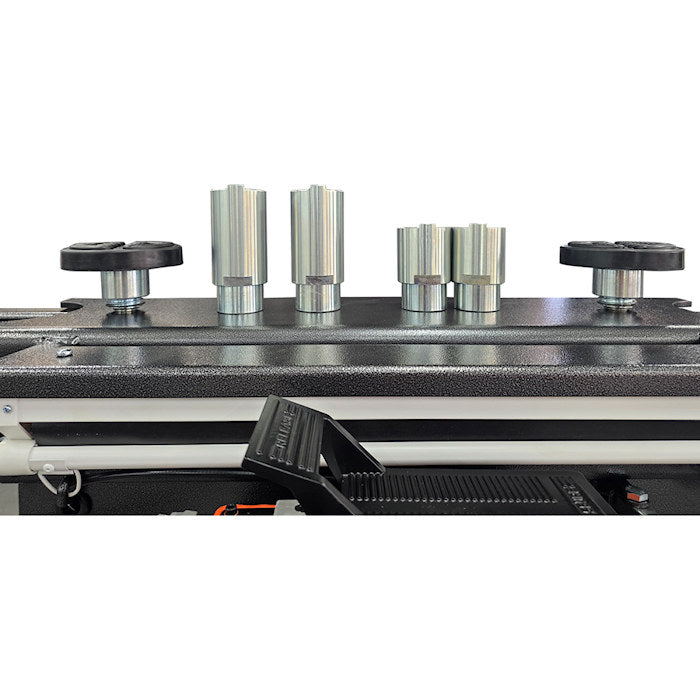

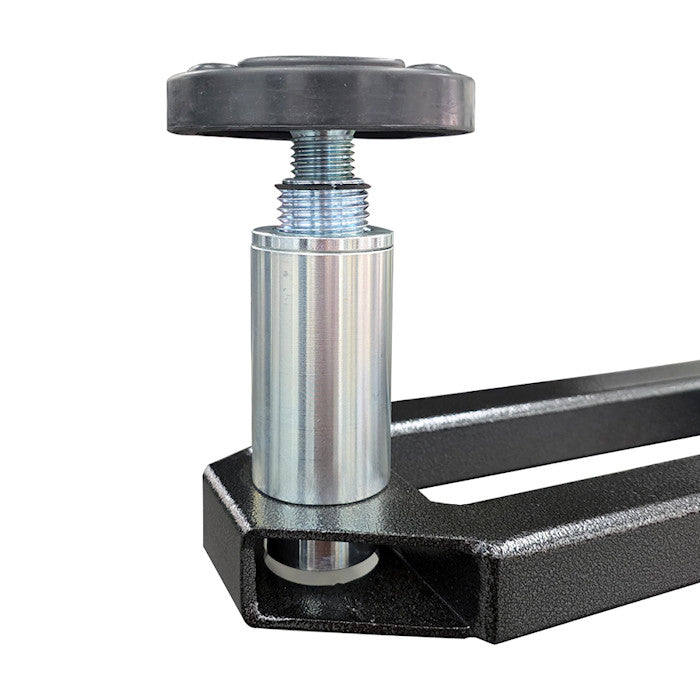

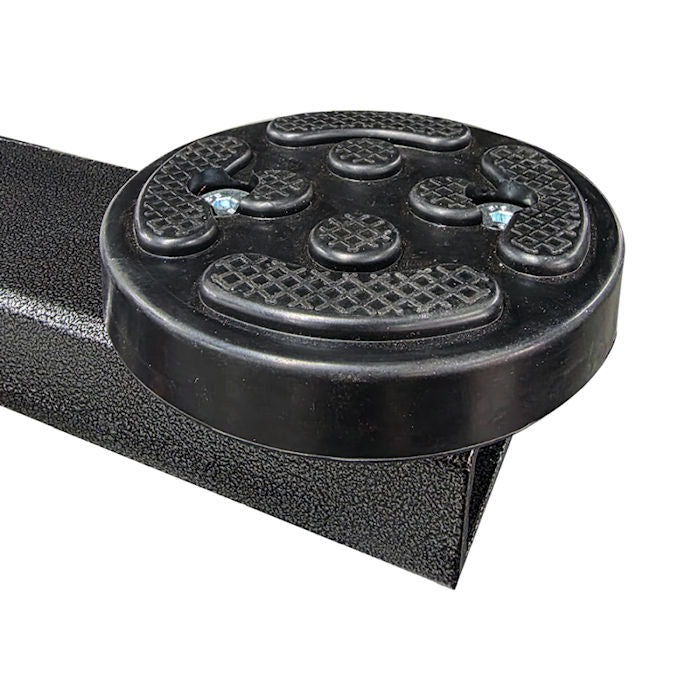

Height Adapters
- Short: 2-3/8"
- Tall: 4"
- Thread Up: 1-5/8"
- Stacked Adapters + Thread Up Max Height: 8"

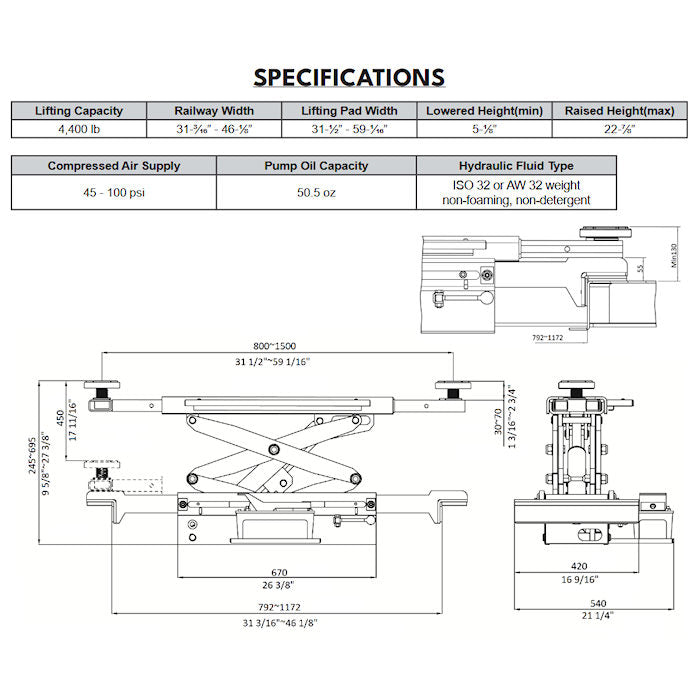

Dimensions
- Min. Lowered Height With Thread Up Adapter: 4.5"
- Raised Lock Position #1: 7"
- Raised Lock Position #2: 12.5"
- Raised Lock Position #3: 16.25"
- Raised Lock Position #4: 19.75"
- Min. Pad Width: 31.5" (Center Of Pad)
- Max. Pad Width: 58.5" (Center Of Pad)
- Weight: 380 lbs.
- Shipping Dimensions: 43" L x 25" W x 14" H
- Warranty: (5) Years Structural, (2) Years Parts, No Labor
