Atlas PRO12K Four Post Lift + RJ6BK Rolling Jacks

Name: Atlas PRO12K Four Post Lift + RJ6BK Rolling Jacks
Brand: Atlas Automotive Equipment
SKU: ATEXH-PRO12K-COMBO
Price: 10749.00 USD
Availability: InStock

In Stock SKU ATEXH-PRO12K-COMBO UPC 850084907081

OUR PRICE: $10,749.00

Regular Price: ~~$11,289.00~~

$298.58 / mo

INCLUDES FREE SHIPPING*

Short Description

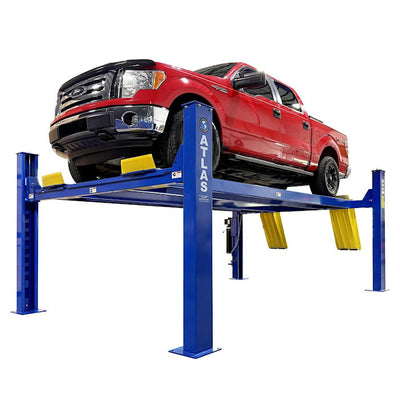

Atlas PRO12K Four Post Lift 12,000 lbs. Capacity +
RJ6BK Air Hydraulic Rolling Jacks 6,000 lbs. Capacity Combo
The Atlas PRO12K Heavy-Duty Commercial Grade Four Post Lift incorporates many structural and cosmetic features that are found on lifts costing thousands of dollars more money. The PRO12K is tested to ensure that this lift system will perform flawlessly at its rated capacity. The PRO12K uses a high strength cable system (with an under runway oversized hydraulic cylinder) powered by a 220 volt (single phase) power unit to raise and lower the lift. Many competitors use an "old style" chain lifting system with an exposed hydraulic cylinder system. Old style chain lifts are difficult to "level" properly and the exposed hydraulic cylinder is responsible for numerous "door dings". The PRO12K comes pre-drilled to accept an Alignment Kit consisting of Slip Plates, Spacers, Ramps, and Turntables (Alignment Kit Sold Separately).

This PRO12K-COMBO includes the Atlas PRO12K and (2) RJ6BK Air/Hydraulic Rolling Jacks which can be used to raise the front or rear portion of a vehicle; allowing the operator of a four post above ground lift to perform wheel and brake service. Includes truck adapters.

Description

Atlas PRO12K Four Post Lift 12,000 lbs. Capacity +
RJ6BK Air Hydraulic Rolling Jacks 6,000 lbs. Capacity Combo

The Atlas PRO12K Heavy-Duty Commercial Grade Four Post Lift incorporates many structural and cosmetic features that are found on lifts costing thousands of dollars more money. The PRO12K is tested to ensure that this lift system will perform flawlessly at its rated capacity. The PRO12K uses a high strength cable system (with an under runway oversized hydraulic cylinder) powered by a 220 volt (single phase) power unit to raise and lower the lift. Many competitors use an "old style" chain lifting system with an exposed hydraulic cylinder system. Old style chain lifts are difficult to "level" properly and the exposed hydraulic cylinder is responsible for numerous "door dings". The PRO12K comes pre-drilled to accept an Alignment Kit consisting of Slip Plates, Spacers, Ramps, and Turntables (Alignment Kit Sold Separately).

Atlas RJ6BK Air Hydraulic Rolling Center Jack
6,000 lbs. Capacity With Truck Adapters

The Atlas RJ6BK (Air/Hydraulic) is a heavy duty rolling jack designed to lift and support 6,000 lbs. The commercial grade RJ6BK (Air/Hydraulic) rolling jack can be used to raise the front or rear portion of a vehicle; allowing the operator of a four post above ground lift to perform wheel and brake service. Most commercial shops buy two of these hydraulic rolling jacks, so that the entire vehicle can be supported in the air at the same time.

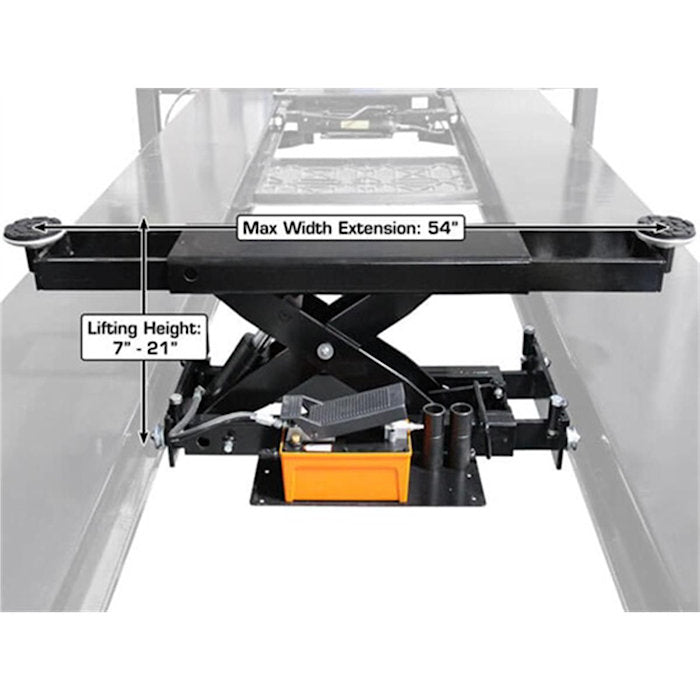

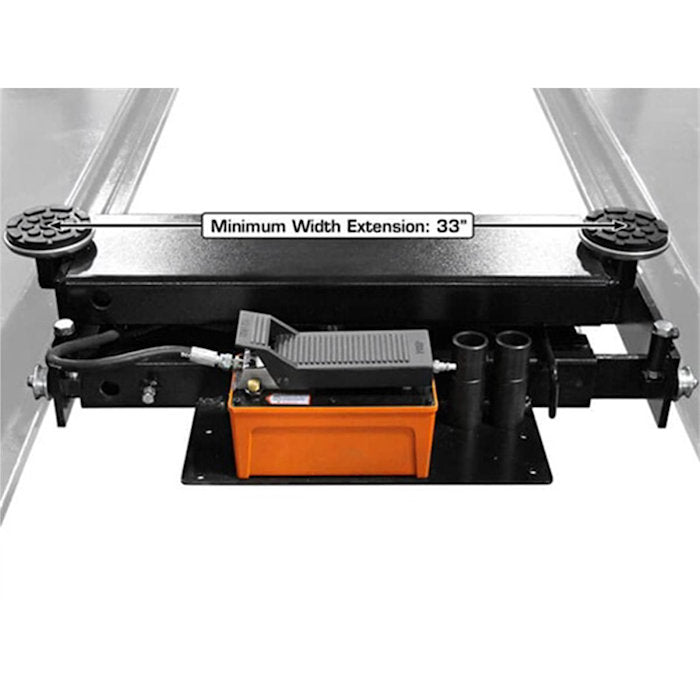

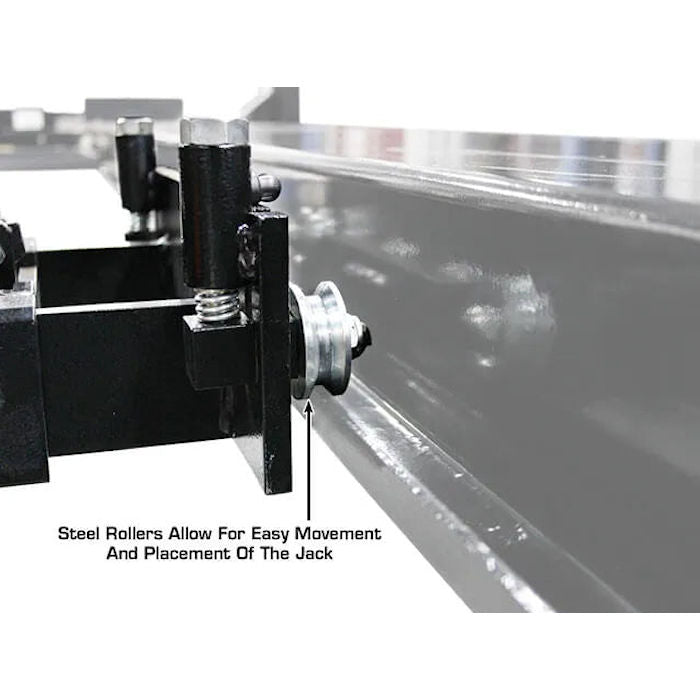

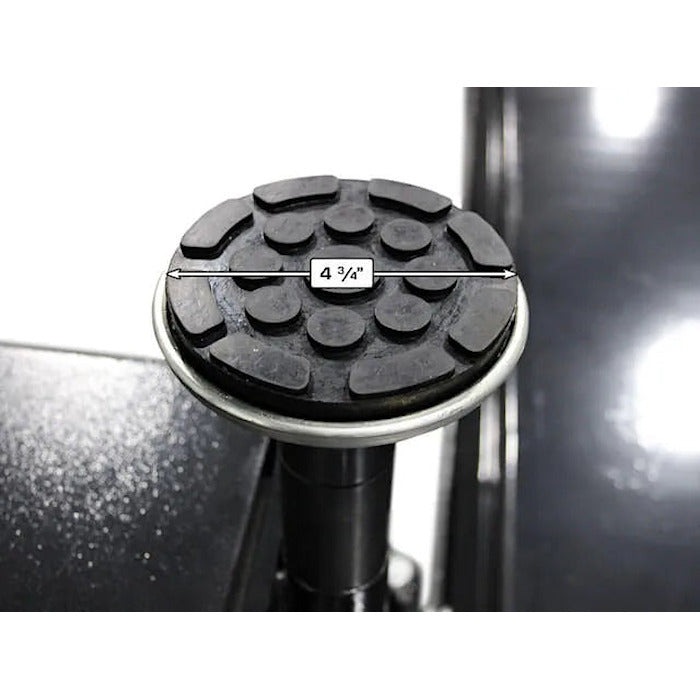

The Atlas RJ6BK (Air/Hydraulic) has telescoping arms that can be extended over the runways of the four post lift. The lift pads at the end of these arms can be positioned under the lifting points that are located over the runways of the four post lift. The Atlas RJ6BK (Air/Hydraulic) rolling bridge is equipped with expandable supports which adjust to fit many different brands of four post above ground lifts. These supports have a unique roller system that allows the rolling hydraulic jack to glide easily under the entire length of the vehicle. The large heavy steel wheels allow the rolling jack to be positioned under the correct lifting points in a matter of seconds.

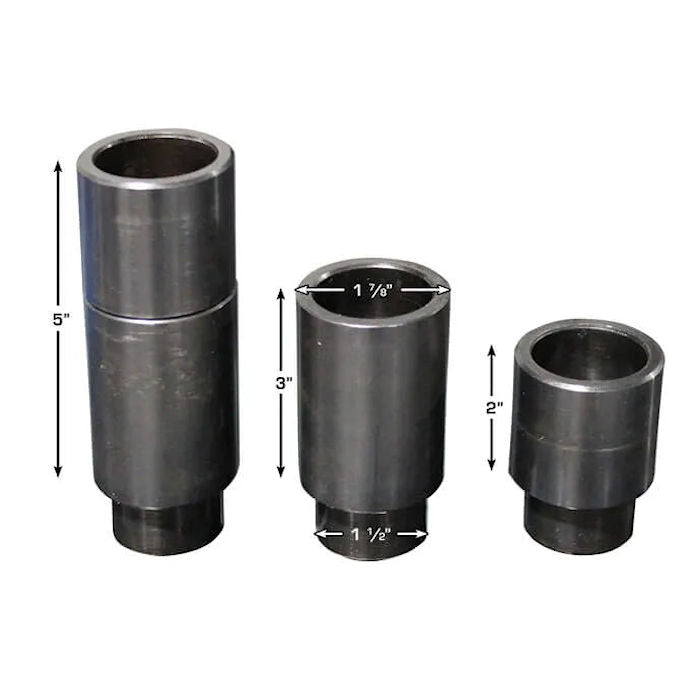

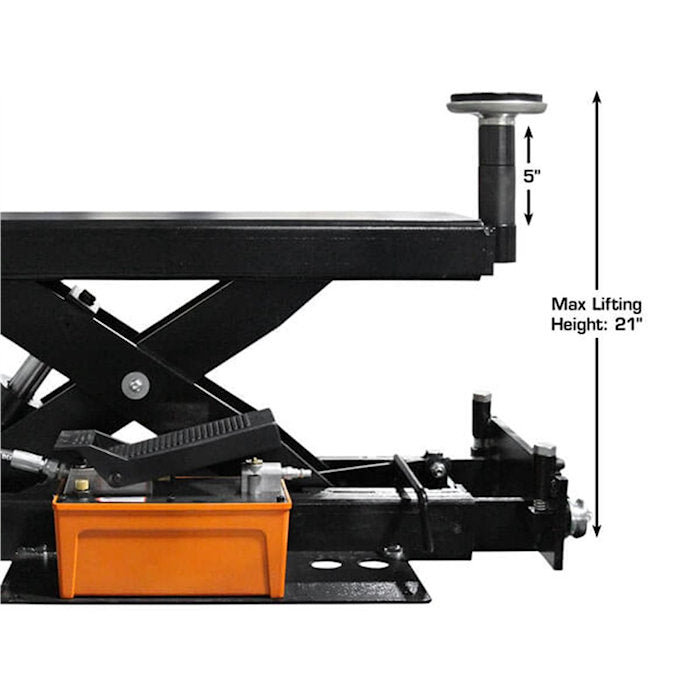

The Atlas RJ6BK (Air/Hydraulic) comes standard with a set of peg style truck adapters which increases the lifting height of the lift pads. These truck adapters will allow the Atlas RJ6BK rolling hydraulic jack to raise most pick up and larger trucks that will sit higher than the average passenger car.

The Atlas RJ6BK (Air/Hydraulic) is equipped with an air/hydraulic pump. The air/hydraulic pump requires a supply of compressed air (air compressor) to work properly.

Important: The Atlas RJ6BK is designed and engineered to operate on "delivered" air pressure of between 70-95 PSI. If you exceed 95 PSI, you may damage your jack. For more information on the recommended operating air pressure of the Atlas RJ6BK, see below Specifications.

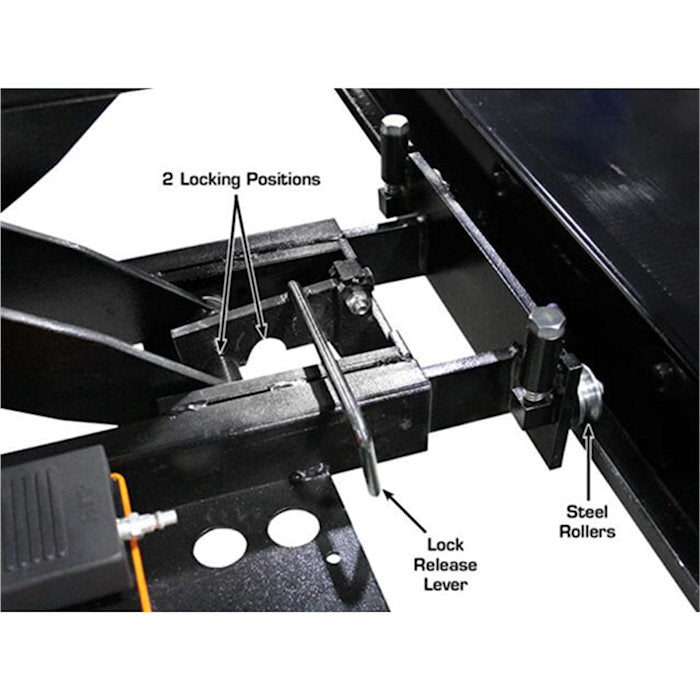

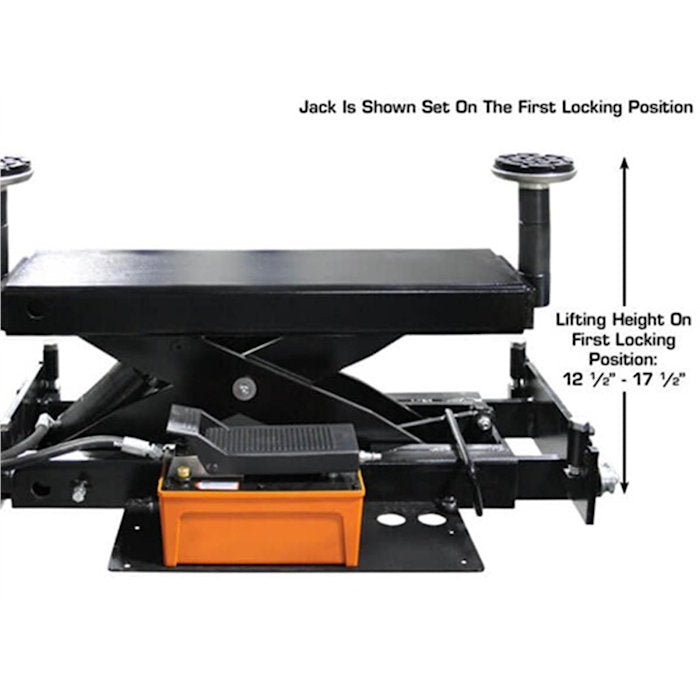

The Atlas RJ6BK (Air/Hydraulic) rolling hydraulic jack features two solid locking positions that are used when the vehicle is to be suspended above the runways. When the locking positions of the Atlas RJ6BK (Air/Hydraulic) are engaged, the hydraulic pressure from the lifting cylinder of the jack is eliminated. (These locks act much like a pair of jack stands after you lift a vehicle off the ground with a service jack).

Features & Specs

PRO12KA Features

12,000 lbs. Lifting Capacity
Heavy Duty, Commercial Grade
High Strength Cable System
Under Runway Oversized Hydraulic Cylinder
Extra Tall, Extra Wide & Extra Long
Air Operated Single Point Lock Release (External Air Supply Required)
Lock Ladder Design
Double Lock Safety System
Steel Approach Ramps Included
Alignment Kit Included (Slip Plates, Spacers, Ramps)
Heavy Duty Turntables Included
Mounting Hardware Included

PRO12KA Specifications

Lifting Capacity: 12,000 lbs.
Lifting Height, Top Lock: 68 1/2" (5' 8 1/2")
Overall Width (w/ Motor): 141 7/16" (11' 9 7/16")
Overall Length (w/ Approach Ramps): 253" (21')
Runway Length: 205" (17' 1")
Length Between Columns: 189 3/4" (15' 9 3/4")
Runway Width: 20"
Width Between Runways: 42 1/2" - 46 1/2"
Outside Runway to Outside Runway: 62 1/2" - 66 1/2"
Width Between Columns: 114 13/16" (9' 6 13/16")
Drive Thru: 100" (8' 4")
Height of Columns: 89" (7' 5")
Clearance Under Runways, Top Lock: 61 1/2" (5' 1 1/2")
Air Requirement: 85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED)
Voltage: 220V 1PH
Electrical Requirement: 30 Amp Breaker Recommended
Oil Requirement: 3-5 Gallons AW32/AW46 (NOT INCLUDED)
Shipping Dimensions: 212" L x 22-1/2" W x 33" H
Additional Carton Dimensions: 37-1/2" L x 13" W x 10" H
Shipping Weight: 4,750 lbs.
Warranty: 5 Years Structure, 2 Years Hydraulic Power Units & Cylinders, No Labor

Requires a minimum of 6" of concrete with a 3000 PSI rating.

5 Year Structural & 2 Year Hydraulic Warranty
Atlas Platinum Series Two-Post Lifts are warranted for five (5) years on structural components and two (2) years on the hydraulic system, power unit and cylinders effective from date of invoice. Wear items carry a 90-day warranty. Structural components are considered the Carriage, Columns, Yokes, Arms, Runways, Plungers, etc. Hydraulic components are cylinders, hoses, and fittings. Cables, sheaves, latches and controls are considered wear items.

This LIMITED warranty policy does not include a labor warranty.

NOTE: ALL WARRANTY CLAIMS MUST BE PRE-APPROVED BY THE MANUFACTURER TO BE VALID.

The Manufacturer shall repair or replace at their option for this period those parts returned to the factory freight prepaid, which prove after inspection to be defective. This warranty will not apply unless the product is installed, used and maintained in accordance with the Manufacturers installation, operation and maintenance instructions.

This warranty applies to the ORIGINAL purchaser only, and is non-transferable. The warranty covers the products to be free of defects in material and workmanship but, does not cover normal maintenance or adjustments, damage or malfunction caused by: improper handling, installation, abuse, misuse, negligence, carelessness of operation or normal wear and tear. In addition, this warranty does not cover equipment when repairs or alterations have been made or attempted to the Manufacturer's products.
