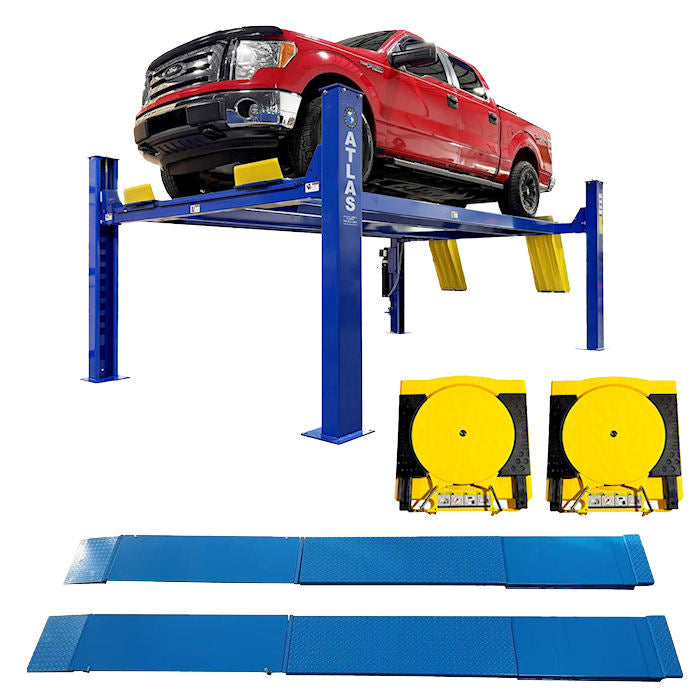

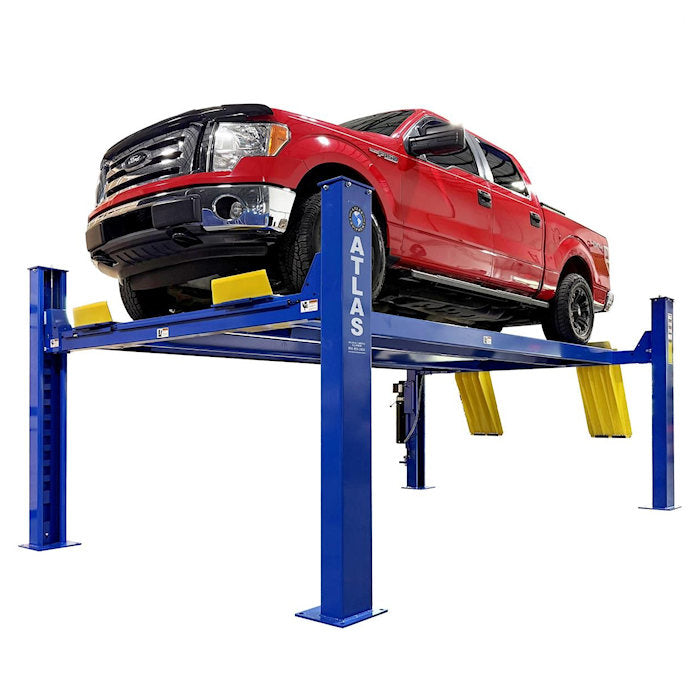

Atlas PRO12K Four Post Lift With Alignment Kit Combo

Name: Atlas PRO12K Four Post Lift With Alignment Kit Combo
Brand: Atlas Automotive Equipment
SKU: ATEXD-PRO12KA-KIT
Price: 9399.00 USD
Availability: InStock

In Stock SKU ATEXD-PRO12KA-KIT

OUR PRICE: $9,399.00

Regular Price: ~~$9,869.00~~

$261.08 / mo

INCLUDES FREE SHIPPING*

Short Description

Atlas PRO12K Four Post Lift With Alignment Kit Combo
Commercial Grade 12,000 lbs. Lifting Capacity
Kit Includes Slip Plates, Spacers, Ramps & Turntables

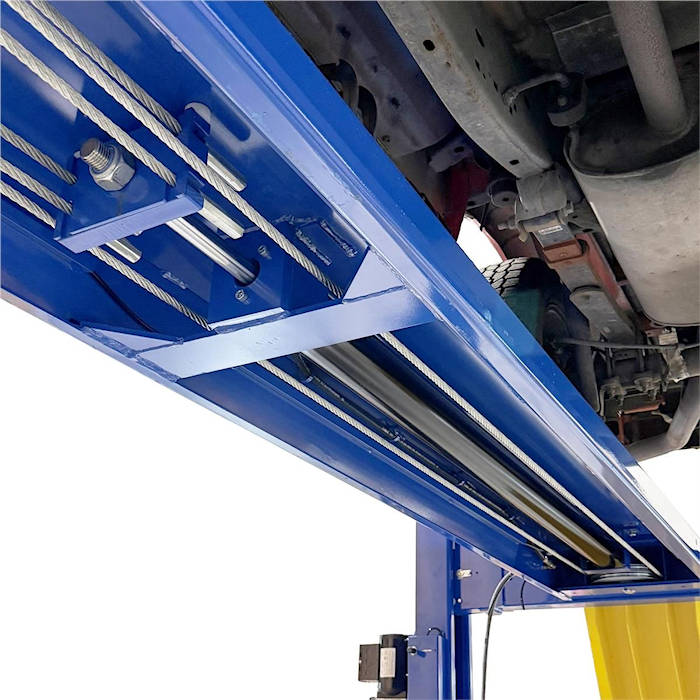

The Atlas PRO12K Heavy-Duty Commercial Four Post Lift incorporates many structural and cosmetic features that are found on lifts costing thousands of dollars more money. The Atlas PRO12K is tested to ensure that this lift system will perform flawlessly at its rated capacity. The Atlas PRO12K uses a high strength cable system (with a under runway oversized hydraulic cylinder) powered by a 220 volt (single phase) power unit to raise and lower the lift. Many competitors use an "old style" chain lifting system with an exposed hydraulic cylinder system. Old style chain lifts are difficult to "level" properly and the exposed hydraulic cylinder is responsible for numerous "door dings". The PRO12K also features "tracks" between the runways to allow the use of a rolling bridge jack (such as the Atlas RJ6BK) on the lift (Rolling Jacks Sold Separately).

This PRO12KA kit includes the Atlas PRO12K and an alignment kit consisting of slip plates, spacers, ramps, and turntables.

Description

Atlas PRO12K Four Post Lift With Alignment Kit Combo
Commercial Grade 12,000 lbs. Lifting Capacity
Kit Includes Slip Plates, Spacers, Ramps & Turntables

The Atlas PRO12K Heavy-Duty Commercial Four Post Lift incorporates many structural and cosmetic features that are found on lifts costing thousands of dollars more money. The Atlas PRO12K is tested to ensure that this lift system will perform flawlessly at its rated capacity. The Atlas PRO12K uses a high strength cable system (with a under runway oversized hydraulic cylinder) powered by a 220 volt (single phase) power unit to raise and lower the lift. Many competitors use an "old style" chain lifting system with an exposed hydraulic cylinder system. Old style chain lifts are difficult to "level" properly and the exposed hydraulic cylinder is responsible for numerous "door dings". The PRO12K also features "tracks" between the runways to allow the use of a rolling bridge jack (such as the Atlas RJ6BK) on the lift (Rolling Jacks Sold Separately).

This PRO12KA kit includes the Atlas PRO12K and an alignment kit consisting of slip plates, spacers, ramps, and turntables.

Features & Specs

Features

12,000 lbs. Lifting Capacity
Heavy Duty, Commercial Grade
High Strength Cable System
Under Runway Oversized Hydraulic Cylinder
Extra Tall, Extra Wide & Extra Long

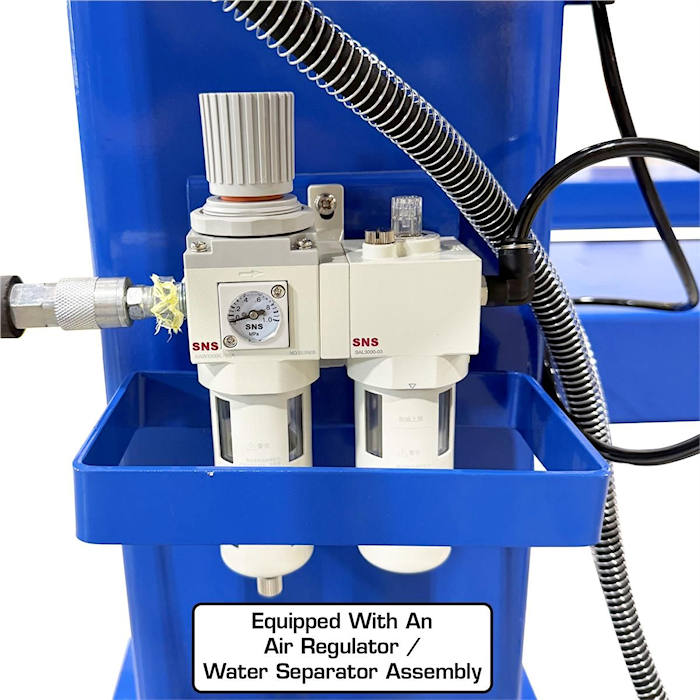

Air Operated Single Point Lock Release (External Air Supply Required)

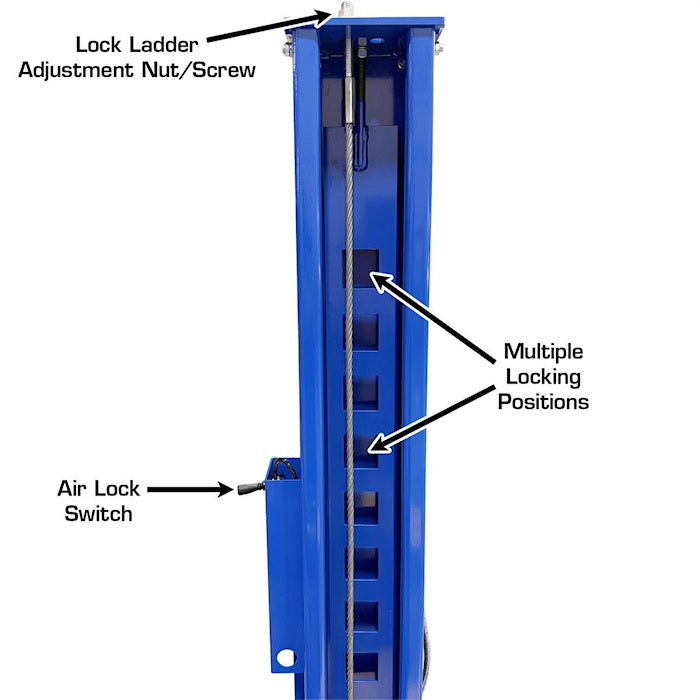

Lock Ladder Design
Double Lock Safety System
Steel Approach Ramps Included

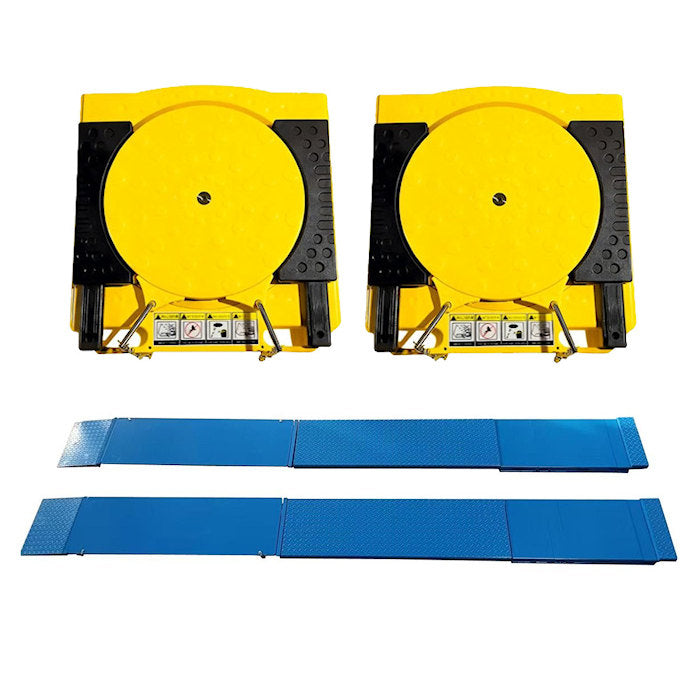

Alignment Kit Included (Slip Plates, Spacers, Ramps)
Heavy Duty Turntables Included
Mounting Hardware Included

Specifications

Lifting Capacity: 12,000 lbs.

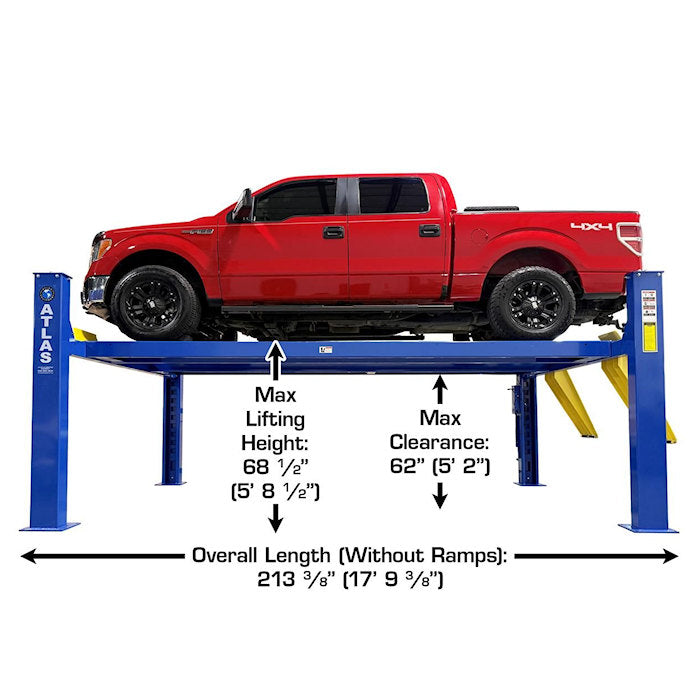

Lifting Height, Top Lock: 68 1/2" (5' 8 1/2")
Overall Width (w/ Motor): 141 7/16" (11' 9 7/16")

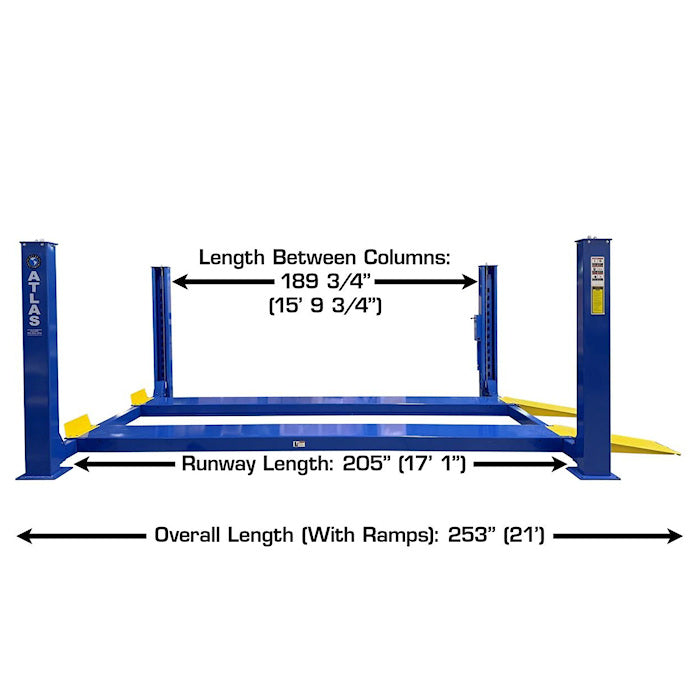

Overall Length (w/ Approach Ramps): 253" (21')
Runway Length: 205" (17' 1")
Length Between Columns: 189 3/4" (15' 9 3/4")
Runway Width: 20"
Width Between Runways: 42 1/2" - 46 1/2"
Outside Runway to Outside Runway: 62 1/2" - 66 1/2"
Width Between Columns: 114 13/16" (9' 6 13/16")
Drive Thru: 100" (8' 4")
Height of Columns: 89" (7' 5")
Clearance Under Runways, Top Lock: 61 1/2" (5' 1 1/2")
Air Requirement: 85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED)
Voltage: 220V 1PH
Electrical Requirement: 30 Amp Breaker Recommended
Oil Requirement: 3-5 Gallons AW32/AW46 (NOT INCLUDED)
Shipping Dimensions: 212" L x 22-1/2" W x 33" H
Additional Carton Dimensions: 37-1/2" L x 13" W x 10" H
Shipping Weight: 3,700 lbs.
Warranty: 5 Years Structure, 2 Years Hydraulic Power Units & Cylinders, No Labor

Requires a minimum of 6" of concrete with a 3000 PSI rating.

5 Year Structural & 2 Year Hydraulic Warranty
Atlas Platinum Series Two-Post Lifts are warranted for five (5) years on structural components and two (2) years on the hydraulic system, power unit and cylinders effective from date of invoice. Wear items carry a 90-day warranty. Structural components are considered the Carriage, Columns, Yokes, Arms, Runways, Plungers, etc. Hydraulic components are cylinders, hoses, and fittings. Cables, sheaves, latches and controls are considered wear items.

This LIMITED warranty policy does not include a labor warranty.

NOTE: ALL WARRANTY CLAIMS MUST BE PRE-APPROVED BY THE MANUFACTURER TO BE VALID.

The Manufacturer shall repair or replace at their option for this period those parts returned to the factory freight prepaid, which prove after inspection to be defective. This warranty will not apply unless the product is installed, used and maintained in accordance with the Manufacturers installation, operation and maintenance instructions.

This warranty applies to the ORIGINAL purchaser only, and is non-transferable. The warranty covers the products to be free of defects in material and workmanship but, does not cover normal maintenance or adjustments, damage or malfunction caused by: improper handling, installation, abuse, misuse, negligence, carelessness of operation or normal wear and tear. In addition, this warranty does not cover equipment when repairs or alterations have been made or attempted to the Manufacturer's products.
