Autel 419ALCRR1P 19K Closed Front Four Post Alignment Lift
In Stock SKU 419ALCRR1P UPC 849438087326
OUR PRICE: $39,539.00
Regular Price: $41,519.00
Short Description
Autel 419ALCRR1P 19K Four Post Alignment Lift
19,000 lbs. Capacity Closed Front ALI Certified
The Autel 419ALCRR1P 19K Closed Front Four Post Alignment Lift is an ALI-certified 19,000 lbs. capacity closed-front 4-post alignment lift and is designed for professional alignment service that requires increased load capacity within a compact footprint. The lift features an overall length of 257-7/8" with 210" runways, supporting vehicles up to 164" for four-wheel alignments and 193-1/2" for two-wheel alignments. Standard alignment equipment includes full-floating rear slip plates, stainless steel front radius plates, and UHMW turn plate pocket protectors to support accurate alignment procedures. The lift is equipped with (2) 9,000 lbs. heavy-duty air/hydraulic rolling jacks with integrated rail detents for precise positioning, each backed by a five-year parts warranty. Additional features include a center-mount air outlet kit, LED light kit, and tire inflation air kits at each wheel. Operation is supported by a 220-volt, single-phase power unit. Finished in black runways and baseframes, yellow front and rear ramps, and red columns, the lift is accented with a red Autel logo label. The 419ALCRR1P is made in North America and ALI Certified.

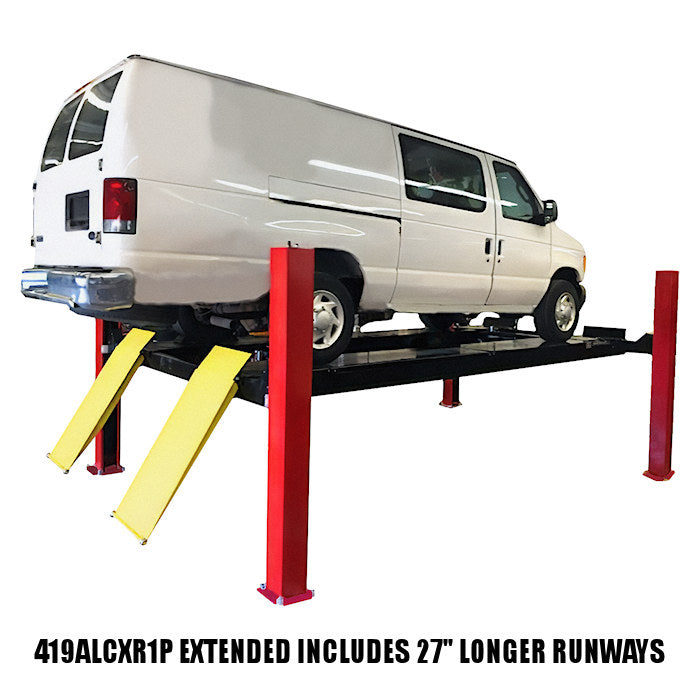

The Autel 419ALCXR1P extended includes 27" longer runways.
Model Selection:
419ALCRR1P With Standard Runways
419ALCXR1P With Extended Runways
CURRENT LEAD TIME 4-6 WEEKS
Description
Autel 419ALCRR1P 19K Four Post Alignment Lift
19,000 lbs. Capacity Closed Front ALI Certified
The Autel 419ALCRR1P 19K Closed Front Four Post Alignment Lift is an ALI-certified 19,000 lbs. capacity closed-front 4-post alignment lift and is designed for professional alignment service that requires increased load capacity within a compact footprint. The lift features an overall length of 257-7/8" with 210" runways, supporting vehicles up to 164" for four-wheel alignments and 193-1/2" for two-wheel alignments. Standard alignment equipment includes full-floating rear slip plates, stainless steel front radius plates, and UHMW turn plate pocket protectors to support accurate alignment procedures. The lift is equipped with (2) 9,000 lbs. heavy-duty air/hydraulic rolling jacks with integrated rail detents for precise positioning, each backed by a five-year parts warranty. Additional features include a center-mount air outlet kit, LED light kit, and tire inflation air kits at each wheel. Operation is supported by a 220-volt, single-phase power unit. Finished in black runways and baseframes, yellow front and rear ramps, and red columns, the lift is accented with a red Autel logo label. The 419ALCRR1P is made in North America and ALI Certified.
The Autel 419ALCXR1P extended includes 27" longer runways.
Model Selection:
419ALCRR1P With Standard Runways
419ALCXR1P With Extended Runways
Features & Specs
Features
- 19,000 lbs. Capacity Closed-Front Four Post Alignment Lift
- Overall Length 257-7/8" With 210" Runways
- Supports Up To 164" For Four Wheel Alignments
- Supports Up To 193-1/2" For Two Wheel Alignments
- Full Floating Rear Slip Plates
- Stainless Steel Front Radius Plates With UMHW Turn Plate Pocket Protector
- Includes (2) 9,000 lbs. Heavy-Duty Air Hydraulic Rolling Jacks With Integrated Rail Detents
- Includes Center-Mount Air Outlet Kit, LED Lighting System, And Tire Inflation Air Kits At Each Wheel

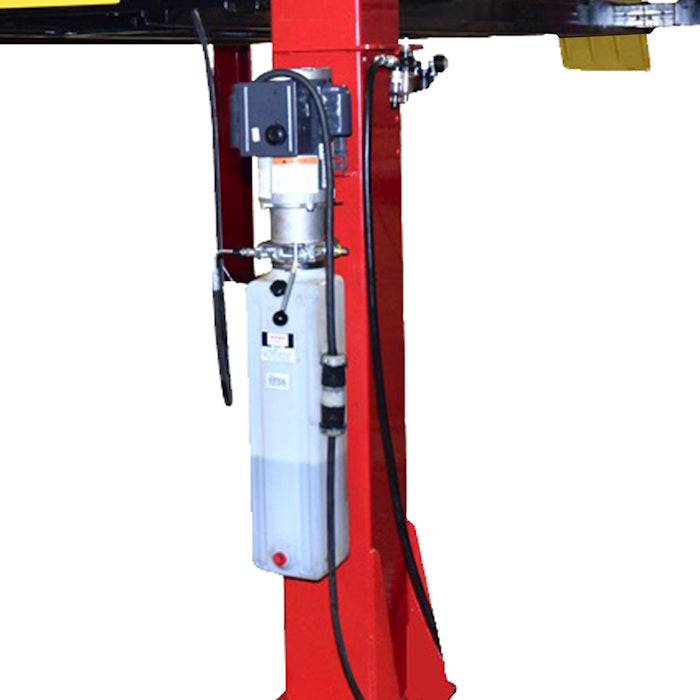

- 220-Volt Single-Phase Power Unit On Driver-Side Front Column
- Finished In Black Runways And Baseframes, Yellow Front And Rear Ramps, And Red Columns
- ALI Certified And Made In North America
Specifications
| Four Post Alignment Lift | 15K Capacity | 19K Capacity |
|---|---|---|
| Capacity | 15,000 lbs. (6.8 T) | 19,000 lbs. (8.6 T) |
| ALI Certification | Yes | Yes |
| Style | Open Front | Closed Front |
| Raised Height | 75" (1,905mm) | 74" (1,880mm) |
| Lowered Height | 8 3/8" (213mm) | 8 7/8" (225mm) |
| Overall Length Standard | 260 1/2" (6,617mm) | 274 3/8" (6,969mm) |
| Overall Length Extended | 287 1/2" (7,303mm) | 301 3/8" (7,655mm) |
| Deck Length Standard | 211" (5,359mm) | 211" (5,359mm) |
| Deck Length Extended | 238" (6,045mm) | 238" (6,045mm) |
| Width Between Runways | 41" (1,041mm) | 41" (1,041mm) |
| Runway Deck Width | 26" (660mm) | 26" (660mm) |
| Overall Width Front/Rear | 143" / 137 1/2" (3,632mm) / (3,493mm) |
150" (3,810mm) |
| Max Column Height | 101 1/2" (2,565mm) | 86" (2,184mm) |
| Min 4 Wheel Alignment WB | 84" (2,134mm) | 84" (2,134mm) |
| Max 4 Wheel Alignment WB | 164" (4,165mm) | 164" (4,165mm) |
| Min 2 Wheel Alignment WB Std | 177" (4,495mm) | 177" (4,495mm) |
| Max 2 Wheel Alignment WB Ext | 204" (5,181mm) | 204" (5,181mm) |
| Lift Time | 76 Seconds | 99 Seconds |
| Power Requirements | 230V 60HZ 1PH 25AMP | 230V 60HZ 1PH 25AMP |
| Included Jacking Beam | 2 x 7,500 lbs. (3.5 T) | 2 x 9,000 lbs. (4.1 T) |
| Shipping Weight | 5,600 lbs. (2,540kg) | 6,300 lbs. (2,857kg) |
| Part Numbers | 415ALORR1P Open 415ALOXR1P Open Ext |
419ALCRR1P Close 419ALCXR1P Closed Ext |
- Warranty: (3) Years on Lift, (5) Years Parts On Jacks, (90) Days on Accessories Turn Plates, Slip Plates and Bearings, Air Kit, and LED Light Kit
