Autel IWA500ACT Wheel Alignment System with Tablet & Cabinet
In Stock SKU IWA500ACT UPC 849438063696
OUR PRICE: $16,600.00
Regular Price: $17,329.00
Short Description
Autel IWA500ACT Wheel Alignment System with Tablet & Cabinet

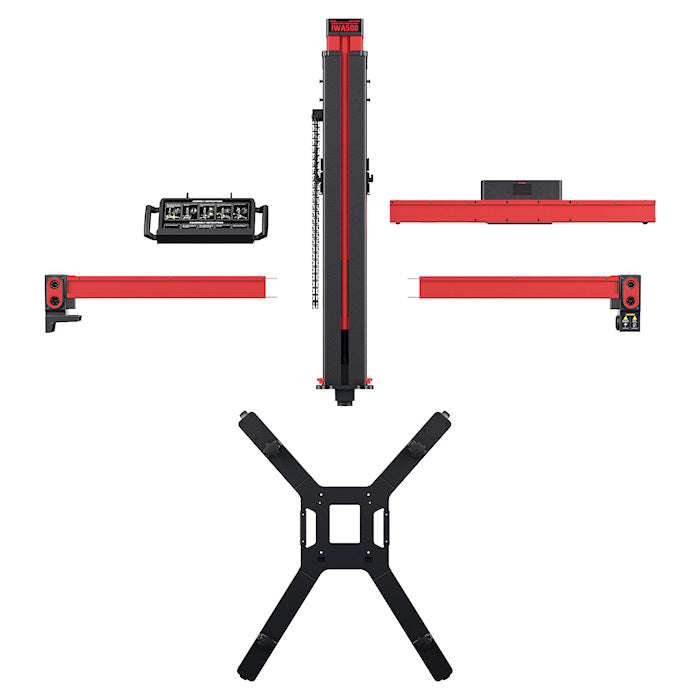

Alignment Frame, Set of 4 Rim Clamps, Tablet & Storage Cabinet

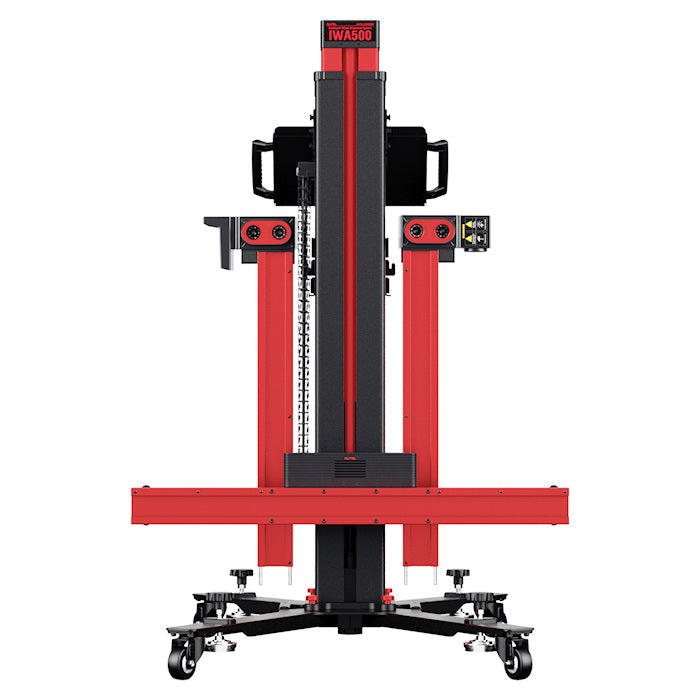

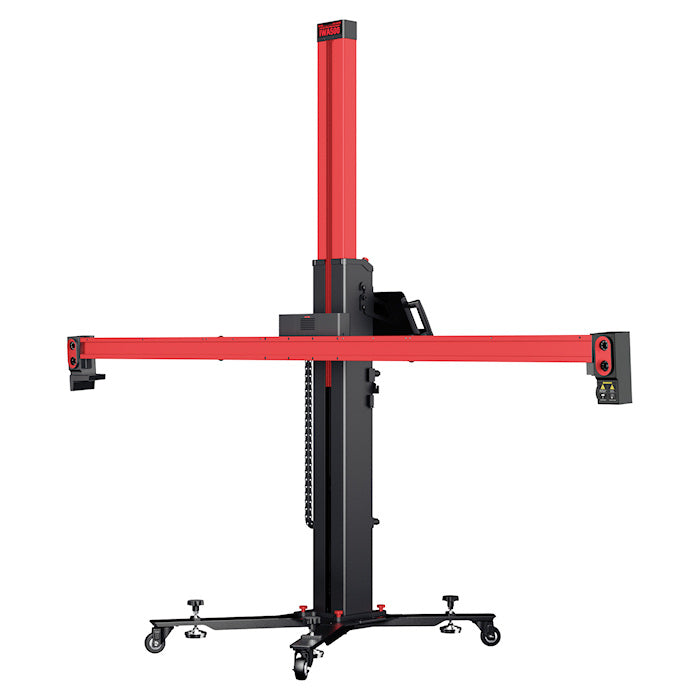

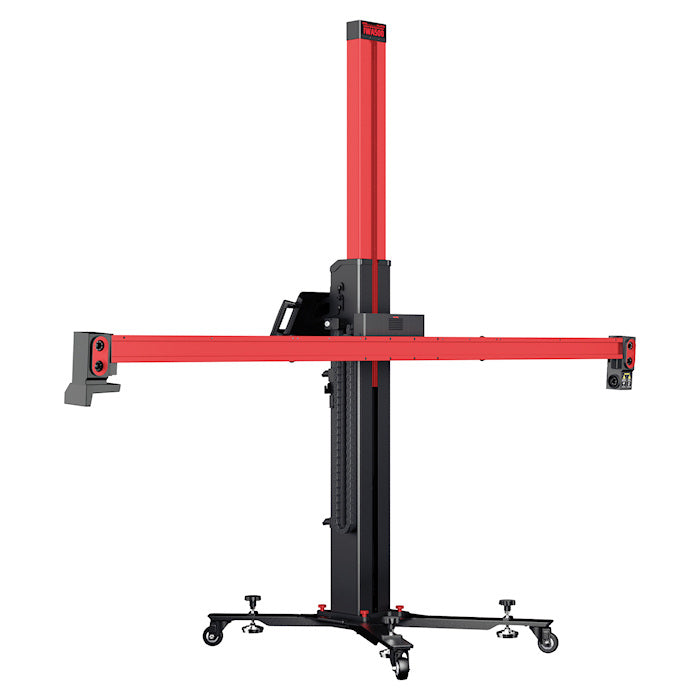

The Autel MaxiAlign IWA500ACT Wheel Alignment System with Tablet & Storage Cabinet is a purpose-built wheel alignment system engineered to do one thing extremely well: deliver fast, precise, and repeatable alignments. With broad vehicle coverage supporting U.S., Asian, and European models from 1975 to current production, its advanced guided workflow begins with server-based vehicle identification, followed by a comprehensive all-systems pre-scan, undercarriage inspection, and tire tread depth and pressure analysis to ensure optimal alignment conditions. Using a mobile five-camera frame, the IWA500 performs standard alignment measurements (rolling diameter, symmetry values) as well as advanced, precise checks such as bump steer, raised-vehicle analysis, wheel-off adjustment, and MaxiToe - Autel's innovative toe-adjustment feature that ensures a perfectly centered steering wheel without a holder. Fully portable from bay to bay, the IWA500 reduces setup and alignment time, delivers real-time feedback for rapid corrections, and streamlines verification and reporting, making it a high-value, high-throughput alignment solution for professional shops.

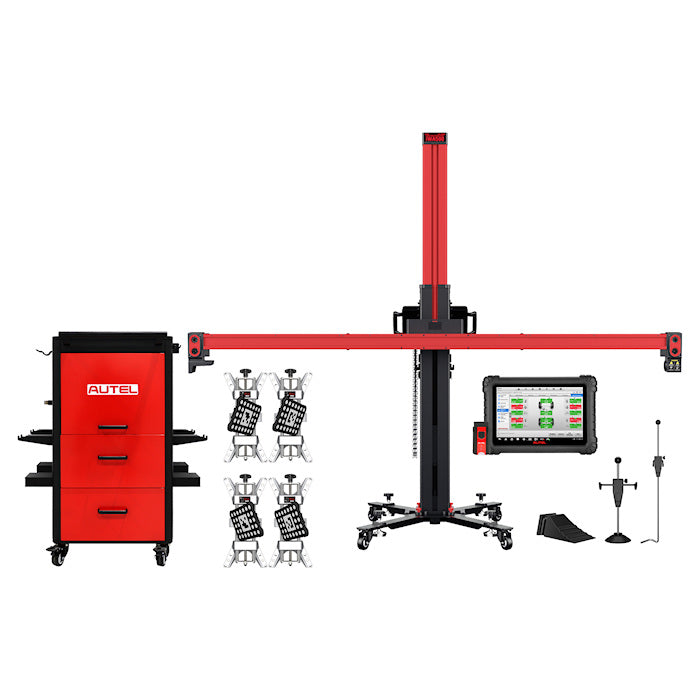

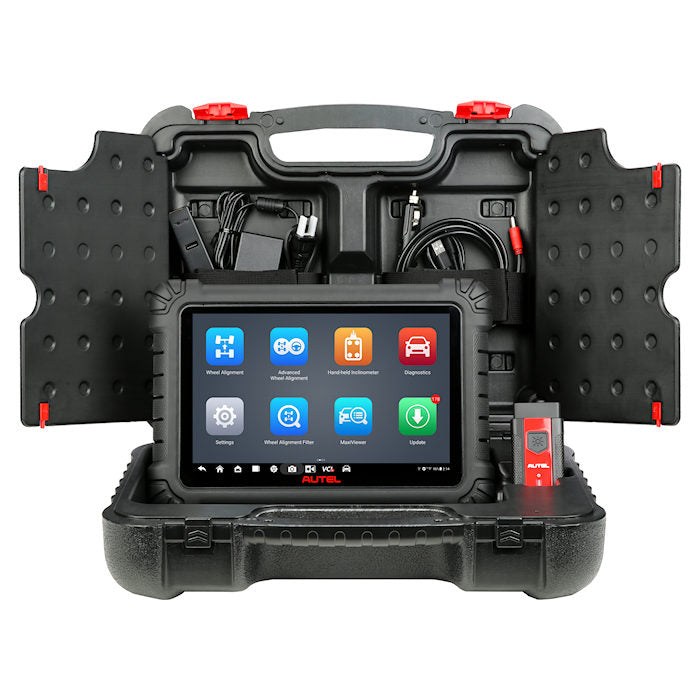

The system includes a 10.1-inch touchscreen wireless MaxiAlign IWA500 tablet with Bluetooth MaxiVCI V200, four tire rim clamps with positioning targets, and essential accessories, including two wheel chocks, a brake pedal depressor, a steering wheel holder stand tool, an equipment cover, a tablet holder, and AC and 12/24 V power cords. Compatible with Autel’s Bluetooth-enabled hand-held Inclinometer to aid alignment on Mercedes-Benz vehicles. The IWA500 produces highly detailed, validated alignment reports that are easy to save, print, or share digitally. The tablet comes with a year of software updates, and the system, including the tablet and the cabinet, is covered by a one-year limited warranty. Purchase of an IWA500 system Includes virtual setup and onboarding training conducted by an Autel ADAS expert.
Description
Autel IWA500ACT Wheel Alignment System with Tablet & Cabinet

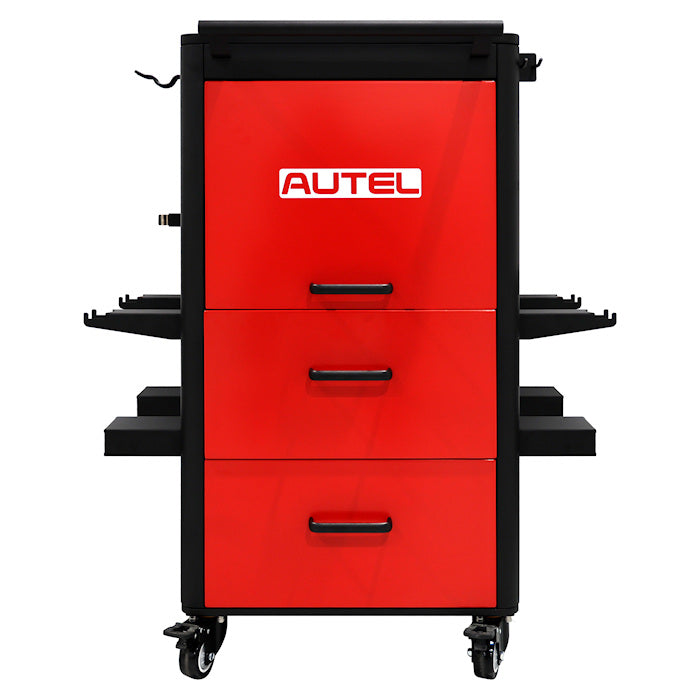

Alignment Frame, Set of 4 Rim Clamps, Tablet & Storage Cabinet

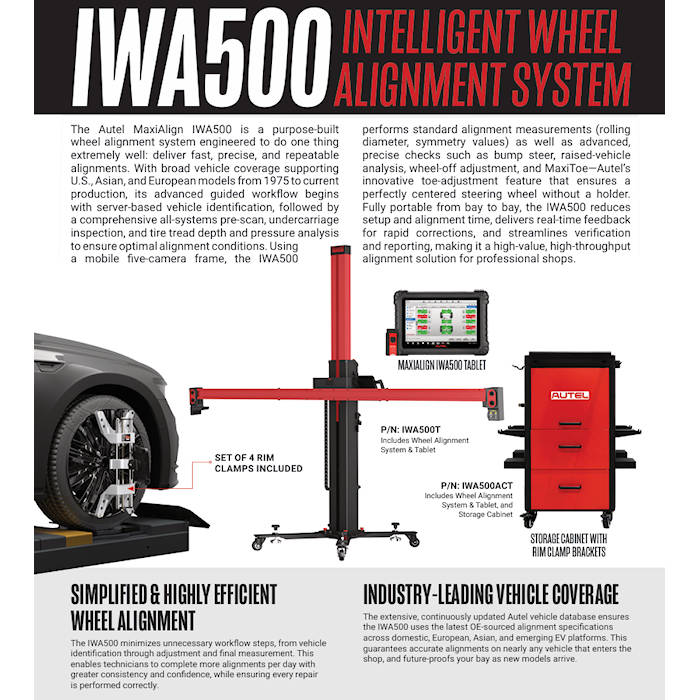

The Autel MaxiAlign IWA500ACT Wheel Alignment System with Tablet & Storage Cabinet is a purpose-built wheel alignment system engineered to do one thing extremely well: deliver fast, precise, and repeatable alignments. With broad vehicle coverage supporting U.S., Asian, and European models from 1975 to current production, its advanced guided workflow begins with server-based vehicle identification, followed by a comprehensive all-systems pre-scan, undercarriage inspection, and tire tread depth and pressure analysis to ensure optimal alignment conditions. Using a mobile five-camera frame, the IWA500 performs standard alignment measurements (rolling diameter, symmetry values) as well as advanced, precise checks such as bump steer, raised-vehicle analysis, wheel-off adjustment, and MaxiToe - Autel's innovative toe-adjustment feature that ensures a perfectly centered steering wheel without a holder. Fully portable from bay to bay, the IWA500 reduces setup and alignment time, delivers real-time feedback for rapid corrections, and streamlines verification and reporting, making it a high-value, high-throughput alignment solution for professional shops.
The system includes a 10.1-inch touchscreen wireless MaxiAlign IWA500 tablet with Bluetooth MaxiVCI V200, four tire rim clamps with positioning targets, and essential accessories, including two wheel chocks, a brake pedal depressor, a steering wheel holder stand tool, an equipment cover, a tablet holder, and AC and 12/24 V power cords. Compatible with Autel’s Bluetooth-enabled hand-held Inclinometer to aid alignment on Mercedes-Benz vehicles. The IWA500 produces highly detailed, validated alignment reports that are easy to save, print, or share digitally. The tablet comes with a year of software updates, and the system, including the tablet and the cabinet, is covered by a one-year limited warranty. Purchase of an IWA500 system Includes virtual setup and onboarding training conducted by an Autel ADAS expert.
Fast. Accurate. Affordable.
Comparable Quality & Accuracy at Half the Cost of the Competition
Simplified & Highly Efficient Wheel Alignment
The IWA500 minimizes unnecessary workflow steps, from vehicle identification through adjustment and final measurement. This enables technicians to complete more alignments per day with greater consistency and confidence, while ensuring every repair is performed correctly.

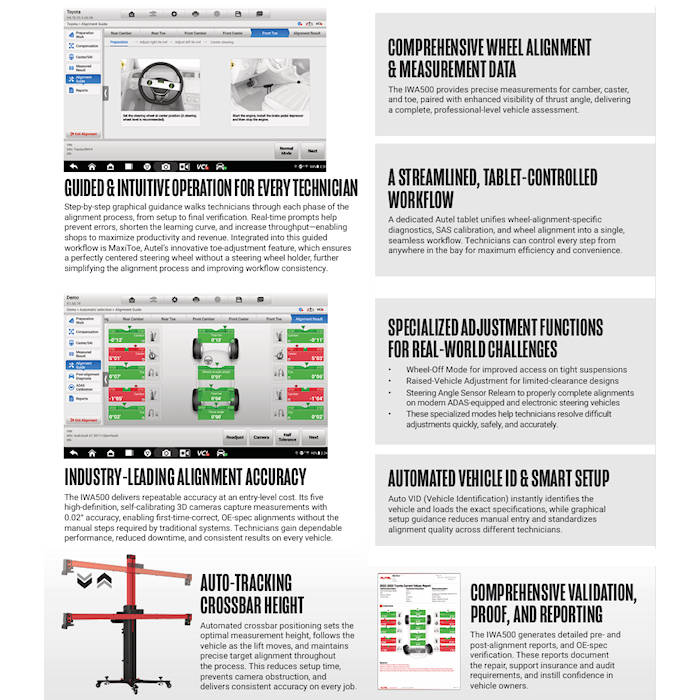

Comprehensive Alignment & Measurement Data
The IWA500 provides precise measurements for camber, caster, and toe, paired with enhanced visibility of thrust angle, delivering a complete, professional-level vehicle assessment.
Automated Vehicle ID & Smart Setup
Auto VID (Vehicle Identification) instantly identifies the vehicle and loads the exact specifications, while graphical setup guidance reduces manual entry and standardizes alignment quality across different technicians.
Guided & Intuitive Operation For Every Technician
Step-by-step graphical guidance walks technicians through each phase of the alignment process, from setup to final verification. Real-time prompts help prevent errors, shorten the learning curve, and increase throughput - enabling shops to maximize productivity and revenue. Integrated into this guided workflow is MaxiToe, Autel's innovative toe-adjustment feature, which ensures a perfectly centered steering wheel without a steering wheel holder, further simplifying the alignment process and improving workflow consistency.
Industry-Leading Alignment Accuracy
The IWA500 delivers repeatable accuracy at an entry-level cost. Its five high-definition, self-calibrating 3D cameras capture measurements with 0.02° accuracy, enabling first-time-correct, OE-spec alignments without the manual steps required by traditional systems.Technicians gain dependable performance, reduced downtime, and consistent results on every vehicle.

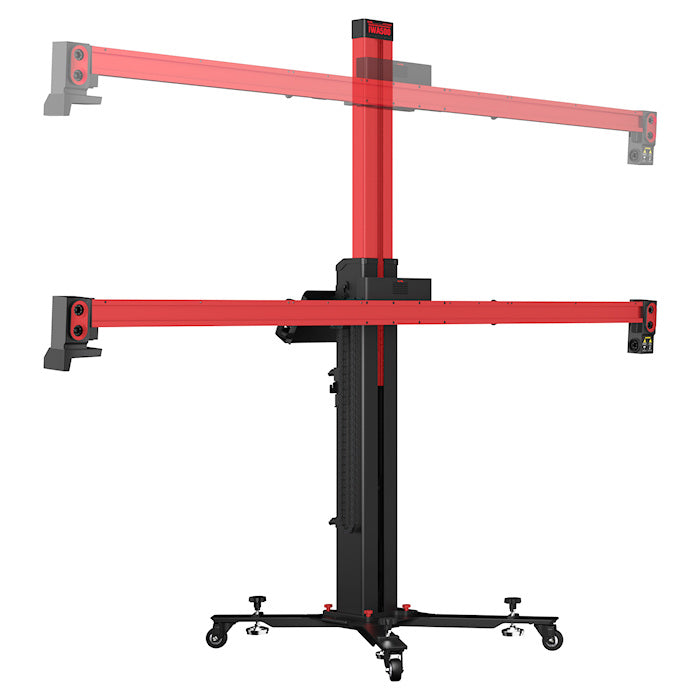

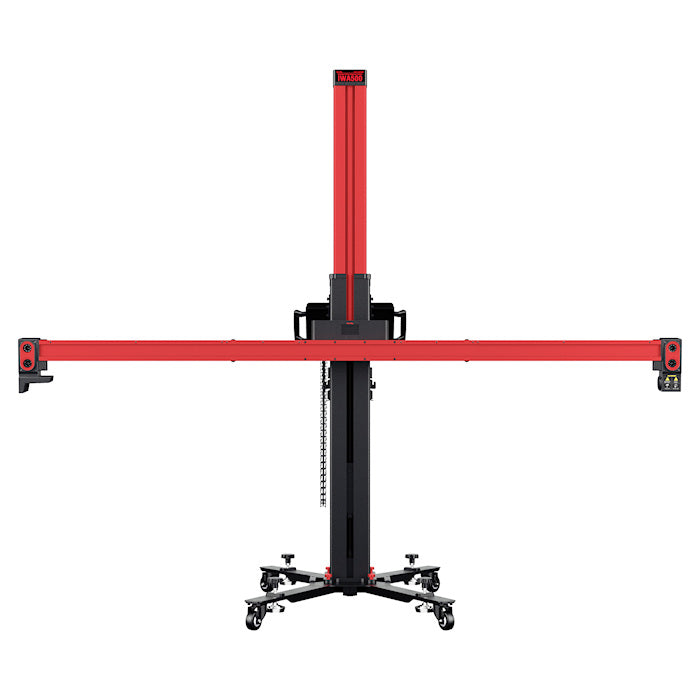

Auto-Tracking Crossbar Height

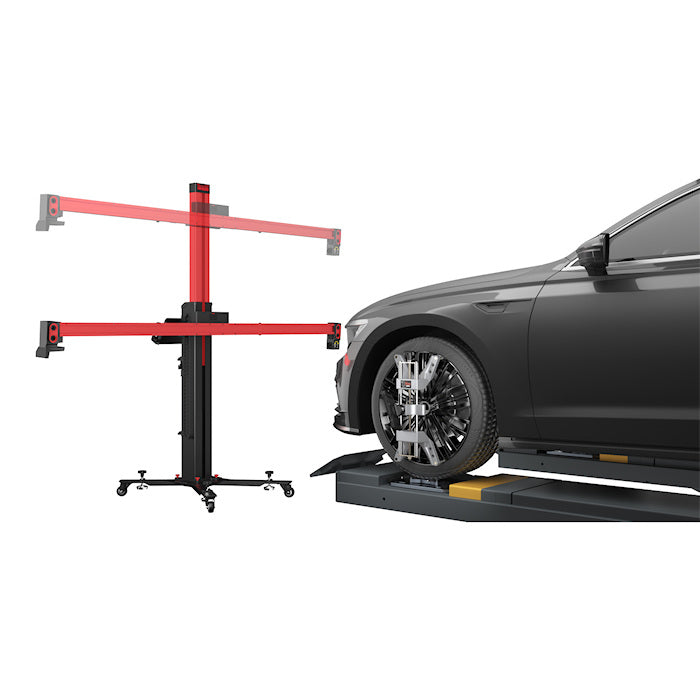

Automated crossbar positioning sets the optimal measurement height, follows the vehicle as the lift moves, and maintains precise target alignment throughout the process. This reduces setup time, prevents camera obstruction, and delivers consistent accuracy on every job.

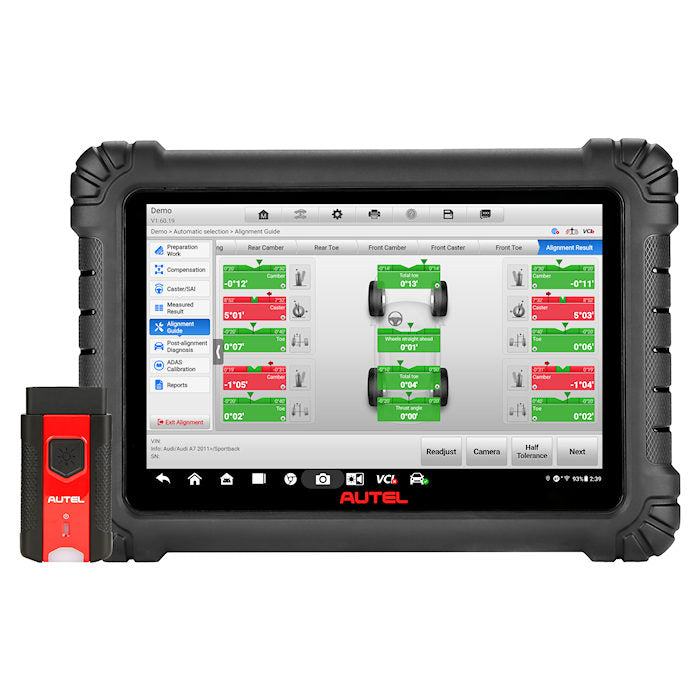

A Streamlined, Tablet-Controlled Workflow
A dedicated Autel tablet unifies wheel-alignment-specific diagnostics, SAS calibration, and wheel alignment into a single, seamless workflow. Technicians can control every step from anywhere in the bay for maximum efficiency and convenience.
Specialized Adjustments for Real-World Challenges
- Wheel-Off Mode for improved access on tight suspensions
- Raised-Vehicle Adjustment for limited-clearance designs
- Steering Angle Sensor Relearn to properly complete alignments on modern ADAS-equipped and electronic steering vehicles
- These specialized modes help technicians resolve difficult adjustments quickly, safely, and accurately
Comprehensive Validation, Proof, and Reporting
The IWA500 generates detailed pre- and post-alignment reports, and OE-spec verification. These reports document the repair, support insurance and audit requirements, and instill confidence in vehicle owners.
Industry-Leading Vehicle Coverage
The extensive, continuously updated Autel vehicle database ensures the IWA500 uses the latest OE-sourced alignment specifications across domestic, European, Asian, and emerging EV platforms. This guarantees accurate alignments on nearly any vehicle that enters the shop, and future-proofs your bay as new models arrive.
Alignment Accessories Improve Shop Efficiency
To maximize the performance of the Autel IWA500, we recommend a selection of accessories designed to streamline wheel alignment across a wide range of vehicle. The Camera Calibration Bar, Ride Height Target, Tire Clamps, Calibration Bar R and T Mounts, and Hand-Held Inclinometer work together to enhance accuracy, simplify setup, and reduce alignment time.
Adding these accessories helps technicians complete alignments more efficiently while maintaining precise alignment standards.
- 500-10 Camera Calibration Bar
- 500-20 Ride Height Target
- 500-17 Tire Clamps
- 500-12 Calibration Bar R and T Mounts
- 500-29 Hand-Held Inclinometer
The purchase of an IWA500 system includes virtual setup and onboarding training conducted by an Autel ADAS expert. In-shop training is not included with this system.
Features & Specs
Features
- Free Virtual Training Included With An Autel Alignment Specialist
- Standard Alignment System Focused On Speed, Precision, And Repeatability
- Broad Vehicle Coverage: U.S., Asian, And European Models From 1975–Current
- Guided Workflow With Server-Based Vehicle Identification And Oem Alignment Specifications
- Includes 10.1-Inch Touchscreen Wireless Maxialign Iwa500 Tablet With Bluetooth Maxivci V200
- Mobile Five-Camera System Delivers Real-Time, Highly Accurate Measurements. Bay-To-Bay Portability Maximizes Shop Flexibility And Uptime. Faster Setups And Adjustments With Real-Time Feedback
- Core Alignment Measurements, Including Rolling Diameter And Symmetry Values And Advanced Measurements Such As Bump Steer, Raised Vehicle Checks, And Wheel-Off Adjustment
- Maxitoe Technology Centers The Steering Wheel Without A Holder. Supports Sas Calibration And Other Oem-Required Post-Alignment Tasks
- Highly Detailed, Validated Alignment Reports That Are Easy To Save, Print, Or Share Digitally
- Includes Four Rim Clamps With Positioning Targets And Essential Accessories: Two Wheel Chocks, Brake Pedal Depressor, Steering Wheel Holder Stand Tool, Equipment Cover, Tablet Holder, And Ac And 12/24 V Power Cords One Year Of Tablet Software Updates And Limited Warranty Coverage
Specifications
- Shipping Dimensions: 44" W x 83" L x 54" H
- Shipping Weight: 535 lbs.
- Warranty: One Year Limited
One-Year Limited Warranty
Autel warrants to its customers that this product will be free from all defects in materials and workmanship for a period of one (1) year from the date of the original purchase, subject to the following terms and conditions:
- The sole responsibility of Autel under the Warranty is limited to either the repair or, at the option of Autel, replacement of the scan tool at no charge with Proof of Purchase. The sales receipt may be used for this purpose.
- This warranty does not apply to damages caused by improper use, accident, flood, lightning, or if the product was altered or repaired by anyone other than the Manufacturer Service Center.
- Autel shall not be liable for any incidental or consequential damages arising from the use, misuse, or mounting of the scan tool. Some states do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you.
- All information in this manual is based on the latest information available at the time of publication and no warranty can be made for its accuracy or completeness. Autel reserves the right to make changes at any time without notice.
Repair Cost: If under warranty, your Autel tool will be repaired or replaced free of charge unless damaged (including but not limited to a cracked screen, broken case, chemical exposure or liquid damage) to accident, abuse, misuse, natural disaster, insufficient or excessive electrical supply, abnormal mechanical or environmental conditions or unauthorized disassembly, repair or modification. If the repaired unit is out of warranty, the customer will be contacted and will be responsible for the repair fee.
Accessories/Options

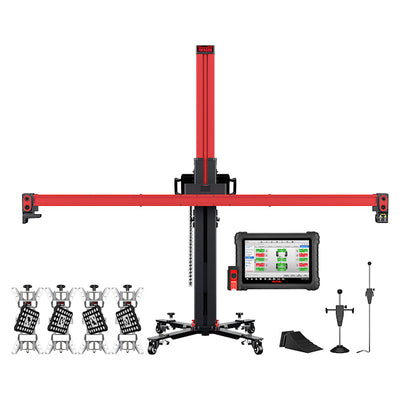

Autel IWA500T Wheel Alignment System with Tablet
