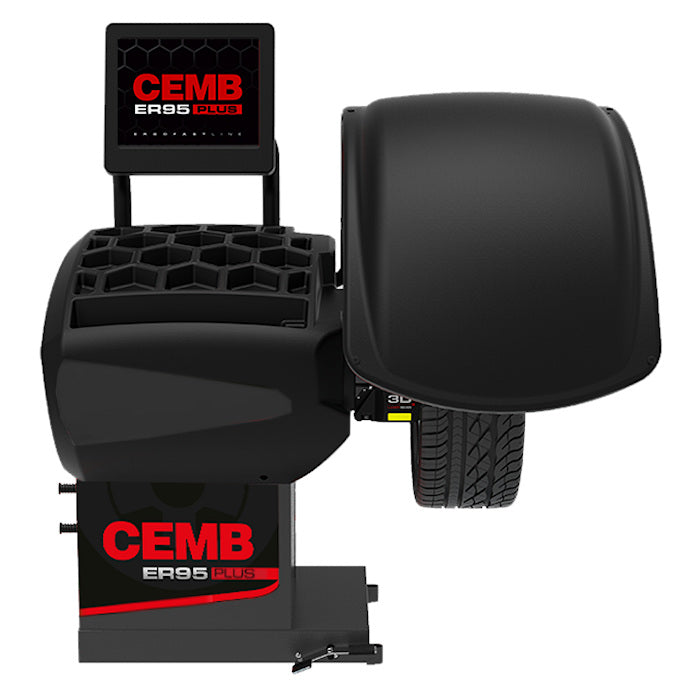

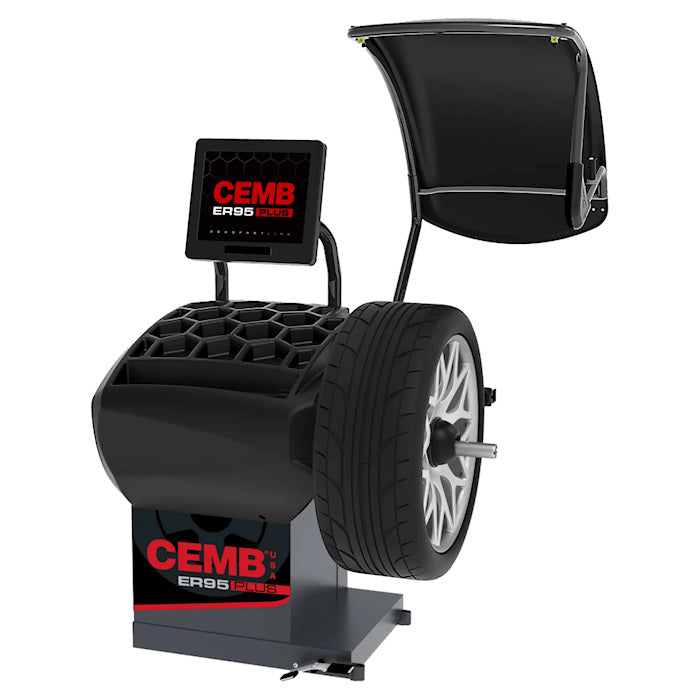

CEMB ER95PLUS Super Automatic Wheel Balancer

Name: CEMB ER95PLUS Super Automatic Wheel Balancer
Brand: CEMB
SKU: ER95PLUS
Price: 12499.00 USD
Availability: InStock

In Stock SKU ER95PLUS

OUR PRICE: $12,499.00

Regular Price: ~~$13,129.00~~

$347.19 / mo

INCLUDES FREE SHIPPING*

Short Description

CEMB ER95PLUS Super Automatic Wheel Balancer
Fastest Fully Automatic Balancing Machine In The World
The CEMB ER95PLUS Super Automatic Wheel Balancer is equipped with innovative technologies for auto diagnostics and vibration reduction, such as 3D Laser Scan, AutoAdaptive Mode, and the OPB system, the ER95 PLUS is an ideal solution for garages and tire shops that want to optimize daily performance while investing in productivity and reliability. The ER95PLUS is the all new upgrade to the ER90 wheel balancer, redesigned to combine operational speed, maximum precision and ease of use.

Description

CEMB ER95PLUS Super Automatic Wheel Balancer
Fastest Fully Automatic Balancing Machine In The World

The CEMB ER95PLUS Super Automatic Wheel Balancer is equipped with innovative technologies for auto diagnostics and vibration reduction, such as 3D Laser Scan, AutoAdaptive Mode, and the OPB system, the ER95 PLUS is an ideal solution for garages and tire shops that want to optimize daily performance while investing in productivity and reliability. The ER95PLUS is the all new upgrade to the ER90 wheel balancer, redesigned to combine operational speed, maximum precision and ease of use.

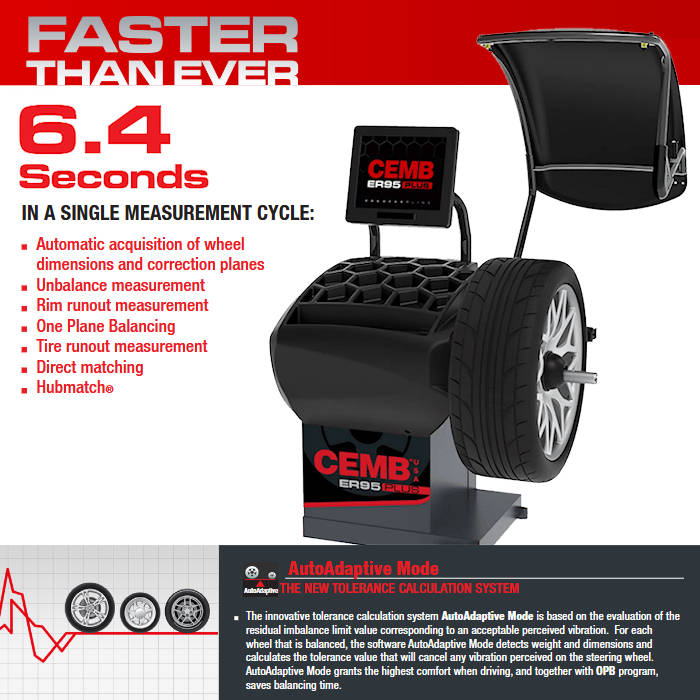

Faster Than Ever

The fastest fully automatic balancing machine in the world! In a 6.4-second measurement runout and without any operator intervention, it can automatically detect wheel size and correction planes, rim and tire imbalance and runout, with Direct Matching and Hubmatch indication.

CEMB's AutoAdaptive Mode software measures the wheel's weight and dimensions and then recalculates the tolerance value so as to cancel any vibration perceived on the steering wheel, ensuring the greatest possible driving comfort. CEMB's OPB (One Plane Balancing) program, 3D Laser Scan and HubMatch, clock the RFV highpoint of the assembly to the vehicle hub before mounting it at the 12 o'clock position. All these features guarantee significant time savings during the balancing process. Also included is a TDC Laser (Top Dead Center) for steel rims.

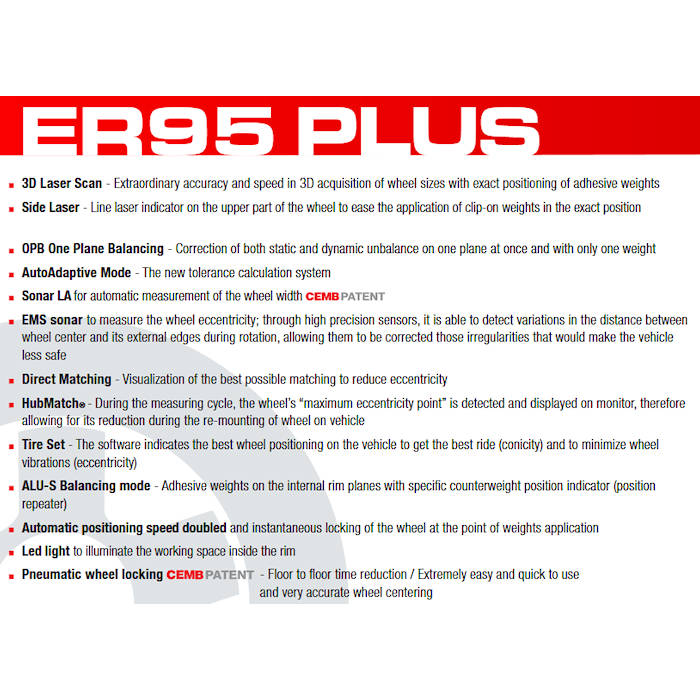

3D Laser Scan - Extraordinary accuracy and speed in 3D acquisition of wheel sizes with exact positioning of adhesive weights
Side Laser - Line laser indicator on the upper part of the wheel to ease the application of clip-on weights in the exact position
OPB One Plane Balancing (OPB) - Correction of both static and dynamic unbalance on one plane at once and with only one weight
AutoAdaptive Mode - The new tolerance calculation system
Sonar LA CEMB Patent for automatic measurement of the wheel width
EMS Sonar to measure the wheel eccentricity; through high precision sensors, it is able to detect variations in the distance between wheel center and its external edges during rotation, allowing them to be corrected those irregularities that would make the vehicle less safe
Direct Matching - Visualization of the best possible matching to reduce eccentricity
HubMatch - During the measuring cycle, the wheel's "maximum eccentricity point" is detected and displayed on monitor, therefore allowing for its reduction during the re-mounting of wheel on vehicle
Tire Set - The software indicates the best wheel positioning on the vehicle to get the best ride (conicity) and to minimize wheel vibrations (eccentricity)
ALU-S Balancing Mode - Adhesive weights on the internal rim planes with specific counterweight position indicator (position repeater)
Automatic Positioning Speed Doubled and instantaneous locking of the wheel at the point of weights application
LED Light to illuminate the working space inside the rim
Pneumatic Wheel Locking CEMB Patent - Floor to floor time reduction / Extremely easy and quick to use and very accurate wheel centering

One Plane Balancing - Where Innovation Meets Simplicity
OPB (One Plane Balancing), eliminates both static and dynamic unbalance with a single counterweight, indicating the exact position to apply the weight inside the rim. The balancer automatically detects if it is possible to correct both unbalances with only one weight and activates OPB program. A real revolution in wheel balancing. OPB saves you time while maximizing your productivity.

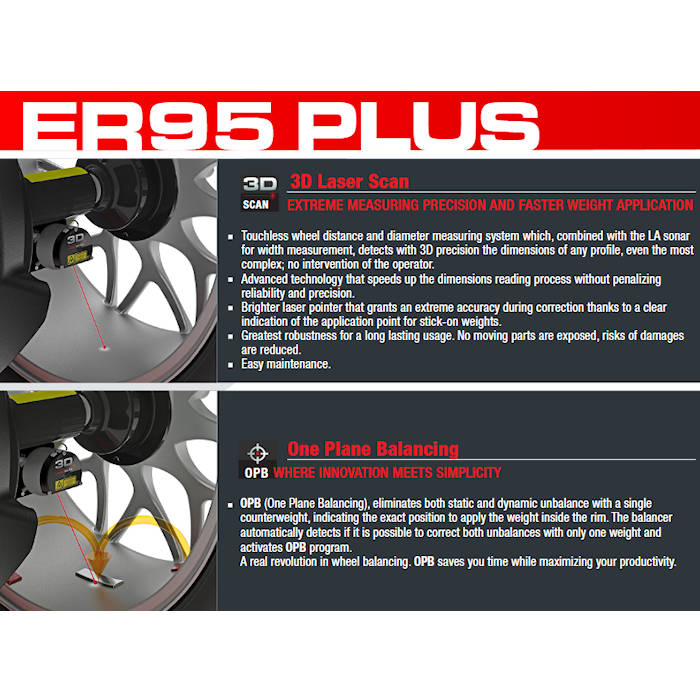

3D Laser Scan - Extreme Measuring Precision And Faster Weight Application

Touchless wheel distance and diameter measuring system which, combined with the LA sonar for width measurement, detects with 3D precision the dimensions of any profile, even the most complex; no intervention of the operator.
Advanced technology that speeds up the dimensions reading process without penalizing reliability and precision.
Brighter laser pointer that grants an extreme accuracy during correction thanks to a clear indication of the application point for stick-on weights.
Greatest robustness for a long lasting usage. No moving parts are exposed, risks of damages are reduced.
Easy maintenance.

AutoAdaptive Mode - The New Tolerance Calculation System
The innovative tolerance calculation system AutoAdaptive Mode is based on the evaluation of the residual imbalance limit value corresponding to an acceptable perceived vibration. For each wheel that is balanced, the software AutoAdaptive Mode detects weight and dimensions and calculates the tolerance value that will cancel any vibration perceived on the steering wheel. AutoAdaptive Mode grants the highest comfort when driving, and together with OPB program, saves balancing time.

Automatic Approach
In a single 6.4-second measurement runout and without any operator intervention, it can automatically detect wheel size and correction planes, rim and tire imbalance and runout, with Direct Matching and Hubmatch indication.

Detection Of Wheel Data
The automatic gauge for distance and diameter input (up to 28" rims) and the LA Sonar device for wheel width measurement allow an immediate detection of all necessary wheel parameters.

Hubmatch (The New Guided On-Car Eccentricity Cancellation Process)
In one single spin, HubMatch detects the unbalance as well as the highest point of the wheel (1st harmonics), and displays it on-screen to enable mounting of wheel on vehicle so that simply matching mechanical clearances when positioning the rim on the hub will eliminate the eccentricity.

Automatic Positioning with electromagnetic brake for an immediate locking of the wheel in weight position.

Panel With Touch System, innovative, simple and durable. Allows intuitive use of all machine functions.

Features & Specs

Features

3D Laser Scan
Side Laser
One Plane Balancing (OPB)
AutoAdaptive Mode
Sonar LA
EMS Sonar
Direct Matching
HubMatch
Tire Set
ALU-S Balancing Mode
Automatic Positioning System
LED Light
Pneumatic Wheel Locking
Ergonomic Design
Electromagnetic Brake

Standard Accessories

#41FF034417 Ring, Quick Locking Sleeve SE2, SE Spacer
#41FF030594 4 Cones Kit Ø 45÷110 mm, pincer-hammer and 60 g counterweight

Optional Accessories

#41FF03151 Accessory Rack
#41FFA6478 Manual Pin Plate Adapter
#41FFA5298 Pneumatic Pin Plate Adapter
#41FF86174 2-Piece Truck Cone Kit
#46FL85170 Pneumatic Wheel Lift

#PROKIT Optional Pro Accessory Kit

#41FFA6478 Manual Pin Plate Adapter
#41FFA5298 Pneumatic Pin Plate Adapter
#41FF86174 2-Piece Truck Cone Kit

#PROPLUS Optional Pro Plus Accessory Kit

#41FFA6478 Manual Pin Plate Adapter
#41FFA5298 Pneumatic Pin Plate Adapter
#41FF86174 2-Piece Truck Cone Kit
#46FL85170 Pneumatic Wheel Lift
#41FF03151 Accessory Rack

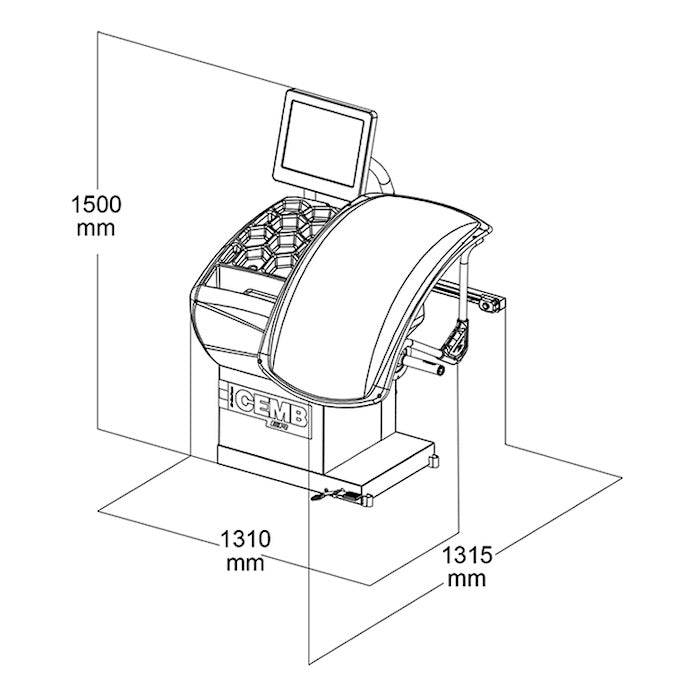

Specifications

Power Supply: 220V 1PH Air
Wheel Clamping Type: Pneumatic 120 PSI
Max. Tire Diameter: 42" (1016 mm)
Max. Rim Diameter: 30" (765 mm)
Max. Rim Width: 20" (510 mm)
Max. Wheel Weight: 165 lbs. (75 kg)
Balancing Speed: 100 RPM
Machine Weight: 485 lbs. (220 kg)
Warranty: (2) Years on Parts, (1) Year Labor
