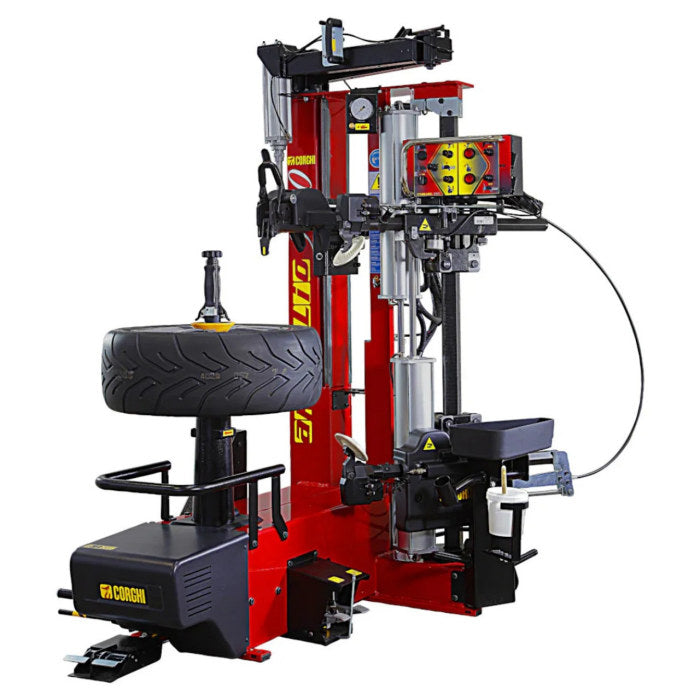

Corghi A5000 Artiglio 5000 Leverless 28" Tire Changer

Name: Corghi A5000 Artiglio 5000 Leverless 28" Tire Changer
Brand: Corghi
SKU: 0-11118834/00
Price: 19050.00 USD
Availability: InStock

In Stock SKU 0-11118834/00

OUR PRICE: $19,050.00

Regular Price: ~~$20,009.00~~

$509.00 / mo

INCLUDES FREE SHIPPING*

Short Description

Corghi A5000 Artiglio 5000 Leverless Contactless
28" Automatic Tire Changer
The Corghi A5000 Artiglio 5000 Leverless Contactless Automatic 28" Tire Changer incorporates 3rd generation "Leva la leva" (Without Lever) technology for vehicle, SUV, and commercial vehicles wheels up to 28". The new demounting tool with LITE Smart Corghi System movement reduces the stress on the tire and NEVER touches the rim. Numerous technical innovations: dynamic bead breaking device with double bead breaker disc, newly designed head unit (Patent Pending), wheel clamping with wheel support plate, optimised performance, reinforced structure, excellent ergonomics and user-friendly commands.

Description

Corghi USA

Corghi A5000 Artiglio 5000 Leverless Contactless |
28" Automatic Tire Changer

The Corghi A5000 Artiglio 5000 Leverless Contactless Automatic 28" Tire Changer incorporates 3rd generation "Leva la leva" (Without Lever) technology for vehicle, SUV, and commercial vehicles wheels up to 28". The new demounting tool with LITE Smart Corghi System movement reduces the stress on the tire and NEVER touches the rim. Numerous technical innovations: dynamic bead breaking device with double bead breaker disc, newly designed head unit (Patent Pending), wheel clamping with wheel support plate, optimised performance, reinforced structure, excellent ergonomics and user-friendly commands.

Header mounting and demounting unit with TOUCHLESS innovating solution. The new automatic positioning header based on a new and patented concept, allows demounting and mounting the tire in a very simple way, without ever coming into contact with the rim (TOUCHLESS) and reduces the tire pressures in the most demanding phases. Dynamic bead breaking device with dual opposed bead breaking discs. The quick wheel locking, excellent operating ergonomics and the control console provide an efficient, easy and quick operation of this new and innovative machine.

All of this means a faster operating speed without risks for the operator and the rims, even during the most critical phases, plus great ease of use and universality - for equipment whose features can be used to the fullest.

Artiglio 5000
New automatic tire changer with 3nd generation "Leva la leva" (Without lever) technology for vehicle, SUV and commercial vehicles wheels up to 28". The new demounting tool with LITE SMART CORGHI SYSTEM movement reduces the stress on the tire and NEVER touches the wheel. Numerous technical innovations: dynamic bead breaking device with double bead breaker disc, newly designed head unit (Patent Pending), wheel clamping with wheel support plate, optimised performance, reinforced structure, excellent ergonomics and userfriendly commands. All of this means a faster operating speed without risks for the operator and the wheels, even during the most critical phases, plus great ease of use and universality - for equipment whose features can be used to the fullest.

Console
Intuitive and complete - The multifunctional control console contains all the operating controls. Ideal for dynamic bead breaking and for wheel and tire match mounting, thanks to the two dual control discs.

Dynamic Bead-Breaking Device With Controlled Penetration
Dynamic bead breaking device with dual specular bead breaker disc. The radial positioning of the discs is made easier by an automatism that is able to prevent any manual positioning by the operator. Controlled penetration (Patented) - Precision, rapidity and repeatability are guaranteed by the patented bead breaking system and by the perfectly synchronised and symmetrical motions of the two discs.

Quick Demounting Procedure For The Second Bead
Quick demounting procedure for the second bead, thanks to the movement of our patented disc that's particularly suitable for tires with hard walls.

Motoinverter Drive System
"During Rotation the Torque for Every Speed"

Head Unit - No Contact With The Wheel, Reduced Stress On The Tire
Mounting and demounting head unit with the innovative Contactless solution (Patent Pending). The newly designed and patented automatically positioned head allows the tire to be mounted and demounted in a very simple way, without ever touching the wheel (Contactless), and reduces the stress on the tire during the most critical phases. Dynamic bead breaking device with double and specular bead breaker disc, quick wheel clamping, optimum ergonomics of the work procedure and control panel for the efficient, quick and easy use of this innovative new machine.

Tilting Mounting Tool
Thanks to a specific command, the tilting demounting tool ensures the quick, effective positioning of the head. This means great speed and efficient performance.

Emergency Hook
The rotation of the tool makes it easier to install the bead on the wheel (for extra-soft tires).

Bead Depressor
Bead depressor with adjustable working height.
The depressor shape is ideal for RFT tires and can also be used to hold the tire up.
"Run Flat - No Problem!"

Ergonomics
Machine working height designed to obtain perfect ergonomic movement with all wheel types: Ideal for all operators. Wheel stays at a constant height. All machine movement controls are conveniently at hand for the operator.
*Except for reverse wheels.

Features & Specs

Features

Automatic 28" Leverless Tire Changer With Contactless Technology
LITE Smart Corghi System Reduces Stress On The Tire
Dynamic Bead-Breaking Device with Double-Bead Breaker Disc
Newly Designed Head Unit (Patent Pending)
Wheel Clamping With Wheel Support Plate
Optimised Performance
Reinforced Structure
Excellent Ergonomics
User-Friendly Commands
Intuitive and Complete Multifuntional Control Console
Quick Demounting Procedure For the Second Bead
Motoinverter Drive System For The Right Torque For Every Speed
Wheel Lifter
Tilting Mounting Tool
Emergency Hook
Bead Depressor

Specifications

Wheel Dimension Range

Wheel Diameter: 13" - 28"
Maximum Tire Diameter: 47" / 1200 mm
Maximum Tire Width: 15" (from wheel supporting base)
Tire Types Processed: Conventional, Low Profile, Run Flat

Turntable

Clamping: Mechanical-Manual
Drive System: 2-Speed Motoinverter
Rotation Torque: 811.32 ft-lb / 1100 Nm
Rotation Speed: 718 rpm

Bead Breaker

Maximum Bead Breaking Range: 26" 670 mm
Bead Breaker Stroke: 21" 540 mm
Bead Breaker Force: 1709 lbf / 7600 N

Wheel Loading/Unloading

Operation: Pneumatic
Max Wheel Weight: 187.4 lbs. / 85 Kg

Power Supply

Electric 1Ph: 230V-1.31 hp 50Hz/60 Hz | 230V-0.98 kW 50Hz/60 Hz
Electric 1Ph (Alternative): 110V-1.31 hp 50Hz/60 Hz | 110V-0.98 kW 50Hz/60 Hz

Pneumatic Operating Pressure: 8 bar (minimum)
Weight: 937 lbs. / 425 kg (with Bead Depressor and Wheel Lifter)
Warranty: (3) Years Parts and (1) Year Labor

Corghi USA Limited Warranty Statement
General Terms
Corghi USA expressly warrants its products will be free from defects in material and/or workmanship for the time period specified. Corghi USA must be informed in writing within (7) days after discovery of a defect. Corghi USA reserves the right to repair or replace a product at our discretion. Consumable products and accessories such as but not limited to; plastic protection parts, bead breaker pads, inflation hoses, and rollers, are not covered under this warranty.

This warranty does not cover any damage resulting from abuse or failure to perform any necessary maintenance (i.e. damage due to or resulting from, faulty installation, neglect, misuse, improper electrical connections or electrical surges, problems resulting from excessive water, contaminated air system, or pollutant of any nature, fire or freight damage).

Corghi machines are warranted to be free of defects as follows:

Tire Changers:
A2030, A2024TI, 2024LL, A9824, A9824LL, A9830, A9222, Service Pro 124, Service Pro 324, BC200S, A2002 - (3) years parts and (1) year labor. Additional Transmission Warranty Models: A9222 - (5) years parts only. A2030, A2024TI, 2024LL, A9824, A9824LL, A9830 - (10) years parts only. AM50, AM500, AM5000, Master J, Master Code, Master28 - (3) years parts and (1) year labor. HD700, HD1300, HD1400, Monster TT, HD1800, Service Pro 440, Service Pro 426 - (3) years parts and (1) year labor. NOTE: Rubber pads, air lines, gauges, mount/demount heads, and swabs - (90) day warranty.

Wheel Balancers:
PL60, Service Pro 750, EM9250, EM9280, EM9580, EM9780, EM9980C, ET1450, ET88 - (3) years parts and (1) year labor.

Alignment Machines and Specialty Equipment:
(3) years parts and (1) year labor.

Disclaimer & Limitation on Liability
Corghi USA agreement to repair a tire changer or balancer is expressly in lieu of all other warranties, express, implies or statutory, including any warranties for merchantability and fitness for a particular purpose. Corghi USA maximum liability shall be limited to the cost of the machine. In no event shall Corghi USA be responsible for owner's lost profits, goodwill or other incidental or consequential damages. Corghi USA is not responsible for equipment or accessories damages in shipment. Freight claims are to be made directly with the carrier. We will be more than happy to assist you with any questions regarding filing claims.

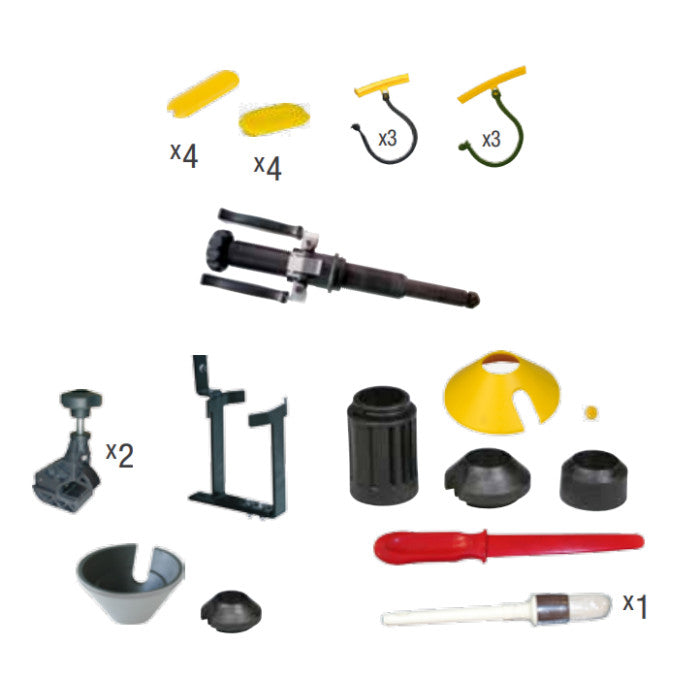

Accessories/Options

More Information

Corghi A5000 Tire Changer Brochure (.pdf)

Corghi A5000 Tire Changer Manual (.pdf)
