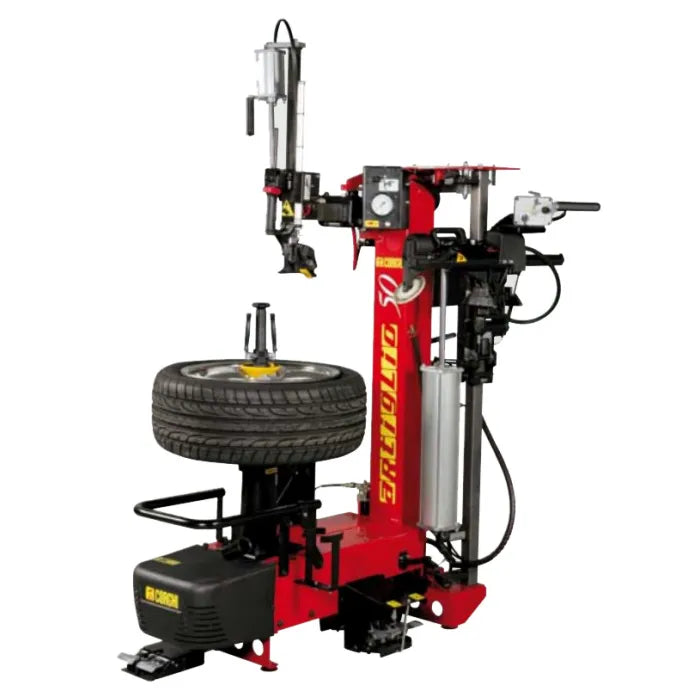

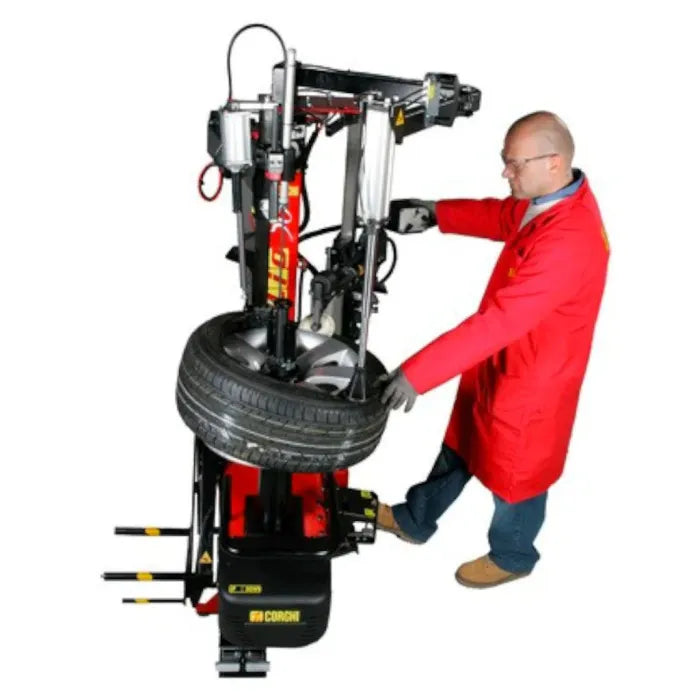

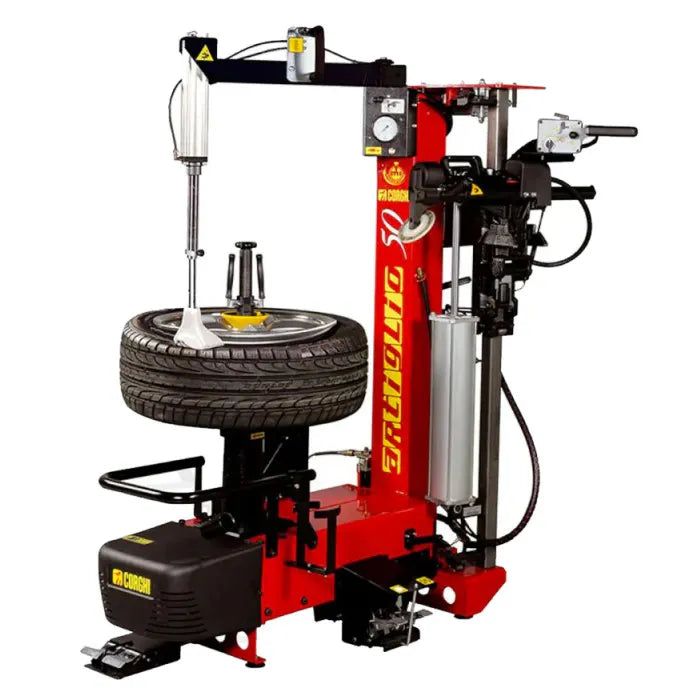

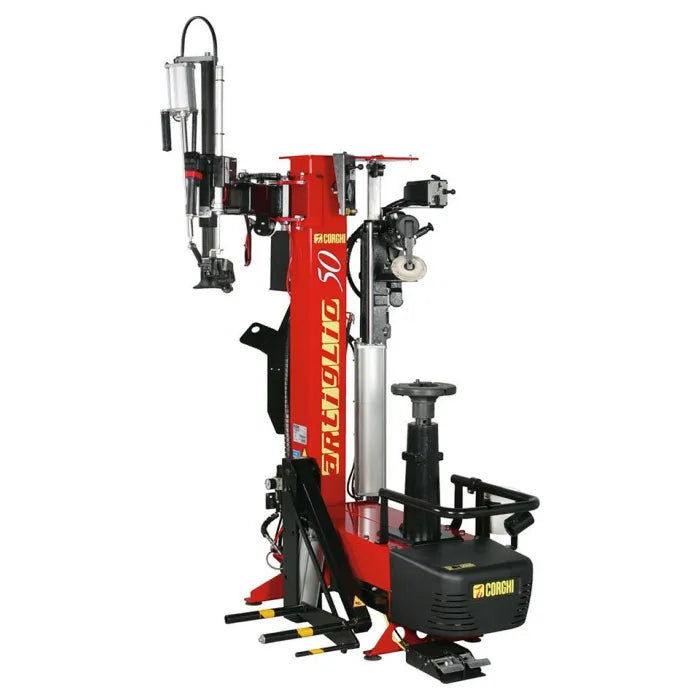

Corghi AM50 Artiglio 50 Leverless Tire Changer

Features & Specs

Features

• Available In Electric Only
• Sturdy Pneumatic Locking Swing-Arm Design Enables The Machine To Be Close To The Wall
• The Precision Bead Breaker Disk Gently Loosens Both Beads
• An All-New Bead Lifter Eliminates The Need For A Tire Bar, Reducing Operator Risk And Torn Beads - Another Corghi Exclusive
• Center Cone Clamping With Plastic Protector Means No Metal Touches The Face Of The Rim At Any Time
• Handles Tires 12" To 30", Including Uhp, Run-Flat, And Low-Profile Tires Pax Capable With Optional Adaptors

Specifications

• Rim Diameter: 12" To 30"
• Maximum Tire Diameter: 47,2" (1200 Mm)
• Maximum Tire Width: 15" (From Wheel Support Surface)
• Tire Types Processed: Conventional, Low Profile And Run Flat
• Clamping: Mechanical-Manual
• Drive System: 2-Speed Motoinverter
• Rotation Torque: 811,8 Ft/Lbs (1100 Nm)
• Rotation Speed: 7-18 Rpm
• Maximum Bead Breaking Range: 26,4" (670 Mm)
• Bead Breaker Stroke: 21,3" (540 Mm)
• Bead Breaker Force: 1710 Lbf, (7600 N)
• Wheel Loading/Unloading Drive: Pneumatic
• Maximum Wheel Weight: 187,4 Lbs (85 Kg)
• Electrical: 1Ph 230V-0,98 Kw 50Hz/60 Hz
• Electrical 1Ph (Alternative): 110V-0,98 Kw 50Hz/60 Hz
• Pneumatic Operating Pressure (Min): 116 Psi (8 Bar)
• Weight (With Wheel Lift): 683,4 Lbs (310 Kg)
• Warranty: (3) Years Parts and (1) Year Labor

Corghi USA Limited Warranty Statement
General Terms
Corghi USA expressly warrants its products will be free from defects in material and/or workmanship for the time period specified. Corghi USA must be informed in writing within (7) days after discovery of a defect. Corghi USA reserves the right to repair or replace a product at our discretion. Consumable products and accessories such as but not limited to; plastic protection parts, bead breaker pads, inflation hoses, and rollers, are not covered under this warranty.

This warranty does not cover any damage resulting from abuse or failure to perform any necessary maintenance (i.e. damage due to or resulting from, faulty installation, neglect, misuse, improper electrical connections or electrical surges, problems resulting from excessive water, contaminated air system, or pollutant of any nature, fire or freight damage).

Corghi machines are warranted to be free of defects as follows:

Tire Changers:
A2030, A2024TI, 2024LL, A9824, A9824LL, A9830, A9222, Service Pro 124, Service Pro 324, BC200S, A2002 - (3) years parts and (1) year labor. Additional Transmission Warranty Models: A9222 - (5) years parts only. A2030, A2024TI, 2024LL, A9824, A9824LL, A9830 - (10) years parts only. AM50, AM500, AM5000, Master J, Master Code, Master28 - (3) years parts and (1) year labor. HD700, HD1300, HD1400, Monster TT, HD1800, Service Pro 440, Service Pro 426 - (3) years parts and (1) year labor. NOTE: Rubber pads, air lines, gauges, mount/demount heads, and swabs - (90) day warranty.

Wheel Balancers:
PL60, Service Pro 750, EM9250, EM9280, EM9580, EM9780, EM9980C, ET1450, ET88 - (3) years parts and (1) year labor.

Alignment Machines and Specialty Equipment:
(3) years parts and (1) year labor.

Disclaimer & Limitation on Liability
Corghi USA agreement to repair a tire changer or balancer is expressly in lieu of all other warranties, express, implies or statutory, including any warranties for merchantability and fitness for a particular purpose. Corghi USA maximum liability shall be limited to the cost of the machine. In no event shall Corghi USA be responsible for owner's lost profits, goodwill or other incidental or consequential damages. Corghi USA is not responsible for equipment or accessories damages in shipment. Freight claims are to be made directly with the carrier. We will be more than happy to assist you with any questions regarding filing claims.
