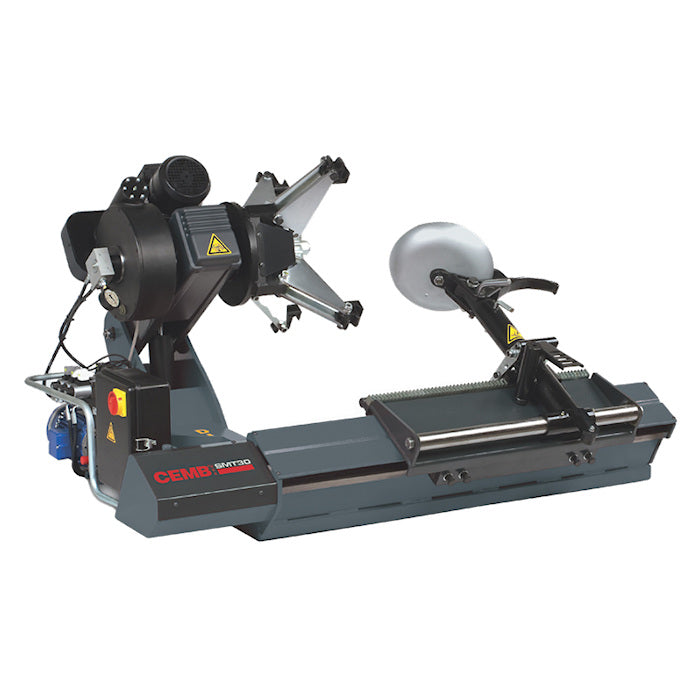

CEMB SMT30 Semi-Automatic Commercial Truck Tire Changer

Name: CEMB SMT30 Semi-Automatic Commercial Truck Tire Changer
Brand: CEMB
SKU: SMT30
Price: 19999.00 USD
Availability: InStock

In Stock SKU SMT30

OUR PRICE: $19,999.00

Regular Price: ~~$20,999.00~~

$555.52 / mo

INCLUDES FREE SHIPPING*

Short Description

CEMB SMT30 Semi-Automatic Commercial Truck Tire Changer
Commercial Tire Service Solution
The CEMB SMT30 Semi-Automatic Commercial Truck Tire Changer delivers reliable performance for commercial vehicle service operations. This heavy-duty tire change machine combines essential functionality with durable construction, making it an excellent entry point into commercial tire service for growing operations. The SMT30 is designed for tubeless or inner tube tires of trucks and buses with a maximum diameter of 64.5" and a maximum width of 34".

Description

CEMB SMT30 Semi-Automatic Commercial Truck Tire Changer
Commercial Tire Service Solution

The CEMB SMT30 Semi-Automatic Commercial Truck Tire Changer delivers reliable performance for commercial vehicle service operations. This heavy-duty tire change machine combines essential functionality with durable construction, making it an excellent entry point into commercial tire service for growing operations. The SMT30 is designed for tubeless or inner tube tires of trucks and buses with a maximum diameter of 64.5" and a maximum width of 34".

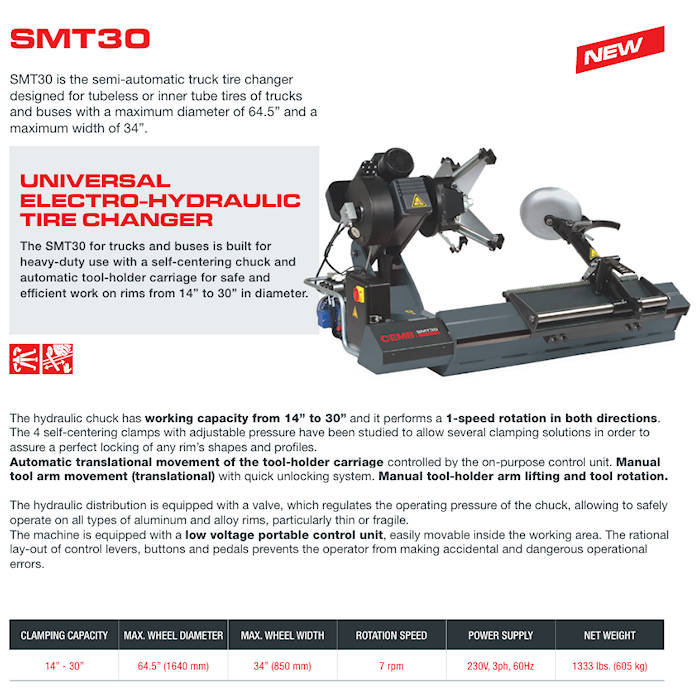

The SMT30 is a universal electro-hydraulic truck tire changer designed for tubeless or inner tube tires of trucks and buses with a maximum diameter of 64.5" and a maximum width of 34". Conceived for intensive and professional purposes, the self-centering chuck locks grooved and split ring rims from 14" to 30".

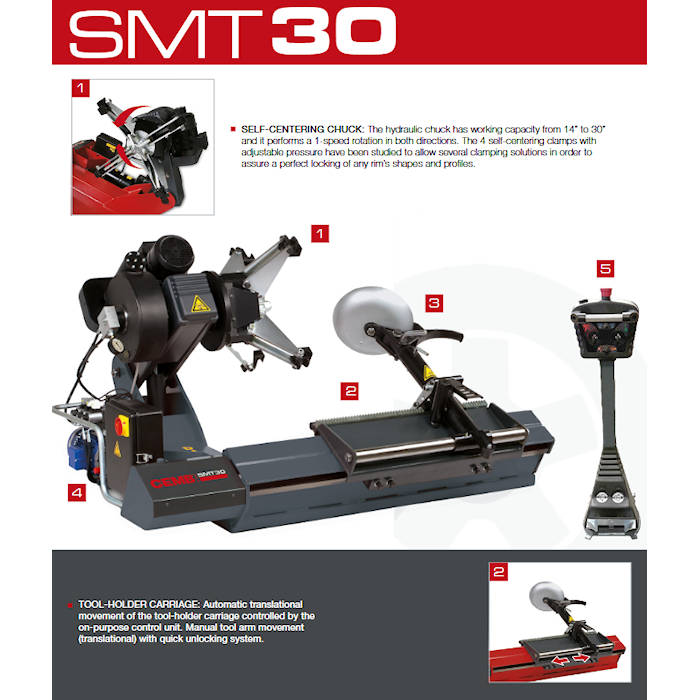

Self-Centering Chuck - The hydraulic chuck has working capacity from 14" to 30" and it performs a 1-speed rotation in both directions. The 4 self-centering clamps with adjustable pressure have been studied to allow several clamping solutions in order to assure a perfect locking of any rim’s shapes and profiles.
Tool-Holder Carriage - Automatic translational movement of the tool-holder carriage controlled by the on-purpose control unit. Manual tool arm movement (translational) with quick unlocking system.

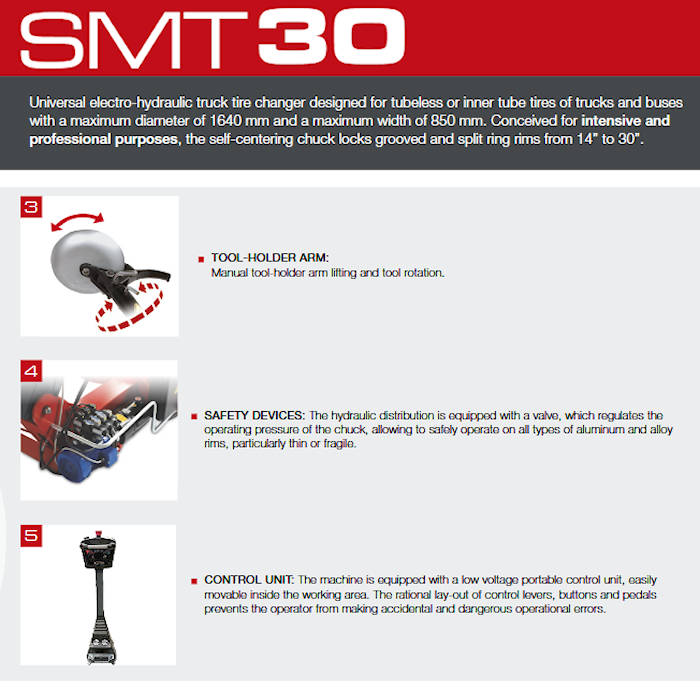

Tool-Holder Arm - Manual arm lift and tool rotation for flexible operation.
Safety Devices - The hydraulic distribution is equipped with a valve, which regulates the operating pressure of the chuck, allowing to safely operate on all types of aluminum and alloy rims, particularly thin or fragile.
Portable Control Unit - The machine is equipped with a low voltage portable control unit, easily movable inside the working area. The rational lay-out of control levers, buttons and pedals prevents the operator from making accidental and dangerous operational errors.

Commercial Tire Service Solution

The SMT30 tire changing machine delivers exceptional value through:

Essential functionality without unnecessary complex features
Lower acquisition cost than fully-automatic alternatives
Simplified operation requiring minimal technician training
Robust construction ensuring long-term service reliability

DYNAMO SERIES

The new DYNAMO SERIES sets a new standard in tire-changing technology for trucks, buses, agricultural, and earthmoving equipment. Built for power, reliability, and maximum efficiency, this range features three electro-hydraulic tire changers designed to meet the needs of professional heavy-duty workshops.

DUAL-MATIC - The flagship model equipped with a dual carriage system, designed to handle the heaviest and most demanding tires (up to 2200 kg) with speed and safety.
SMT56 - The versatile truck tire changer, combining adaptability, rugged construction, and advanced automation to deliver high performance in daily operations.
SMT30 - The semi-automatic option for workshops seeking efficiency and practicality while maintaining excellent clamping capacity and ease of use.

With the DYNAMO SERIES, CEMB provides the ideal combination of strength, precision, and innovation, ensuring every heavy-duty tire service is faster, safer, and more reliable.

Features & Specs

Features

Self-Centering Chuck
Tool-Holder Carriage
Tool-Holder Arm
Safety Controls
Portable Control Unit
Hydraulic Spindle
Manual Shifting/Tilting Tool Arm Holder
Produced In Italy With Final Assembly & Tested In USA

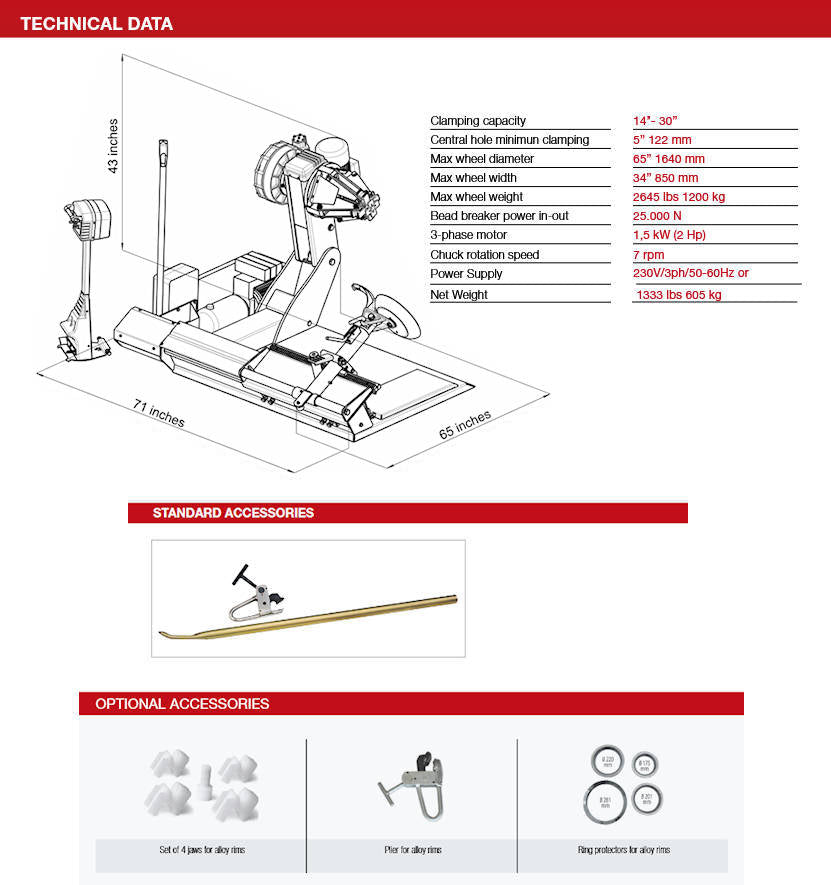

Specifications

Clamping Capacity: 14"-30"
Central Hole Min. Clamping: 5" (122mm)
Max. Wheel Diameter: 64.5" (1,640 mm)
Max. Wheel Width: 34" (850 mm)
Bead Breaker Power In-Out: 25,000 N
3-Phase Motor: 2 HP (1.5 kW)
Rotation Speed: 7 RPM
Power Supply: 230V 3Ph 50/60Hz
Machine Weight: 1,334 lbs (605 Kg)
Warranty: (3) Years on Parts, (1) Year Labor

CEMB Limited Warranty Statement
The BL Systems Co. (hereinafter "BL") warrants products manufactured and sold by it to be free from defects in material and workmanship for a period of 36 months parts, 60 months Wheel Balancer Motors, and 12 months labor from the date of installation, note: machine calibration is not a warranty item, except that parts sold from the repair or replacement of existing equipment will only be warranted for a period of 90 days from the date of installation.

If upon inspection by BL, any warranted product shall prove defective in materials or workmanship during the warranty period, that product shall be repaired or replaced at BL's option. BL must receive damaged part for full credit. Such repair or replacement shall be BL's sole obligation and the buyer's exclusive remedy under this warranty.

This warranty supersedes all prior oral or written agreements, promises, advertising or representations. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER REPRESENTATIONS AND WARRANTIES, EXPRESS OR IMPLIED, AND BL EXPRESSLY DISCLAIMS AND EXCLUDES ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITMESS FOR A PARTICULAR PURPOSE. THESE ARE NO WARRANTIES THAT EXTEND BEYOND THE DESCRIPTION OF THE FACE HEREOF. BL's liability in contract, in tort (negligence, strict liability, or any other theory) under any warranty, or under any other legal or equitable theory of whatever type, shall not exceed the purchase price paid by buyer, and under no circumstances shall BL be liable of special, indirect, incidental or consequential damages. The amount of the purchase price of the equipment is determined in part by the fact that buyer has agreed to so limit seller's liability. No action arising out of any transaction under this agreement may be brought by purchaser more than one year after the cause of action has accrued. Some states do not allow an exclusion or limitation of consequential or incidental damages, so the above limitation of liability may not apply to you.
