CEMB SMT56 Semi-Automatic Commercial Truck Tire Changer

Name: CEMB SMT56 Semi-Automatic Commercial Truck Tire Changer
Brand: CEMB
SKU: SMT56
Price: 24999.00 USD
Availability: InStock

In Stock SKU SMT56

OUR PRICE: $24,999.00

Regular Price: ~~$26,249.00~~

$694.41 / mo

INCLUDES FREE SHIPPING*

Short Description

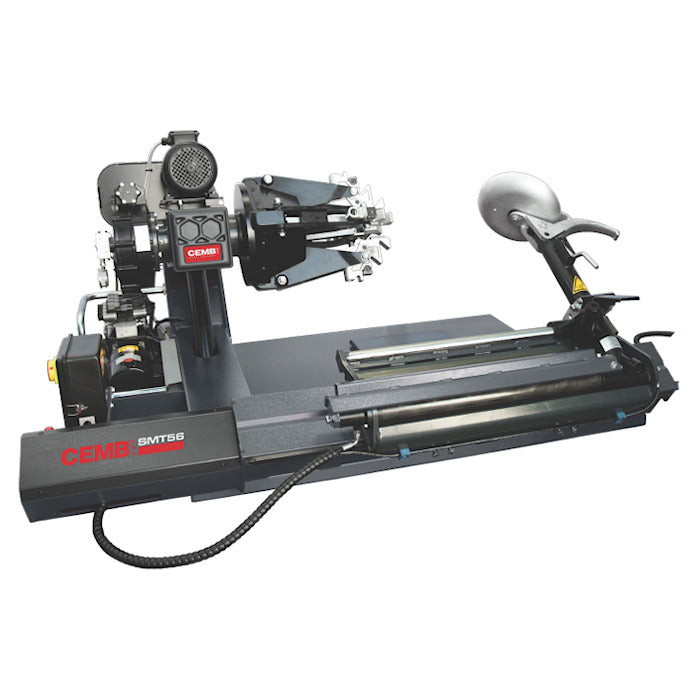

CEMB SMT56 Semi-Automatic Truck Tire Changer
Commercial Tire Service With Extended Capacity
The CEMB SMT56 Semi-Automatic Truck Tire Changer is a semi-automatic electro-hydraulic tire changer built for truck, bus, agricultural, and earth mover wheels. Its advanced automation delivers maximum efficiency, safety, and precision throughout the entire tire changing process. The CEMB SMT56 truck tire changer represents advanced tire changing equipment for commercial tire service professionals. This professional tire changing machine handles a wide range of commercial wheels with the power and precision required for efficient truck, bus, and agricultural tire service.

Description

CEMB SMT56 Semi-Automatic Truck Tire Changer
Commercial Tire Service With Extended Capacity

The CEMB SMT56 Semi-Automatic Truck Tire Changer is a semi-automatic electro-hydraulic tire changer built for truck, bus, agricultural, and earth mover wheels. Its advanced automation delivers maximum efficiency, safety, and precision throughout the entire tire changing process. The CEMB SMT56 truck tire changer represents advanced tire changing equipment for commercial tire service professionals. This professional tire changing machine handles a wide range of commercial wheels with the power and precision required for efficient truck, bus, and agricultural tire service.

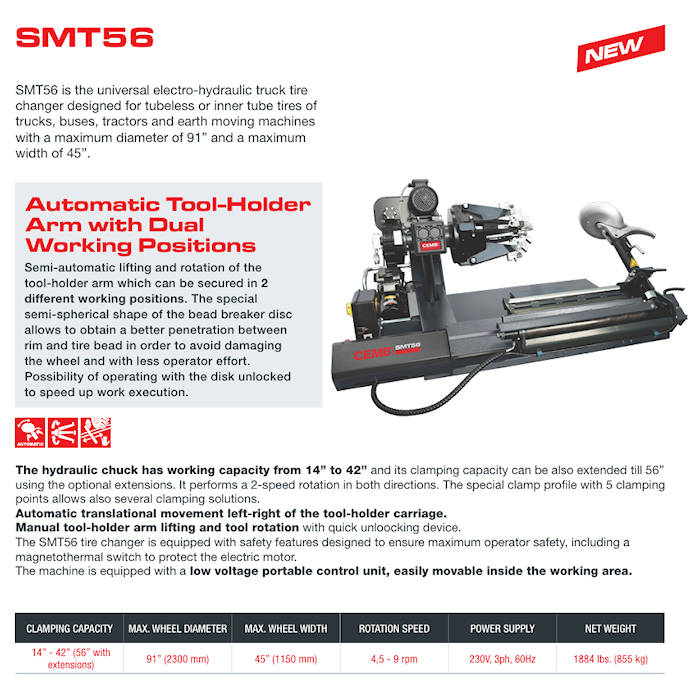

The SMT56 is a niversal electro-hydraulic truck tire changer designed for tubeless or inner tube tires of trucks, buses, tractors and earth moving machines with a maximum diameter of 90" and a maximum width of 45" for SMT56. Conceived for intensive and professional purposes, the self-centering chuck locks grooved and split ring rims from 14" to 42" and its working capacity can be increased up to 56" using the optional extensions.

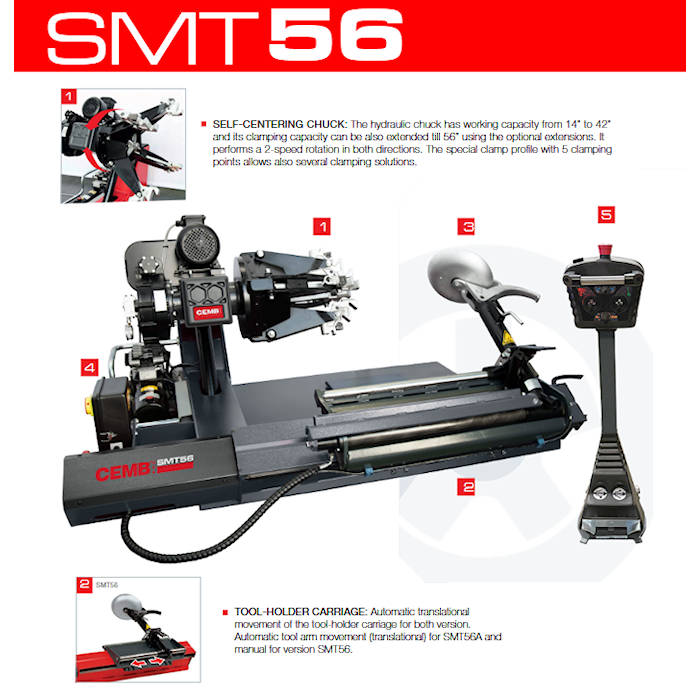

Self-Centering Chuck - The hydraulic chuck has working capacity from 14" to 42" and its clamping capacity can be also extended till 56" using the optional extensions. It performs a 2-speed rotation in both directions. The special clamp profile with 5 clamping points allows also several clamping solutions.
Tool-Holder Carriage - Automatic translational movement of the tool-holder carriage for both version. Automatic tool arm movement (translational) for SMT56A and manual for version SMT56.

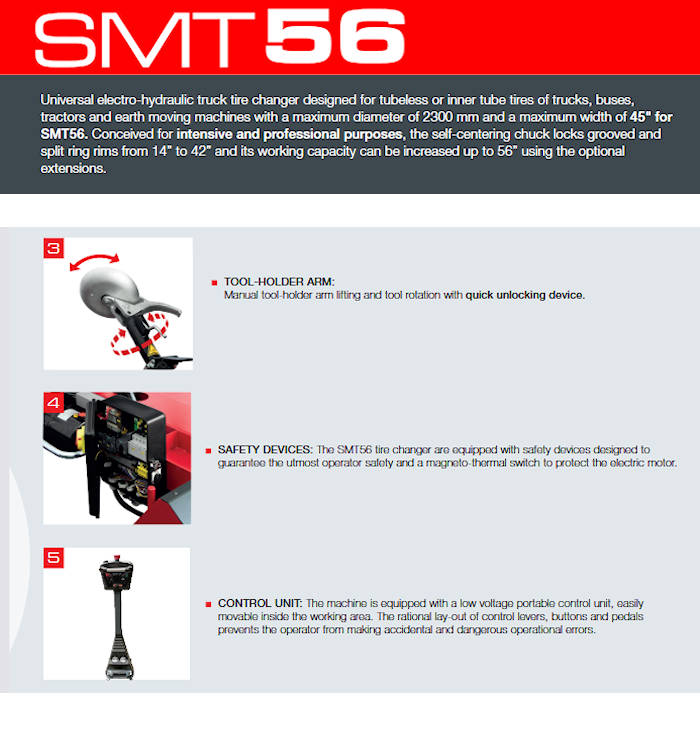

Tool-Holder Arm - Manual tool-holder arm lifting and tool rotation with quick unlocking device.
Safety Devices - The SMT56 tire changer are equipped with safety devices designed to guarantee the utmost operator safety and a magneto-thermal switch to protect the electric motor.
Control Unit - The machine is equipped with a low voltage portable control unit, easily movable inside the working area. The rational lay-out of control levers, buttons and pedals prevents the operator from making accidental and dangerous operational errors.

Versatile Commercial Tire Changing Solution

The SMT56 tire changer delivers excels in diverse commercial applications:

Fleet maintenance facilities servicing multiple vehicle types
Commercial tire dealers handling truck, bus, and agricultural tires
Municipal vehicle maintenance operations
Construction equipment service facilities

DYNAMO SERIES

The new DYNAMO SERIES sets a new standard in tire-changing technology for trucks, buses, agricultural, and earthmoving equipment. Built for power, reliability, and maximum efficiency, this range features three electro-hydraulic tire changers designed to meet the needs of professional heavy-duty workshops.

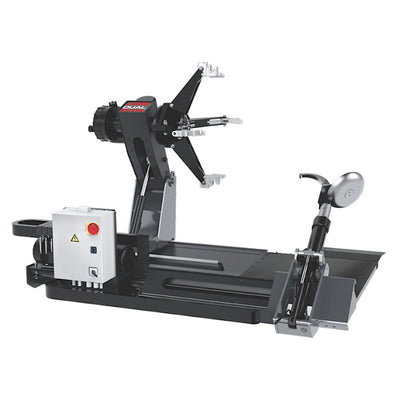

DUAL-MATIC - The flagship model equipped with a dual carriage system, designed to handle the heaviest and most demanding tires (up to 2200 kg) with speed and safety.
SMT56 - The versatile truck tire changer, combining adaptability, rugged construction, and advanced automation to deliver high performance in daily operations.

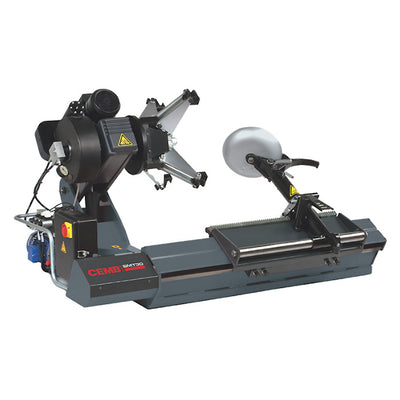

SMT30 - The semi-automatic option for workshops seeking efficiency and practicality while maintaining excellent clamping capacity and ease of use.

With the DYNAMO SERIES, CEMB provides the ideal combination of strength, precision, and innovation, ensuring every heavy-duty tire service is faster, safer, and more reliable.

Features & Specs

Features

Self-Centering Chuck
Tool-Holder Carriage
Tool-Holder Arm
Safety Controls
Control Unit
Hydraulic Spindle
Manual Shifting/Tilting Tool Arm Holder
Produced In Italy With Final Assembly & Tested In USA

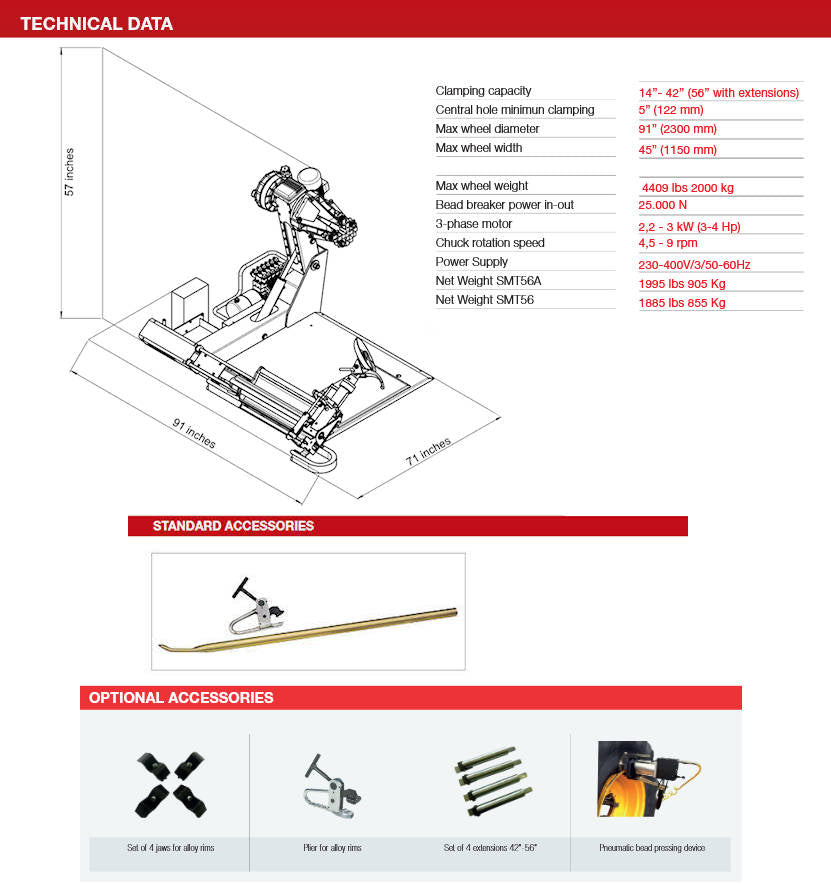

Specifications

Clamping Capacity: 14"-42" (56" With Exxtensions)
Central Hole Min. Clamping: 5" (122 mm)
Max. Wheel Diameter: 91" (2,300 mm)
Max. Wheel Width: 45" (1,143 mm)
Max. Wheel Weight: 4,409 lbs. (2,000 kg)
Bead Breaker Power In-Out: 25,000 N
3-Phase Motor: 3-4 HP (2.2-3 kW)
Chuck Rotation Speed: 4.5-9 RPM
Power Supply: 230-400V 3Ph 50/60Hz
Machine Weight: 1,951 lbs (855 Kg)
Warranty: (3) Years on Parts, (1) Year Labor
