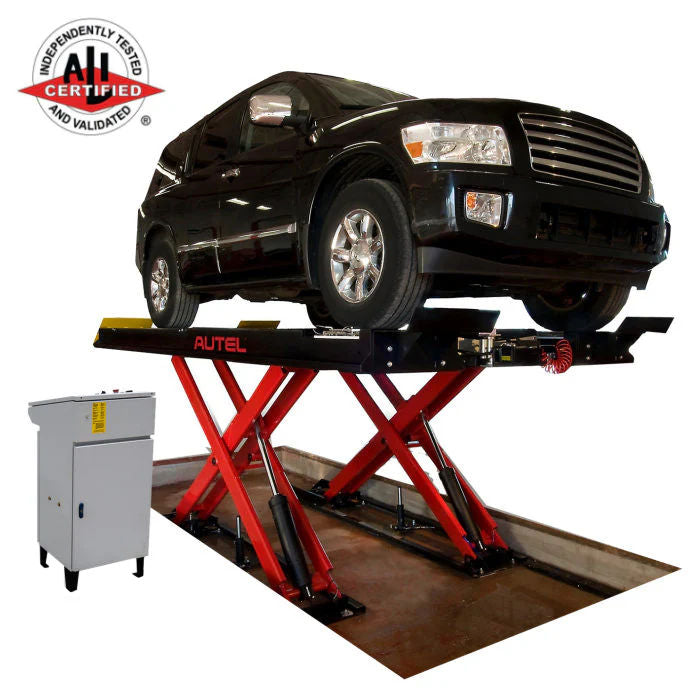

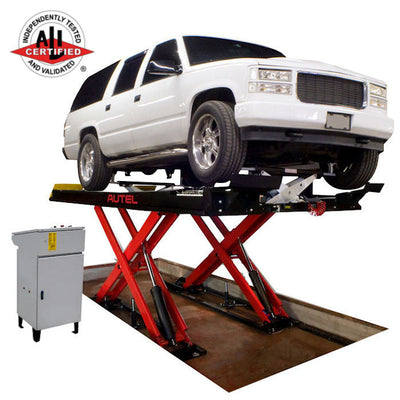

Autel S14ALOR1FM 14K Flush Mount Scissor Alignment Lift

In Stock SKU S14ALOR1FM UPC 849438087425

OUR PRICE: $43,269.00

Regular Price: $45,439.00

$1201.91 / mo
INCLUDES FREE SHIPPING*

Short Description

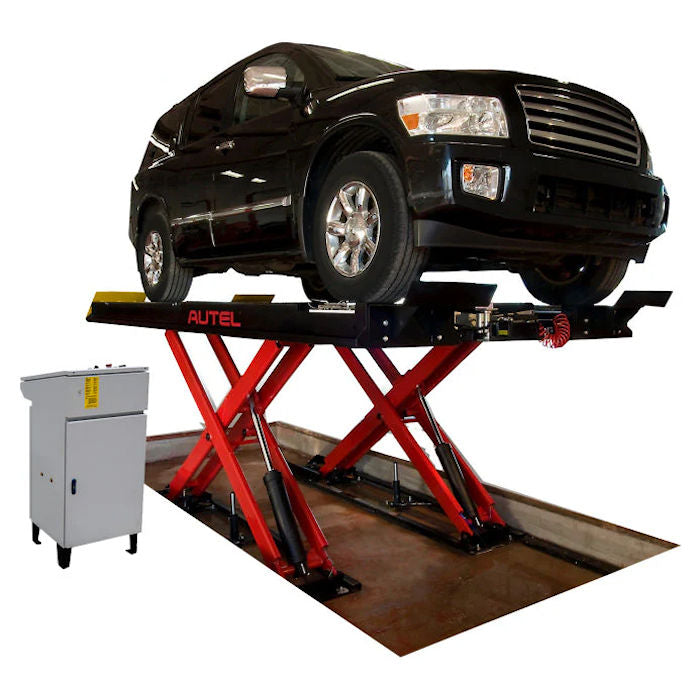

Autel S14ALOR1FM 14K Flush Mount Scissor Alignment Lift
14,000 lbs. Capacity ALI Certified
The Autel S14ALOR1FM 14K Flush Mount Scissor Alignment Lift is a ALI Certified 14,000 lbs. capacity flush-mounted hydraulic alignment scissor lift is featuring an open front and rear design is compatible with most passenger vehicles and light trucks. This premium lift includes two 7,000 lbs. capacity Jacking Beams with front and rear opening runways with flip-down wheel stops, stainless steel air lock release for longer life, less maintenance. Double-wide runways with built-in "Z" rails for structurally stronger with no sagging or flexing for far more accurate alignments. Runways measure 203" long and 26" wide. Stainless Steel Front Radius Plates and Rear Slip Plates with Turn Plate Pocket Protectors for paint protection. Built-in Runway Air Tire inflation Kit at each wheel. Shatterproof 24" LED Lighting Kit with Automatic Shut off. Enclosed Console Control Power Unit. Krown Industrial-grade Rust Proofing. Premium Double Baked Power Coat Finish. Black Finish Scissor Lift and Base. The S14ALOR1FM is made in North America and ALI Certified.

CURRENT LEAD TIME 4-6 WEEKS

Description

Autel

Autel S14ALOR1FM 14K Flush Mount Scissor Alignment Lift
14,000 lbs. Capacity ALI Certified

The Autel S14ALOR1FM 14K Flush Mount Scissor Alignment Lift is a ALI Certified 14,000 lbs. capacity flush-mounted hydraulic alignment scissor lift is featuring an open front and rear design is compatible with most passenger vehicles and light trucks. This premium lift includes two 7,000 lbs. capacity Jacking Beams with front and rear opening runways with flip-down wheel stops, stainless steel air lock release for longer life, less maintenance. Double-wide runways with built-in "Z" rails for structurally stronger with no sagging or flexing for far more accurate alignments. Runways measure 203" long and 26" wide. Stainless Steel Front Radius Plates and Rear Slip Plates with Turn Plate Pocket Protectors for paint protection. Built-in Runway Air Tire inflation Kit at each wheel. Shatterproof 24" LED Lighting Kit with Automatic Shut off. Enclosed Console Control Power Unit. Krown Industrial-grade Rust Proofing. Premium Double Baked Power Coat Finish. Black Finish Scissor Lift and Base. The S14ALOR1FM is made in North America and ALI Certified.

Features & Specs

Features

  • 14,000 lbs. Capacity ALI Certified Scissor Alignment Lift
  • Open Front And Rear Design With Flush-Mount Installation
  • Standard Length Runways 203" Long x 26" Double Wide Space Saving Runways
  • Full-Floating Rear Slip Plates

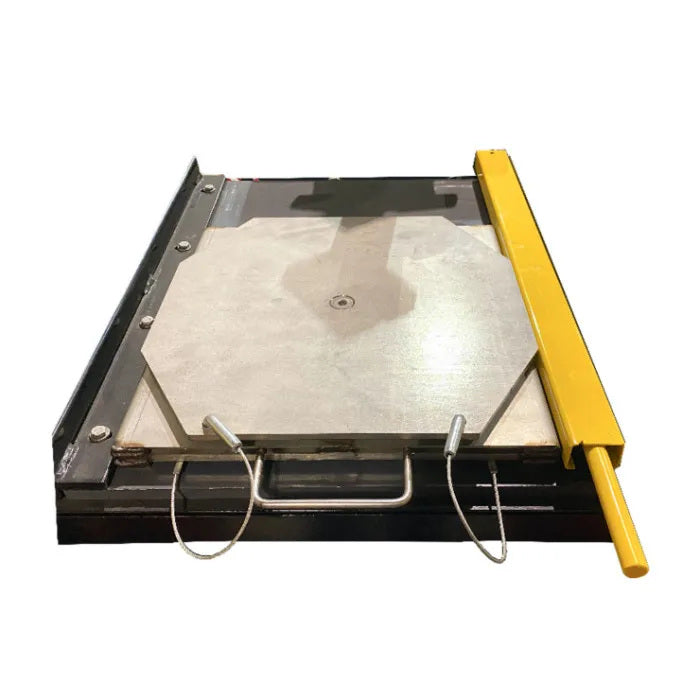

  • Stainless Steel Front Radius Plates And UHMW Turn Plate Pocket Protectors
  • Stainless Steel Air Lock Release
  • Includes Rollback Bars For Vehicle Positioning
  • Includes (2) 7,000 lbs. Heavy-Duty Air/Hydraulic Rolling jacks With Integrated Rail Detents

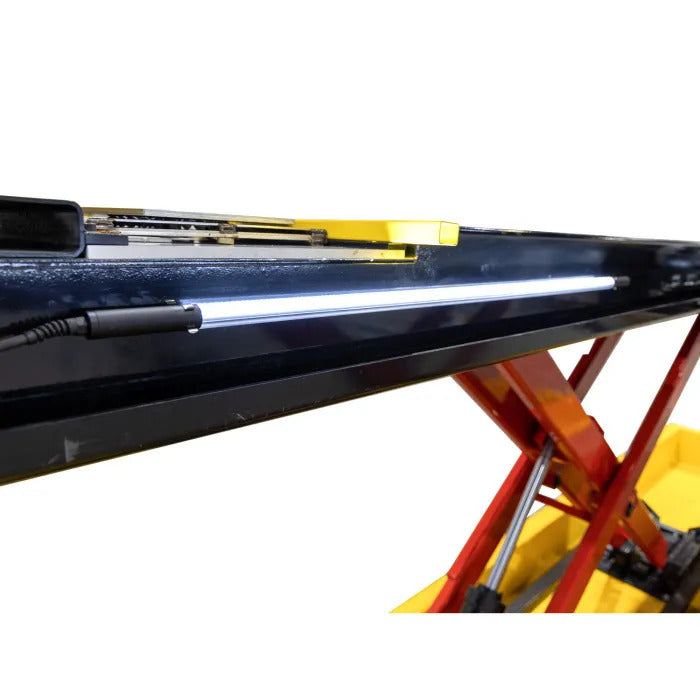

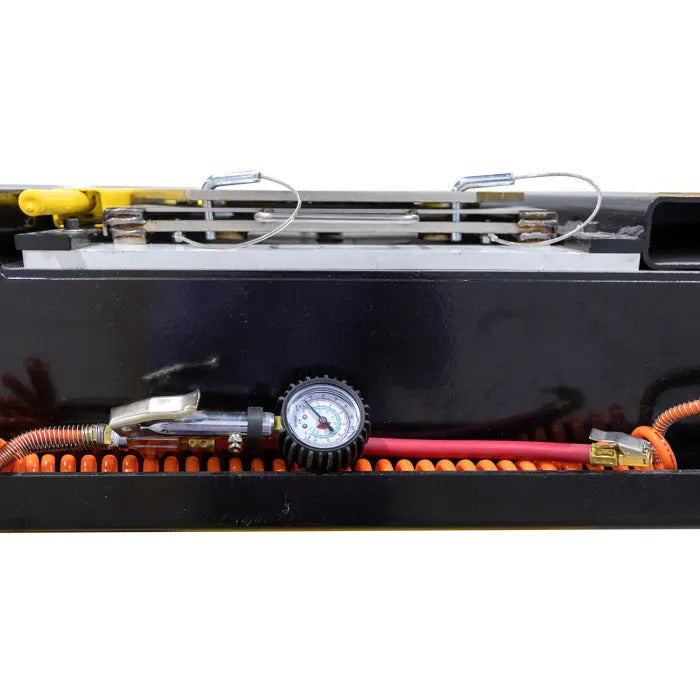

  • Includes Center-Mount Air Outlet Kit, LED Light Kit, And Tire Inflation Air Kits At Each Wheel

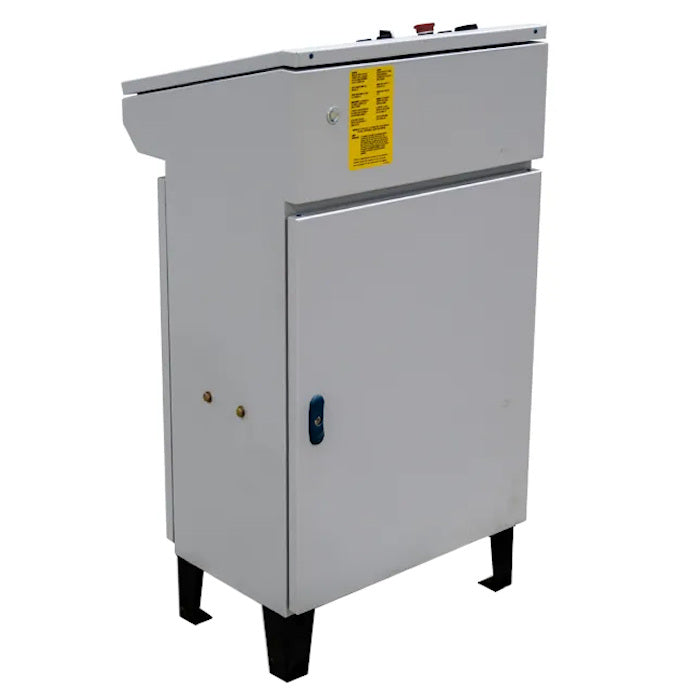

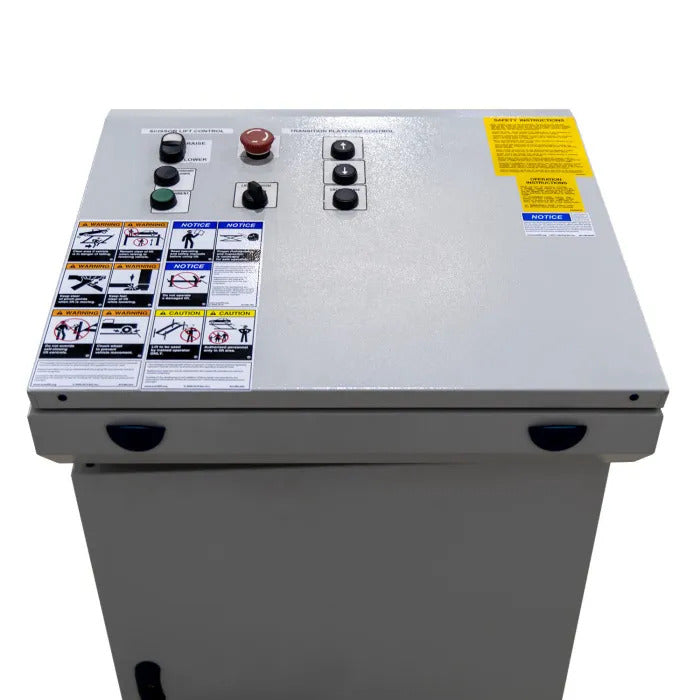

  • Includes Console-Mounted 220-Volt, Single-Phase Power Unit
  • Premium Double Baked Powder Coating Finish
  • Krown Industrial Grade Rust Proofing
  • Finished In Black Runways And Baseframes, Yellow Front And Rear Ramps, And Red Scissor Assembly
  • Made in North America

Specifications

Scissor Alignment Lift 12K Capacity 14K Capacity 16K Capacity
Capacity 12,000 lbs. (5.4 T) 14,000 lbs. (6.4 T) 16,000 lbs. (7.3 T)
ALI Certification Yes Yes Yes
Style Open Front & Rear Open Front & Rear Open Front & Rear
Raised Height 74" (1,880mm) 74" (1,880mm) 74" (1,880mm)
Lowered Height 10 3/4" (273mm) Surface
0" (0mm) Flush		 10 3/4" (273mm) Surface
0" (0mm) Flush		 10 3/4" (273mm) Surface
0" (0mm) Flush
Overall Length Standard 242 3/4" (6,147mm) 260 3/4" (6,604mm) 260 3/4" (6,604mm)
Overall Length Extended 18" (457mm)
With P/N: LPRE		 18" (457mm)
With P/N: LPRE		 275 3/4" (7,004mm)
With P/N: LPRE
Deck Length Standard 185" (4,699mm) 203" (5,156mm) 203" (5,156mm)
Deck Length Extended - - 221" (5,613mm)
With P/N: X
Width Between Runways 41" (1,041mm) 41" (1,041mm) 41" (1,041mm)
Runway Deck Width 26" (660mm) 26" (660mm) 26" (660mm)
Overall Width Front/Rear 91 1/2" (2,323mm) 91 1/2" (2,323mm) 91 1/2" (2,323mm)
Max Column Height - - -
Min 4 Wheel Alignment WB 84" (2,134mm) 84" (2,134mm) 84" (2,134mm)
Max 4 Wheel Alignment WB 164" (4,165mm) 164" (4,165mm) 164" (4,165mm)
Min 2 Wheel Alignment WB Std 173" (4,394mm) 173" (4,394mm) 173" (4,394mm)
Min 2 Wheel Alignment WB Ext - - -
Lift Time 58 Seconds 58 Seconds 58 Seconds
Power Requirements 230V 60HZ 1PH 30AMP 230V 60HZ 1PH 30AMP 230V 60HZ 1PH 30AMP
Included Jacking Beam 2 x 6,000 lbs. (2.7 T) 2 x 7,000 lbs. (3.2 T) 2 x 8,000 lbs. (3.6 T)
Shipping Dimensions 48" W x 240" L x 38" H 48" W x 258" L x 38" H 40" W x 253" L x 38" H
Shipping Weight 6,200 lbs. (2,812kg) 6,400 lbs. (2,903kg) 6,401 lbs. (2,903kg)
Part Numbers AULS12ALOR1 Surface
ALUS12ALOR1T Bay Max
S12ALOR1FM Flush		 AULS14ALOR1 Surface
ALUS14ALOR1T Bay Max
S14ALOR1FM Flush		 S16ALOR1 Surface
S16ALOR1X Surface Ext
S16ALOR1T Bay Max
S16ALOR1TX Bay Max Ext
S16ALOR1FM Flush
S16ALOR1FMX Flush Ext
  • Warranty: (3) Years on Lift, (5) Years Parts On Jacks, (90) Days on Accessories Turn Plates, Slip Plates and Bearings, Air Kit, and LED Light Kit
