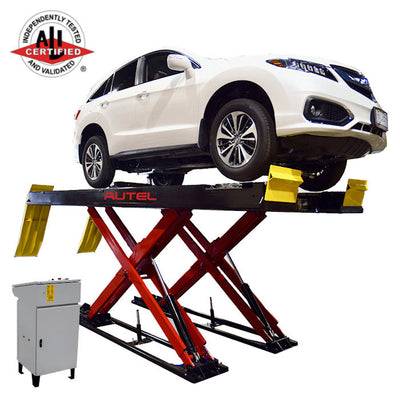

Autel S16ALOR1 16K Surface Mount Scissor Alignment Lift

In Stock SKU S16ALOR1 UPC 849438087340

OUR PRICE: $45,479.00

Regular Price: ~~$48,039.00~~

$1263.30 / mo

INCLUDES FREE SHIPPING*

Short Description

Autel S16ALOR1 16K Surface Mount Scissor Alignment Lift
16,000 lbs. Capacity ALI Certified

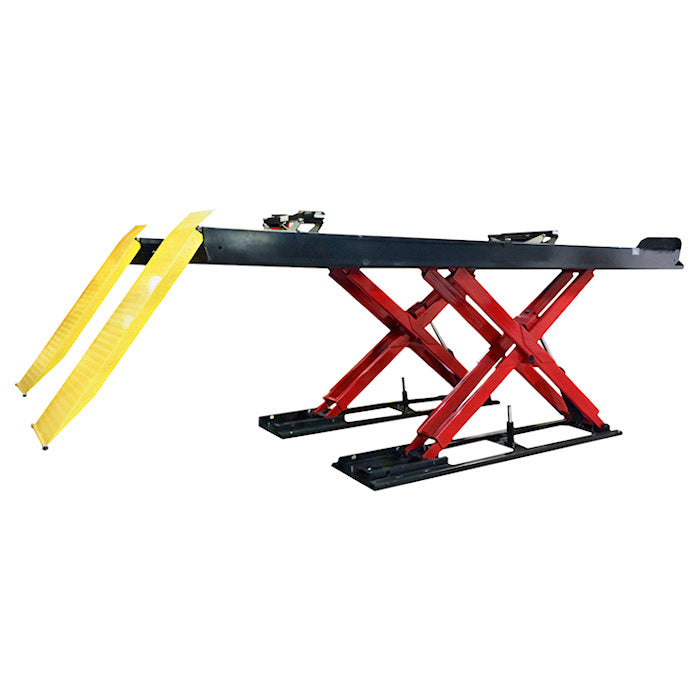

The Autel S16ALOR1 16K Surface Mount Scissor Alignment Lift is a ALI Certified 16,000 lbs. capacity surface-mounted hydraulic alignment scissor lift for professional alignment service. This premium lift includes two heavy-duty 8,000 lbs. capacity air/hydraulic rolling jacks with front and rear opening runways with flip-down wheel stops, stainless steel air lock release for longer life, less maintenance. Double-wide runways with built-in "Z" rails for structurally stronger with no sagging or flexing for far more accurate alignments. Runways measure 203" long and 26" wide. Low angle approach ramps for easy access. Stainless Steel Front Radius Plates and Rear Slip Plates with Turn Plate Pocket Protectors for paint protection. Built-in Runway Air Tire inflation Kit at each wheel. Shatterproof 24" LED Lighting Kit with Automatic Shut off. Enclosed Console Control Power Unit. Krown Industrial-grade Rust Proofing. Premium Double Baked Power Coat Finish. Black Finish Scissor Lift and Base. The S16ALOR1 is made in North America and ALI Certified.

The Autel S16ALOR1X features bolt-on 18" runway extensions and pneumatic-locking rear slip plates and pneumatic-locking front radius turning plates.

Model Selection:
S16ALOR1 with 203" Runways
S16ALOR1X with 221" Runways & Pneumatic Locking

CURRENT LEAD TIME 4-6 WEEKS

Description

Autel S16ALOR1 16K Surface Mount Scissor Alignment Lift
16,000 lbs. Capacity ALI Certified

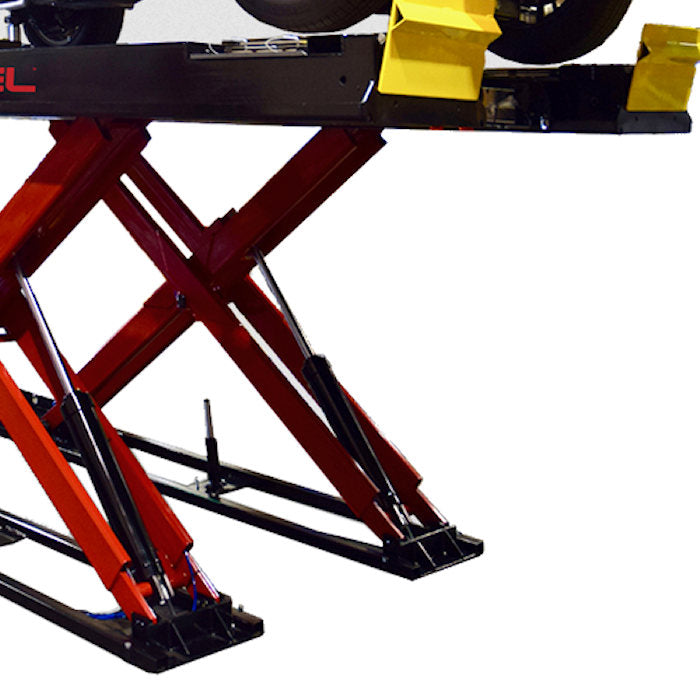

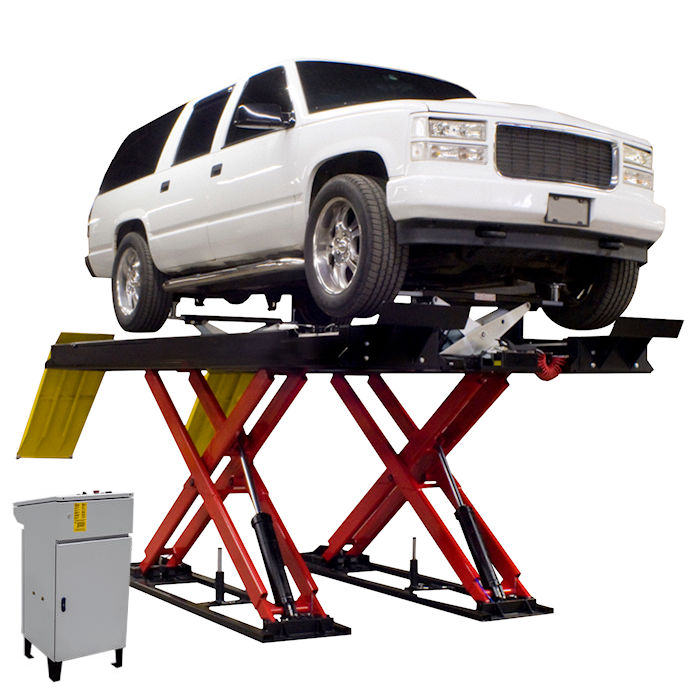

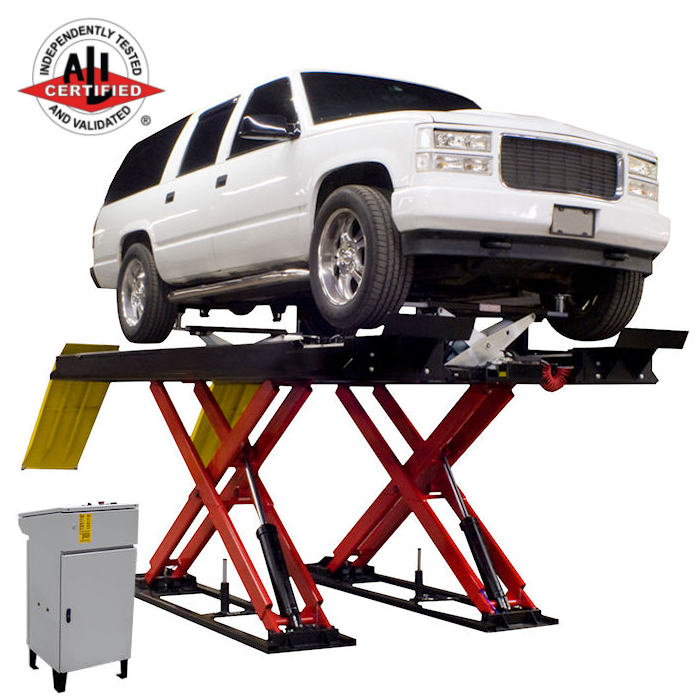

The Autel S16ALOR1 16K Surface Mount Scissor Alignment Lift is a ALI Certified 16,000 lbs. capacity surface-mounted hydraulic alignment scissor lift for professional alignment service. This premium lift includes two heavy-duty 8,000 lbs. capacity air/hydraulic rolling jacks with front and rear opening runways with flip-down wheel stops, stainless steel air lock release for longer life, less maintenance. Double-wide runways with built-in "Z" rails for structurally stronger with no sagging or flexing for far more accurate alignments. Runways measure 203" long and 26" wide. Low angle approach ramps for easy access. Stainless Steel Front Radius Plates and Rear Slip Plates with Turn Plate Pocket Protectors for paint protection. Built-in Runway Air Tire inflation Kit at each wheel. Shatterproof 24" LED Lighting Kit with Automatic Shut off. Enclosed Console Control Power Unit. Krown Industrial-grade Rust Proofing. Premium Double Baked Power Coat Finish. Black Finish Scissor Lift and Base. The S16ALOR1 is made in North America and ALI Certified.

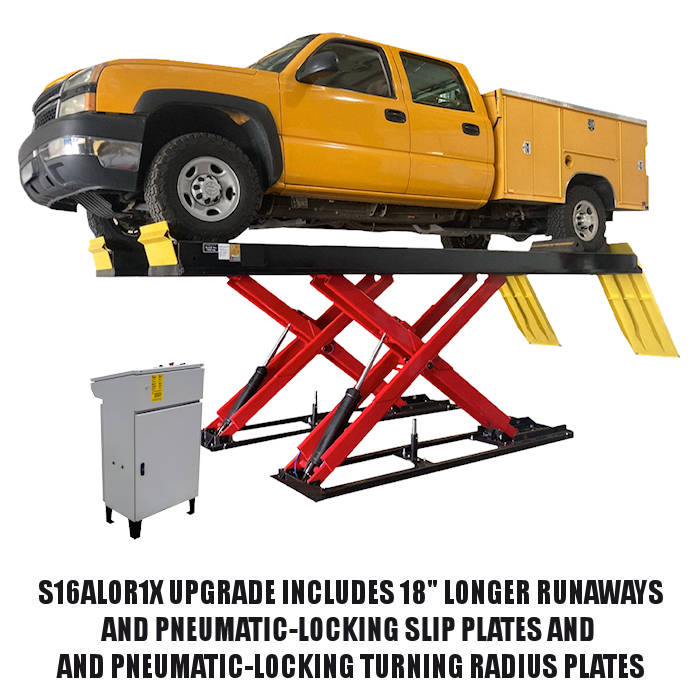

The Autel S16ALOR1X features bolt-on 18" runway extensions and pneumatic-locking rear slip plates and pneumatic-locking front radius turning plates.

Model Selection:
S16ALOR1 with 203" Runways
S16ALOR1X with 221" Runways & Pneumatic Locking

Features & Specs

Features

16,000 lbs. Capacity ALI Certified Scissor Alignment Lift
Open Front And Rear Design With Surface-Mount Installation
203" or 221" Long x 26" Double Wide Space Saving Runways
Manual Or Pneumatic-Locking Full-Floating Rear Slip Plates

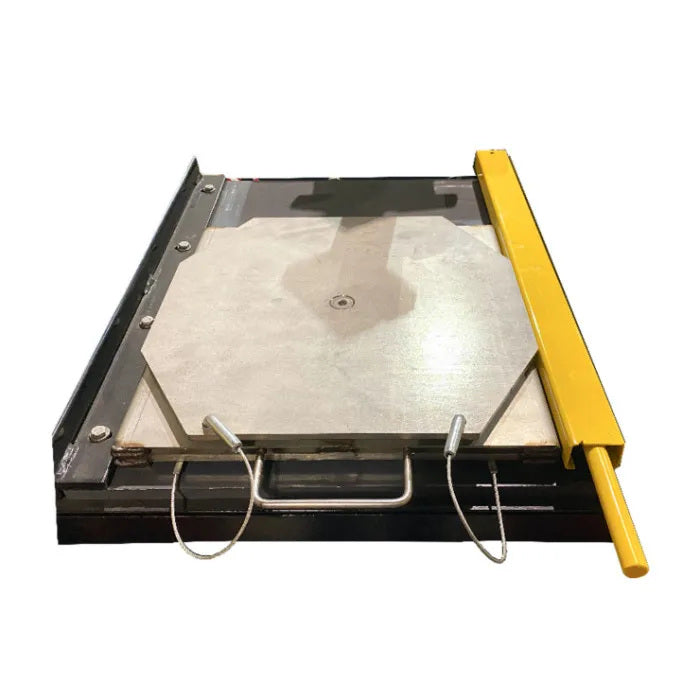

Manual Or Pneumatic-Locking Stainless Steel Front Radius Plates
UHMW Turn Plate Pocket Protectors
Stainless Steel Air Lock Release

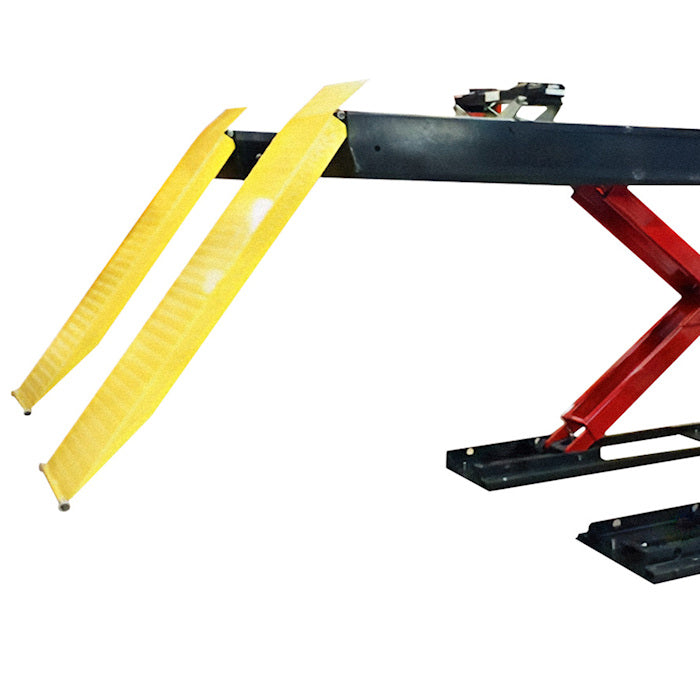

Low-Angle Approach Ramps For Easy Access
Includes Rollback Bars For Vehicle Positioning

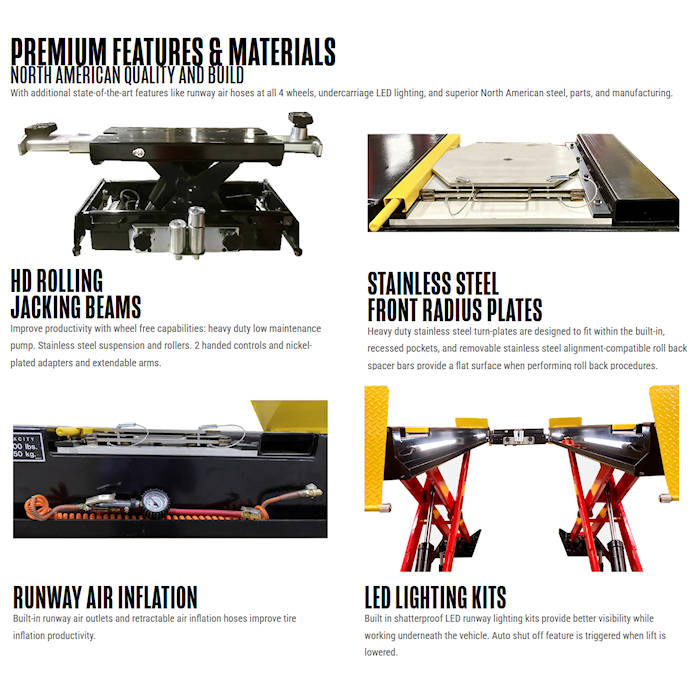

Includes (2) 8,000 lbs. Heavy-Duty Air/Hydraulic Rolling jacks With Integrated Rail Detents

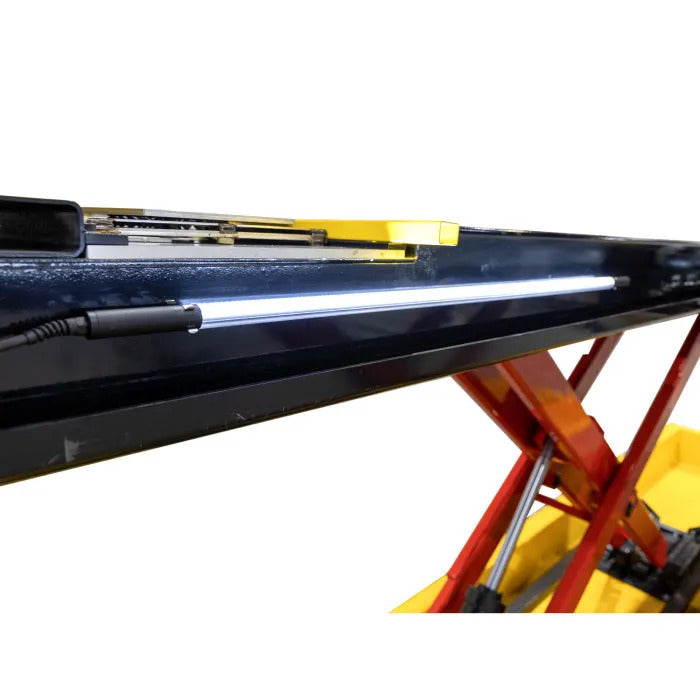

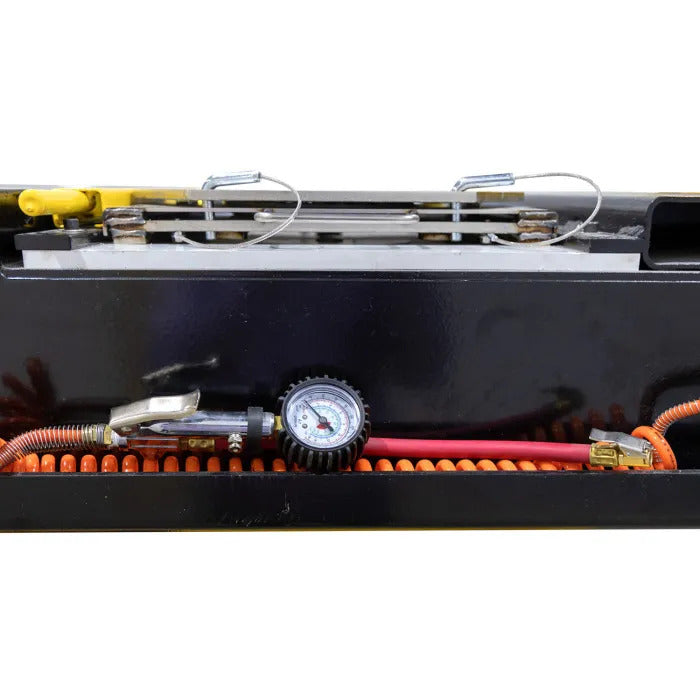

Includes Center-Mount Air Outlet Kit, LED Light Kit, And Tire Inflation Air Kits At Each Wheel

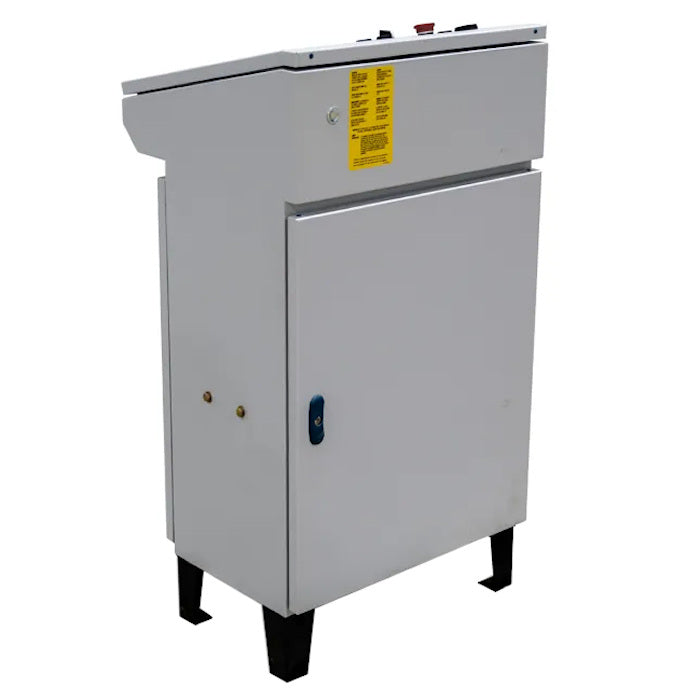

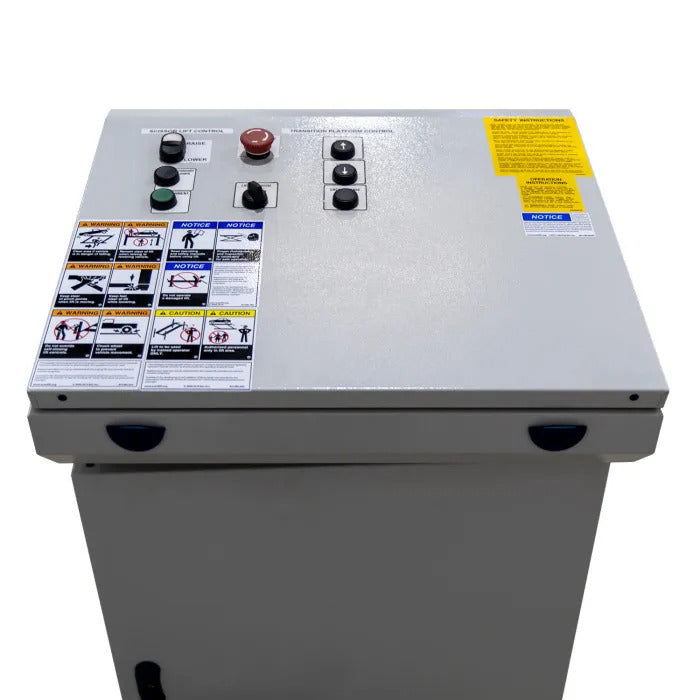

Includes Console-Mounted 220-Volt, Single-Phase Power Unit
Premium Double Baked Powder Coating Finish
Krown Industrial Grade Rust Proofing

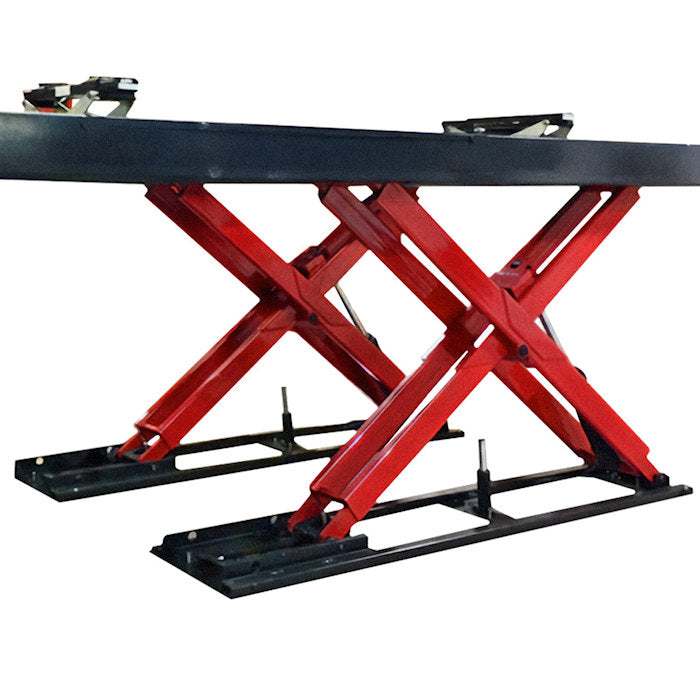

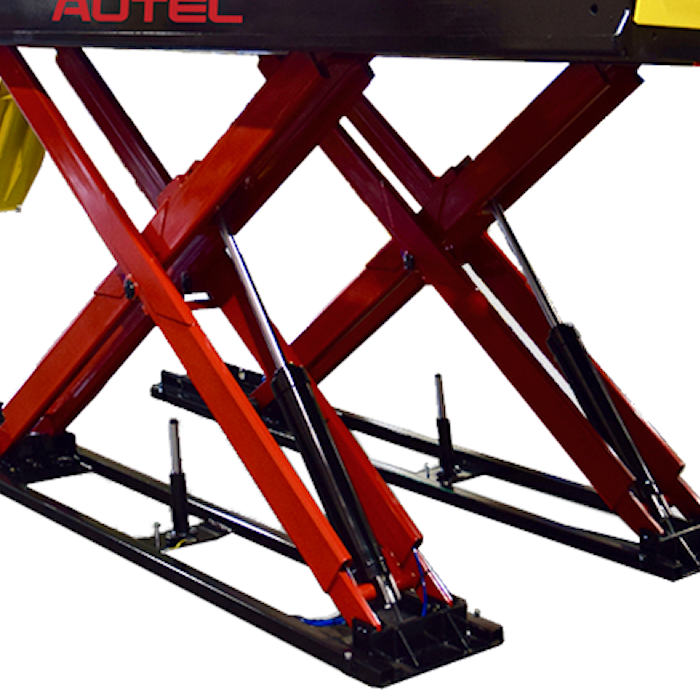

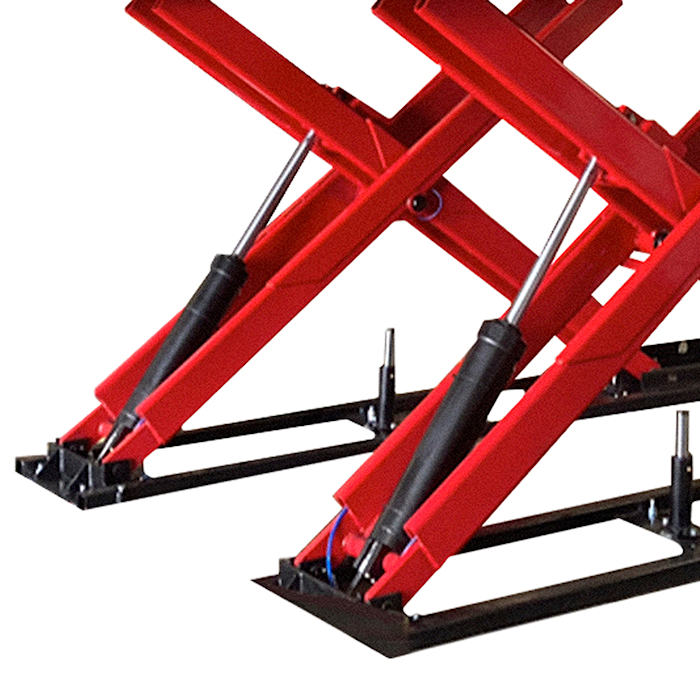

Finished In Black Runways And Baseframes, Yellow Front And Rear Ramps, And Red Scissor Assembly
Made in North America

Specifications

Scissor Alignment Lift	12K Capacity	14K Capacity	16K Capacity
Capacity	12,000 lbs. (5.4 T)	14,000 lbs. (6.4 T)	16,000 lbs. (7.3 T)
ALI Certification	Yes	Yes	Yes
Style	Open Front & Rear	Open Front & Rear	Open Front & Rear
Raised Height	74" (1,880mm)	74" (1,880mm)	74" (1,880mm)
Lowered Height	10 3/4" (273mm) Surface 0" (0mm) Flush	10 3/4" (273mm) Surface 0" (0mm) Flush	10 3/4" (273mm) Surface 0" (0mm) Flush
Overall Length Standard	242 3/4" (6,147mm)	260 3/4" (6,604mm)	260 3/4" (6,604mm)
Overall Length Extended	18" (457mm) With P/N: LPRE	18" (457mm) With P/N: LPRE	275 3/4" (7,004mm) With P/N: LPRE
Deck Length Standard	185" (4,699mm)	203" (5,156mm)	203" (5,156mm)
Deck Length Extended	-	-	221" (5,613mm) With P/N: X
Width Between Runways	41" (1,041mm)	41" (1,041mm)	41" (1,041mm)
Runway Deck Width	26" (660mm)	26" (660mm)	26" (660mm)
Overall Width Front/Rear	91 1/2" (2,323mm)	91 1/2" (2,323mm)	91 1/2" (2,323mm)
Max Column Height	-	-	-
Min 4 Wheel Alignment WB	84" (2,134mm)	84" (2,134mm)	84" (2,134mm)
Max 4 Wheel Alignment WB	164" (4,165mm)	164" (4,165mm)	164" (4,165mm)
Min 2 Wheel Alignment WB Std	173" (4,394mm)	173" (4,394mm)	173" (4,394mm)
Min 2 Wheel Alignment WB Ext	-	-	-
Lift Time	58 Seconds	58 Seconds	58 Seconds
Power Requirements	230V 60HZ 1PH 30AMP	230V 60HZ 1PH 30AMP	230V 60HZ 1PH 30AMP
Included Jacking Beam	2 x 6,000 lbs. (2.7 T)	2 x 7,000 lbs. (3.2 T)	2 x 8,000 lbs. (3.6 T)
Shipping Weight	6,200 lbs. (2,812kg)	6,400 lbs. (2,903kg)	6,401 lbs. (2,903kg)
Part Numbers	AULS12ALOR1 Surface ALUS12ALOR1T Bay Max S12ALOR1FM Flush	AULS14ALOR1 Surface AULS14ALOR1T Bay Max S14ALOR1FM Flush	S16ALOR1 Surface S16ALOR1X Surface Ext S16ALOR1T Bay Max S16ALOR1TX Bay Max Ext S16ALOR1FM Flush S16ALOR1FMX Flush Ext

Shipping Dimensions: 40" W x 253" L x 38" H
Warranty: (3) Years on Lift, (5) Years Parts On Jacks, (90) Days on Accessories Turn Plates, Slip Plates and Bearings, Air Kit, and LED Light Kit
