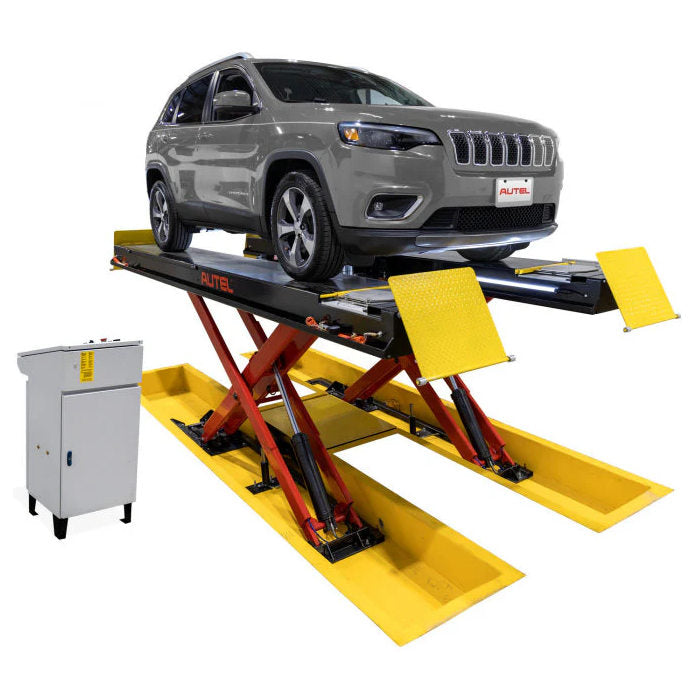

Autel S16ALOR1T 16K Flush Mount ADAS Bay Max Scissor Alignment Lift

In Stock SKU S16ALOR1T UPC 849438087357

OUR PRICE: $52,799.00

Regular Price: ~~$55,439.00~~

$1466.63 / mo

INCLUDES FREE SHIPPING*

Short Description

Autel S16ALOR1T 16K ADAS Bay Max Scissor Alignment Lift

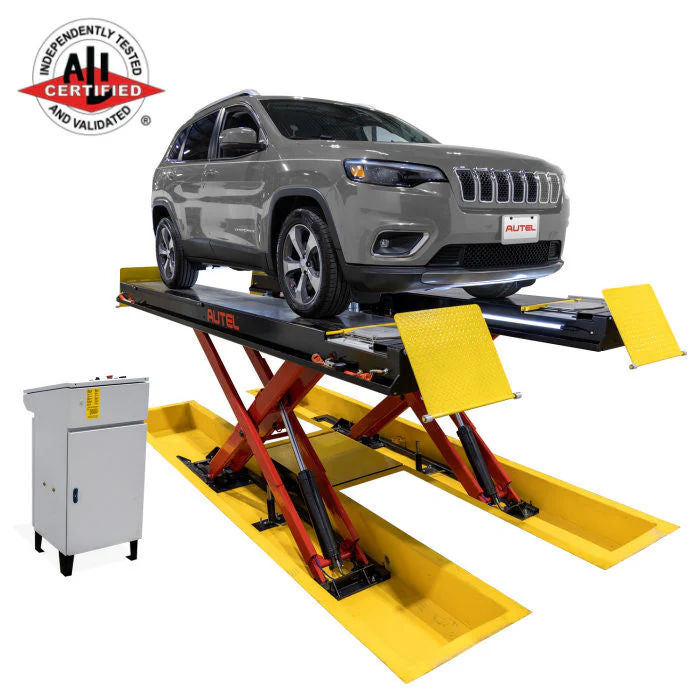

16,000 lbs. Capacity ALI Certified 360 ADAS Calibration Environment

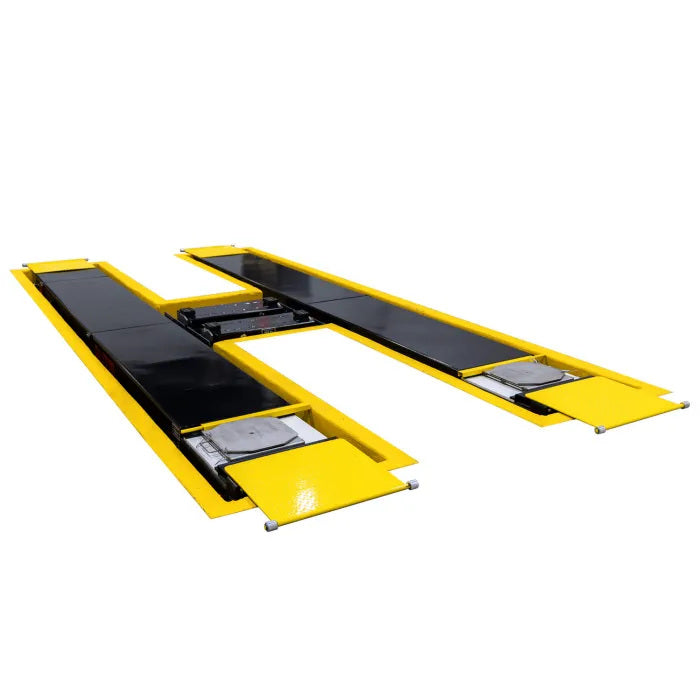

Unique H-Shape Flush Mount With Jack Storage Floor Lift Table
The Autel S16ALOR1T 14K Flush Mount ADAS Bay Max Scissor Alignment Lift is a ALI Certified 16,000 lbs. capacity flush-mounted hydraulic alignment scissor lift for professional alignment service. The ADAS Bay Max is engineered to perform mechanical repair, wheel alignment, and 360 ADAS Calibration in a single standard alignment bay space. The heavy-duty rolling jack beam, and the industry's first flush-mount H Shape and table riser configuration allow for safer and more efficient wheel alignments, and when recessed into the floor the same space becomes a flat 360 ADAS calibration environment. This premium lift includes two 8,000 lbs. capacity Jacking Beams with front and rear opening runways with flip-down wheel stops, stainless steel air lock release for longer life, less maintenance. Double-wide runways with built-in "Z" rails for structurally stronger with no sagging or flexing for far more accurate alignments. Runways measure 203" long and 26" wide. Stainless Steel Front Radius Plates and Rear Slip Plates with Turn Plate Pocket Protectors for paint protection. Built-in Runway Air Tire inflation Kit at each wheel. Shatterproof 24" LED Lighting Kit with Automatic Shut off. Enclosed Console Control Power Unit. Krown Industrial-grade Rust Proofing. Premium Double Baked Power Coat Finish. Black Finish Scissor Lift and Base. The S16ALOR1T is made in North America and ALI Certified.

The Autel S16ALOR1TX features bolt-on 18" runway extensions and pneumatic-locking rear slip plates and pneumatic-locking front radius turning plates.

Model Selection:
S16ALOR1T With Standard Runways
S16ALOR1TX Extended With Pneumatic Locking

CURRENT LEAD TIME 4-6 WEEKS

Description

Autel S16ALOR1T 16K ADAS Bay Max Scissor Alignment Lift
16,000 lbs. Capacity ALI Certified 360 ADAS Calibration Environment
Unique H-Shape Flush Mount With Jack Storage Floor Lift Table

The Autel S16ALOR1T 14K Flush Mount ADAS Bay Max Scissor Alignment Lift is a ALI Certified 16,000 lbs. capacity flush-mounted hydraulic alignment scissor lift for professional alignment service. The ADAS Bay Max is engineered to perform mechanical repair, wheel alignment, and 360 ADAS Calibration in a single standard alignment bay space. The heavy-duty rolling jack beam, and the industry's first flush-mount H Shape and table riser configuration allow for safer and more efficient wheel alignments, and when recessed into the floor the same space becomes a flat 360 ADAS calibration environment. This premium lift includes two 8,000 lbs. capacity Jacking Beams with front and rear opening runways with flip-down wheel stops, stainless steel air lock release for longer life, less maintenance. Double-wide runways with built-in "Z" rails for structurally stronger with no sagging or flexing for far more accurate alignments. Runways measure 203" long and 26" wide. Stainless Steel Front Radius Plates and Rear Slip Plates with Turn Plate Pocket Protectors for paint protection. Built-in Runway Air Tire inflation Kit at each wheel. Shatterproof 24" LED Lighting Kit with Automatic Shut off. Enclosed Console Control Power Unit. Krown Industrial-grade Rust Proofing. Premium Double Baked Power Coat Finish. Black Finish Scissor Lift and Base. The S16ALOR1T is made in North America and ALI Certified.

The Autel S16ALOR1TX features bolt-on 18" runway extensions and pneumatic-locking rear slip plates and pneumatic-locking front radius turning plates.

Model Selection:
S16ALOR1T With Standard Runways
S16ALOR1TX Extended With Pneumatic Locking

Bring Your Bay To The Max With the ADAS Bay Max Lift

Maximized Efficiency

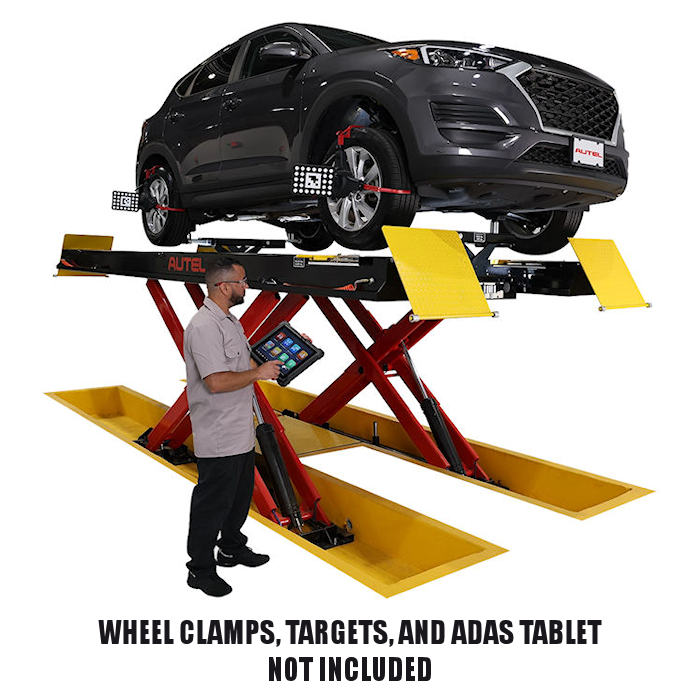

Once the vehicle is driven into the bay an all-systems health check, digital inspection, wheel alignment, and ADAS calibrations can be performed without moving the vehicle to another area of the shop.

Mechanical Repair
Wheel Alignment
All Systems ADAS Calibration

Safer Repairs & Alignments
The innovative flush-mount, H shape, and table riser configuration allow for safer and more efficient repairs and wheel alignments by eliminating the obstructions of a 4-post lift or the tripping hazards of a recessed pit.

North American Quality and Build

Premium Features & Materials
With additional state-of-the-art features like runway air hoses at all four wheels, undercarriage LED lighting, and superior North American steel, parts, and manufacturing, the Autel Scissor Alignment Lifts delivers unparalleled performance, safety, and efficiency.

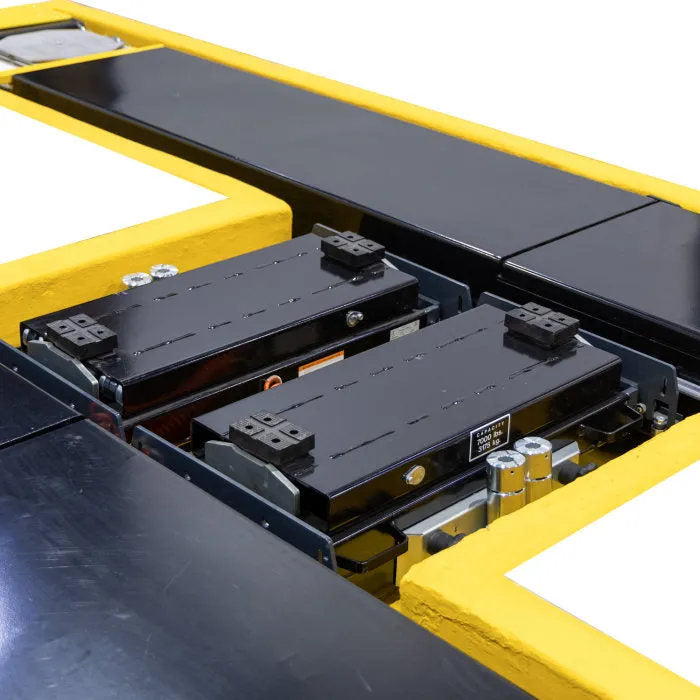

Heavy-Duty Rolling Jacking Beams
Improve productivity with wheel free capabilities: heavy duty low maintenance pump. Stainless steel suspension and rollers. Two handed controls and nickel-plated adapters and extendable arms.

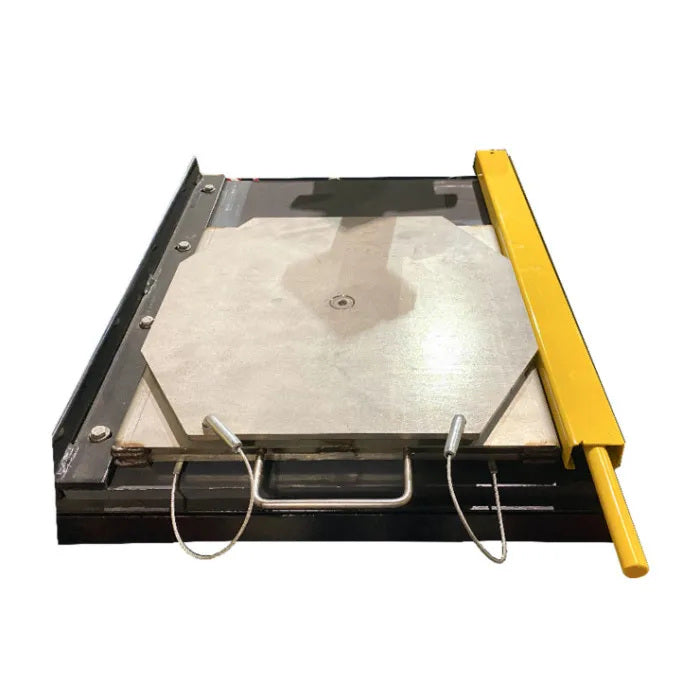

Stainless Steel Front Radius Plates
Heavy duty stainless steel turn-plates are designed to fit within the built-in, recessed pockets, and removable stainless steel alignment-compatible roll back spacer bars provide a flat surface when performing roll back procedures.

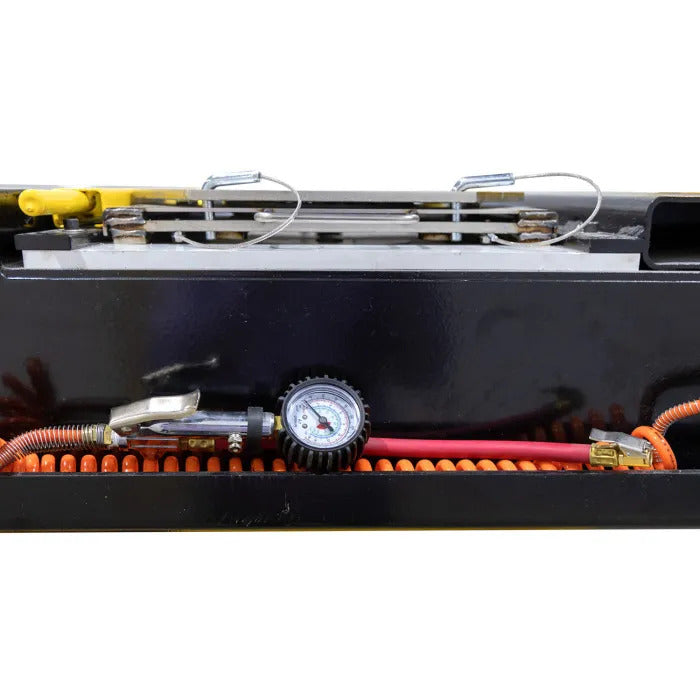

Runway Air Inflation
Built-in runway air outlets and retractable air inflation hoses improve tire inflation productivity.

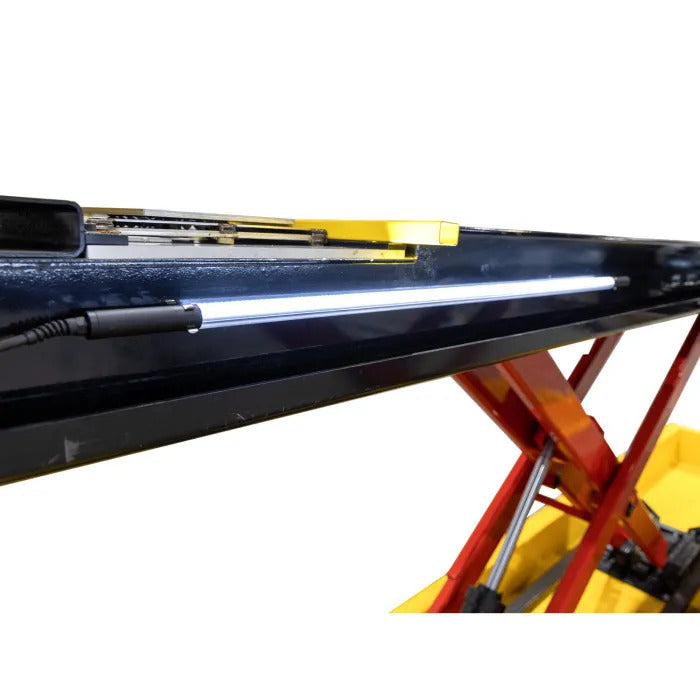

Shatterproof LED Lighting Kits
Built in shatterproof LED runway lighting kits provide better visibility while working underneath the vehicle. Auto shut off feature is triggered when lift is lowered.

Shop Bay Requirements
It's a misconception that ADAS calibration requires large amounts of floor space. With Autel ADAS systems, highly profitable calibrations can be performed in typical alignment and mechanical repair bay environments. Front facing radar and camera calibrations can be performed within an alignment bay with as little as 10 feet available in front of the lift, and forward facing plus blind spot calibrations can be performed within most repair bays by repositioning the vehicle.

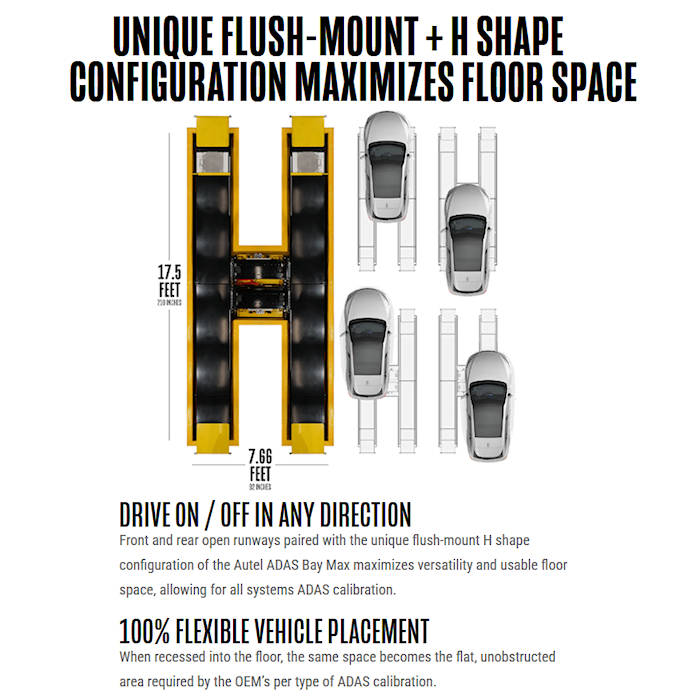

Unique Flush-Mount + H Shape Configuration Maximizes Floor Space

Drive On / Off In Any Direction
Front and rear open runways paired with the unique flush-mount H shape configuration of the Autel ADAS Bay Max maximizes versatility and usable floor space, allowing for all systems ADAS calibration.

100% Flexible Vehicle Placement
When recessed into the floor, the same space becomes the flat, unobstructed area required by the OEM's per type of ADAS calibration.

All Systems ADAS Calibration Within a Standard Alignment or Repair Bay
Most front facing radar and camera calibrations can be performed within a standard alignment bay with as little as 10 feet available in front of the lift. The innovative ADAS Bay Max flush-mount and H shape allow for complete positioning freedom required for blind spot and 360 calibrations.

Features & Specs

Features

16,000 lbs. Capacity ALI Certified Scissor Alignment Lift
Specially Designed to Give More Usable Floor Space & Perform ADAS Calibrations
Exclusive Convenient Jack Storage Floor Lift Table
Open Front And Rear Design With Flush-Mount Installation
203" Or 221" Long x 26" Double Wide Space Saving Runways
Manual Or Pneumatic-Locking Full-Floating Rear Slip Plates
Manual Or Pneumatic-Locking Stainless Steel Front Radius Plates
UHMW Turn Plate Pocket Protectors
Stainless Steel Air Lock Release
Includes Rollback Bars For Vehicle Positioning
Includes (2) 8,000 lbs. Heavy-Duty Air/Hydraulic Rolling jacks With Integrated Rail Detents
Includes Center-Mount Air Outlet Kit, LED Light Kit, And Tire Inflation Air Kits At Each Wheel

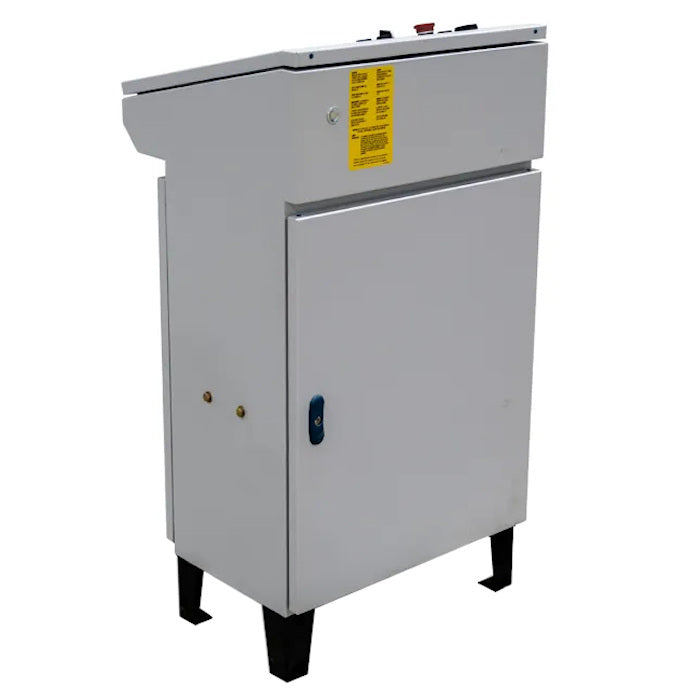

Includes Console-Mounted 220-Volt, Single-Phase Power Unit
Premium Double Baked Powder Coating Finish
Krown Industrial Grade Rust Proofing
Finished In Black Runways And Baseframes, Yellow Front And Rear Ramps, And Red Scissor Assembly
Made in North America

Specifications

Scissor Alignment Lift	12K Capacity	14K Capacity	16K Capacity
Capacity	12,000 lbs. (5.4 T)	14,000 lbs. (6.4 T)	16,000 lbs. (7.3 T)
ALI Certification	Yes	Yes	Yes
Style	Open Front & Rear	Open Front & Rear	Open Front & Rear
Raised Height	74" (1,880mm)	74" (1,880mm)	74" (1,880mm)
Lowered Height	10 3/4" (273mm) Surface 0" (0mm) Flush	10 3/4" (273mm) Surface 0" (0mm) Flush	10 3/4" (273mm) Surface 0" (0mm) Flush
Overall Length Standard	242 3/4" (6,147mm)	260 3/4" (6,604mm)	260 3/4" (6,604mm)
Overall Length Extended	18" (457mm) With P/N: LPRE	18" (457mm) With P/N: LPRE	275 3/4" (7,004mm) With P/N: LPRE
Deck Length Standard	185" (4,699mm)	203" (5,156mm)	203" (5,156mm)
Deck Length Extended	-	-	221" (5,613mm) With P/N: X
Width Between Runways	41" (1,041mm)	41" (1,041mm)	41" (1,041mm)
Runway Deck Width	26" (660mm)	26" (660mm)	26" (660mm)
Overall Width Front/Rear	91 1/2" (2,323mm)	91 1/2" (2,323mm)	91 1/2" (2,323mm)
Max Column Height	-	-	-
Min 4 Wheel Alignment WB	84" (2,134mm)	84" (2,134mm)	84" (2,134mm)
Max 4 Wheel Alignment WB	164" (4,165mm)	164" (4,165mm)	164" (4,165mm)
Min 2 Wheel Alignment WB Std	173" (4,394mm)	173" (4,394mm)	173" (4,394mm)
Min 2 Wheel Alignment WB Ext	-	-	-
Lift Time	58 Seconds	58 Seconds	58 Seconds
Power Requirements	230V 60HZ 1PH 30AMP	230V 60HZ 1PH 30AMP	230V 60HZ 1PH 30AMP
Included Jacking Beam	2 x 6,000 lbs. (2.7 T)	2 x 7,000 lbs. (3.2 T)	2 x 8,000 lbs. (3.6 T)
Shipping Dimensions	48" W x 240" L x 38" H	48" W x 258" L x 38" H	40" W x 253" L x 38" H
Shipping Weight	6,200 lbs. (2,812kg)	6,400 lbs. (2,903kg)	6,401 lbs. (2,903kg)
Part Numbers	AULS12ALOR1 Surface ALUS12ALOR1T Bay Max S12ALOR1FM Flush	AULS14ALOR1 Surface ALUS14ALOR1T Bay Max S14ALOR1FM Flush	S16ALOR1 Surface S16ALOR1X Surface Ext S16ALOR1T Bay Max S16ALOR1TX Bay Max Ext S16ALOR1FM Flush S16ALOR1FMX Flush Ext
