AMGO 409-HP Four Post Parking Lift

In stock
SKU
409-HP
Guaranteed Lowest Price $3,291.00 Regular Price $3,679.00
INCLUDES FREE SHIPPING*

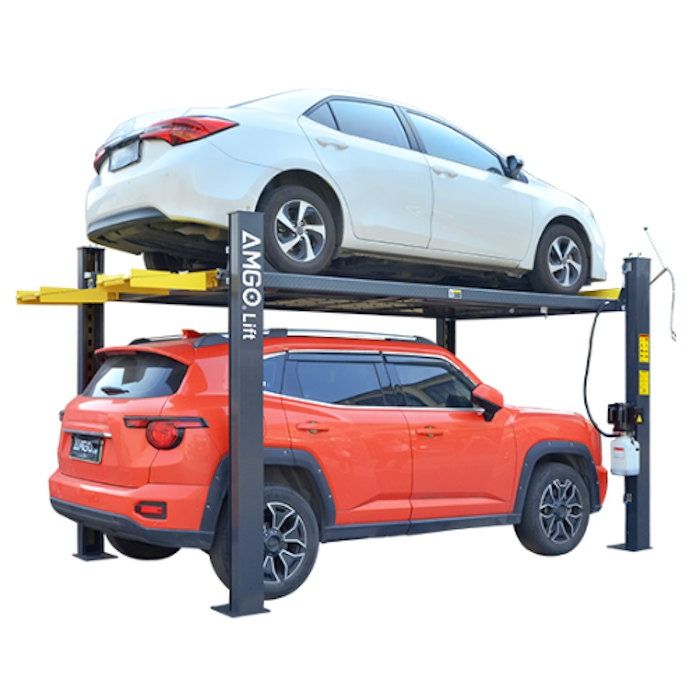

AMGO 409-HP Commercial Grade Four Post
Parking Lift 9,000 lbs. Capacity

AMGO's 409-HP Commercial Grade Four Post Parking Lift for cars, vans and light trucks is similar to AMGO models 408-P and 409-P. It is longer than the 409-P, wider than the 408-P, faster than the 408-P, and more powerful than the 408-P. The 409-HP is the perfect choice for commercial garages trying to save space and maximize performance. The 409-HP requires no special foundation or complicated installation and is about the size of a typical parking space. These features, and more, make the AMGO 409-HP one of the best commercial use lifts in the world.

ALL ACCESSORIES ARE SOLD SEPARATELY
(Caster Kit, Drip Trays, Jack Platform, 90° Motor Bracket)

Description

AMGO Hydraulics AMGO 409-HP Commercial Grade Four Post Parking Lift 9,000 lbs. Capacity
AMGO's 409-HP Commercial Grade Four Post Parking Lift for cars, vans and light trucks is similar to AMGO models 408-P and 409-P. It is longer than the 409-P, wider than the 408-P, faster than the 408-P, and more powerful than the 408-P. The 409-HP is the perfect choice for commercial garages trying to save space and maximize performance. The 409-HP requires no special foundation or complicated installation and is about the size of a typical parking space. These features, and more, make the AMGO 409-HP one of the best commercial use lifts in the world.

Features and Specs

Features

  • 9,000 lbs lifting capacity, which is perfect for light duty vehicles
  • AMGO exclusive hidden safety locks and manual single-point release device allows for operators to unlock the safety locks from one column simultaneous
  • Double-S shaped columns help increase the columns strength
  • Skid Proof Diamond Platform provides traction for the tires to stay put
  • Flexible Design: The power side column can be installed at any corner
  • Portable design, can easily be moved by using the optional caster kits
  • Optional Parts:
    • Jack Tray: No. 410062
    • 90° Motor Bracket: No. 40802
    • Set of (4) Caster Kit: No. 40801
    • Set of (4) Plastic Oil Trays: No. 410141
  • Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two Years on Electrical Components

Specifications

Dimensions

  • Lifting Capacity: 9,000 lbs. (4000 kg)
  • Lifting Time: 54 s
  • A: Overall Length(Inc. Ramps): 230-5/8" (5857mm)
  • B: Overall Length(No Inc. Ramps): 196-7/8" (5000mm)
  • C: Overall Width: 126-1/4" (3206mm)
  • D: Width Between Posts: 112-5/8" (2860mm)
  • E: Lifting Height: 85-1/2" (2172mm)
  • F: Overall Height: 94-5/8" (2405mm)
  • G: Minmum Height: 6-1/8" (155mm)
  • H: Runway Width: 20" (508mm)
  • I: Drive-Thru Clearance: 98-1/4" (2496mm)
  • J: Width Between Columns: 42-3/8" (1077mm)
  • Motor: 1.0HP 110V/60Hz | 2.0HP 220V/60Hz
  • Gross Weight: 1,993 lbs (904 kg)

AMGO 5/3/2 Warranty AMGO Hydraulics offers the Best Warranty in the Industry
AMGO Hydraulics offers the Best Warranty in the Industry
5 Year Warranty for Steel Structure
3 Year Warranty for Hydraulic Parts
2 Year Warranty for Electrical Components

Any items received that fall into the warranty category, (inoperable, or manufacturer’s defect) should be handled under manufacturer’s written warranty conditions. Customer should call AMGO Hydraulic Corporation to have us troubleshoot problem by phone first. Warranty conditions will be provided with all shipments. We will happily assist customers with any warranty service.

AMGO Hydraulic Corporation offers one of the best warranties in the business with warranties as follows: 1. Steel Structure Components (including columns, carriages, lifting arms, top beam, floor cover, platform, cross beam, car drive-in ramp, scissor, base plate, etc.) Warranty for Five (5) Years. 2. Hydraulic Parts (including cylinders, oil seal, oil hose, fitting etc.) Warranty for Three (3) Years. 3. Other Parts(not including consumption parts such as rubber pads), electrical components, power unit have Warranty for Two (2) Years. Warranty coverage would be applicable to the 48 contiguous states. If outside the 48 contiguous states, please call AMGO Hydraulic Corporation. If warranty parts are needed, AMGO Hydraulic Corporation will send them out at our own cost at standard ground shipping rate. If customer needs parts more quickly, it will be the customer’s responsibility to pay for expedited shipping charges. AMGO Hydraulic Corporation will not compensate customers for down time when their equipment is out of service. AMGO Hydraulic Corporation will not compensate customers for time lost if freight is not delivered on the date or time estimated by the freight company.
