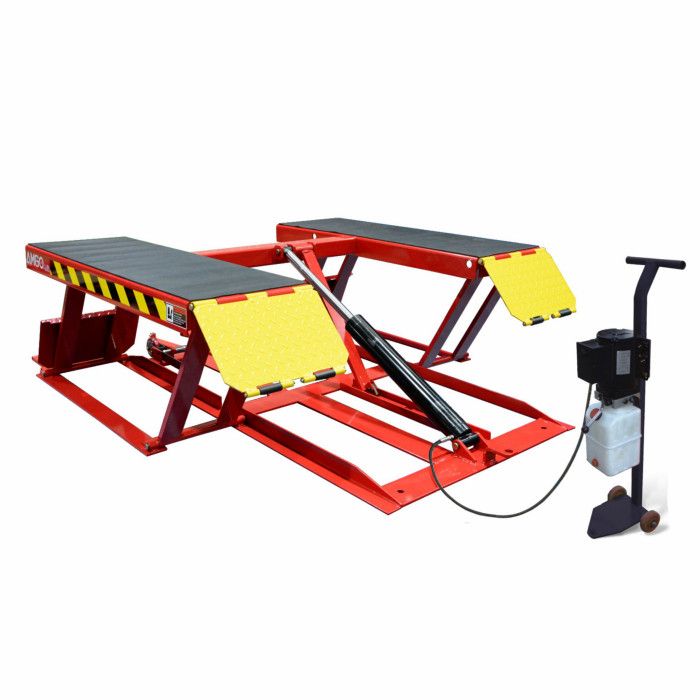

AMGO LR06 Portable Low-Rise Lift

Features

• 6,000 lbs. lifting capacity
• Multiple safety locks with mechanical release
• Portable, Easy to move with power unit stand
• High speed: From 105-600 mm (4-1/8" - 23-5/8") in just 25 seconds
• High density rubber pads included

Specifications

• Lifting Capacity: 6,000 lbs. (2,800 kg)
• Lifting Time: 25S
• A1: Lifting Height: 23-5/8" (600mm)
• A2: Minimum Height: 4-1/8" (105mm)
• B: Runway Length: 53-1/4" (1352mm)
• C: Overall Width: 70" (1780mm)
• D: Runway Width: 18" (456mm)
• E: Overall Length: 76-1/4" (1938mm)
• Gross Weight: 849 lbs. (385 kg)
• Motor: 1.0HP 110V/60Hz, single phase
• Warranty: (5) Years Steel Structure, (3) Years Hydraulic Parts, (2) Years Electrical Components, No Labor

AMGO Hydraulics offers the Best Warranty in the Industry
5 Year Warranty for Steel Structure
3 Year Warranty for Hydraulic Parts
2 Year Warranty for Electrical Components

Any items received that fall into the warranty category, (inoperable, or manufacturer's defect) should be handled under manufacturer’s written warranty conditions. Customer should call AMGO Hydraulic Corporation to have us troubleshoot problem by phone first. Warranty conditions will be provided with all shipments. We will happily assist customers with any warranty service.

AMGO Hydraulic Corporation offers one of the best warranties in the business with warranties as follows: 1. Steel Structure Components (including columns, carriages, lifting arms, topbeam, floor cover, platform, cross beam, car drive-in ramp, scissor, base plate, etc.) Warranty for Five (5) Years. 2. Hydraulic Parts (including cylinders, oil seal, oil hose, fitting etc.) Warranty for Three (3) Years. 3. Other Parts (not including consumption parts such as rubber pads), electrical components, power unit have Warranty for Two (2) Years. Warranty coverage would be applicable to the 48 contiguous states. If outside the 48 contiguous states, please call AMGO Hydraulic Corporation. If warranty parts are needed, AMGO Hydraulic Corporation will send them out at our own cost at standard ground shipping rate. If customer needs parts more quickly, it will be the customer's responsibility to pay for expedited shipping charges. AMGO Hydraulic Corporation will not compensate customers for down time when their equipment is out of service. AMGO Hydraulic Corporation will not compensate customers for time lost if freight is not delivered on the date or time estimated by the freight company.
