AMGO PRO-12ASX Four Post Alignment Lift

In stock
SKU
PRO-12ASX
Guaranteed Lowest Price $5,545.00 Regular Price $6,090.00
INCLUDES FREE SHIPPING*

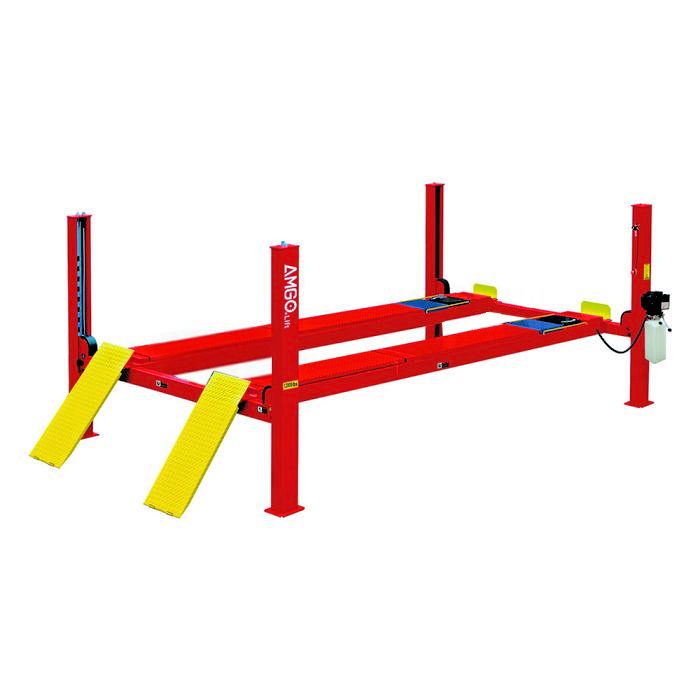

AMGO PRO-12ASX Commercial Grade Four Post Alignment Lift
Need alignment work done on everyday vehicles? This is the lift for you! With double safety locks to ensure you and your vehicle are always safe, you can feel secure with your work. The PRO-12ASX is a wider Four Post Lift with the same advance features as AMGO other products. With great performance, this is the perfect lift to meet the needs of garage and shop owners.
Turnplates not included.

Description

AMGO Hydraulics AMGO PRO-12ASX Commercial Grade Four Post Alignment Lift
Need alignment work done on everyday vehicles? This is the lift for you! With double safety locks to ensure you and your vehicle are always safe, you can feel secure with your work. The PRO-12ASX is a wider Four Post Lift with the same advance features as AMGO other products. With great performance, this is the perfect lift to meet the needs of garage and shop owners.
Turnplates not included.

Features and Specs

Features

  • 12,000 lbs lifting capacity
  • Air-released safety lock for convenient operation and reliability
  • Mechanical self-locking device and cable breaking protection
  • 1/2" aircraft quality cable
  • Optional adjustable turnplate pockets to fit different wheel bases
  • Skid proof diamond platform
  • Hydraulic cylinders are designed to high quality standards using high quality seals
  • Strict quality control of cylinders with flow restrictors to keep a constant low speed
  • Optional adjustable turnplate pockets to fit different wheel bases
  • Optional Rolling Jacks:
    • J6H 6,000lbs manual control
    • J6A 6,000lbs pneumatic pump
  • More Options:
    • Optional TurnPlate Set: No. 40101
    • Optional led lights: No. 40102001
    • Optional extension kit: No. 40903
    • Optional air line kit: No. 40102
  • Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two Years on Electrical Components

Specifications

  • Style: Alignment
  • Lifting Capacity: 12,000 lbs (5,500 kg)
  • Lifting Time: 45 s

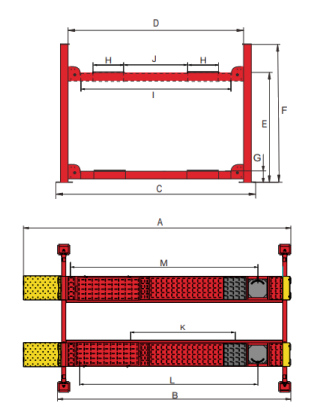

  • A: Overall Length (Inc.Ramps): 232-5/8" (5910mm)
  • B: Overall Length (No.Ramps): 196-3/4" (4998mm)
  • C: Overall Width: 132-1/8" (3356mm)
  • D: Width Between Columns: 118-1/8" (3000mm)
  • E: Lifting Height: 75-3/8" (1915mm)
  • F: Overall Height: 86" (2185mm)
  • G: Minimum Height: 8-5/8" (220mm)
  • H: Runway Width: 20" (508mm)
  • I: Drive-Thru Clearance: 104-1/8" (2646mm)
  • J: Width Between Runways: 43-1/4" (1100mm)
  • J: Width Between Runways: Max. 53-3/4" (1365mm)
  • K: Min. Four Wheel Align: 81-7/8" (2080mm)
  • L: Max. Four Wheel Align: 151-5/8" (3850mm)
  • M: Max. Two Wheel Align: 157-1/2" (4000mm)
  • Gross Weight: 2,520 lbs (1,143 kg)
  • Motor: 2.0HP, 220V/60Hz Single Phase

AMGO 5/3/2 WarrantyAMGO Hydraulics offers the Best Warranty in the Industry
AMGO Hydraulics offers the Best Warranty in the Industry
5 Year Warranty for Steel Structure
3 Year Warranty for Hydraulic Parts
2 Year Warranty for Electrical Components

Any items received that fall into the warranty category, (inoperable, or manufacturer’s defect) should be handled under manufacturer’s written warranty conditions. Customer should call AMGO Hydraulic Corporation to have us troubleshoot problem by phone first. Warranty conditions will be provided with all shipments. We will happily assist customers with any warranty service.

AMGO Hydraulic Corporation offers one of the best warranties in the business with warranties as follows: 1. Steel Structure Components (including columns, carriages, lifting arms, top beam, floor cover, platform, cross beam, car drive-in ramp, scissor, base plate, etc.) Warranty for Five (5) Years. 2. Hydraulic Parts (including cylinders, oil seal, oil hose, fitting etc.) Warranty for Three (3) Years. 3. Other Parts(not including consumption parts such as rubber pads), electrical components, power unit have Warranty for Two (2) Years. Warranty coverage would be applicable to the 48 contiguous states. If outside the 48 contiguous states, please call AMGO Hydraulic Corporation. If warranty parts are needed, AMGO Hydraulic Corporation will send them out at our own cost at standard ground shipping rate. If customer needs parts more quickly, it will be the customer’s responsibility to pay for expedited shipping charges. AMGO Hydraulic Corporation will not compensate customers for down time when their equipment is out of service. AMGO Hydraulic Corporation will not compensate customers for time lost if freight is not delivered on the date or time estimated by the freight company.
