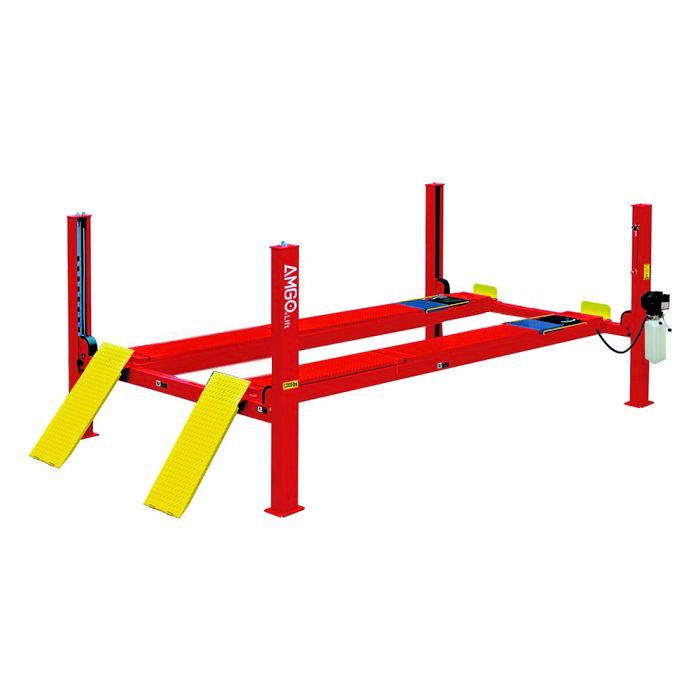

AMGO PRO-14A Four Post Alignment Lift

Features

• 14,000 lbs. lifting capacity
• Air-Lock Released for Safety and Reliability of Convenient Operation
• Mechanical Self-Lock and Cable-Breaking Protection
• Skid Proof Diamond Platform
• 1/2" Aircraft at Quality Cable
• Hydraulic cylinders are designed and made to high quality standards
• Strict quality control of cylinders with flow restrictors to keep a constant low speed
• Width of the platform is 20" (508mm)
• Width between the platforms is adjustable to a maximum of 54-1/2" (1385mm)
• Optional Rolling Jacks:
• RJ-8A: Pneumatic Hydraulic Type 8,000 lbs. (3,500kg)
• RJ-10A: Pneumatic Hydraulic Type 10,000 lbs. (4,500kg)
• More Options:
• Optional LED Lights: No. 40102001
• Optional Extension Kits: No. 41403
• Optional Air Line Kits: No. 40102

Specifications

• Style: Alignment
• Lifting Capacity: 14,000 lbs. (6,500kg)
• Lifting Time: 76 s

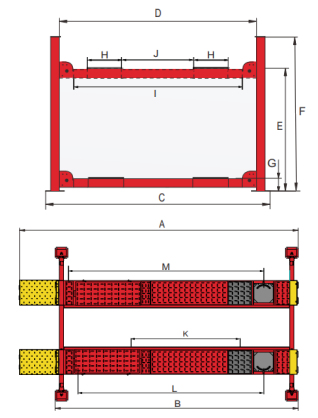

• A: Overall Length (Inc. Ramps): 257" (6528mm)
• B: Overall Length (No. Ramps): 216-1/2" (5500mm)
• C: Overall Width: 130-7/8" (3324mm)
• D: Width Between Columns: 116" (2946mm)
• E: Lifting Height: 75-3/8" (1915mm)
• F: Overall Height: 86" (2185mm)
• G: Minimum Height: 9-7/8" (250mm)
• H: Runway Width: 20" (508mm)
• I: Drive-Thru Clearance: 102-1/8" (2592mm)
• J: Width Between Runways: 47" (1194mm)
• J: Max. Width Between Runways: 54-1/2" (1385mm)
• K: Min. Four Wheel Align: 92-1/2" (2350mm)
• L: Max. Four Wheel Align: 169-5/8" (4310mm)
• M: Max. Two Wheel Align: 175-1/4" (4450mm)
• Motor: 2.0HP, 220V/60Hz Single Phase
• Gross Weight: 3,395 lbs. (1,540kg)
• Warranty: (5) Years Steel Structure, (3) Years Hydraulic Parts, (2) Years Electrical Components, No Labor

AMGO Hydraulics offers the Best Warranty in the Industry
5 Year Warranty for Steel Structure
3 Year Warranty for Hydraulic Parts
2 Year Warranty for Electrical Components

Any items received that fall into the warranty category, (inoperable, or manufacturer's defect) should be handled under manufacturer’s written warranty conditions. Customer should call AMGO Hydraulic Corporation to have us troubleshoot problem by phone first. Warranty conditions will be provided with all shipments. We will happily assist customers with any warranty service.

AMGO Hydraulic Corporation offers one of the best warranties in the business with warranties as follows: 1. Steel Structure Components (including columns, carriages, lifting arms, topbeam, floor cover, platform, cross beam, car drive-in ramp, scissor, base plate, etc.) Warranty for Five (5) Years. 2. Hydraulic Parts (including cylinders, oil seal, oil hose, fitting etc.) Warranty for Three (3) Years. 3. Other Parts (not including consumption parts such as rubber pads), electrical components, power unit have Warranty for Two (2) Years. Warranty coverage would be applicable to the 48 contiguous states. If outside the 48 contiguous states, please call AMGO Hydraulic Corporation. If warranty parts are needed, AMGO Hydraulic Corporation will send them out at our own cost at standard ground shipping rate. If customer needs parts more quickly, it will be the customer's responsibility to pay for expedited shipping charges. AMGO Hydraulic Corporation will not compensate customers for down time when their equipment is out of service. AMGO Hydraulic Corporation will not compensate customers for time lost if freight is not delivered on the date or time estimated by the freight company.
