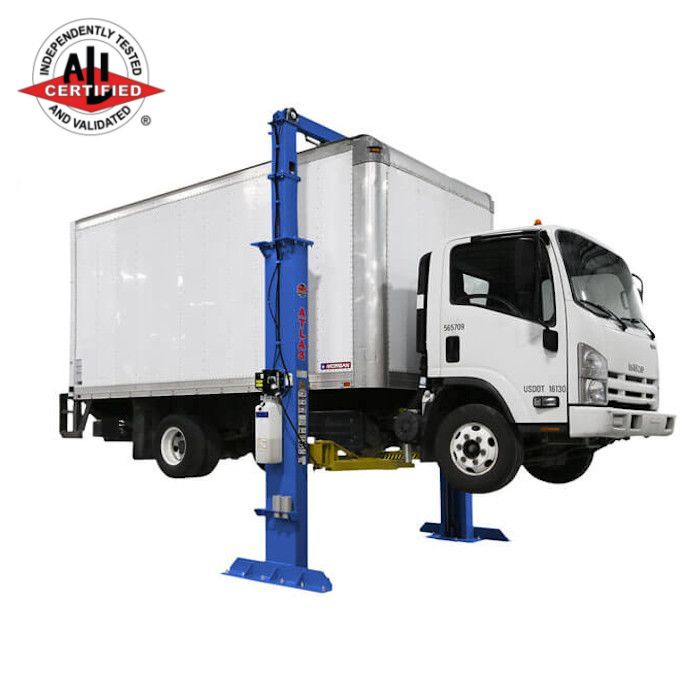

Atlas Platinum PVL-15 ALI Certified Two Post Lift

Features

• ALI Certified
• 15,000 lbs. Capacity
• Adjustable Height - 14' 6-1/2"
• Professional grade arm lock restraint system
• Higher quality powder coating
• Premium ALLY Power Unit
• Dual Point Lock Release
• Truck adapter set included
• Mounting Hardware Included

Specifications

• Capacity: 15,000 lbs.
• Overall Height: 174-1/2" (14' 6-1/2")
• Shut-Off Height: 164-1/4" (13' 8-1/4")
• Overall Width (with motor): 154-1/2" (12' 10-1/2")
• Overall Width (without motor): 148" (12' 4")
• Outside Column to Outside Column: 135" (11' 3")
• Maximum Lift Height (with Truck Adapters): 87-1/2" (7' 3-1/2")
• Maximum Lift Height (without Truck Adapters): 72-3/4" (6' 3/4")
• Adapter Sizes: 10" & 5" with 2-3/4" peg
• Minimum Pad Height: 5-3/4"
• Between Columns: 119-1/4" (9' 11-1/4")
• Drive Through: 107-1/2" (8' 11-1/2")
• Arm Length: 36" - 52" (3' - 4' 4")
• Column Dimensions: 14-1/2" x 8"
• Thickness of Steel: 8mm
• Cable Diameter: 0.375"
• Motor: 220 Volt, Single (1) Phase
• Electrical Requirement: 30 Amp Breaker Recommended
• Oil Requirement: 3-5 Gallons AW32/AW46
• Shipping Weight: 2,400 lbs.
• Warranty: 5 Years Structure, 2 Years Hydraulic Power Units & Cylinders, No Labor

5 Year Structural & 2 Year Hydraulic Warranty
Atlas Platinum Series Two-Post Lifts are warranted for five (5) years on structural components and two (2) years on the hydraulic system, power unit and cylinders effective from date of invoice. Wear items carry a 90-day warranty. Structural components are considered the Carriage, Columns, Yokes, Arms, Runways, Plungers, etc. Hydraulic components are cylinders, hoses, and fittings. Cables, sheaves, latches and controls are considered wear items.

This LIMITED warranty policy does not include a labor warranty.

NOTE: ALL WARRANTY CLAIMS MUST BE PRE-APPROVED BY THE MANUFACTURER TO BE VALID.

The Manufacturer shall repair or replace at their option for this period those parts returned to the factory freight prepaid, which prove after inspection to be defective. This warranty will not apply unless the product is installed, used and maintained in accordance with the Manufacturers installation, operation and maintenance instructions.

This warranty applies to the ORIGINAL purchaser only, and is non-transferable. The warranty covers the products to be free of defects in material and workmanship but, does not cover normal maintenance or adjustments, damage or malfunction caused by: improper handling, installation, abuse, misuse, negligence, carelessness of operation or normal wear and tear. In addition, this warranty does not cover equipment when repairs or alterations have been made or attempted to the Manufacturer's products.

CE Tested And Approved
The letters 'CE' appear on many products that are traded in the European Economic Area (EEA). There are 27 member states of the EU and European Free Trade Association. The CE marking attests the verification by a manufacturer that products meet EU safety requirements. It is the manufacturer’s responsibility to carry out the conformity assessment. Conformity assessment testing was performed by CCQS UK Ltd. www.ccqs.co.uk

This Atlas lift (structure and hydraulics) has been tested and has passed the CE conformity requirements. Atlas lifts sold in the USA and Canada use a different power unit than those required by CE. CE requires an electrical control box (with solenoids) that actuates the hydraulic power unit.

Electric power units supplied with above ground lifts in the USA and Canada do not require the electronic control box; therefore the power unit was not tested to CE approval requirements. If you have questions relating to the power unit supplied with your lift, please discuss these with your salesman.

If you are customer from the EU or other foreign county that requires CE approval, please contact our sales office to see how we can help.

Electrical Requirements
The electric motor for the power unit requires 220 Volt (single phase) 60 Hz (+/- 5%, so 209-231 volts). We recommend using at least a 10 gauge (grounded) wire from the electrical panel. The power unit may or may not have a short pigtail (no plug) that can be wired to either an optional quick disconnect box (mounted on the lift column) or to a male/female plug combination. A 30 amp breaker is required.
